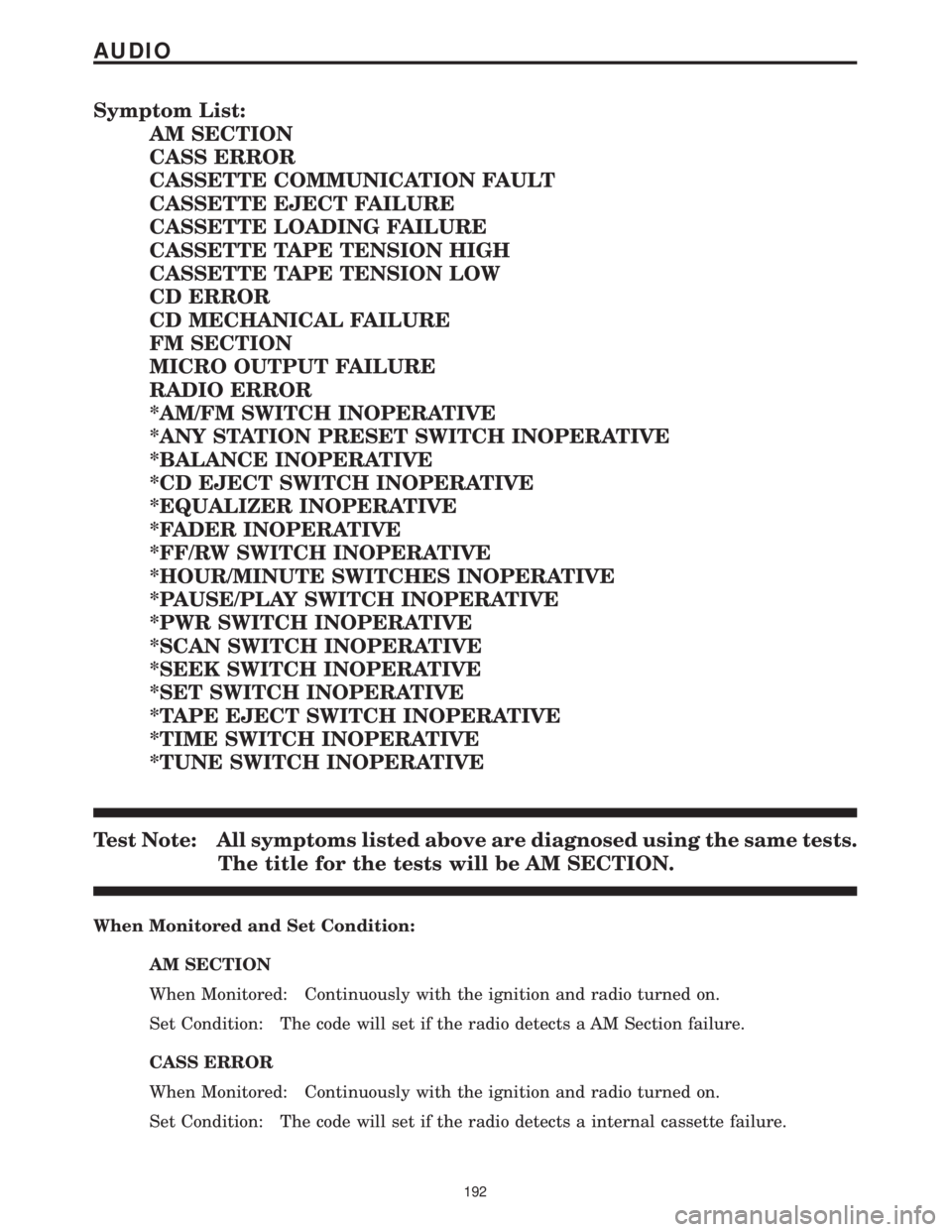

Symptom List:
AM SECTION
CASS ERROR
CASSETTE COMMUNICATION FAULT
CASSETTE EJECT FAILURE
CASSETTE LOADING FAILURE
CASSETTE TAPE TENSION HIGH
CASSETTE TAPE TENSION LOW
CD ERROR
CD MECHANICAL FAILURE
FM SECTION
MICRO OUTPUT FAILURE
RADIO ERROR
*AM/FM SWITCH INOPERATIVE
*ANY STATION PRESET SWITCH INOPERATIVE
*BALANCE INOPERATIVE
*CD EJECT SWITCH INOPERATIVE
*EQUALIZER INOPERATIVE
*FADER INOPERATIVE
*FF/RW SWITCH INOPERATIVE
*HOUR/MINUTE SWITCHES INOPERATIVE
*PAUSE/PLAY SWITCH INOPERATIVE
*PWR SWITCH INOPERATIVE
*SCAN SWITCH INOPERATIVE
*SEEK SWITCH INOPERATIVE
*SET SWITCH INOPERATIVE
*TAPE EJECT SWITCH INOPERATIVE
*TIME SWITCH INOPERATIVE
*TUNE SWITCH INOPERATIVE
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be AM SECTION.
When Monitored and Set Condition:
AM SECTION
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a AM Section failure.
CASS ERROR
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a internal cassette failure.
192
AUDIO

CASSETTE COMMUNICATION FAULT
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a cassette com failure.
CASSETTE EJECT FAILURE
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a cassette eject failure.
CASSETTE LOADING FAILURE
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a cassette loading failure.
CASSETTE TAPE TENSION HIGH
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a internal cassette failure.
CASSETTE TAPE TENSION LOW
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a internal cassette failure.
CD ERROR
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a internal CD failure.
CD MECHANICAL FAILURE
When Monitored: Continuously with the ignition and CD player turned on.
Set Condition: The code will set if the radio detects a CD mechanical failure.
FM SECTION
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a FM Section failure.
RADIO ERROR
When Monitored: Continuously with the ignition and radio turned on.
Set Condition: The code will set if the radio detects a internal radio failure.
193
AUDIO
AM SECTION ÐContinued

POSSIBLE CAUSES
INTERNAL FAILURE
TEST ACTION APPLICABILITY
1NOTE: If a DTC is set, erase the DTC and attempt to reset the DTC. If DTC
resets, follow this test.
This is an internal radio failure.
View repairAll
Repair
Replace the Radio.
Perform BODY VERIFICATION TEST - VER 1.
194
AUDIO
AM SECTION ÐContinued

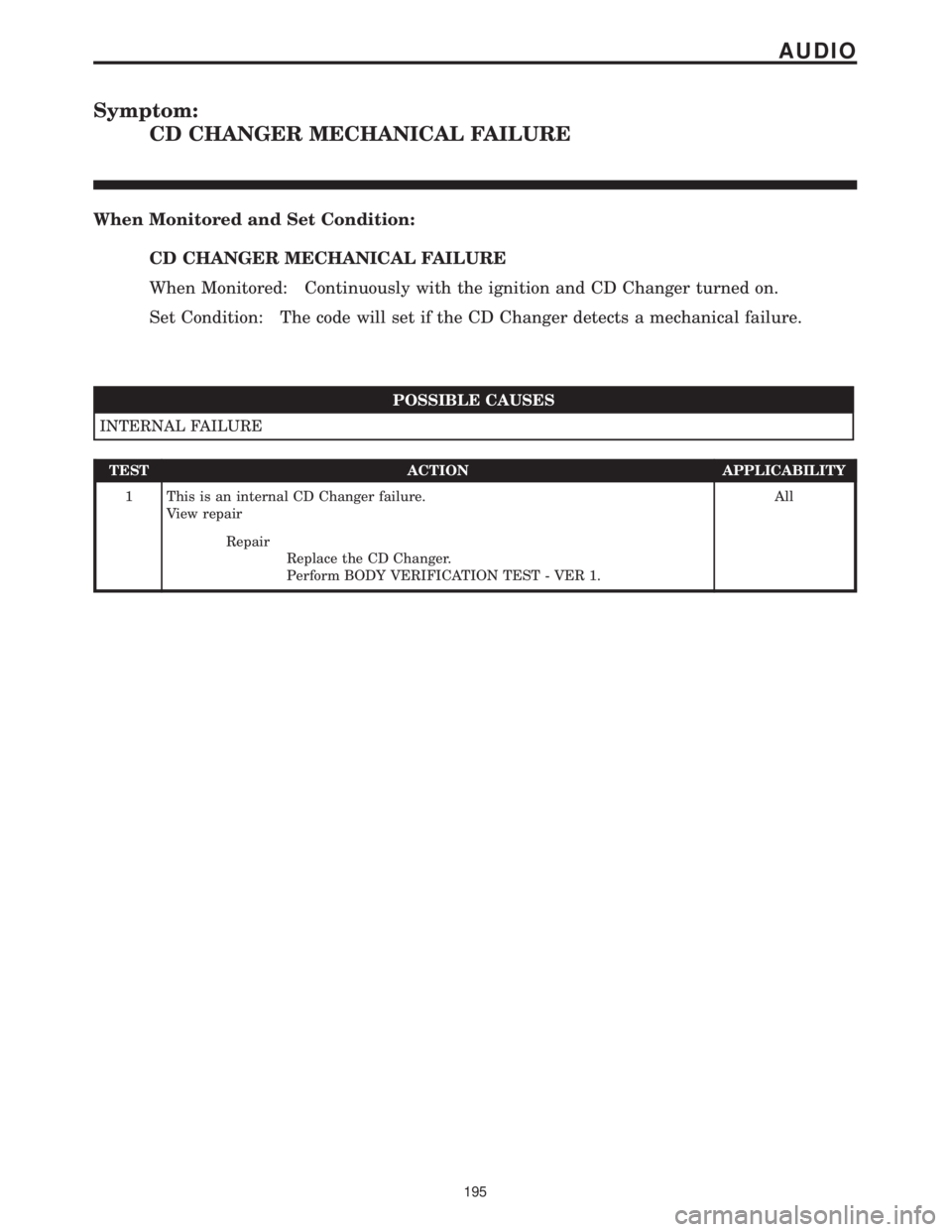

Symptom:
CD CHANGER MECHANICAL FAILURE
When Monitored and Set Condition:
CD CHANGER MECHANICAL FAILURE
When Monitored: Continuously with the ignition and CD Changer turned on.
Set Condition: The code will set if the CD Changer detects a mechanical failure.
POSSIBLE CAUSES
INTERNAL FAILURE
TEST ACTION APPLICABILITY
1 This is an internal CD Changer failure.
View repairAll
Repair
Replace the CD Changer.
Perform BODY VERIFICATION TEST - VER 1.
195
AUDIO

Symptom List:
CD CHANGER PLAY FAILURE
CD CHANGER READ FAILURE
IMPROPER DISK IN CD CHANGER
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be CD CHANGER PLAY FAILURE.
When Monitored and Set Condition:
CD CHANGER PLAY FAILURE
When Monitored: Continuously with the ignition and CD Changer turned on.
Set Condition: If the CD is scratched, dirty, so that the head cannot play the disk, the
code will set.
CD CHANGER READ FAILURE
When Monitored: Continuously with the ignition and CD Changer turned on.
Set Condition: The code will set if a CD that is not formatted as a music CD is installed
in the CD Changer.
IMPROPER DISK IN CD CHANGER
When Monitored: Continuously with the ignition and CD Changer turned on.
Set Condition: The code will set if a CD that is not formatted as a music CD is installed
in the CD Changer.
POSSIBLE CAUSES
CD CHANGER PLAY OR READ FAILURE
TEST ACTION APPLICABILITY
1 Replace the problem CD with a good, clean, unscratched, music CD.
Turn the radio on and select the good CD.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay CD CHANGER PLAY FAILURE, READ FAILURE, or
IMPROPER DISK IN CD CHANGER?All
Ye s®Replace the CD Changer.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
196
AUDIO

Symptom:
CD CHANGER POWER SUPPLY TOO HIGH
When Monitored and Set Condition:
CD CHANGER POWER SUPPLY TOO HIGH
When Monitored: Continuously with the ignition and CD Changer turned on.
Set Condition: The code will set if the radio detects voltage above 16.0 volts for 5 seconds.
POSSIBLE CAUSES
CD CHANGER POWER SUPPLY TOO HIGH
POWER SUPPLY OF CD CHANGER
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Disconnect the CD Changer harness connector.
Start the engine.
Measure the voltage of the Ignition Switch Output circuit.
Is the voltage above 16.0 volts?All
Ye s®Repair the charging system as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the CD Changer.
Perform BODY VERIFICATION TEST - VER 1.
197
AUDIO

Symptom List:
CD CHANGER TEMPERATURE HIGH
CD CHANGER TEMPERATURE LOW
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be CD CHANGER TEMPERATURE
HIGH.
When Monitored and Set Condition:
CD CHANGER TEMPERATURE HIGH
When Monitored: Continuously with the ignition and CD Changer turned on.
Set Condition: The code will set if the temperature inside the CD Changer is above +65É
C (+145É F).
CD CHANGER TEMPERATURE LOW
When Monitored: Continuously with the ignition and CD Changer turned on.
Set Condition: The code will set if the temperature inside the CD Changer is below -23É
C (-10É F).
POSSIBLE CAUSES
LOW OR HIGH TEMPERATURE FAILURE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the audio DTC's.
Start the engine and allow the engine to reach normal operating temperature.
If the vehicle has been in the hot sunlight or extreme cold move the vehicle indoors
and open the doors to allow the inside temperature to stabilize.
The CD Changer will operate between -23É C and 65É C (-10É F and +145É F).
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay CD CHANGER TEMPERATURE LOW or CD CHANGER
TEMPERATURE HIGH?All
Ye s®Replace the CD Changer.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
198
AUDIO

Symptom List:
CD PLAY FAILURE
CD READ FAILURE
IMPROPER DISK IN CD
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be CD PLAY FAILURE.
When Monitored and Set Condition:
CD PLAY FAILURE
When Monitored: Continuously with the ignition and the radio CD player turned on.
Set Condition: If the CD is scratched, dirty, so that the head cannot play the disk, the
code will set.
CD READ FAILURE
When Monitored: Continuously with the ignition and the radio CD player turned on.
Set Condition: The code will set if a CD that is not formatted as a music CD is installed
in the radio CD player.
IMPROPER DISK IN CD
When Monitored: Continuously with the ignition and the radio CD player turned on.
Set Condition: The code will set if a CD that is not formatted as a music CD is installed
in the radio CD player.
POSSIBLE CAUSES
CD PLAY, READ OR IMPROPER DISK FAILURE
TEST ACTION APPLICABILITY
1 Replace the problem CD with a good, clean, unscratched, music CD.
Turn the radio CD player on.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay CD PLAY FAILURE, CD READ FAILURE, or IMPROPER
DISK IN CD?All
Ye s®Replace the Radio.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
199
AUDIO

Symptom List:
CD TEMPERATURE HIGH
CD TEMPERATURE LOW
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be CD TEMPERATURE HIGH.
When Monitored and Set Condition:
CD TEMPERATURE HIGH
When Monitored: Continuously with the ignition and the radio CD player turned on.
Set Condition: The code will set if the temperature inside the radio CD player is above
+65É C (+145É F).
CD TEMPERATURE LOW
When Monitored: Continuously with the ignition and the radio CD player turned on.
Set Condition: The code will set if the temperature inside the radio CD player is below
-23É C (-10É F).
POSSIBLE CAUSES
LOW OR HIGH TEMPERATURE FAILURE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, erase the audio DTC's.
Start the engine and allow the engine to reach normal operating temperature.
If the vehicle has been in the hot sunlight or extreme cold move the vehicle indoors
and open the doors to allow the inside temperature to stabilize.
The radio CD player will operate between -23É C and 65É C (-10É F and +145É F).
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay CD TEMPERATURE LOW or CD TEMPERATURE
HIGH?All
Ye s®Replace the Radio.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
200
AUDIO

Symptom:
FRONT OUTPUT SHORT
When Monitored and Set Condition:
FRONT OUTPUT SHORT
When Monitored: Ignition in RUN and IOD fuse installed.
Set Condition: The radio has sensed a short on the front output for more than 10 seconds.
POSSIBLE CAUSES
DETERMINE FAULT
LEFT I/P SPEAKER
LEFT FRONT DOOR SPEAKER
RIGHT I/P SPEAKER
RIGHT FRONT DOOR SPEAKER
(+) CIRCUIT SHORTED TO GROUND
(-) CIRCUIT SHORTED TO GROUND
SPEAKER (+) & (-) CIRCUITS SHORTED TOGETHER
SPEAKER SECTION OF RADIO
TEST ACTION APPLICABILITY
1 Turn the ignition on.
Turn the Radio on.
With the DRBIIIt, erase the audio DTC's.
Cycle the ignition switch from off to on and wait 10 seconds.
With the DRBIIIt, read the audio DTC's.
Does the DRBIIItdisplay FRONT OUTPUT SHORT?All
Ye s®Go To 2
No®Refer to the wiring diagrams located in the service information to
help isolate a possible intermittent short.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Left I/P Speaker harness connector.
Turn the ignition on.
Turn the radio on.
With the DRBIIIt, erase the audio DTCs.
Cycle the ignition switch from off to on and wait 10 seconds.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay FRONT OUTPUT SHORT?All
Ye s®Go To 3
No®Replace the Left I/P Speaker.
Perform BODY VERIFICATION TEST - VER 1.
201
