CHRYSLER VOYAGER 2001 Service Manual

Verification Tests
41TE TRANSMISSION VERIFICATION TEST - VER 1 APPLICABILITY
1. Connect the DRBIIItto the Data Link Connector (DLC).
2. Reconnect any disconnected components.
3. With the DRBIIIt, erase all Transmission DTC's, also erase the PCM DTC's.
4. NOTE: Erase DTC P0700 in the PCM to turn the Malfunction Indicator Lamp (MIL)
off after making Transmission repairs.
5. With the DRBIIIt, display Transmission Temperature. Start and run the engine until the
Transmission Temperature is HOT - above 43.33É C or 110É F.
6. Check the Transmission Fluid and adjust if necessary. Refer to the Service information for
the Fluid Fill procedure.
7. NOTE: If the Transmission Control Module or Torque Converter has been replaced
or if the Transmission has been repaired or replaced it is necessary to perform the
DRBIIItQuick Learn Procedure and reset the(Pinion Factor(
8. NOTE: If the Torque Converter is replaced, or if a TCM is replaced on a vehicle
whose Torque Converter has less than 3750 miles and less than 360 minutes of
PEMCC, then with the DRBIIItrestart the TCC Break-In. This is in order to avoid
possible shudder.
9. Road test the vehicle. With the DRBIIIt, monitor the engine RPM. Make 15 to 20 1-2, 2-3,
3-4 upshifts. Perform these shifts from a standing start to 45 MPH with a constant throttle
opening of 20 to 25 degrees.
10. Below 25 MPH, make 5 to 8 wide open throttle kickdowns to 1st gear. Allow at least 5
seconds each in 2nd and 3rd gear between each kickdown.
11. For a specific DTC, drive the vehicle to the Symptom's When Monitored/When Set
conditions to verify the DTC repair.
12. NOTE: Use the EATX OBDII Task Manager to run Good Trip time in each gear, this
will confirm the repair and to ensure that the DTC has not re-matured.
13. Check for Diagnostic Trouble Codes (DTC's) during the road test. If a DTC sets during the
road test , return to the Symptom list and perform the appropriate Symptom.
Were there any Diagnostic Trouble Codes (DTCs) set during the road test?All
Ye s®Refer to the Symptom List for appropriate Symptom(s).
No®Repair is complete.
157
VERIFICATION TESTS

POWERTRAIN VERIFICATION TEST VER - 2 APPLICABILITY
1. NOTE: If the PCM has been replaced and the correct VIN and mileage have not
been programmed, a DTC will be set in the ABS Module, Airbag Module and the
SKIM.
2. NOTE: If the vehicle is equipped with a Sentry Key Immobilizer System, Secret
Key data must be updated. Refer to the Service Information for the PCM, SKIM and
the Transponder (ignition key) for programming information.
3. Inspect the vehicle to ensure that all components related to the repair are connected
properly.
4. With the DRBIIIt, clear DTCs and Reset Memory all engine values.
5. Run the engine for one warm-up cycle to verify proper operation.
6. Road test the vehicle. Use all accessories that may be related to this repair.
7. With the DRBIIIt, confirm that no DTC's or Secondary Indicators are present and that all
components are functioning properly.
8. If this test is being performed after a No Trouble Code test, verify the symptom is no longer
present.
9. If the symptom is still present, or any other symptom or DTC is present refer to the
appropriate category and perform the corresponding symptom.
10. Refer to any Technical Service Bulletins that may apply.
11. If there are no DTCs present and all components are functional properly, the repair is
complete.
Are any DTCs present?All
Ye s®Repair is not complete, refer to appropriate symptom.
No®Repair is complete.
158
VERIFICATION TESTS
Verification Tests ÐContinued

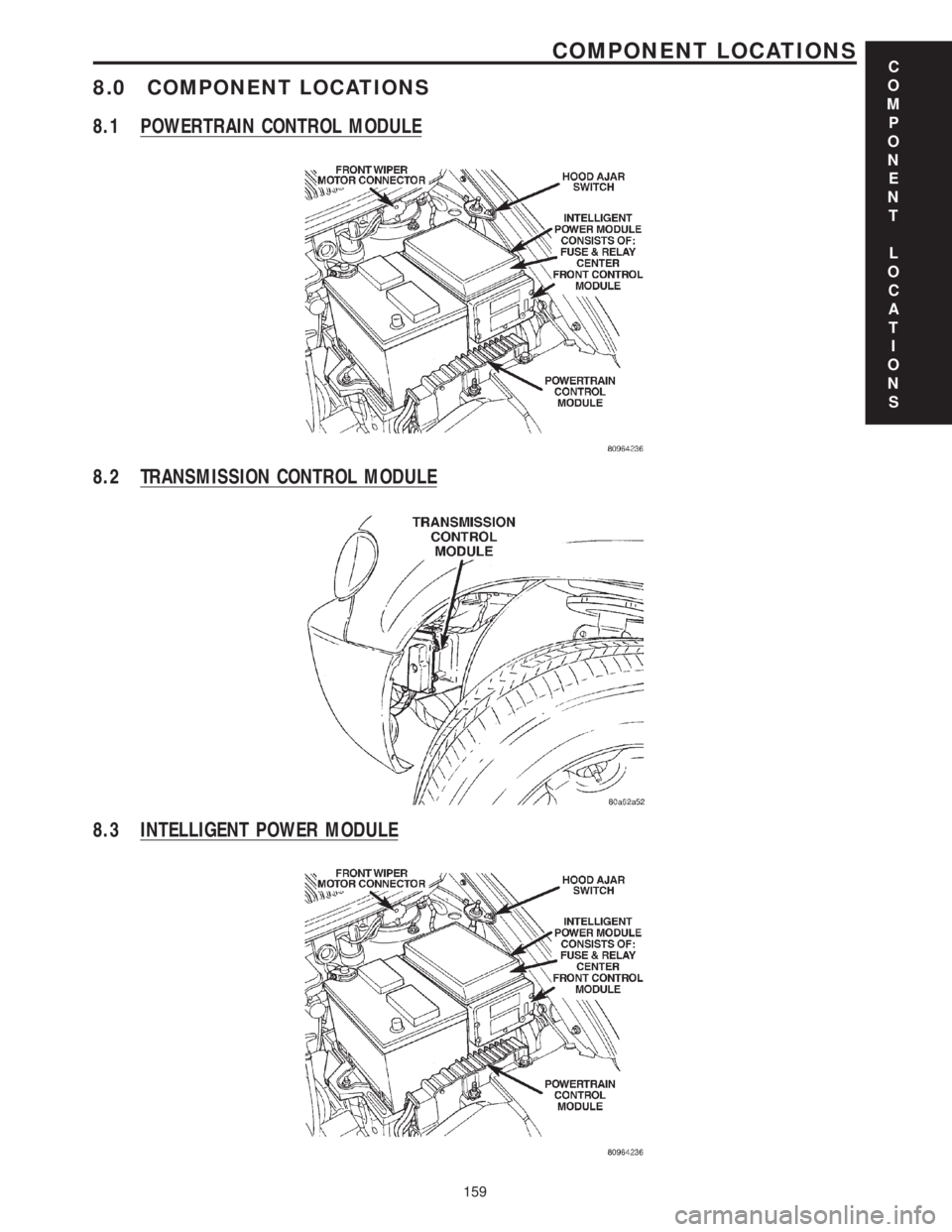

8.0 COMPONENT LOCATIONS
8.1 POWERTRAIN CONTROL MODULE
8.2 TRANSMISSION CONTROL MODULE
8.3 INTELLIGENT POWER MODULE
C
O
M
P
O
N
E
N
T
L
O
C
A
T
I
O
N
S
159
COMPONENT LOCATIONS

8.4 PRESSURE PORT LOCATIONS
8.5 THROTTLE POSITION SENSOR (2.4L)
8.6 AUTOSTICK/OD OFF
C
O
M
P
O
N
E
N
T
L
O
C
A
T
I
O
N
S
160
COMPONENT LOCATIONS

8.7 TRANSMISSION COMPONENT LOCATIONS
C
O
M
P
O
N
E
N
T
L
O
C
A
T
I
O
N
S
161
COMPONENT LOCATIONS

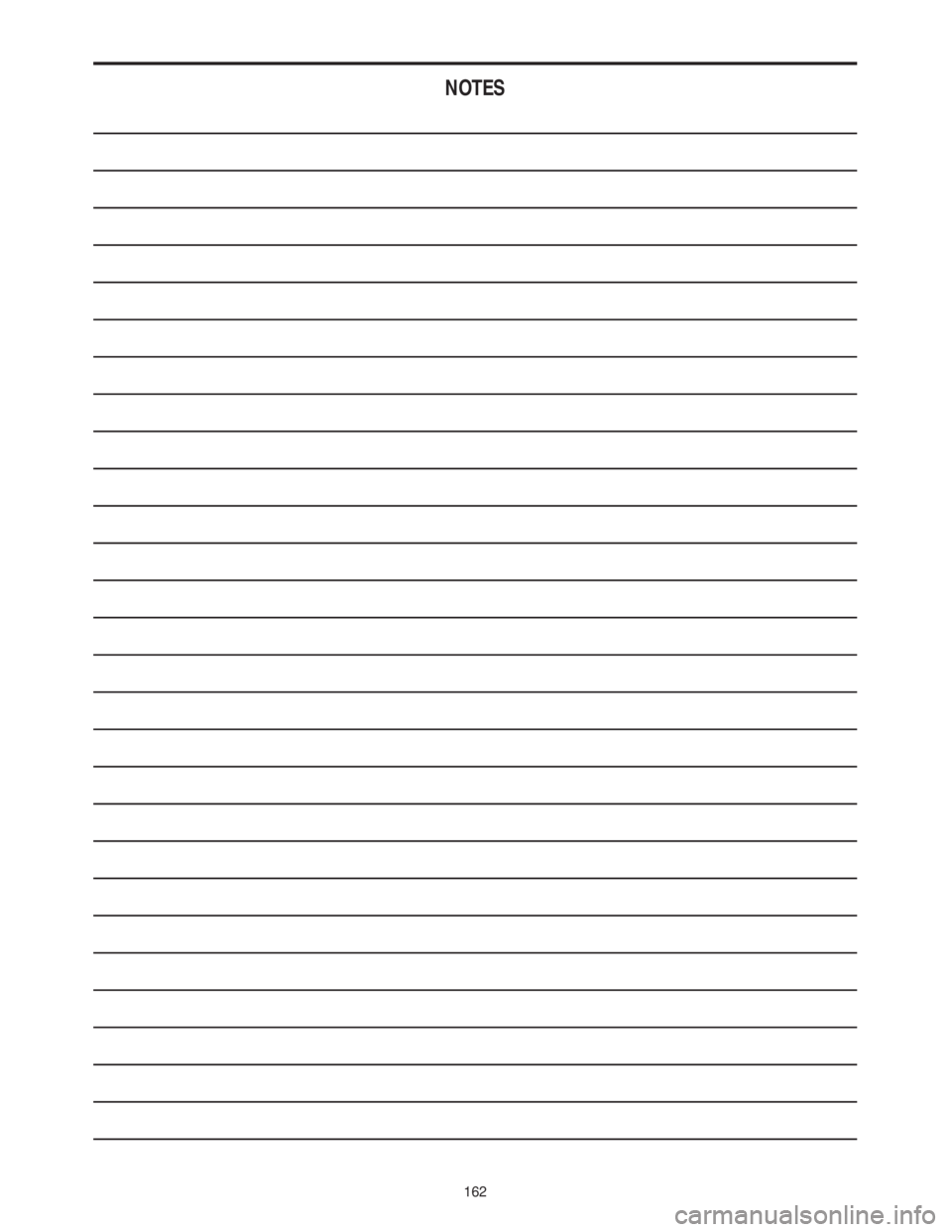

NOTES
162

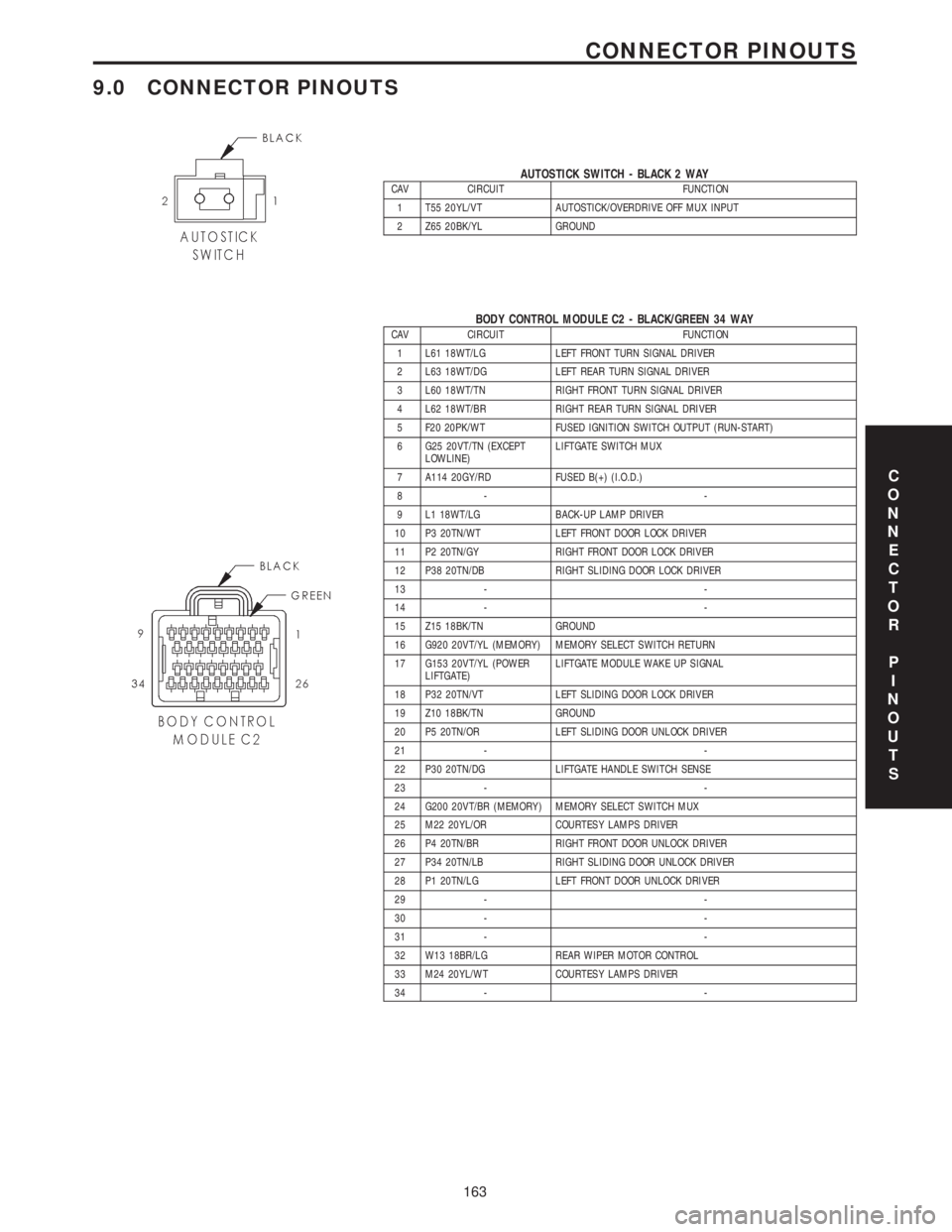

9.0 CONNECTOR PINOUTS
AUTOSTICK SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 T55 20YL/VT AUTOSTICK/OVERDRIVE OFF MUX INPUT
2 Z65 20BK/YL GROUND
BODY CONTROL MODULE C2 - BLACK/GREEN 34 WAYCAV CIRCUIT FUNCTION
1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER
2 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
4 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
5 F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 G25 20VT/TN (EXCEPT
LOWLINE)LIFTGATE SWITCH MUX
7 A114 20GY/RD FUSED B(+) (I.O.D.)
8- -
9 L1 18WT/LG BACK-UP LAMP DRIVER
10 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
11 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
12 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER
13 - -
14 - -
15 Z15 18BK/TN GROUND
16 G920 20VT/YL (MEMORY) MEMORY SELECT SWITCH RETURN
17 G153 20VT/YL (POWER
LIFTGATE)LIFTGATE MODULE WAKE UP SIGNAL
18 P32 20TN/VT LEFT SLIDING DOOR LOCK DRIVER
19 Z10 18BK/TN GROUND
20 P5 20TN/OR LEFT SLIDING DOOR UNLOCK DRIVER
21 - -
22 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
23 - -
24 G200 20VT/BR (MEMORY) MEMORY SELECT SWITCH MUX
25 M22 20YL/OR COURTESY LAMPS DRIVER
26 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
27 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER
28 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
29 - -
30 - -
31 - -
32 W13 18BR/LG REAR WIPER MOTOR CONTROL
33 M24 20YL/WT COURTESY LAMPS DRIVER
34 - -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
163
CONNECTOR PINOUTS

BRAKE LAMP SWITCH - BLACK 6 WAYCAV CIRCUIT FUNCTION
1 A103 18GY/RD FUSED B(+)
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
3 V30 20VT/WT SPEED CONTROL BRAKE SWITCH OUTPUT
4 V32 20VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
5 Z429 20BK/OR GROUND
6 B29 20DG/WT BRAKE SWITCH SENSE
CRANKSHAFT POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - WHITE 16 WAYCAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT GROUND
6 D20 20WT/LG SCI RECEIVE
7 D21 20WT/BR SCI TRANSMIT
8- -
9 D23 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D16 20WT/OR SCI RECEIVE
15 - -
16 A105 20DB/RD FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
164
CONNECTOR PINOUTS

DIAGNOSTIC JUNCTION PORT - BLACK 16 WAYCAV CIRCUIT FUNCTION
1 D25 20WT/VT PCI BUS (PCM/SKIM)
2 D25 20WT/VT PCI BUS (HVAC)
3 D25 20WT/VT PCI BUS (RADIO)
4 D25 20WT/VT PCI BUS (ORC)
5 D25 20WT/VT PCI BUS (CLUSTER)
6 D25 20WT/VT PCI BUS (BCM)
7 D25 20WT/VT PCI BUS (DLC)
8 D25 20WT/VT PCI BUS (OVERHEAD CONSOLE)
9 D25 20WT/VT PCI BUS (IPM)
10 D25 20WT/VT PCI BUS (LSIACM)
11 D25 20WT/VT PCI BUS (MEMORY SEAT/MIRROR)
12 D25 20WT/VT PCI BUS (PWR DOOR/ LT, RT LIFTGATE)
13 D25 20WT/VT PCI BUS (RSIACM)
14 - -
15 - -
16 - -
INPUT SPEED SENSOR (3.3L/3.8L) - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 T13 18DG/VT SPEED SENSOR GROUND
2 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
INTELLIGENT POWER MODULE C3 - NATURAL 20 WAYCAV CIRCUIT FUNCTION
1 Z115 20BK/OR (3.3L/3.8L) GROUND
2 F1 18PK/WT (3.3L/3.8L) FCM OUTPUT (UNLOCK-RUN-START)
3 T751 18YL (3.3L/3.8L) FUSED IGNITION SWITCH OUTPUT (START)
4 T2 18DG/WT TRS REVERSE SENSE
5 T16 18YL/OR (3.3L/3.8L) TRANSMISSION SAFETY SHUTDOWN RELAY OUTPUT
6 T15 18YL/BR (3.3L/3.8L) TRANSMISSION CONTROL RELAY CONTROL
7 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
8 K31 18BR FUEL PUMP RELAY CONTROL
9 C13 18LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
10 A104 18YL/RD (3.3L/3.8L) FUSE B(+)
11 - -
12 - -
13 D25 18WT/VT (3.3L/3.8L) PCI BUS (EATX)
14 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
15 Z116 18BK/VT GROUND
16 K51 18BR/WT AUTOMATIC SHUTDOWN RELAY CONTROL
17 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
18 K173 18BR/VT RADIATOR FAN RELAY CONTROL
19 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
20 A109 18OR/RD FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
165
CONNECTOR PINOUTS

INTELLIGENT POWER MODULE C4 - GRAY 10 WAYCAV CIRCUIT FUNCTION
1 Z127 12BK/DG GROUND
2 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT
3 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
4 F500 18DG/PK (ANTILOCK
BRAKES)FUSED IGNITION SWITCH RELAY OUTPUT (RUN)
5- -
6 D25 16WT/VT (ANTILOCK
BRAKES)PCI BUS
7 A107 12TN/RD (ANTILOCK
BRAKES)FUSED B(+)
8 A111 12DG/RD (ANTILOCK
BRAKES)FUSED B(+)
9 A701 14BR/RD FUSED B(+)
10 - -
INTELLIGENT POWER MODULE C5 - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 A1 04RD B(+)
2- -
3- -
4- -
INTELLIGENT POWER MODULE C6 - WHITE 10 WAYCAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 Z117 16BK/WT GROUND
3 Z118 16BK/YL GROUND
4 A110 12OR/RD (POWER
SEAT)FUSED B(+)
5- -
6- -
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 F307 16LB/PK (ACCESSO-
RY RELAY POSITION)FUSED ACCESSORY RELAY OUTPUT
8 F307 16LB/PK (BATTERY
POSITION)FUSED B(+)
9 A113 12WT/RD (POWER
SLIDING DOOR)FUSED B(+)
10 - -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
166
