75 PRACTICAL INFORMATION
-
CHECKING THE LEVELS
Dipstick
Oil change
According to the information given in
the servicing booklet.
Note:
avoid used oil coming into
prolonged contact with the skin.
Empty the used oil into the contain-
ers intended for this purpose in the
CITROËN network.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements.
Note:
the coolant does not need to
be changed.
For vehicles equipped with a parti-
cle fi lter, the engine fan may operate
after the ignition has been switched
off, even when the engine is cold.
There are two marks
on the dipstick:
A
= maximum
Never fi ll past this
mark.
B
= minimum
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited.
Brake fluid level:
The brake fl uid must be changed according
to the manufacturer's servicing schedule.
Use fl uids recommended by the
manufacturer, which fulfi l DOT4 stan-
dards.
Note:
brake fl uid is harmful to health
and very corrosive. Avoid all contact
with the skin.
Cooling system
Use the fl uid recommended by the
manufacturer.
When the engine is warm, the tem-
perature of the coolant is controlled
by the engine fan. As this fan can op-
erate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by two turns to release
the pressure to prevent any risk of scald-
ing. When the pressure has dropped, re-
move the cap and top up the level.
Used oil
Do not dispose of used oil, brake fl uid or
coolant into drains or onto the ground.
Power steering reservoir
)
Open the reservoir, with the en-
gine at ambient temperature. The
level should always be above the
MIN. mark and close to the MAX.
mark.
Windscreen and headlamp
wash level
For best quality cleaning and for
your safety, we would advise that
you use products recommended by
CITROËN.
For optimum cleaning and to prevent
freezing, this fl uid must not be topped
up or replaced with water.
Oil level
)
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the oil level gauge
on the instrument panel or the dipstick.
Page 82 of 132
PRACTICAL INFORMATION
80 -

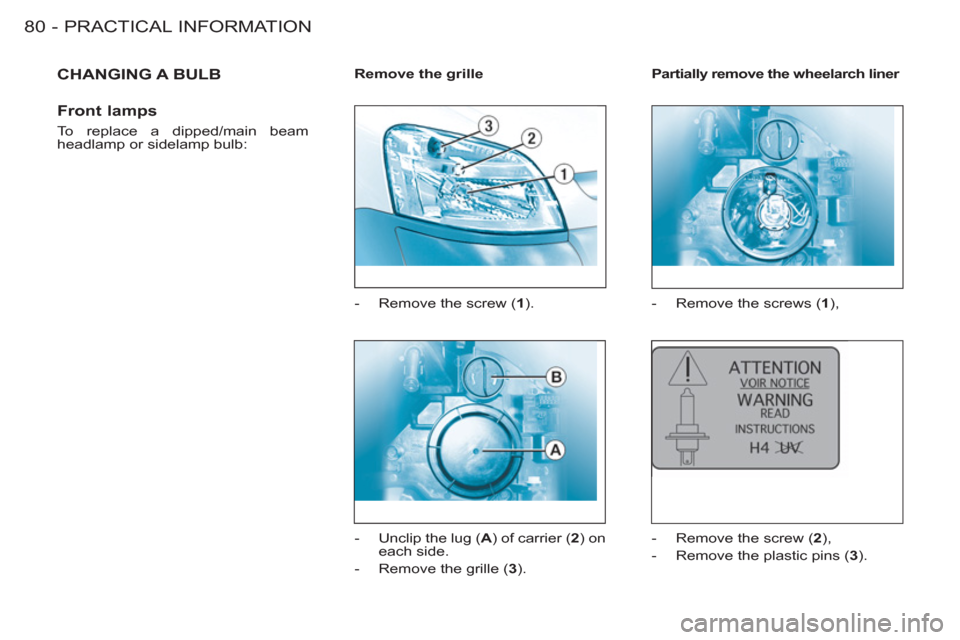

CHANGING A BULB
Front lamps
To replace a dipped/main beam
headlamp or sidelamp bulb:
Remove the grille
- Remove the screw ( 1
).
- Unclip the lug ( A
) of carrier ( 2
) on
each side.
- Remove the grille ( 3
).
Partially remove the wheelarch liner
- Remove the screws ( 1
),
- Remove the screw ( 2
),
- Remove the plastic pins ( 3
).
Page 83 of 132
81 PRACTICAL INFORMATION
-

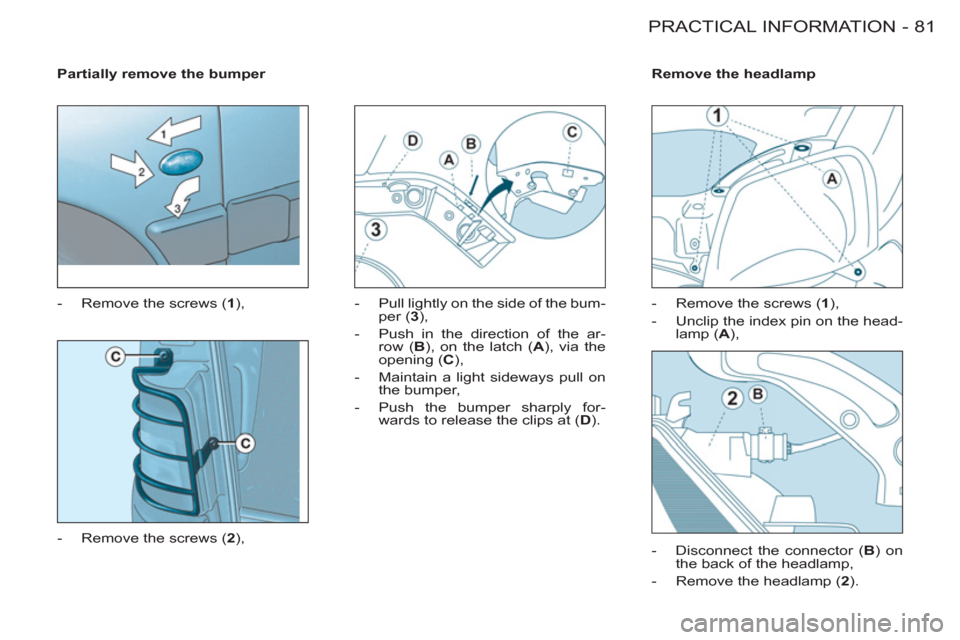

Partially remove the bumper
- Remove the screws ( 1
),
- Remove the screws ( 2
),
- Pull lightly on the side of the bum-
per ( 3
),
- Push in the direction of the ar-
row ( B
), on the latch ( A
), via the
opening ( C
),
- Maintain a light sideways pull on
the bumper,
- Push the bumper sharply for-
wards to release the clips at ( D
).
Remove the headlamp
- Remove the screws ( 1
),
- Unclip the index pin on the head-
lamp ( A
),
- Disconnect the connector ( B
) on
the back of the headlamp,
- Remove the headlamp ( 2
).
Page 84 of 132
PRACTICAL INFORMATION
82 -

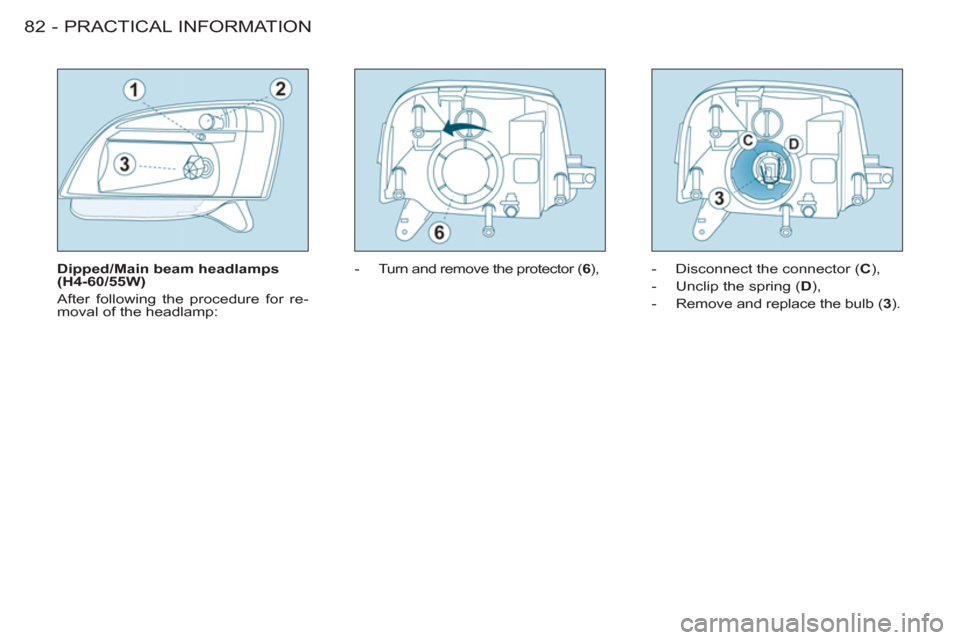

Dipped/Main beam headlamps
(H4-60/55W)
After following the procedure for re-
moval of the headlamp:
- Turn and remove the protector ( 6
),
- Disconnect the connector ( C
),
- Unclip the spring ( D
),
- Remove and replace the bulb ( 3
).
Page 85 of 132
83 PRACTICAL INFORMATION
-

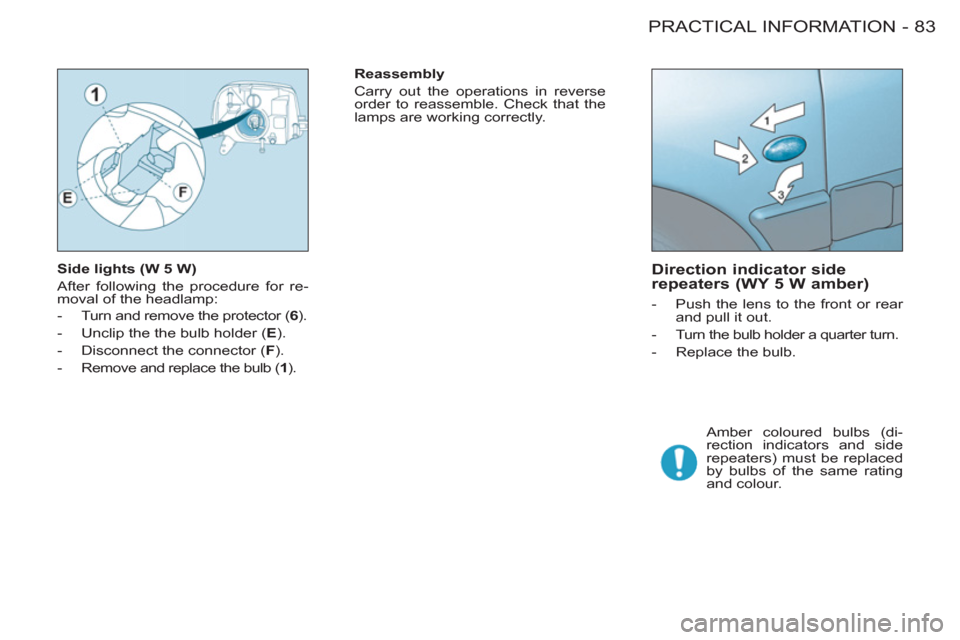

Side lights (W 5 W)
After following the procedure for re-
moval of the headlamp:
- Turn and remove the protector ( 6
).
- Unclip the the bulb holder ( E
).
- Disconnect the connector ( F
).
- Remove and replace the bulb ( 1
).
Reassembly
Carry out the operations in reverse
order to reassemble. Check that the
lamps are working correctly.
Direction indicator side
repeaters (WY 5 W amber)
- Push the lens to the front or rear
and pull it out.
- Turn the bulb holder a quarter turn.
- Replace the bulb.
Amber coloured bulbs (di-
rection indicators and side
repeaters) must be replaced
by bulbs of the same rating
and colour.

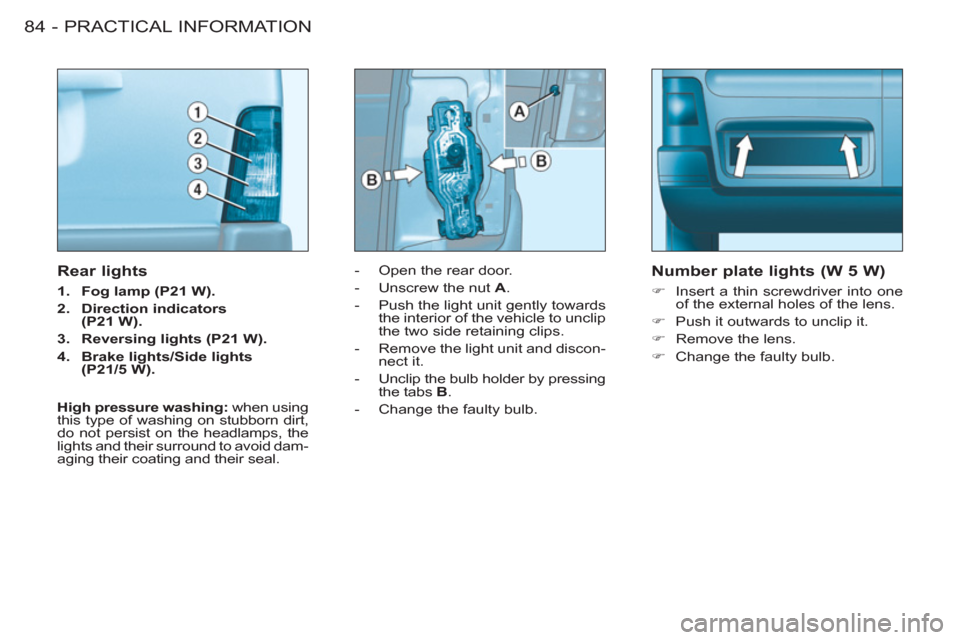

Page 86 of 132
PRACTICAL INFORMATION
84 -
- Open the rear door.
- Unscrew the nut A
.
- Push the light unit gently towards
the interior of the vehicle to unclip
the two side retaining clips.
- Remove the light unit and discon-
nect it.
- Unclip the bulb holder by pressing
the tabs B
.
- Change the faulty bulb.
Number plate lights (W 5 W)
)
Insert a thin screwdriver into one
of the external holes of the lens.
)
Push it outwards to unclip it.
)
Remove the lens.
)
Change the faulty bulb.
Rear lights
1.
Fog lamp (P21 W).
2.
Direction indicators
(P21 W).
3.
Reversing lights (P21 W).
4.
Brake lights/Side lights
(P21/5 W).
High pressure washing:
when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surround to avoid dam-
aging their coating and their seal.
Page 91 of 132
89 PRACTICAL INFORMATION
-
Fuse N°
Rating
Functions
1
10A
Pre-heater unit (Diesel) -
Brake and clutch switches - Reversing lamps.
2
15A
Fuel pump.
3
10A
ABS control unit.
4
10A
Engine control unit.
5
-
Not used.
6
15A
Front foglamps.
7
20A
Headlamp wash pump.
8
20A
Fan assembly relay -
Engine control unit.
9
15A
Left-hand dipped beam.
10
15A
Right-hand dipped beam.
11
10A
Left-hand main beam.
12
10A
Right-hand main beam.
13
15A
Horn.
14
10A
Front and rear screen wash pumps.
15
30A
Oxygen sensor - Air
fl ow sensor.
16
30A
Air pump relay.
17
30A
Front windscreen wiper.
18
40A
Air conditioning fan.
Engine compartment fusebox
To gain access to the box in the engine
compartment (next to the battery), unclip
the cover.
After carrying out work, close the
cover carefully to ensure its sealing.
Page 123 of 132
121 VISUAL INDEX-
EXTERIOR
Accessories ................................ 95 Key, starting, battery ..........6, 44-45
Central locking ................ 44, 47, 48
Rear lamps ................................. 84
3rd brake lamp............................ 85
Spare wheel, jack, changing,
fi tting ...................................77-78
Infl ating ..................................... 108
ABS, EBFD, Brakes........ 62, 72, 76
Tyres, pressures ................. 78, 108
Pads, discs, drums ..................... 76
Fuel tank ................... 16, 20, 51, 76 Door mirrors ................................ 55
Snow screen ............................... 92
Front lamps......................52, 80-83
Foglamps .............................. 52, 84
Direction indicators ....52, 80, 83-84
Headlamp adjustment................. 58
Changing bulbs......................80-85
Opening/closing the
doors .........................6, 44, 47-50
Opening the bonnet .............. 16, 51
Side door child lock .................... 49
Locks ...................................... 6, 44 Towbar ........................................ 94
Lifting, towing.............................. 93
Page 125 of 132
123 VISUAL INDEX-

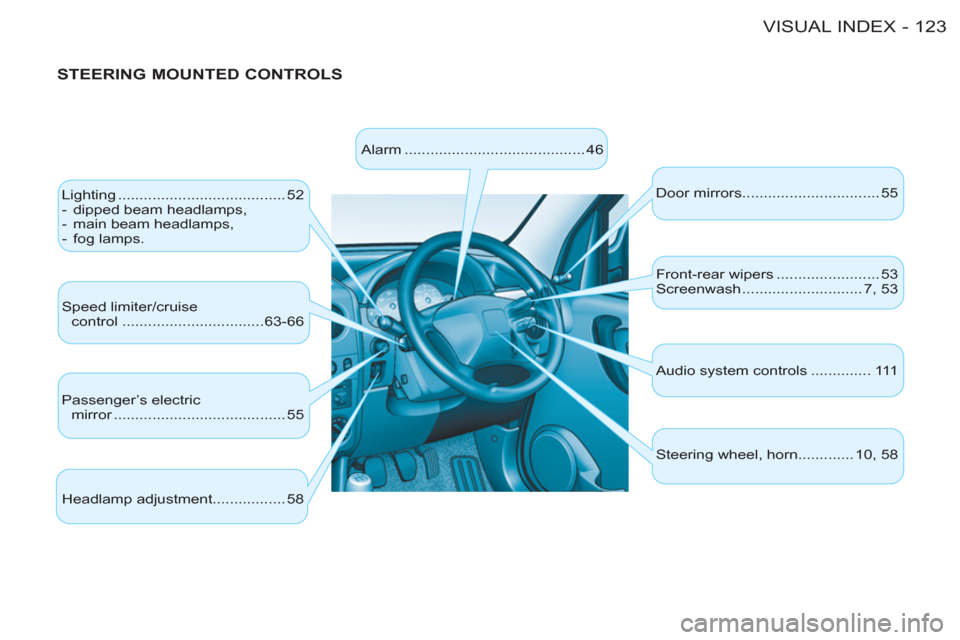

STEERING MOUNTED CONTROLS
Lighting ....................................... 52
- dipped beam headlamps,
- main beam headlamps,
- fog lamps.
Speed limiter/cruise
control .................................63-66
Passenger’s electric
mirror ........................................ 55 Door mirrors ................................ 55
Headlamp adjustment................. 58 Alarm .......................................... 46
Audio system controls .............. 111 Front-rear wipers ........................ 53
Screenwash ............................ 7, 53
Steering wheel, horn............. 10, 58
Page 127 of 132
125 VISUAL INDEX-
TECHNICAL DATA - MAINTENANCE
Levels ..............................70-73, 75
- dipstick,
- power steering fl uid,
- brake fl uid,
- coolant.
Petrol supply cut-off, Diesel fuel
priming ..................................... 76
Screenwash/headlamp wash, fi lling
reservoir ............................. 53, 75
Bulbs, changing bulbs
- front .....................................80-83
- rear .....................................84-85 Dimensions ............................96-99
Engine technical data ........100-101
Weights, loads ...................104-107
Identifi cation markings .............. 108
Opening the bonnet, stay ..... 16, 51
Under bonnet engine views .....70-73 Air/oil fi lters,
checks ...........................70-73, 76
Engine fuses ............................... 89
Battery .................................. 76, 90
