Page 13 of 216
16
FAMILIARISATION
MONITORING
Instrument panel Controls bar
A. Speedometer.
B. Instrument panel display.
C. Rev counter.
D. Fascia lighting rheostat. When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights
19
A. Passenger air bag disarmed
warning light.
106
B. Hazard warning lights switch.
99
C. Front passenger’s seat belt not
fastened or unfastened warning
light.
103
20
Detection of fastening of the
driver’s seat belt When the ignition is switched
on, the seat belt warning light
comes on accompanied by an
audible signal if the driver has
not fastened his seat belt.
The warning light switches off when the
seat belt is fastened.
22
Page 16 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
19
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator
light.
3. Main beam headlamps indicator
light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened / unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT PANEL
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- E x t e r i o r t e m p e r a t u r e .
- Transmission mode.
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator
light.
16. Rev counter.
17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
Page 18 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
21
Indicator lights is on Cause Observations
Diesel
pre-heating F i x e d
This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
d e t e r m i n e d b y t h e e x t e r i o r c l i m a t i c c o n d i t i o n s .
Warning lights is on Cause Observations
Handbrake /
B r a k e fl u i d level F i x e d This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a CITROËN dealer.
Emission
control system F i x e d o r
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a CITROËN dealer.
It should switch off a few seconds after starting
the engine.
Battery charge
F i x e d This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the “Battery” section).
Page 39 of 216
C O M F O R T
II
42
For even air distribution, take care not
t o o b s t r u c t t h e e x t e r i o r a i r i n t a k e g r i l l e
located at the bottom of the windscreen,
the vents, the air outlets under the front
s e a t s a n d t h e a i r e x t r a c t o r l o c a t e d b e -
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
CITROËN dealer.
THE AIR CONDITIONING
Do not cover the temperature and hu-
midity sensor
2 and the sunshine sen-
sor
7 .
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain in-
tense ventilation, it is advisable to
use vents 1 and
4 only.
If, when the vehicle has been parked
in the sun for a long time, the interior
temperature remains very high, do
not hesitate to ventilate the passen-
ger compartment for a few minutes. Switch off the air conditioning when
the climatic conditions permit.
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
passenger compartment temperature
and air distribution, by means of vari-
o u s s e n s o r s ( e x t e r i o r t e m p e r a t u r e , i n -
terior temperature, sunshine), so pre-
venting the need for you to change your
reference settings other than the value
displayed.
In certain cases of particularly arduous
u s e ( t o w i n g t h e m a x i m u m l o a d o n a
steep gradient in hot weather), cutting
off the air conditioning permits recovery
of the engine power and therefore im-
provement of the towing capacity.
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
full effectiveness of the air condition-
ing.
Ensure that the passenger compart-
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
1. Centre panel vents.
2. Temperature sensor .
3. Air outlet to passenger footwells.
4. Side vents.
5. Front windows de-icing or demisting
vents.
6. Windscreen de-icing or demisting
vents.
7. Sunshine sensor.
Page 41 of 216
C O M F O R T
II
44
AUTOMATIC AIR
CONDITIONING
Automatic operation
Set the temperature control dial 3 to
the temperature required.
P l a c e t h e a i r fl o w c o n t r o l d i a l 2 in
the
“AUTO” position.
Place the air distribution adjustment
dial 1 in the
“AUTO” position. When the engine is cold, to avoid
a n e x c e s s i v e d i s t r i b u t i o n o f c o l d a i r ,
the ventilation will reach its optimum
level gradually.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than the comfort
temperature. There is no need to
change the temperature displayed in
order to reach the comfort required
rapidly.
The automatic regulation of the air
c o n d i t i o n i n g w i l l o p e r a t e a t m a x i m u m
performance to eliminate the
temperature difference as quickly as
possible.
1. Air distribution adjustment
2. A i r fl o w a d j u s t m e n t
3. Temperature adjustment
4. Rear screen de-icing
5. Air conditioning On / Off
6. I n t a k e o f e x t e r i o r a i r / R e c i r c u l a t i o n
of interior air
In automatic mode:
when the temperature is set to
m a x i m u m ( R a p i d h e a t i n g ) , t h e
i n t a k e o f e x t e r i o r a i r i s a c t i v a t e d a n d
the air conditioning stops.
when the temperature is set to
minimum (Rapid cooling), the air
recirculation is activated and the air
conditioning operates.
In accordance with the level of comfort
selected, the system controls the air
d i s t r i b u t i o n , t h e fl o w , t h e t e m p e r a t u r e
and the air intake to guarantee comfort
a n d a s u f fi c i e n t c i r c u l a t i o n o f a i r i n t h e
passenger compartment. No further ac-
tion on your part is required.
Page 46 of 216
C O M F O R T
II
49
Electric mode (driver’s seat only)
Forwards-backwards adjustment
Push the control forwards or rearwards
to move the seat to the position
required. Driver’s seat cushion height and
angle adjustment
Pull or push the front of the control
to raise or lower the front of the seat
cushion.
Pull or push the rear of the control
to raise or lower the rear of the seat
cushion.
Pull or push the entire control to raise or
lower the entire seat cushion. Seat back angle adjustment
Tilt the control forwards or rearwards to
straighten or tilt the seat back.
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to your optimum driving
and comfort position.
To avoid discharging the battery, use
the electric mode with the engine
running.
Page 56 of 216
C O M F O R T
II
59

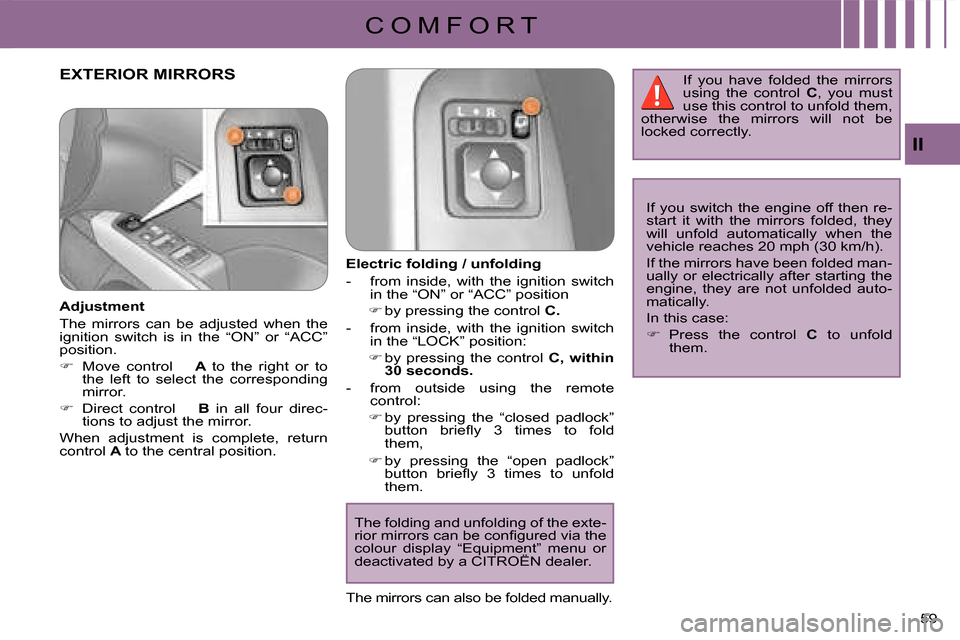

EXTERIOR MIRRORS
Electric folding / unfolding
- from inside, with the ignition switch in the “ON” or “ACC” position
by pressing the control C .
- from inside, with the ignition switch in the “LOCK” position:
by pressing the control C, within
30 seconds.
- from outside using the remote control:
by pressing the “closed padlock”
b u t t o n b r i e fl y 3 t i m e s t o f o l d
them,
by pressing the “open padlock”
b u t t o n b r i e fl y 3 t i m e s t o u n f o l d
them.
Adjustment
The mirrors can be adjusted when the
ignition switch is in the “ON” or “ACC”
position.
Move control
A to the right or to
the left to select the corresponding
mirror.
Direct control
B in all four direc-
tions to adjust the mirror.
When adjustment is complete, return
control A to the central position. If you switch the engine off then re-
start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded man-
ually or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:
Press the control C to unfold
them. If you have folded the mirrors
using the control
C , you must
use this control to unfold them,
otherwise the mirrors will not be
locked correctly.
T h e f o l d i n g a n d u n f o l d i n g o f t h e e x t e -
r i o r m i r r o r s c a n b e c o n fi g u r e d v i a t h e
colour display “Equipment” menu or
deactivated by a CITROËN dealer.
The mirrors can also be folded manually.
Page 81 of 216
A C C E S S
III
83
FUEL TANK
T o fi l l t h e t a n k s a f e l y :
it is imperative that the engine is
switched off,
pull the control A located at the bot-
tom right of the driver’s seat to re-
l e a s e t h e f u e l fi l l e r fl a p ,
o p e n t h e f u e l fi l l e r fl a p B ,
turn the cap C to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
r e fi t t h e c a p , i n s e r t i n g t h e u p p e r p a r t
fi r s t ,
screw in the cap to the right,
c l o s e t h e fl a p .
E n s u r e t h a t t h e f u e l fi l l e r fl a p i s c l o s e d
correctly.
remove the cap C ,
fi l l t h e t a n k , b u t do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l , a f fi x e d o n t h e i n s i d e o f t h e fl a p ,
reminds you of the type of fuel to be
used in relation to your engine. When the tank minimum
l e v e l i s r e a c h e d ( a p p r o x i -
mately 10 litres), this indi-
cation appears on the in-
strument panel display.
The symbol
fl a s h e s s l o w l y
( a p p r o x i m a t e l y o n c e p e r s e c o n d ) .
You have enough fuel remaining to
drive approximately 30 miles (50 km) .
When the symbol begins to
fl a s h r a p i d l y ( a p p r o x i m a t e l y
twice per second), there is not
much fuel remaining in your tank (ap-
p r o x i m a t e l y 5 l i t r e s ) .
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap
1. Opening.
2. Closing.
S y s t e m f o r fi l l i n g w i t h f u e l , a f t e r t a k i n g
into account the detection of the associ-
ated low level.
Capacity of the tank: approximately
60 litres.
Page 100 of 216
S A F E T Y
VI
101
The ASC/TCL systems offer
e x c e p t i o n a l s a f e t y i n n o r m a l
driving, but this should not en-
c o u r a g e t h e d r i v e r t o t a k e e x t r a r i s k s
or drive at high speed.
The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITRÖEN assembly and operation
procedures.
After an impact, have these systems
checked by a CITRÖEN dealer.
Disarming
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a v e -
hicle which is bogged down, stuck in
snow, on soft ground, etc.), it may be
advisable to disarm the ASC system,
so that the wheels can move freely and
regain grip.
Press the “ASC OFF” button, locat-
ed to the right of the steering wheel,
until the ASC OFF symbol appears
on the instrument panel display.
The displaying of this symbol in the top
right corner of the instrument panel dis-
play indicates that the ASC and TCL
systems are disarmed. Reactivation
These systems are not reactivated au-
tomatically above 30 mph (50 km/h).
Press the “ASC OFF” button again
to reactivate them manually.
The switching off of the symbol in the
top right corner of the instrument panel
display indicates the reactivation of the
ASC and TCL systems.
Operating fault
The displaying of this mes-
sage on the instrument
panel display indicates a
malfunction of these sys-
tems.
Contact a CITRÖEN dealer to have the
ASC/TCL systems checked.
TRAJECTORY CONTROL
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They operate when the vehicle speed is
higher than 10 mph (15 km/h).
Anti-skid regulation and
electronic stability programme
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this symbol on the instrument panel dis-
play.
Associated systems which guarantee
the directional stability of the vehicle
within the limits of the laws of physics:
- the anti-skid regulation (TCL),
- the electronic stability programme (ASC).
Page 108 of 216

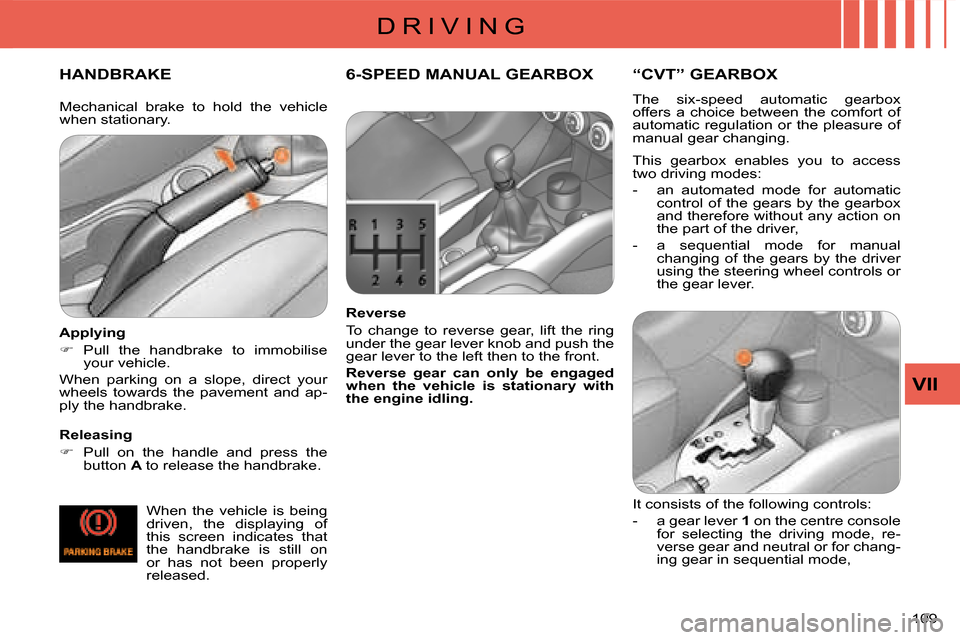

D R I V I N G
VII
109
HANDBRAKE
Releasing
Pull on the handle and press the
button A to release the handbrake.
Applying
Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and ap-
ply the handbrake.
6-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of
this screen indicates that
the handbrake is still on
or has not been properly
released.
Mechanical brake to hold the vehicle
when stationary.
“CVT” GEARBOX
T h e s i x - s p e e d a u t o m a t i c g e a r b o x
offers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
T h i s g e a r b o x e n a b l e s y o u t o a c c e s s
two driving modes:
- an automated mode for automatic c o n t r o l o f t h e g e a r s b y t h e g e a r b o x
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering wheel controls or
the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre console
for selecting the driving mode, re-
verse gear and neutral or for chang-
ing gear in sequential mode,
