belt CITROEN C-ELYSÉE 2014 Handbook (in English)

10
Child safety
Child seat at the rear
"Rearward facing"
When a "rear ward facing" child seat is installed on a rear passenger seat , move the vehicle's front seat for wards and straighten the backrest so that the "rear ward facing" child seat does not touch the vehicle's front seat.
"Forward facing"
When a "for ward facing" child seat is installed on a rear passenger seat , move the vehicle's front seat for wards and straighten the backrest so that the legs of the child in the "for ward facing" child seat do not touch the vehicle's front seat.
Ensure that the seat belt is correctly tightened. For child seats with a support leg, ensure that the support leg is in stable contact with the floor.

11
8
Child safety

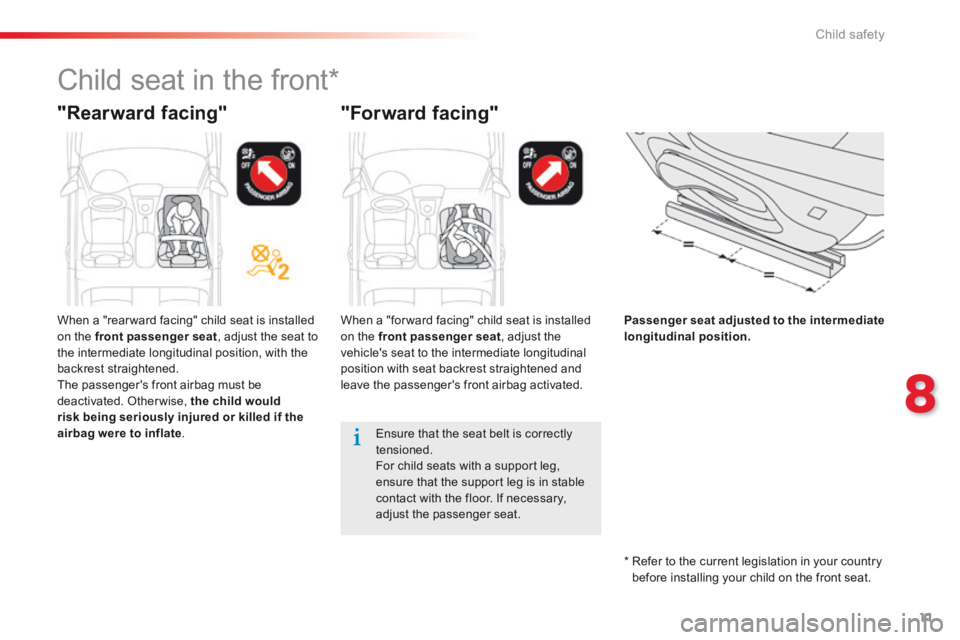

Child seat in the front *
"Rearward facing" "Forward facing"
Passenger seat adjusted to the intermediate longitudinal position.
Ensure that the seat belt is correctly tensioned. For child seats with a support leg, ensure that the support leg is in stable contact with the floor. If necessary, adjust the passenger seat.
When a "rear ward facing" child seat is installed on the front passenger seat , adjust the seat to the intermediate longitudinal position, with the backrest straightened. The passenger's front airbag must be deactivated. Otherwise, the child would risk being seriously injured or killed if the airbag were to inflate .
When a "for ward facing" child seat is installed on the front passenger seat , adjust the vehicle's seat to the intermediate longitudinal position with seat backrest straightened and leave the passenger's front airbag activated.
* Refer to the current legislation in your country before installing your child on the front seat.

15
8
Child safety
Child seats recommended by CITROËN
Group 0+: from bir th to 13 kg
L1 "RÖMER Baby-Safe Plus" Installed in the rear ward facing position.
Groups 2 and 3: from 15 to 36 kg
L4 "KLIPPAN Optima"
From 22 kg (approximately 6 years), the booster is used on its own.
L5 "RÖMER KIDFIX" Can be fitted to the vehicle's ISOFIX mountings. The child is restrained by the seat belt.
CITROËN offers a range of recommended child seats which are secured using a three point seat belt .

16
Child safety
Installing a child seat using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
SeatUnder 13 kg (groups 0 ( b ) and 0+) Up to approx 1 year
From 9 to 18 kg (group 1) 1 to 3 years approx
From 15 to 25 kg (group 2) 3 to 6 years approx
From 22 to 36 kg (group 3) 6 to 10 years approx
Front passenger seat without height adjuster ( c ) ( c ) ( ce ) UUUU
Outer rear seats ( d ) UUUU
Centre rear seat XXXX
(a) Universal child seat: child seat that can be installed in all vehicles using a seat belt. (b) Group 0: from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat. (c) Consult the legislation in force in your country before installing your child on this seat. (d) To install a child seat at the rear, rear ward or for ward facing, move the seat in front for ward, then straighten the backrest to allow enough space for the child seat and the child's legs. (e) When a "rear ward facing" child seat is installed on the front passenger seat , the passenger's airbag must be deactivated. Otherwise, the child would risk being seriously injured or killed if the airbag were deployed . When a "for ward facing" child seat is installed on the front passenger seat , the passenger's airbag must remain activate.
Remove and stow the head restraint before installing a child seat with a backrest on a passenger seat. Refit the head restraint once the child seat has been removed.
U :Seat suitable for the installation of a child seat
secured using a seat belt and universally approved, "rear ward facing" and/or "for ward facing". X: Seat not suitable for the installation of a child seat of the weight group indicated.

17
8
Child safety
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident. Ensure that there is no seat belt or seat belt buckle under the child seat, as this could destabilise it. Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for short journeys. When installing a child seat using the seat belt, ensure that the seat belt is tightened correctly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary. At rear seating positions, always leave sufficient space between the front seat and: - a "rear ward facing" child seat,
- the child's feet for a child seat fitted "forward facing". To do this, move the front seat for wards and, if necessary, move its backrest into the upright position.
Advice on child seats
Installing a booster seat For optimum installation of the "forward-facing" child seat, ensure that the back of the child seat is as close as possible to the backrest of the vehicle's seat, in contact if possible. You mst remove the head restraint before installing a child seat with backrest to a passenger seat. Ensure that the head restraint is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking. Refit the head restraint when the child seat is removed.
Children at the front
The legislation on carrying children on the front passenger seat is specific to each country. Refer to the legislation in force in
your country. Deactivate the passenger airbag when a "rear ward-facing" child seat is installed on the front seat. Otherwise, the child would risk being seriously injured or killed if the airbag were to inflate.
The chest part of the seat belt must be positioned on the child's shoulder without touching the neck. Ensure that the lap part of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level. As a safety precaution, do not leave: - a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows by more than one third. To protect young children from the rays of the sun, fit side blinds on the rear windows.

18
Child safety
Your vehicle has been approved in accordance with the latest ISOFIX regulations . The seats, represented below, are fitted with regulation ISOFIX mountings:
"ISOFIX" mountings
- two rings A , located between the vehicle seat back and cushion, indicated by a marking,
To secure the child seat to the TOP TETHER : - pass the child seat strap over the centre of the vehicle's seat backrest, - raise the TOP TETHER , - secure the upper strap fixing to the ring B , - tighten the upper strap.
Observe strictly the fitting instructions provided with the child seat.
For information on the possibilities for fitting ISOFIX child seats to your vehicle, refer to the table of seating positions.
- a ring B , located under a cover on the back of the top of the seat backrest, referred to as the TOP TETHER for fixing the upper strap. TOP TETHER for fixing the upper strap. TOP TETHER Its position is indicated by a marking.
The ISOFIX mountings are three rings for each seat:
The TOP TETHER is used to secure the upper strap of child seats that have one. This device limits for ward tipping of the child seat, in the event of a front impact.
This ISOFIX mounting system ensures fast, reliable and safe fitting of the child seat in your vehicle. The ISOFIX child seats are fitted with two latches which are secured easily on the two rings A . Some also have an upper strap (or top tether) which is attached to ring B .
When installing an ISOFIX child seat on the right hand rear seat, before securing the seat, first move the centre rear seat belt towards the middle of the vehicle, so as to not inter fere with the operation of the seat belt.
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident.

19
8
Child safety
ISOFIX child seats recommended by CITROËN and approved
for your vehicle
Follow the instructions for fitting child seats contained in their manufacturer's installation guide.
"RÖMER Baby- Safe Plus and its Baby- Safe Plus ISOFIX base" (size category: E )
Group 0+: from bir th to 13 kg
Installed "rear ward facing" using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor. This child seat can also be secured with a seat belt. In this case, only the shell is used and attached to the vehicle's seat by the three-point seat belt.

20
Child safety
"RÖMER Duo Plus ISOFIX" (size category B1 )
Group 1: from 9 to 18 kg
Is installed only in the for ward facing position. Is attached to the anchorage rings A and the upper anchorage ring B , referred to as the Top Tether, using an upper strap. Three seat body angles: sitting, reclining, lying down.
This seat can be used on seats not equipped with ISOFIX mountings. In this case, it must be attached to the vehicle's seat using the three-point seat belt. Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.

21
8
Child safety
" Baby P2C Midi" and its ISOFIX base (size categories: D, C, A, B, B1 )
Group 1: from 9 to 18 kg
Installed "rear ward facing" using an ISOFIX base which is attached to the anchorage rings A . The base has a support leg, adjustable for height, which sits on the vehicle's floor. This child seat can also be used "for ward facing". This seat can not be secured with a seat belt. We recommend that you use the seat in the "rear ward facing" position up to the age of 3 years.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
FAIR G 0/1 S and its RWF A and FWF A ISOFIX bases (size category C for the rear ward facing version, size category A for the for ward facing version)
Group 0+ and 1: from bir th to 18 kg
Installed in the rear ward facing position for children under 18 kg and for ward facing for children
between 13 and 18 kg, using its ISOFIX base, which is attached to the rings A . Use the rear ward facing ( RWF ) type A ISOFIX base or the for ward facing ( FWF ) type A ISOFIX base. 6 positions of inclination of the shell. This child seat can also be used in a for ward facing position on seating positions not equipped with ISOFIX mountings. In this case the shell of the child seat must be attached to the vehicle seat using the three-point seat belt.
