Citroen C1 2008 1.G Manual Online

9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)

 Push the repeater forwards or
rearwards and detach it by pulling
towards you.

 Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Correct
Removing and fitting a fuse
Before changing a fuse, the cause of the
incident must be found and rectifi ed.

 Use the pliers A located in the
fuse box under the bonnet.

Incorrect

Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.

 Turn the steering wheel to the
left, remove bolt B .

 Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).

9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)

 Push the repeater forwards or
rearwards and detach it by pulling
towards you.

 Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Correct
Removing and fitting a fuse
Before changing a fuse, the cause of the
incident must be found and rectifi ed.

 Use the pliers A located in the
fuse box under the bonnet.

Incorrect

Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.

 Turn the steering wheel to the
left, remove bolt B .

 Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).

9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)

 Push the repeater forwards or
rearwards and detach it by pulling
towards you.

 Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.

Correct
Removing and fitting a fuse
Before changing a fuse, the cause of the
incident must be found and rectifi ed.

 Use the pliers A located in the
fuse box under the bonnet.

Incorrect

Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.

 Turn the steering wheel to the
left, remove bolt B .

 Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).

9

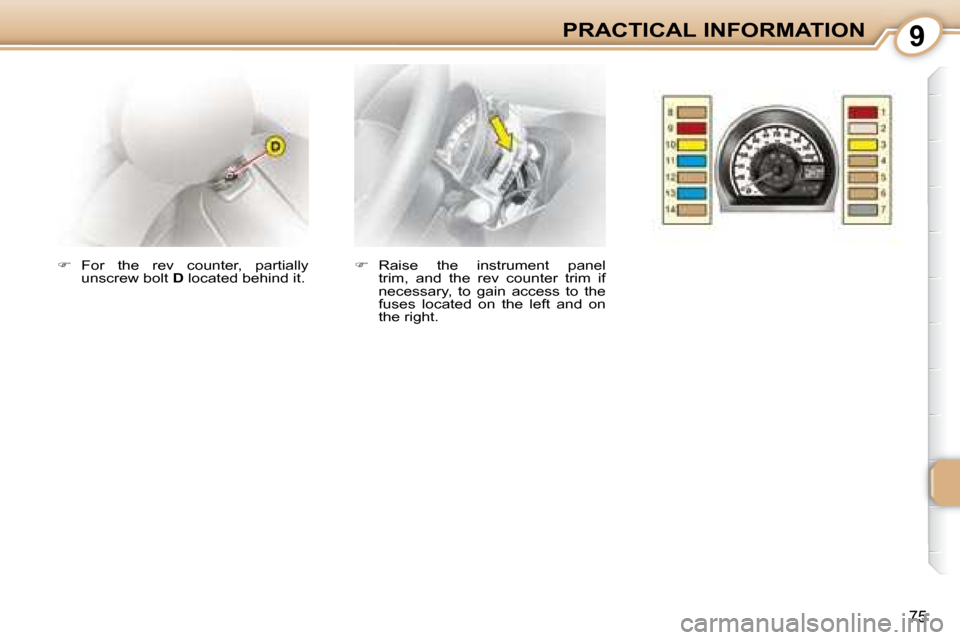

75
PRACTICAL INFORMATION

 Raise the instrument panel
trim, and the rev counter trim if
necessary, to gain access to the
fuses located on the left and on
the right.

 For the rev counter, partially
unscrew bolt D located behind it.

9
76
PRACTICAL INFORMATION
* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer.

Fuse N° Rating
Functions

1 10 A Brake lights - ABS - "SensoDrive" gearbox

2 25 A Central locking/unlocking

3 20 A Rear screen demisting

4 7.5 A Rear lights - Number plate lights - Instrument panel - Disp lay

5 7.5 A Diagnostic socket

6 7.5 A Rear fog lamp - Instrument panel - "SensoDrive" gearbox

7 - Not used

8 7.5 A ABS - Power steering - Air conditioning - Fan assembly

9 10 A Rear lights - Central locking/unlocking - Electric windows - Rear
screen demisting -
Speedometer - Air conditioning - Heating - Rev counter

10 20 A Front and rear wipers

11 15 A Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)

12 7.5 A Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter

13 15 A Air bag - Engine control unit - Electronic engine immobiliser - "Se
nsoDrive" gearbox -
Instrument panel

14 7.5 A Air conditioning

15 * 40 A Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs

16 * 30 A Electric windows

17 * 40 A Heating - Air conditioning

9
77
PRACTICAL INFORMATION
Engine compartment fuse box

 Unclip the cover, pressing on the
right on lug E , to gain access to
the fuses. Your vehicle’s electrical cir-
cuit is designed to operate
with standard or optional
equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer.
Some electrical accessories or the
way in which they are fi tted may have
an adverse effect on the operation of
your vehicle (audio circuit, control cir-
cuit and electrical charging circuit).
CITROËN will not accept any re-
sponsibility for the costs incurred in
repairing your vehicle or for the mal-
functions resulting from the installa-
tion of auxiliary accessories which
were not supplied or recommended
by CITROËN and which were not in-
stalled in accordance with its instruc-
tions, in particular in the case of any
equipment the consumption of which
exceeds 10 milliamps.
The pliers
A and the replacement
fuses B are fi xed at the front of the
box.
When you have fi nished, close the
cover very carefully.

9
78
PRACTICAL INFORMATION

Fuse N° Rating
Functions

1 50 A "SensoDrive" gearbox - Fan assembly (diesel)

2
10 A Headlamps

20 A Headlamps with daytime lights

3 30 A ABS/ESP control unit

4 30 A Ignition switch supply

5 10 A Hazard warning lights - Instrument panel warning lights - Direction indicators

6 10 A Headlamps

7 15 A Courtesy light - Speedometer - Audio equipment - Instrument p anel - Rev counter

8 15 A/25 A Petrol/diesel engine control unit

9 10 A Horn

10 30 A Fan assembly (petrol)

11 50 A ABS/ESP

12 50 A Power steering

9
79
PRACTICAL INFORMATION
BATTERY
Do not push the vehicle to
start the engine if you have a
"SensoDrive" gearbox.
Before disconnecting the
battery, you must wait for
2 minutes after switching off
the ignition.
Never disconnect a terminal
when the engine is running.
Never charge a battery without fi rst
disconnecting the terminals.
Close the windows and doors before
disconnecting the battery.
After every reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to allow the
electronic systems to be initialised. If
slight diffi culties are experienced af-
ter this, please consult a CITROËN
dealer.
To start the vehicle from
another battery:
- Connect the red cable to the
positive (+) terminals of the two
batteries,
- Connect the green or black cable to the negative (-) terminals of the
two batteries,
-
Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables. It is advisable to disconnect
the battery if the vehicle is
not to be used for a period of
more than one month.
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be discarded in accor-
dance with the provisions of the law
and must not, in any circumstances,
be discarded with household waste.
Return used batteries to a special
collection point.
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use
given by the battery charger
manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect
them and clean them.

A. Failed battery

B. Slave battery

9

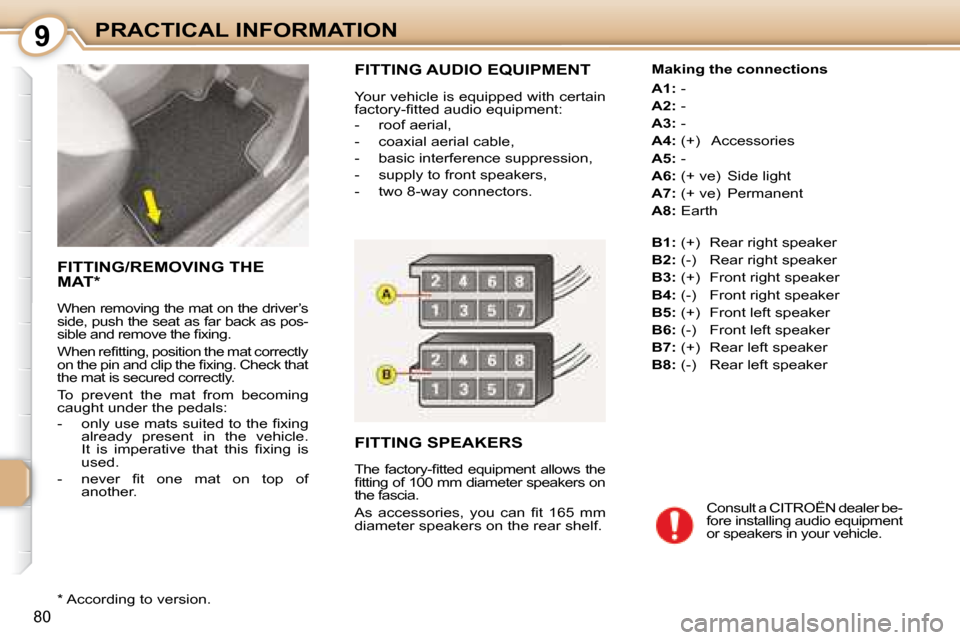

80
PRACTICAL INFORMATION
FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain
factory-fi tted audio equipment:
- roof aerial,
- coaxial aerial cable,
- basic interference suppression,
- supply to front speakers,
- two 8-way connectors.
FITTING SPEAKERS
The factory-fi tted equipment allows the
fi tting of 100 mm diameter speakers on
the fascia.
As accessories, you can fi t 165 mm
diameter speakers on the rear shelf. Making the connections

A1: -

A2: -

A3: -

A4: (+) Accessories

A5: -

A6: (+ ve) Side light

A7: (+ ve) Permanent

A8: Earth
Consult a CITROËN dealer be-
fore installing audio equipment
or speakers in your vehicle.
FITTING/REMOVING THE MAT *
When removing the mat on the driver’s
side, push the seat as far back as pos-
sible and remove the fi xing.
When refi tting, position the mat correctly
on the pin and clip the fi xing. Check that
the mat is secured correctly.
To prevent the mat from becoming
caught under the pedals:
- only use mats suited to the fi xing already present in the vehicle.
It is imperative that this fi xing is
used.
- never fi t one mat on top of another.
* According to version.
B1: (+) Rear right speaker

B2: (-) Rear right speaker

B3: (+) Front right speaker

B4: (-) Front right speaker

B5: (+) Front left speaker

B6: (-) Front left speaker

B7: (+) Rear left speaker

B8: (-) Rear left speaker

9

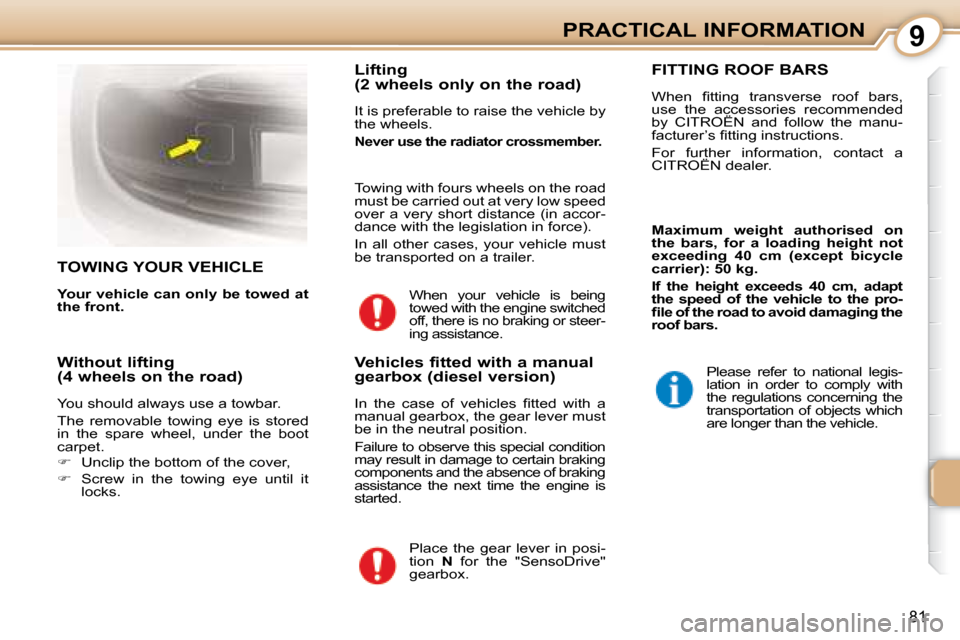

81
PRACTICAL INFORMATION
TOWING YOUR VEHICLE

Your vehicle can only be towed at
the front. Lifting
(2 wheels only on the road)
It is preferable to raise the vehicle by
the wheels.

Never use the radiator crossmember.

When your vehicle is being
towed with the engine switched
off, there is no braking or steer-
ing assistance.
Without lifting
(4 wheels on the road)
You should always use a towbar.
The removable towing eye is stored
in the spare wheel, under the boot
carpet.

 Unclip the bottom of the cover,

 Screw in the towing eye until it
locks.
Place the gear lever in posi-
tion N for the "SensoDrive"
gearbox.
FITTING ROOF BARS
When fi tting transverse roof bars,
use the accessories recommended
by CITROËN and follow the manu-
facturer’s fi tting instructions.
For further information, contact a
CITROËN dealer.
Please refer to national legis-
lation in order to comply with
the regulations concerning the
transportation of objects which
are longer than the vehicle.
Towing with fours wheels on the road
must be carried out at very low speed
over a very short distance (in accor-
dance with the legislation in force).
In all other cases, your vehicle must
be transported on a trailer.
Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special condition
may result in damage to certain braking
components and the absence of braking
assistance the next time the engine is
started.

Maximum weight authorised on
the bars, for a loading height not
exceeding 40 cm (except bicycle
carrier): 50 kg.

If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging the
roof bars.
