fuse box Citroen C1 2008 1.G Owner's Manual
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2008, Model line: C1, Model: Citroen C1 2008 1.GPages: 97, PDF Size: 3.14 MB
Page 4 of 97
7
1. Bonnet release
2. Headlamp adjustment
3. Passenger air bag disarming
4. Side adjustable and closing vent
5. Lights and direction indicators
stalk
6. Driver’s front air bag
Horn
7. Fascia fuse box (under the
i n s t r u m e n t p a n e l t r i m , o n t h e
right and on the left)
8. Rev counter
9. Passenger exterior mirror control
10. Passenger electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height adjustment
INSTRUMENTS AND CONTROLS
Page 71 of 97
8
66
CHECKS
1.0 LITRE PETROL ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. B r a k e fl u i d r e s e r v o i r
4. Fuse box
5. Battery
6. A i r fi l t e r
7. Dipstick
8. E n g i n e o i l fi l l e r c a p
1.4 LITRE TURBO DIESEL HDI ENGINE
1. Coolant reservoir
2. Windscreen wash reservoir
3. Priming pump
4. A i r fi l t e r
5. B r a k e fl u i d r e s e r v o i r
6. Fuse box
7. Battery
8. Dipstick
9. E n g i n e o i l fi l l e r c a p

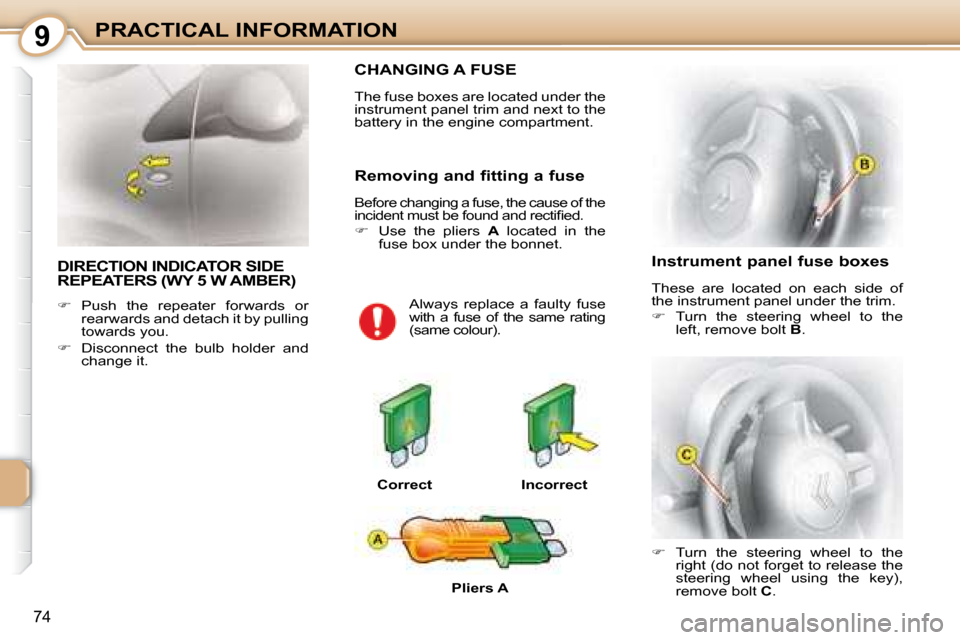

Page 81 of 97
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause of the
i n c i d e n t m u s t b e f o u n d a n d r e c t i fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 82 of 97
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause of the
i n c i d e n t m u s t b e f o u n d a n d r e c t i fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 83 of 97
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pulling
towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause of the
i n c i d e n t m u s t b e f o u n d a n d r e c t i fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 85 of 97
9
76
PRACTICAL INFORMATION
* Fuses located behind the instrument panel. To change them, contact a CITROËN dealer.
Fuse N° Rating
Functions
1 10 A Brake lights - ABS - "SensoDrive" gearbox
2 25 A Central locking/unlocking
3 20 A Rear screen demisting
4 7.5 A Rear lights - Number plate lights - Instrument panel - Disp lay
5 7.5 A Diagnostic socket
6 7.5 A Rear fog lamp - Instrument panel - "SensoDrive" gearbox
7 - Not used
8 7.5 A ABS - Power steering - Air conditioning - Fan assembly
9 10 A Rear lights - Central locking/unlocking - Electric windows - Rear
screen demisting -
Speedometer - Air conditioning - Heating - Rev counter
10 20 A Front and rear wipers
11 15 A Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)
12 7.5 A Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter
13 15 A Air bag - Engine control unit - Electronic engine immobiliser - "Se
nsoDrive" gearbox -
Instrument panel
14 7.5 A Air conditioning
15 * 40 A Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs
16 * 30 A Electric windows
17 * 40 A Heating - Air conditioning
Page 86 of 97
9
77
PRACTICAL INFORMATION
Engine compartment fuse box
Unclip the cover, pressing on the
right on lug E , to gain access to
the fuses. Your vehicle’s electrical cir-
cuit is designed to operate
with standard or optional
equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer.
Some electrical accessories or the
w a y i n w h i c h t h e y a r e fi t t e d m a y h a v e
an adverse effect on the operation of
your vehicle (audio circuit, control cir-
cuit and electrical charging circuit).
CITROËN will not accept any re-
sponsibility for the costs incurred in
repairing your vehicle or for the mal-
functions resulting from the installa-
tion of auxiliary accessories which
were not supplied or recommended
by CITROËN and which were not in-
stalled in accordance with its instruc-
tions, in particular in the case of any
equipment the consumption of which
exceeds 10 milliamps.
The pliers
A and the replacement
fuses B a r e fi x e d a t t h e f r o n t o f t h e
box.
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover very carefully.
Page 87 of 97
9
78
PRACTICAL INFORMATION
Fuse N° Rating
Functions
1 50 A "SensoDrive" gearbox - Fan assembly (diesel)
2
10 A Headlamps
20 A Headlamps with daytime lights
3 30 A ABS/ESP control unit
4 30 A Ignition switch supply
5 10 A Hazard warning lights - Instrument panel warning lights - Direction indicators
6 10 A Headlamps
7 15 A Courtesy light - Speedometer - Audio equipment - Instrument p anel - Rev counter
8 15 A/25 A Petrol/diesel engine control unit
9 10 A Horn
10 30 A Fan assembly (petrol)
11 50 A ABS/ESP
12 50 A Power steering
