Page 48 of 97
4
48
ACCESS
KEYS/REMOTE CONTROL
Remote control
This carries out the vehicle locking -
unlocking and locating functions at a
distance.
Keys
The keys allow you to switch on the
ignition and operate the locks on the
front doors, the boot, the fuel tank cap,
the steering lock and the passenger's
airbag deactivation switch. Locking
Press button
A to lock the vehicle from a d i s t a n c e . T h i s i s c o n fi r m e d b y b r i e f
lighting of the direction indicators.
Central locking and unlocking
From the driver's door, the keys allow
you to lock and unlock the doors and
boot simultaneously. Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y t w o s u c c e s s i v e
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s . Locating the vehicle
To locate your vehicle in a car park, if
you have locked it:
press button A , the direction
i n d i c a t o r s c o m e o n b r i e fl y .
After locking, if you notice
that a door is not closed
properly, close it then lock
the vehicle again.
The set of keys or remote
controls, supplied with your
vehicle, enable you to obtain
a maximum of three new
keys.
If all of the keys in your possession
are lost, a major operation will have
to be carried out on your vehicle.
Contact a CITROËN dealer or a
q u a l i fi e d w o r k s h o p .
Page 65 of 97
6
61
SAFETY
The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
If the seats have armrests * , the lap
part of the seat belt must always
pass under the armrest.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic adjust-ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release
the device by pulling rapidly on the
strap and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or m o d i fi e d t o a v o i d a l t e r i n g i t s
performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who can guarantee that the
work is carried out correctly, or quali-
fi e d w o r k s h o p .
Have your seat belts checked regu-
larly by a CITROËN dealer or a quali-
fi e d w o r k s h o p a n d p a r t i c u l a r l y i f t h e
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years
old or shorter than one metre
fi f t y ,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tension-
ers is accompanied by a slight emis-
sion of harmless smoke and a noise,
due to the activation of the pyrotech-
nic cartridge incorporated in the sys-
tem.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer
o r a q u a l i fi e d w o r k s h o p .
* According to model.

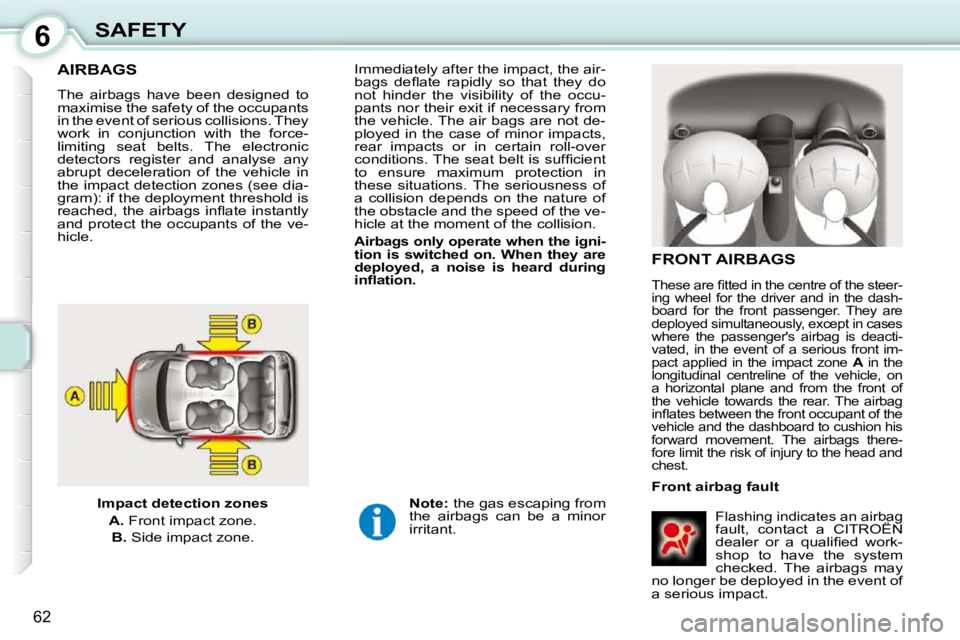

Page 66 of 97
6
62
SAFETY
AIRBAGS
FRONT AIRBAGS
Front airbag fault
Flashing indicates an airbag fault, contact a CITROËN
d e a l e r o r a q u a l i fi e d w o r k -
shop to have the system
checked. The airbags may
no longer be deployed in the event of
a serious impact.
Note: the gas escaping from
the airbags can be a minor
irritant.
Immediately after the impact, the air-
b a g s d e fl a t e r a p i d l y s o t h a t t h e y d o
not hinder the visibility of the occu-
pants nor their exit if necessary from
the vehicle. The air bags are not de-
ployed in the case of minor impacts,
rear impacts or in certain roll-over
c o n d i t i o n s . T h e s e a t b e l t i s s u f fi c i e n t
to ensure maximum protection in
these situations. The seriousness of
a collision depends on the nature of
the obstacle and the speed of the ve-
hicle at the moment of the collision.
Airbags only operate when the igni-tion is switched on. When they are
deployed, a noise is heard during
i n fl a t i o n .
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The airbags have been designed to
maximise the safety of the occupants
in the event of serious collisions. They
work in conjunction with the force-
limiting seat belts. The electronic
detectors register and analyse any
abrupt deceleration of the vehicle in
the impact detection zones (see dia-
gram): if the deployment threshold is
r e a c h e d , t h e a i r b a g s i n fl a t e i n s t a n t l y
and protect the occupants of the ve-
hicle.
T h e s e a r e fi t t e d i n t h e c e n t r e o f t h e s t e e r -
ing wheel for the driver and in the dash-
board for the front passenger. They are
deployed simultaneously, except in cases
where the passenger's airbag is deacti-
vated, in the event of a serious front im-
pact applied in the impact zone
A in the
longitudinal centreline of the vehicle, on
a horizontal plane and from the front of
the vehicle towards the rear. The airbag
i n fl a t e s b e t w e e n t h e f r o n t o c c u p a n t o f t h e
vehicle and the dashboard to cushion his
forward movement. The airbags there-
fore limit the risk of injury to the head and
chest.
Page 67 of 97
6
63
SAFETY
Deactivating the passenger
airbag
To ensure the safety of your child,
it is essential to deactivate the
passenger airbag when you install a "rear-facing" child seat on the
front passenger seat. Otherwise,
the child would risk being seri-
ously injured or killed if the air bag
w e r e t o i n fl a t e .
With the ignition switched off ,
insert the key into the passenger
airbag deactivation switch 1 ,
turn it to the "OFF" position,
then remove the key keeping the
switch in this position.
In the "OFF" position, the passen-
ger airbag will not be deployed in the
event of an impact.
As soon as the child seat is removed,
turn the airbag switch to the "ON"
position to re-activate the airbag and
thus ensure the safety of your pas-
senger in the event of an impact. If the passenger airbag is de-
activated, the warning lamp
in the instrument panel re-
mains on until the passenger
airbag is reactivated.
Flashing indicates a fault
with at least one of these
airbags.
Contact a CITROËN deal-
e r o r a q u a l i fi e d w o r k s h o p
to have the system checked. The
airbags may no longer be deployed
in the event of a serious impact.
Deactivation (check)
Airbag fault
* According to version.
LATERAL AIRBAGS * AND CURTAIN AIRBAGS *
The lateral airbags are built into the
front seat backs on the door side.
The deployment of these airbags re-
quires a serious side impact applied
in the side impact zone B , perpen-
dicular to the longitudinal centreline
of the vehicle, on a horizontal plane
and from the outside of the vehicle
towards the inside. The lateral airbag
i n fl a t e s b e t w e e n t h e f r o n t o c c u p a n t
of the vehicle and the door trim panel.
It therefore limits the risk of injury to
the chest.
The rear lateral airbags afford the
rear passengers the same protection
which the front lateral airbags offer
the front passengers.
The curtain airbags are built into the
headlining. T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant and the
windows. It therefore limits the risk
of head injuries. In the event of a
minor impact or bump on the side of
the vehicle or if the vehicle rolls over,
the airbag may not be deployed. The
airbag is not deployed in the event of
a front or rear collision.
Page 68 of 97
6
63
SAFETY
Deactivating the passenger
airbag
To ensure the safety of your child,
it is essential to deactivate the
passenger airbag when you install a "rear-facing" child seat on the
front passenger seat. Otherwise,
the child would risk being seri-
ously injured or killed if the air bag
w e r e t o i n fl a t e .
With the ignition switched off ,
insert the key into the passenger
airbag deactivation switch 1 ,
turn it to the "OFF" position,
then remove the key keeping the
switch in this position.
In the "OFF" position, the passen-
ger airbag will not be deployed in the
event of an impact.
As soon as the child seat is removed,
turn the airbag switch to the "ON"
position to re-activate the airbag and
thus ensure the safety of your pas-
senger in the event of an impact. If the passenger airbag is de-
activated, the warning lamp
in the instrument panel re-
mains on until the passenger
airbag is reactivated.
Flashing indicates a fault
with at least one of these
airbags.
Contact a CITROËN deal-
e r o r a q u a l i fi e d w o r k s h o p
to have the system checked. The
airbags may no longer be deployed
in the event of a serious impact.
Deactivation (check)
Airbag fault
* According to version.
LATERAL AIRBAGS * AND CURTAIN AIRBAGS *
The lateral airbags are built into the
front seat backs on the door side.
The deployment of these airbags re-
quires a serious side impact applied
in the side impact zone B , perpen-
dicular to the longitudinal centreline
of the vehicle, on a horizontal plane
and from the outside of the vehicle
towards the inside. The lateral airbag
i n fl a t e s b e t w e e n t h e f r o n t o c c u p a n t
of the vehicle and the door trim panel.
It therefore limits the risk of injury to
the chest.
The rear lateral airbags afford the
rear passengers the same protection
which the front lateral airbags offer
the front passengers.
The curtain airbags are built into the
headlining. T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant and the
windows. It therefore limits the risk
of head injuries. In the event of a
minor impact or bump on the side of
the vehicle or if the vehicle rolls over,
the airbag may not be deployed. The
airbag is not deployed in the event of
a front or rear collision.
Page 69 of 97
6
64
SAFETY
For the front, lateral and
curtain airbags to be fully
effective, observe the fol-
lowing safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the airbags (child,
animal, object...). This could hamper
the operation of the airbags or injure
the occupants.
All work on the airbag systems is
strictly prohibited unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f t h e
CITROËN dealer network or a quali-
fi e d w o r k s h o p .
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
Smoke as little as possible; deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
pillars or the roof. This could cause
injury to the head when the curtain
a i r b a g i n fl a t e s .
The deployment of an airbag or air-
bags is accompanied by a slight
emission of harmless smoke and
a noise due to the activation of the
pyrotechnic cartridge incorporated in
the system. This smoke is not harm-
ful but sensitive individuals may ex-
perience some irritation.
The detonation noise may result in
a slight loss of hearing for a short
time.
Even if all of the precautions men-
tioned are observed, injury or slight
burns to the head, chest or arms
when the air bag is deployed can-
not be ruled out. Indeed, the bag in-
fl a t e s a l m o s t i n s t a n t l y ( a p p r o x i m a t e l y
3 0 m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging hot gas
via the openings provided for this
purpose.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
a c c i d e n t ) , t h e a i r b a g w i l l n o t i n fl a t e .
Lateral airbags
Only put approved covers on the seats,
t h e s e w i l l n o t h a m p e r t h e i n fl a t i o n o f t h e
lateral airbags. Contact a CITROËN
d e a l e r o r a q u a l i fi e d w o r k s h o p .
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
front seat backs. This could cause
injury to the chest or arms when the
l a t e r a l a i r b a g i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Page 87 of 97
9
79
PRACTICAL INFORMATION
* F u s e s l o c a t e d b e h i n d t h e i n s t r u m e n t p a n e l . T o c h a n g e t h e m , c o n t a c t a C I T R O Ë N d e a l e r o r a q u a l i fi e d w o r k s h o p .
Fuse
N° Rating (A)
Functions
1 10 Brake lamps - ABS - "SensoDrive" gearbox
2 25 Central locking/unlocking
3 20 Rear screen demisting
4 7.5 Rear lamps - Number plate lamps - Instrument panel - Screen
5 7.5 Diagnostic socket
6 7.5 Rear foglamp - Instrument panel - "SensoDrive" gearbox
7 - Not used
8 7.5 ABS - Power steering - Air conditioning - Fan assembly
9 10 Rear lamps - Central locking/unlocking - Electric windows - Rear scree
n demisting -
Speedometer - Air conditioning - Heating - Rev counter
10 20 Front and rear wipers
11 15 Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)
12 7.5 Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter
13 15 Airbag - Engine control unit - Electronic engine immobiliser - "Sen
soDrive" gearbox -
Instrument panel
14 7.5 Air conditioning
15 * 40 Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs
16 * 30 Electric windows
17 * 40 Heating - Air conditioning
