engine CITROEN C3 PICASSO 2017 User Guide

20
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Warning/indicator lampis on Cause Action / Observations
AdBlue
® additive
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the AdBlue® additive tank topped up as soon
as possible: go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself.
+ flashing associated with
the SERVICE warning
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the AdBlue
® additive tank to avoid
a breakdown : go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself.
flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up the
AdBlue® additive tank: go to a CITROËN dealer or
a qualified workshop, or carry out this operation
yourself.
It is essential to add at least 3.8 litres of AdBlue
® to
the additive tank.
For topping-up or for more information on the AdBlue
® additive, refer to the corresponding section.
Monitoring

21
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Warning/indicator lampis on Cause Action / Observations
+
+ SCR emissions
control system

(BlueHDi Diesel) fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with
the SERVICE and
engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a CITROËN dealer or a qualified workshop
without delay
, to avoid a breakdown .
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must
call on a
CITROËN dealer or a qualified workshop.
1
Monitoring

22
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Service indicator
5 seconds after the ignition is switched on,
the spanner goes off; the distance recorder
resumes its normal operation. The screen then
indicates the total distance.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
The point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service. System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule. For BlueHDi Diesel versions, the
degree of deterioration of the engine oil
is also taken into account (depending
on the country of sale).
Indicators
Monitoring

23
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
The rate of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.
Service overdue
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.For BlueHDi Diesel versions, this alert
may also be accompanied by the fixed
illumination of the service warning lamp
when the ignition is on.
For 5 seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(3 0 0 k m).
For 5 seconds after the ignition is switched on,
the screen indicates:
1
Monitoring

25
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Engine oil level indicator*
Oil level correct
Oil level lowOil level indicator fault
In the event of a fault with the electric oil
gauge, the engine oil level is no longer
monitored.
While the system is faulty, you should
check the engine oil level using the
dipstick located under the bonnet.
Refer to the "Checking levels" section.
This is indicated by the flashing of " O I L"
, linked
with the service warning lamp, accompanied
by an audible signal and a message in the
multifunction screen.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
prevent damage to the engine.
Refer to the "Checking levels" section. This is signaled by the flashing of "OIL- -"
.
Contact a CITROËN dealer or a qualified
workshop.
The level shown will only be correct
if the vehicle is on level ground and
the engine has been off for more than
30


minutes.
On versions fitted with an electric oil level
gauge, information on the engine oil level is
displayed for a few seconds in the instrument
panel when the ignition is switched on, after the
service information.
* Depending on version.
1
Monitoring

44
C3Picasso_en_Chap03_confort_ed01-2015
In order for these systems to be fully effective, follow the guidelines on operation and
maintenance below:
F
I
f the interior temperature remains very high after the vehicle has been parked in the
sun for a considerable time, first ventilate the passenger compartment for a
few minutes.
P

lace the air flow control at a sufficient level to provide an adequate renewal of air in
the passenger compartment.
F

T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the passenger compartment on both sides of the rear shelf.
F

D
o not cover the sunshine sensor, located on the dashboard (behind the instrument
panel); this is used for regulation of the air conditioning system.
F

O
perate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it
in good working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly (see the "Checks" section).


W
e recommend the use of a combined passenger compartment filter. Thanks to its
second special active filter, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly.
F

I
f the system does not produce cold air, do not use it and contact a CITROËN dealer or
a qualified workshop. The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning saves engine power and so improves towing capacity.
Recommendations for ventilation and air conditioning
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
Comfort

45
C3Picasso_en_Chap03_confort_ed01-2015
The control button is
located on the heating
or air conditioning
system control panel.
Rear screen demist/defrost
Switching on
The rear screen demist /defrost can only
operate when the engine is running.
F
P
ress this button to demist /defrost the rear
screen and the door mirrors. The indicator
lamp associated with the button comes on.
Switching off
The demist /defrost switches off automatically to
prevent an excessive consumption of current.
F

I
t is possible to stop the demist /defrost
operation before it is switched off
automatically by pressing the button again.
The indicator lamp associated with the
button switches off.
F

S
witch off the demist /defrost
of the rear screen and door
mirrors as soon as you consider
this possible as lower current
consumption results in reduced fuel
consumption.
3
Comfort

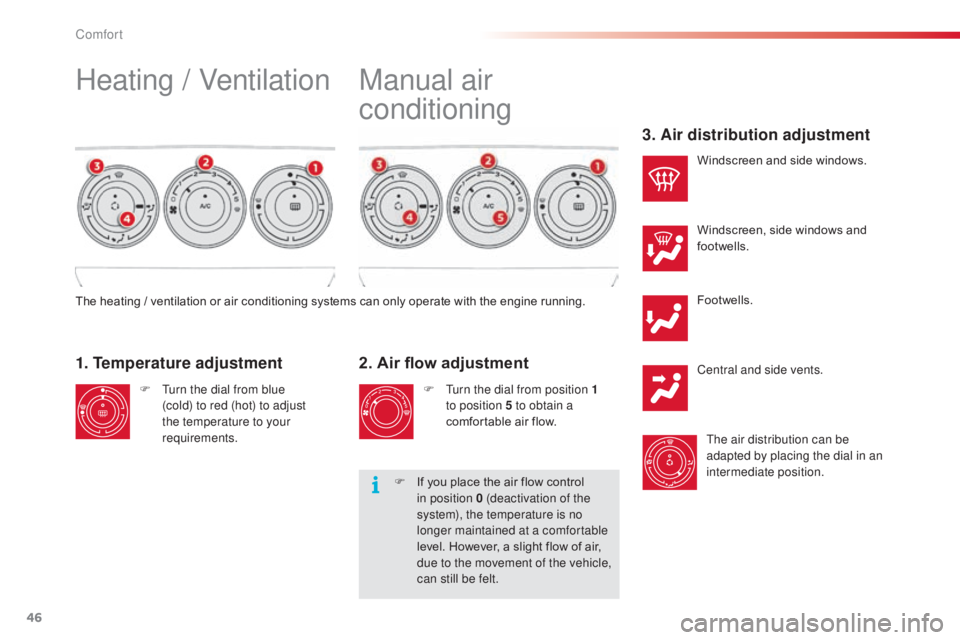

46
C3Picasso_en_Chap03_confort_ed01-2015
Footwells.
Central and side vents.The air distribution can be
adapted by placing the dial in an
intermediate position.
2. Air flow adjustment
F Turn the dial from position 1
to position 5 to obtain a
comfortable air flow. Windscreen, side windows and
footwells.
F
T
urn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements. Windscreen and side windows.
1. Temperature adjustment
The heating / ventilation or air conditioning systems can only operate with the engine running.
3. Air distribution adjustment
Heating / Ventilation
Manual air
conditioning
F If you place the air flow control
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfortable
level. However, a slight flow of air,
due to the movement of the vehicle,
can still be felt.
Comfort

48
C3Picasso_en_Chap03_confort_ed01-2015
The air conditioning only operates when the engine is running.The driver and front passenger can
each adjust the temperature to their
requirements.
F

T
urn control 2 or 3 to the left or to the right
respectively to decrease or increase this value.
A setting around the value 21 provides
optimum comfort. However, depending on
your requirements, a setting between 18 and
24 is normal.
You are advised to avoid a left / right setting
difference of more than 3.
Automatic operation
F Press the "AUTO" button. The
indicator lamp in the button
comes on.
2. Driver's side adjustment
Dual-zone digital air conditioning
We recommend the use of this mode: it permits
automatic and optimised adjustment of all
of the functions, passenger compartment
temperature, air flow, air distribution and air
recirculation, in accordance with the comfort
value that you have chosen.
This system is designed to operate effectively
in all seasons, with the windows closed. The value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
1. Automatic comfort programme
3. Passenger's side adjustment
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no
need to change the value displayed in
order to obtain the comfort required.
The system corrects the difference
in temperature automatically and as
quickly as possible.
When the engine is cold, to prevent
too great a distribution of cold air, the
air flow will reach its optimum level
gradually.
In cold weather, it favours the
distribution of warm air to the
windscreen, side windows and footwells
o n l y.
Comfort

54
C3Picasso_en_Chap03_confort_ed01-2015
Table position of the front
passenger seat
Placing this seat in the table position, with the
rear benchseat also in the table position, allows
you to transport long objects.
F
P
ush the control upwards and guide the
seat back for wards to fold it onto the seat
cushion.
F

T
o put it back in place, lift up the seat back
and guide it rear wards until it locks in.
With the engine running, the front seats can be
heated separately.
F

U

se the adjustment dial, placed on the side
of each front seat, to switch on and select
the level of heating required:
0 : Of f.
1 : Low.
2 : Medium.
3 : High.
Heated seats control
Do not forget to fold the "aircraft" type
table fixed on the back of the seat first.
For safety reasons, a passenger sat in
the rear of the vehicle must not place
his feet on the front seat in the table
position.
Comfort
