CHILD SAFETY

CITROËN recommends
that
children should travel in the rear
seats
of your vehicle, with the
rear seats in the fully back posi-
tion:


- "rearwards-facing"
up to
the age of 2,

- "forwards-facing"
over the
age of 2.
SEATS


"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
the passenger airbag must be deacti-
vated. Otherwise, the child would risk
being seriously injured or killed if the
airbag were to infl ate.


*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of CITROËN's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow these
precautions:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.


CHILD SEAT AT THE FRONT


Intermediate longitudinal position

7
92
CHILD SAFETY


Group 0+: from birth to 13 kg



Groups 1, 2 and 3: from 9 to 36 kg









L1

"RÖMER Baby-Safe
Plus"
Installed in the
rearwards-facing
position.







L2

"KIDDY Comfort Pro"

The impact shield
must be used
for carrying young
children
(from 9 to 18 kg).


Groups 2 and 3: from 15 to 36 kg








L3

"RECARO Start''






L4

"KLIPPAN Optima"
From the age of
6 years
(approximately
22 kg), the booster
is used on its own.







L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

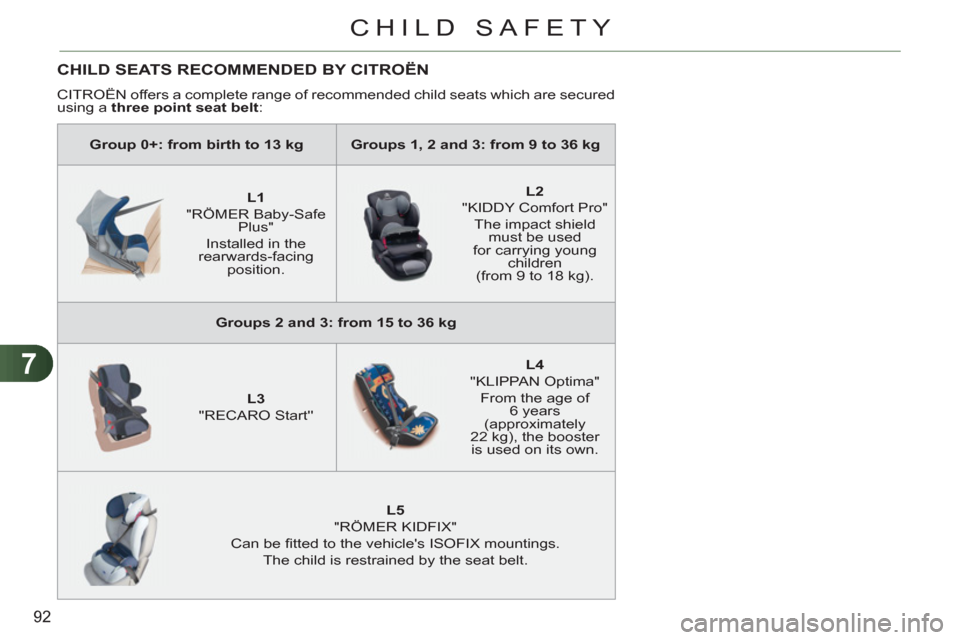

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured
using a three point seat belt
:

7
95
CHILD SAFETY

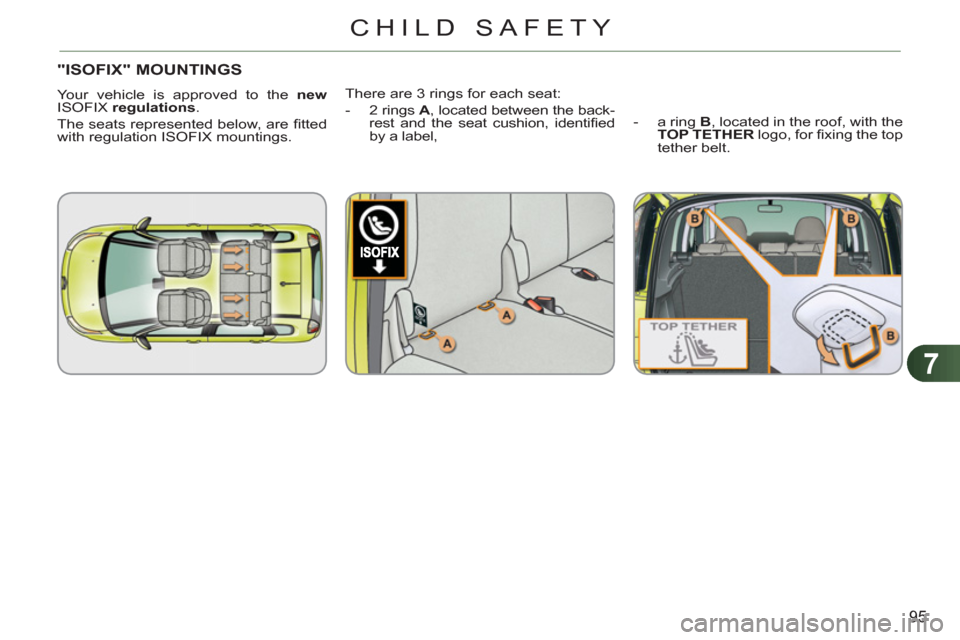

"ISOFIX" MOUNTINGS
Your vehicle is approved to the new
ISOFIX regulations
.
The seats represented below, are fi tted
with regulation ISOFIX mountings. There are 3 rings for each seat:


- 2 rings A
, located between the back-
rest and the seat cushion, identifi ed
by a label,
- a ring B
, located in the roof, with the
TOP TETHER
logo, for fi xing the top
tether belt.

7
CHILD SAFETY
This ISOFIX mounting system provides
reliable, safe and fast fi tting of the child
seat in your vehicle.

ISOFIX child seats
are fi tted with two
latches which are secured easily on
these rings A
.
Some also have a top tether belt
which
can be attached to ring B
.
To attach this belt, raise the head re-
straint of the seat, then pass the buckle
between the rods. Then fi x the buckle
on ring B
, then tension the top tether
belt.
If a child is not installed in a vehicle cor-
rectly, the child's protection in the event
of a collision will be compromised.
To know which ISOFIX child seats can
be installed in your vehicle, see the ta-
ble of seating positions for ISOFIX child
seats.
The rear seats must be in the fully back
position to install ISOFIX seats.
This child seat can also be used on seats which are not fi tted with ISOFIX
mountings. In this case, it must be attached to the vehicle seat using the
three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manu-

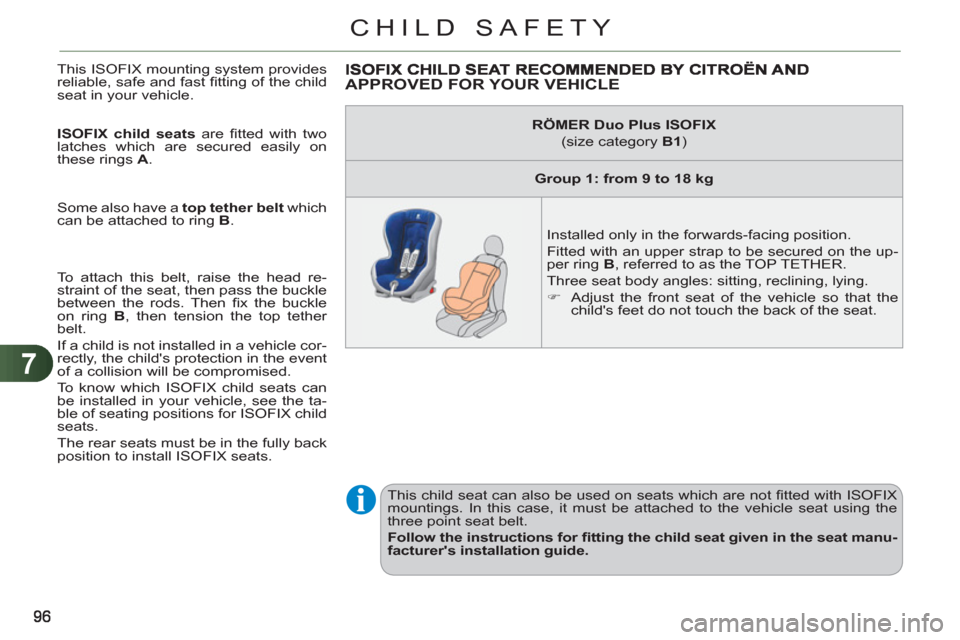

facturer's installation guide. APPROVED FOR YOUR VEHICLE



RÖMER
Duo Plus ISOFIX

(size category B1
)


Group 1: from 9 to 18 kg



Installed only in the forwards-facing position.
Fitted with an upper strap to be secured on the up-
per ring B
, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.


)
Adjust the front seat of the vehicle so that the
child's feet do not touch the back of the seat.

7
97
CHILD SAFETY
TABLE OF SEATING POSITIONS FOR ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orwards-facing" secured using the top belt.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rearwards-facing" fi tted with a top belt or a stay,

- "forwards-facing" fi tted with a stay,

- a shell seat fi tted with an upper strap or a stay.
For advice on securing the top tether belt, refer to the "ISOFIX mountings" section.

* The ISOFIX infant car seat (shell seat), secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.



Weight of the child
/indicative age


Less than 10 kg
(group 0)


Up to approx.
6 months

Less than 10 kg


(group 0)
Less than 13 kg


(group 0+)


Up to approx. 1 year

From 9 to 18 kg (group 1)


From approx. 1 to 3 years


Type of ISOFIX child seat



Shell



"rearwards-facing"



"rearwards-facing"



"forwards-facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




ISOFIX universal and
semi-universal child seats
which can be installed on
the

outer

rear

seats



IL-SU

*


IL-SU



IL-SU



IUF


IL-SU

230
