C r u i s e c o n t r o l m u s t o n l y b e u s e d w h e r e t h e t r a f fi c c o n d i t i o n s p e r m i t d r i v i n g a t a c o n s t a n t s p e e d .
Do not use it on congested roads or when the weather or the road conditions are poor.

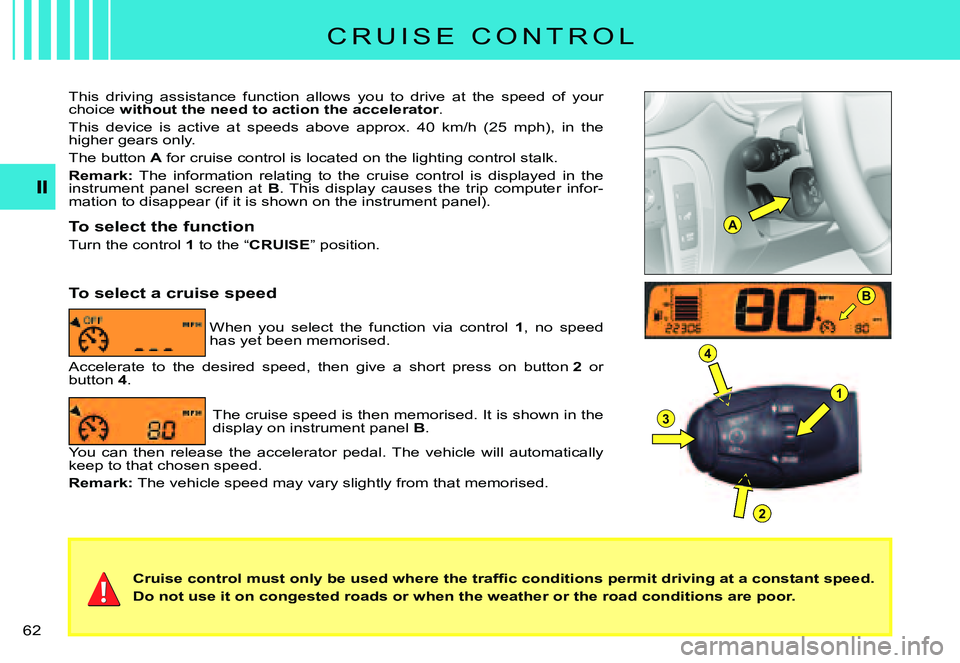

This driving assistance function allows you to drive at the spee d of your choice without the need to action the accelerator.
T h i s d e v i c e i s a c t i v e a t s p e e d s a b o v e a p p r o x . 4 0 k m / h ( 2 5 m p h ) , i n t h e higher gears only.
The button A for cruise control is located on the lighting control stalk.
Remark: The information relating to the cruise control is displayed in the instrument panel screen at B. This display causes the trip computer infor-mation to disappear (if it is shown on the instrument panel).
To select the function
Turn the control 1 to the “CRUISE” position.
When you select the function via control 1, no speed has yet been memorised.
To select a cruise speed
Accelerate to the desired speed, then give a short press on butt on 2 or button 4.
The cruise speed is then memorised. It is shown in the display on instrument panel B.
You can then release the accelerator pedal. The vehicle will automatically keep to that chosen speed.
Remark: The vehicle speed may vary slightly from that memorised.
C R U I S E C O N T R O L
Page 62 of 144
II
6 3
Temporary override of the cruise speed

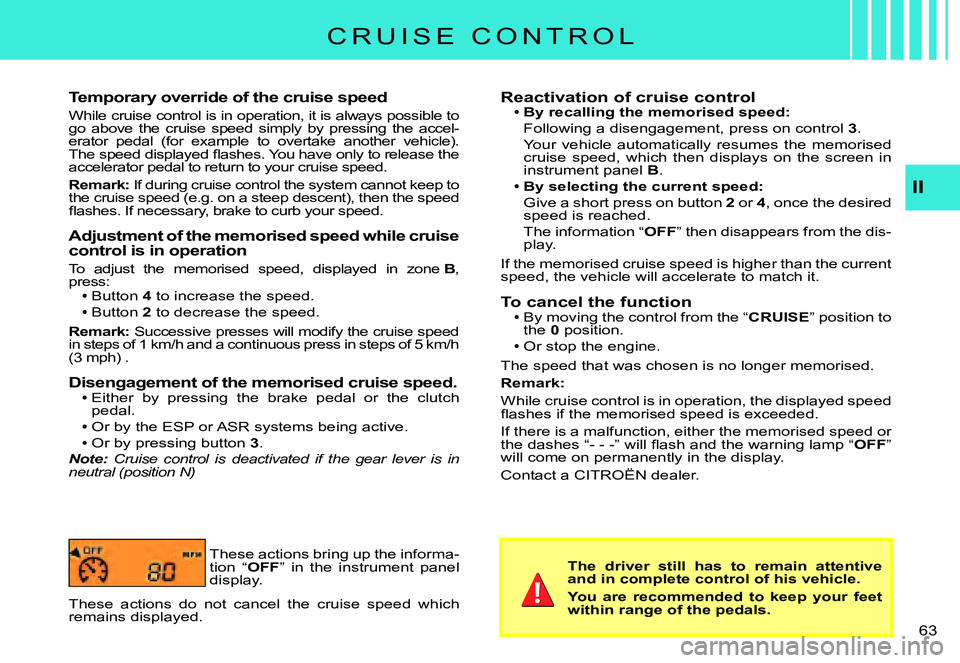

While cruise control is in operation, it is always possible to go above the cruise speed simply by pressing the ac cel-erator pedal (for example to overtake another vehic le). T h e s p e e d d i s p l a y e d fl a s h e s . Y o u h a v e o n l y t o r e l e a s e t h e accelerator pedal to return to your cruise speed.
Remark: If during cruise control the system cannot keep to the cruise speed (e.g. on a steep descent), then the speed fl a s h e s . I f n e c e s s a r y , b r a k e t o c u r b y o u r s p e e d .
Adjustment of the memorised speed while cruise control is in operation
To adjust the memorised speed, displayed in zone B, press:Button 4 to increase the speed.Button 2 to decrease the speed.
Remark: Successive presses will modify the cruise speed i n s t e p s o f 1 k m / h a n d a c o n t i n u o u s p r e s s i n s t e p s o f 5 k m / h ( 3 m p h ) .
Disengagement of the memorised cruise speed.Either by pressing the brake pedal or the clutch pedal.Or by the ESP or ASR systems being active.
Or by pressing button 3.Note: Cruise control is deactivated if the gear lever is in neutral (position N)
Reactivation of cruise controlBy recalling the memorised speed:
Following a disengagement, press on control 3.Your vehicle automatically resumes the memorised cruise speed, which then displays on the screen in instrument panel B.
By selecting the current speed:
Give a short press on button 2 or 4, once the desired speed is reached.The information “OFF” then disappears from the dis-play.
If the memorised cruise speed is higher than the current speed, the vehicle will accelerate to match it.
To cancel the functionBy moving the control from the “CRUISE” position to the 0 position.Or stop the engine.
The speed that was chosen is no longer memorised.
Remark:
While cruise control is in operation, the displayed speed fl a s h e s i f t h e m e m o r i s e d s p e e d i s e x c e e d e d .
If there is a malfunction, either the memorised speed or t h e d a s h e s “ - - - ” w i l l fl a s h a n d t h e w a r n i n g l a m p “OFF” will come on permanently in the display.
Contact a CITROËN dealer.
These actions bring up the informa-tion “OFF” in the instrument panel display.
These actions do not cancel the cruise speed which remains displayed.
The driver still has to remain attentive and in complete control of his vehicle.
You are recommended to keep your feet within range of the pedals.
C R U I S E C O N T R O L
Page 63 of 144
A
1
4
3
2
B
II
6 4
S P E E D L I M I T E R

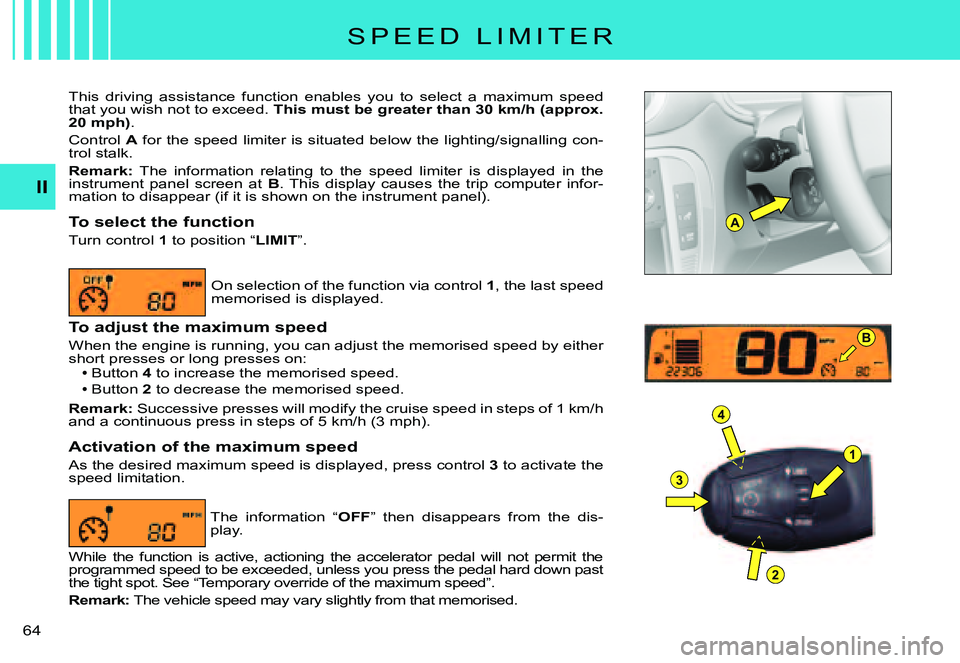

This driving assistance function enables you to select a maximum speed that you wish not to exceed. This must be greater than 30 km/h (approx. 20 mph).
Control A for the speed limiter is situated below the lighting/signalling con-trol stalk.
Remark: The information relating to the speed limiter is displayed in the instrument panel screen at B. This display causes the trip computer infor-mation to disappear (if it is shown on the instrument panel).
To select the function
Turn control 1 to position “LIMIT”.
On selection of the function via control 1, the last speed memorised is displayed.
To adjust the maximum speed
When the engine is running, you can adjust the memorised spee d by either short presses or long presses on:Button 4 to increase the memorised speed.
Button 2 to decrease the memorised speed.
Remark: Successive presses will modify the cruise speed in steps of 1 km/h a n d a c o n t i n u o u s p r e s s i n s t e p s o f 5 k m / h ( 3 m p h ) .
Activation of the maximum speed
As the desired maximum speed is displayed, press control 3 to activate the speed limitation.
The information “OFF” then disappears from the dis-play.
While the function is active, actioning the accelerator pedal will not permit the programmed speed to be exceeded, unless you press t he pedal hard down past the tight spot. See “Temporary override of the maximum speed”.
Remark: The vehicle speed may vary slightly from that memo rised.
Page 64 of 144
II
6 5
S P E E D L I M I T E R
Disengagement of the maximum speed
Press button 3 located on the end of control A.
This action causes the information “OFF” to appear in the instrument panel screen.
The memorised speed remains displayed and is not cancelled.
Temporary override of the maximum speed
At any time, it is possible to go above the memorised maximum speed by pressing the accelerator pedal hard down past the tight spot.
W h i l e t h e m e m o r i s e d s p e e d i s b e i n g e x c e e d e d , t h e d i s p l a y e d s p e e d fl a s h e s .
You have only to release the accelerator pedal to return below the maximum speed, to restore the function.
Remark: If during speed limitation the system cannot keep to the maxi mum speed (especially on a steep descent or i f y o u a c c e l e r a t e t o o h a r d ) , t h e s p e e d fl a s h e s . A d a p t y o u r s p e e d a s n e c e s s a r y .
The function will re-engage when your speed has returned below the desired maximum.
To cancel the functionBy moving the control from position “LIMIT” to position 0.Or stop the engine.
The speed that you chose is memorised.
I f t h e r e i s a m a l f u n c t i o n , t h e m e m o r i s e d s p e e d w i l l fl a s h a n d t h e w a r n i n g l a m p “OFF” will come on permanently in the display. Contact a CITROËN dealer. I f t h e r e i s a m a l f u n c t i o n , t h e m e m o r i s e d s p e e d w i l l fl a s h a n d t h e w a r n i n g l a m p “ I f t h e r e i s a m a l f u n c t i o n , t h e m e m o r i s e d s p e e d w i l l fl a s h a n d t h e w a r n i n g l a m p “
A fl o o r c o v e r i n g t h a t i s n o t r e c o m m e n d e d b y C I T R O Ë N m a y s l i d e u n d e r n e a t h t h e a c c e l e r a t o r p e d a l and thus prevent the tight spot from being crossed.
It will then be impossible to exceed the chosen speed, except by an action on the controls under the steering wheel.
The driver still has to remain attentive and in complete control of his vehicle.
Page 65 of 144
A
B
III
6 6

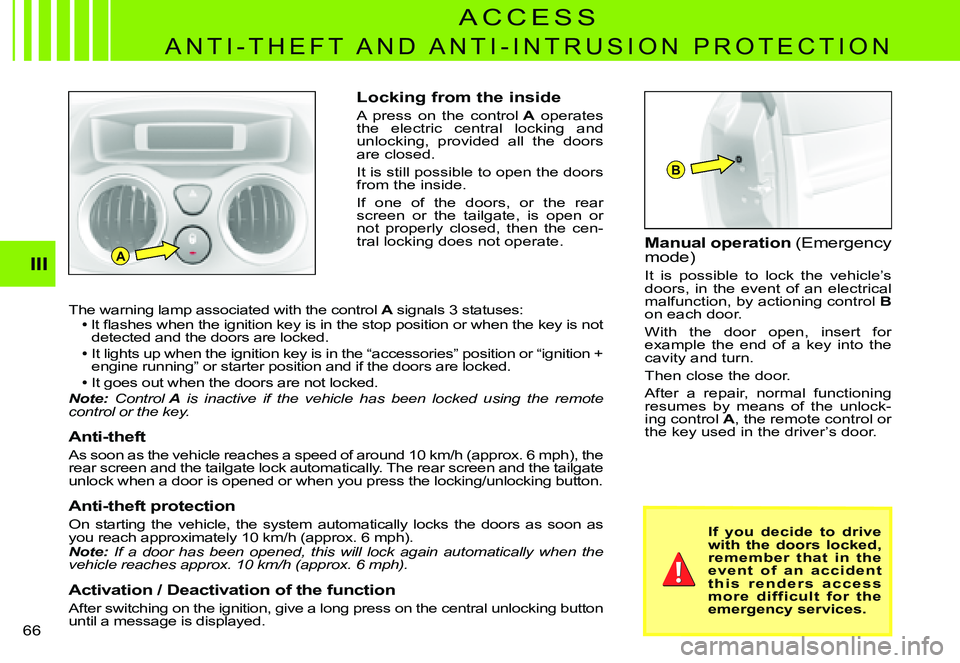

Locking from the inside
A press on the control A operates the electric central locking and unlocking, provided all the doors are closed.
It is still possible to open the doors from the inside.
If one of the doors, or the rear screen or the tailgate, is open or not properly closed, then the cen-tral locking does not operate.
The warning lamp associated with the control A s i g n a l s 3 s t a t u s e s :A l t fl a s h e s w h e n t h e i g n i t i o n k e y i s i n t h e s t o p p o s i t i o n o r w h e n t h e k e y i s n o t detected and the doors are locked. I t l i g h t s u p w h e n t h e i g n i t i o n k e y i s i n t h e “ a c c e s s o r i e s ” p o s i t i o n o r “ i g n i t i o n + engine running” or starter position and if the door s are locked.
It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using t he remote control or the key.
Anti-theft
A s s o o n a s t h e v e h i c l e r e a c h e s a s p e e d o f a r o u n d 1 0 k m / h ( a p p r o x . 6 m p h ) , t h e rear screen and the tailgate lock automatically. The rear screen and the tailgate unlock when a door is opened or when you press the locking/unlocking button.
Anti-theft protection
On starting the vehicle, the system automatically locks the doors as soon as y o u r e a c h a p p r o x i m a t e l y 1 0 k m / h ( a p p r o x . 6 m p h ) .Note: If a door has been opened, this will lock again aut omatically when the vehicle reaches approx. 10 km/h (approx. 6 mph).
Activation / Deactivation of the function
After switching on the ignition, give a long press on the central unlocking button until a message is displayed.
Manual operation (Emergency mode)
It is possible to lock the vehicle’s doors, in the event of an electrical malfunction, by actioning control Bon each door.
With the door open, insert for example the end of a key into the cavity and turn.
Then close the door.
After a repair, normal functioning resumes by means of the unlock-ing control A, the remote control or the key used in the driver’s door.
If you decide to drive with the doors locked, remember that in the event of an accident t h i s r e n d e r s a c c e s s more difficult for the emergency services.
A C C E S S
A N T I - T H E F T A N D A N T I - I N T R U S I O N P R O T E C T I O N
Page 66 of 144
A
6 7

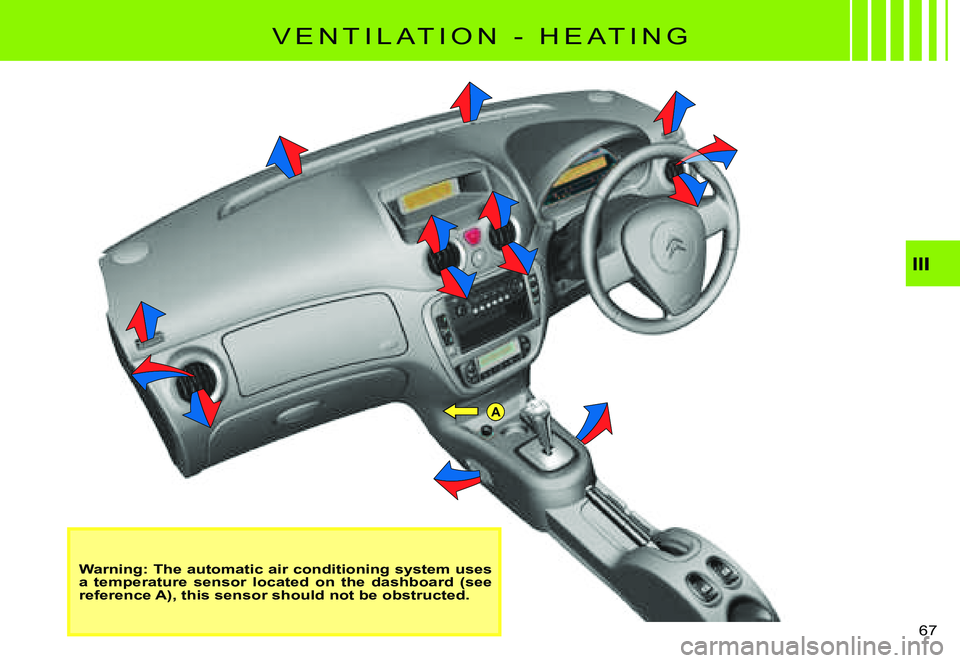

Warning: The automatic air conditioning system uses a temperature sensor located on the dashboard (see reference A), this sensor should not be obstructed.
V E N T I L A T I O N - H E A T I N G
Page 67 of 144
1
2
3
4
56
1
1
1
2
2
2
3
3
3
4
4
4
56
6
6
III
6 9
V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)

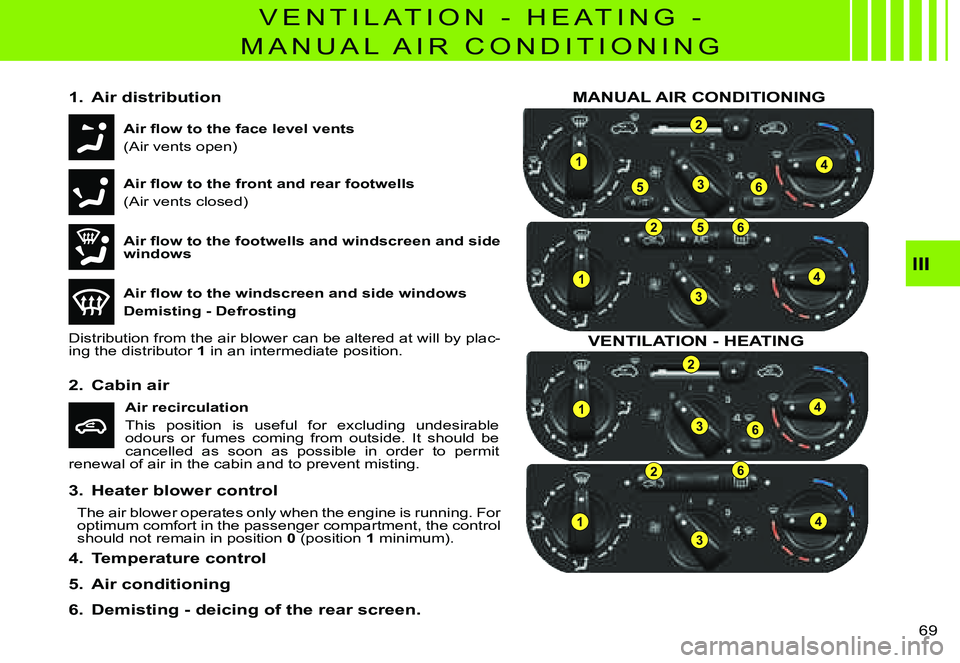

1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by plac-ing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. F or optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
MANUAL AIR CONDITIONING
VENTILATION - HEATING
Page 68 of 144
III
6 8
V E N T I L A T I O N - H E A T I N G

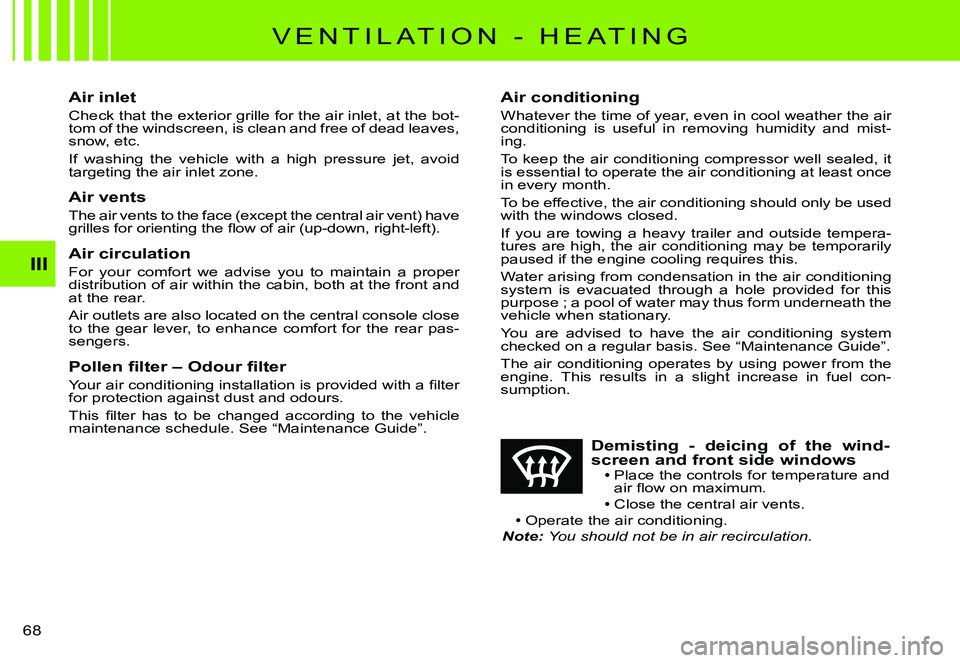

Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air vents
The air vents to the face (except the central air vent) have g r i l l e s f o r o r i e n t i n g t h e fl o w o f a i r ( u p - d o w n , r i g h t - l e f t ) .
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
Air outlets are also located on the central console close to the gear lever, to enhance comfort for the rear pas-sengers.
P o l l e n fi l t e r – O d o u r fi l t e r
Y o u r a i r c o n d i t i o n i n g i n s t a l l a t i o n i s p r o v i d e d w i t h a fi l t e r for protection against dust and odours.
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Air conditioning
Whatever the time of year, even in cool weather the air conditioning is useful in removing humidity and mist-ing.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
To be effective, the air conditioning should only be used with the windows closed.
If you are towing a heavy trailer and outside tempera-tures are high, the air conditioning may be temporarily paused if the engine cooling requires this.
Water arising from condensation in the air conditioning system is evacuated through a hole provided for this purpose ; a pool of water may thus form underneath the vehicle when stationary.
You are advised to have the air conditioning system checked on a regular basis. See “Maintenance Guide”.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
Demisting - deicing of the wind-screen and front side windowsPlace the controls for temperature and a i r fl o w o n m a x i m u m .
Close the central air vents.
Operate the air conditioning.Note: You should not be in air recirculation.
Page 69 of 144
1
2
3
4
56
1
1
1
2
2
2
3
3
3
4
4
4
56
6
6
III
6 9
V E N T I L A T I O N - H E A T I N G -
M A N U A L A I R C O N D I T I O N I N G
A i r fl o w t o t h e f a c e l e v e l v e n t s
(Air vents open)
1. Air distribution
A i r fl o w t o t h e f r o n t a n d r e a r f o o t w e l l s
(Air vents closed)
A i r fl o w t o t h e f o o t w e l l s a n d w i n d s c r e e n a n d s i d e windows
A i r fl o w t o t h e w i n d s c r e e n a n d s i d e w i n d o w s
Demisting - Defrosting
Distribution from the air blower can be altered at will by plac-ing the distributor 1 in an intermediate position.
Air recirculation
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
2. Cabin air
3. Heater blower control
The air blower operates only when the engine is running. F or optimum comfort in the passenger compartment, the control should not remain in position 0 (position 1 minimum).
4. Temperature control
5. Air conditioning
6. Demisting - deicing of the rear screen.
MANUAL AIR CONDITIONING
VENTILATION - HEATING
Page 70 of 144
53
4
B
A5
3
4III
7 0

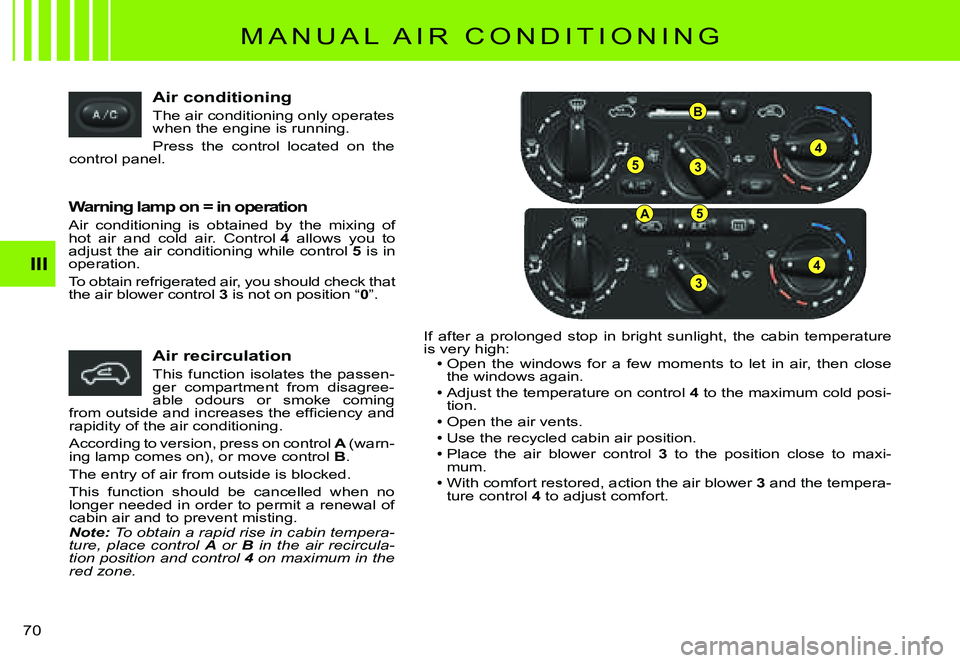

Air conditioning
The air conditioning only operates when the engine is running.
Press the control located on the control panel.
Warning lamp on = in operation
Air conditioning is obtained by the mixing of hot air and cold air. Control 4 allows you to adjust the air conditioning while control 5 is in operation.
To obtain refrigerated air, you should check that the air blower control 3 is not on position “0”.
Air recirculation
This function isolates the passen-ger compartment from disagree-able odours or smoke coming f r o m o u t s i d e a n d i n c r e a s e s t h e e f fi c i e n c y a n d rapidity of the air conditioning.
According to version, press on control A (warn-ing lamp comes on), or move control B.
The entry of air from outside is blocked.
This function should be cancelled when no longer needed in order to permit a renewal of cabin air and to prevent misting.Note: To obtain a rapid rise in cabin tempera-ture, place control A or B in the air recircula-tion position and control 4 on maximum in the 4red zone.
If after a prolonged stop in bright sunlight, the cabin temperature is very high:Open the windows for a few moments to let in air, then cl ose the windows again.
Adjust the temperature on control 4 to the maximum cold posi-tion.
Open the air vents.Use the recycled cabin air position.
Place the air blower control 3 to the position close to maxi-mum.
With comfort restored, action the air blower 3 and the tempera-ture control 4 to adjust comfort.
M A N U A L A I R C O N D I T I O N I N G
