Page 18 of 284
21
F A M I L I A R I S A T I O N
D R I V I N G
6-speed Electronic Gearbox
System Neutral
Do not select this position, even
momentarily, when the vehicle is
moving.
Automatic mode
Sport setting
Reverse
Using the lever
Push the lever forwards to change
up.
Pull the lever backwards to change
down.
Using the control paddles behind the
steering wheel
Press the " + " or " - " control paddle be-
hind the steering wheel for an immediate
gear change up or down respectively.
Under heavy acceleration, the gear-
box will only change up if the driver
operates the gear lever or the control
paddles at the steering wheel.
107
Manual mode
Or
The gearbox operates in auto-active
mode without input on your part.
Page 19 of 284
22
F A M I L I A R I S A T I O N
D R I V I N G

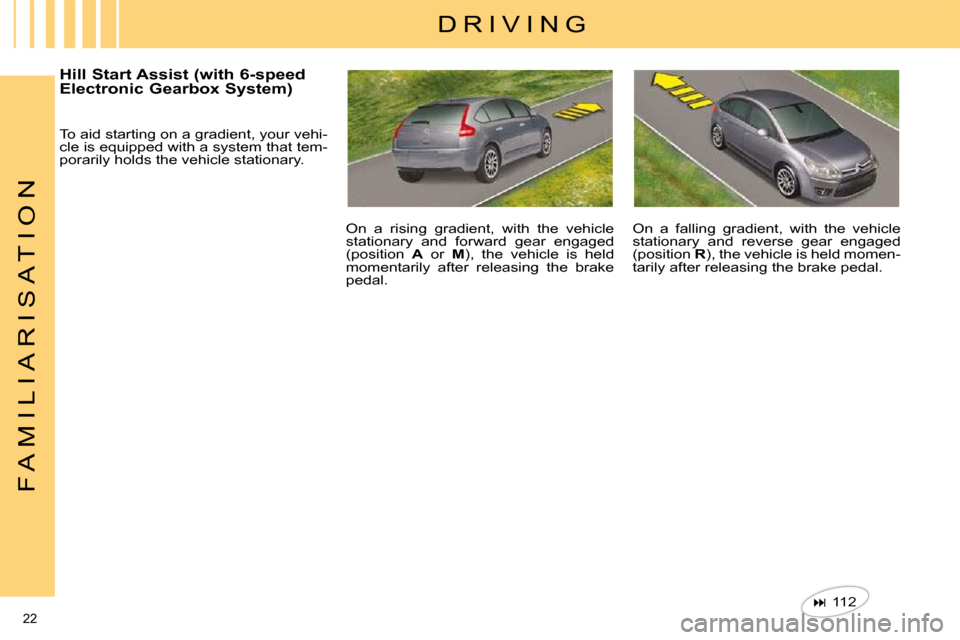

To aid starting on a gradient, your vehi-
cle is equipped with a system that tem-
porarily holds the vehicle stationary. On a falling gradient, with the vehicle
stationary and reverse gear engaged
(position R ), the vehicle is held momen-
tarily after releasing the brake pedal.
On a rising gradient, with the vehicle
stationary and forward gear engaged
(position
A or M ), the vehicle is held
momentarily after releasing the brake
pedal.
Hill Start Assist (with 6-speed
Electronic Gearbox System)
112
Page 22 of 284
25
I
M O N I T O R I N G
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's airbag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e
dashboard, permits deactivation of
t h e s y s t e m . T h i s i s c o n fi r m e d b y
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.
The passenger's airbag sys-
tem is put into service auto-
matically when the vehicle is
started.
A control switch, located in the glove
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen.
Page 26 of 284
25
I
M O N I T O R I N G
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's airbag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e
dashboard, permits deactivation of
t h e s y s t e m . T h i s i s c o n fi r m e d b y
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.
The passenger's airbag sys-
tem is put into service auto-
matically when the vehicle is
started.
A control switch, located in the glove
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen.
Page 27 of 284
25
I
M O N I T O R I N G
"Foot on brake" T h e fl a s h i n g o f t h i s w a r n i n g
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
I t m a y a l s o fl a s h t o p r o m p t y o u t o
brake when engaging reverse gear.
In the case of the Electronic Gearbox
S y s t e m , t h i s w a r n i n g l a m p fl a s h e s t o
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e
corresponding system has been
switched off intentionally.
Passenger's airbag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e
dashboard, permits deactivation of
t h e s y s t e m . T h i s i s c o n fi r m e d b y
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.
The passenger's airbag sys-
tem is put into service auto-
matically when the vehicle is
started.
A control switch, located in the glove
box, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp on the
instrument panel or a message on
the NaviDrive multifunction screen.
Page 129 of 284
106
IX
D R I V I N G
PARKING BRAKE
Applying
Pull the parking brake lever fully
up to immobilise your vehicle.
Releasing
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompa-
nied by an audible signal and a mes-
sage on the multifunction screen,
this indicates that the parking brake
is still on or has not been properly
released.
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and engage
a gear.
5-SPEED MANUAL GEARBOX
Starting the vehicle
Check that the gear lever is in
neutral.
Do not touch the accelerator.
For Diesel engines: turn the
key to position M and wait until
the pre-heating warning lamp
switches off if it has come on.
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
In temperatures lower than 0 °C,
declutch while operating the
starter to facilitate starting. Engaging reverse gear
Push the gear lever to the
right then rearwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Page 130 of 284
107
IX
D R I V I N G
6-SPEED ELECTRONIC GEARBOX SYSTEM
The 6-speed electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
You have a choice of two driving
modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manual
changing of the gears by the driver.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring under the knob
(indicated by the arrow) and
push the gear lever to the left
then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle. Mode selection
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles 1 .
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 131 of 284
107
IX
D R I V I N G
6-SPEED ELECTRONIC GEARBOX SYSTEM
The 6-speed electronic gearbox of-
fers a choice between the comfort of
fully automatic operation or the driving
pleasure of manual gear changing.
You have a choice of two driving
modes:
- the automatic mode for auto-
matic control of the gears by the
gearbox,
- the sequential mode for manual
changing of the gears by the driver.
6-SPEED MANUAL GEARBOX
Engaging reverse gear
Raise the ring under the knob
(indicated by the arrow) and
push the gear lever to the left
then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle. Mode selection
automatic mode: selector 2 in
position A .
manual mode: selector 2 in posi-
tion M .
In automatic mode, instant manual
operation is possible any time you
action one of the paddles 1 .
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 132 of 284
108
IX
D R I V I N G
Displays on the instrument panel
- The selector position is displayed in the instrument panel, on the left
on multifunction screens A and C
and on the right on the NaviDrive
multifunction screen.
- A back-lit position grille associ- ated with the selector shows the
position selected. Moving off
When the ignition is on, lighting of
the service warning lamp, accom-
panied by an audible signal and
the message "Gearbox faulty" in-
dicates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is diffe-
rent, reposition the selector on N
in order to be able to start.
To start the engine, the selector
must be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Operate the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and
accelerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to select reverse gear
when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Reverse gear
Page 134 of 284
110
IX
D R I V I N G
Temporary manual operation
when in automatic mode
By pulling either of the " + " or " - " pad-
dles, you can exercise temporary
control over gear changing.
The request to change gear will be
taken into account. You will still be in
automatic mode. The warning lamp A
remains lit up in the instrument panel.
This function enables you to antici-
pate certain situations such as the
approach of a bend or the need to
overtake another vehicle.
Move the selector to position A .
The warning lamp A lights up in
t h e i n s t r u m e n t p a n e l t o c o n fi r m
the selection.
The gearbox then functions in auto-
matic mode, without any action on
your part.
It constantly selects the gear that is
best suited to the following condi-
tions:
- driving style,
- r o a d p r o fi l e ,
- optimum fuel consumption.
Operation in automatic mode
Cancellation of automatic
mode
The change from position A (driving in
automatic mode) to position M (driv-
ing in manual mode) or vice versa can
be made at any time. The warning
lamp A disappears in the instrument
panel.
