key Citroen C4 2014 2.G Owner's Guide

9
DRIVING
169

Deactivation

Going into engine START mode
At any time, press the "ECO OFF"

switch to deactivate the system.
This is confi rmed by the switch warning
lamp coming on accompanied by the
display of a message.
Special cases: START invoked
automatically
If the system has been deacti-
vated in STOP mode, the engine
restarts immediately. The "ECO"
warning lamp goes
off and the engine starts auto-
matically:


- with a manual gearbox
, when you
fully
depress the clutch pedal,

- with an electronic gearbox
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and the
brake pedal released, when you
move the gear lever to position A

or M
,

●
or when you engage reverse
gear.

For safety reasons or to ensure smooth
operation, START mode is invoked au-
tomatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox or 7 mph (11 km/h) with an
electronic gearbox,

- the electric parking brake is being
applied,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
In this case the "ECO"
warning
lamp fl ashes for few seconds,
then goes off.
With a manual gearbox in STOP
mode, if a gear is engaged with-
out fully depressing the clutch
pedal, a warning lamp comes
on or an alert message is dis-
played asking you to depress
the clutch pedal to restart the
engine.



Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is con-
fi rmed by the switch warning lamp go-
ing off and the display of a message.
The system is reactivated auto-
matically at every new start us-
ing the key.
This operation is perfectly normal.

9
DRIVING
170

Maintenance

In the event of a malfunction with the sys-
tem, the "ECO OFF"
switch warning lamp
fl ashes, then comes on continuously.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.


Operating fault

Before doing anything under the
bonnet, deactivate the Stop &
Start system to avoid any risk of
injury resulting from automatic
operation of START mode.
This system requires a specifi c battery
with a special specifi cation and technol-
ogy (reference numbers available from
a CITROËN dealer or a qualifi ed work-
shop).
Fitting a battery not listed by
CITROËN introduces the risk of mal-
function of the system.
The Stop & Start system makes
use of advanced technology. All
work on this type of battery must
be done only by a CITROËN
dealer or a qualifi ed workshop.
In the event of a fault in STOP
mode, the vehicle may stall. All
of the instrument panel warning
lamps come on.
Depending on version, an alert
message may also be displayed
asking you to put the gear lever
into position N
and put your foot
on the brake pedal.
It is then necessary to switch off
the ignition, then restart the en-
gine using the key.

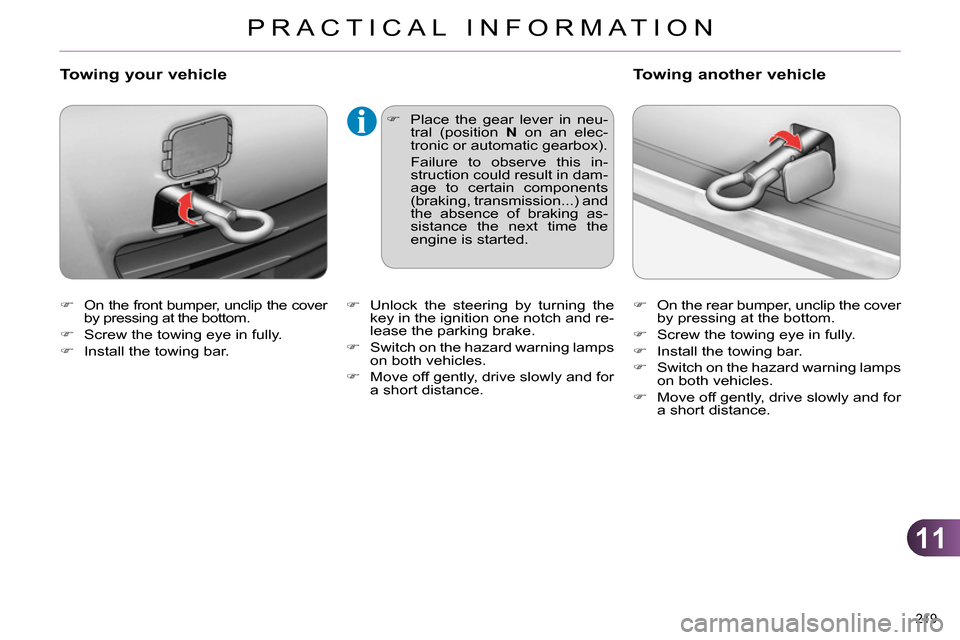

11
PRACTICAL INFORMATION
219



On the front bumper, unclip the cover
by pressing at the bottom.


Screw the towing eye in fully.


Install the towing bar.


Towing your vehicle



Place the gear lever in neu-
tral (position N
on an elec-
tronic or automatic gearbox).
Failure to observe this in-
struction could result in dam-
age to certain components
(braking, transmission...) and
the absence of braking as-
sistance the next time the
engine is started.



On the rear bumper, unclip the cover
by pressing at the bottom.


Screw the towing eye in fully.


Install the towing bar.


Switch on the hazard warning lamps
on both vehicles.


Move off gently, drive slowly and for
a short distance.



Towing another vehicle



Unlock the steering by turning the
key in the ignition one notch and re-
lease the parking brake.


Switch on the hazard warning lamps
on both vehicles.


Move off gently, drive slowly and for
a short distance.

06
262
USING THE TELEPHONE


Press PHONE
twice.

Select " Dial
" then confi rm.
Select " Directory of contacts
" then
confi rm.

Dial the telephone number using the
virtual keypad selecting each number
in turn.
Confi rm " OK
" to make the call.

Press TEL
or twice on PHONE
.
Calling a new number

Calling a contact

Select the desired contact and confi rm.
If access was via the PHONE
button,
select " Call
" and confi rm.

Select the number and confi rm to start
the call.








Making a call

Use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls.

06
265
USING THE TELEPHONE


Options during a call *


During a call, press the MODE
button
several times to select display of the
telephone screen, then press " OK
" to
open the contextual menu.

Select " Private mode
" and confi rm to
take the call on the handset.
Or select " Hands-free mode
" and
confi rm to take the call via the vehicle's
speakers.

Select " Put call on hold
" and confi rm to
put the current call on hold.
Or select " Resume the call
" and
confi rm to resume the call on hold.
Select " DTMF ring tones
" to use the
numerical keypad, so as to navigate
through the menu of an interactive vocal
server.

Select " Hang up
" to end the call.

*
Depending on the compatibility of the phone and your service plan.
it is possible to hold a 3-way conference
call by making 2 calls in succession*.
Select " Conference
mode call
" in the
contextual menu accessible using this
button.

Or make a short press on this button.

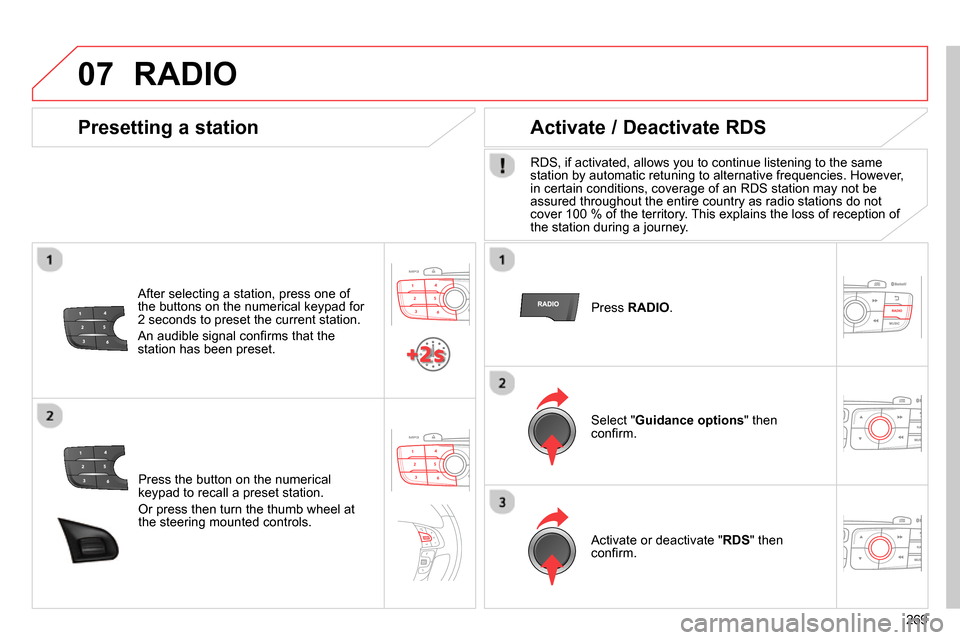

07
269
Press the button on the numerical
keypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.



Presetting a station


After selecting a station, press one of
the buttons on the numerical keypad for
2 seconds to preset the current station.
An audible signal confi rms that the
station has been preset.
Press RADIO
.







Activate / Deactivate RDS


RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.

Select " Guidance options
" then
confi rm.

Activate or deactivate " RDS
" then
confi rm.


RADIO

08
272
MUSIC MEDIA PLAYERS


CD, MP3 CD / USB player


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac,
.ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u…) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are greater than 32 KHz.

It is advisable to restrict fi le names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format (udf, …), it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Information and advice

The system supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
If a partitioned USB memory key is connected to the
system, only the fi rst partition is recognised.
Control of the peripheral device is with the audio
system controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
If the current consumption at the USB port exceeds
500 mA, the system goes into protection mode and
deactivates the port.
Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable
(not supplied).

In order to be read, a USB memory stick must be formatted FAT 16 or 32.



The system does not support the operation of an Apple
®
player and a
USB memory stick connected at the same time.

It is recommended that offi cial Apple
®
USB cables are used to ensure
correct operation.

05
Saisir code authentification
01
OK Del23456789 _
305
USING THE TELEPHONE


A virtual keypad is displayed on the
screen: enter a code with at least
4 digits and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try again; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.

Pair/connect the telephone then listen: see the AUDIO section.








Streaming - Playing audio files via
Bluetooth

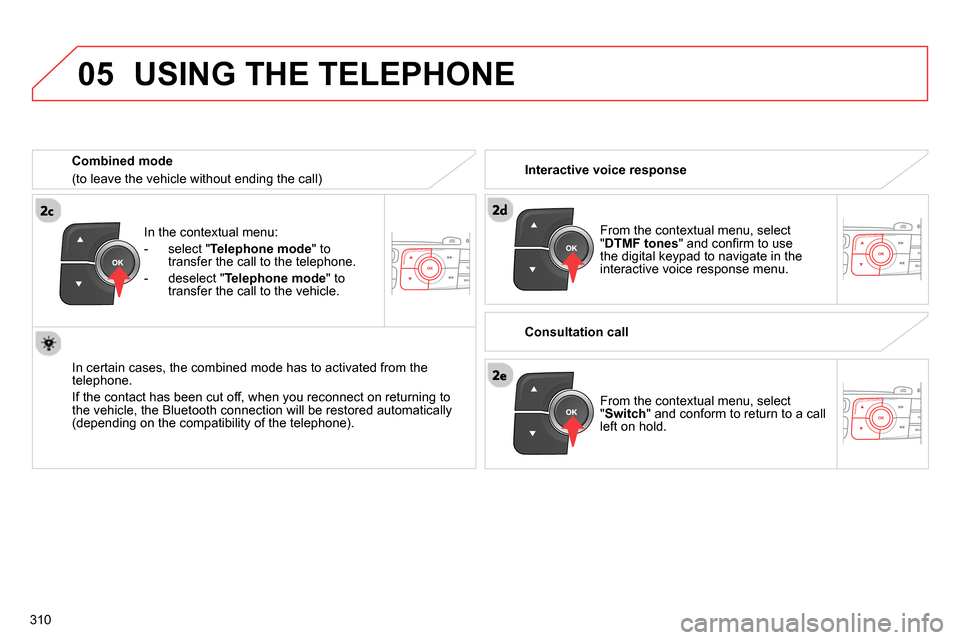

05
310
In the contextual menu:


- select " Telephone mode
" to
transfer the call to the telephone.

- deselect " Telephone mode
" to
transfer the call to the vehicle.


In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).
Combined mode
(to leave the vehicle without ending the call)

USING THE TELEPHONE

From the contextual menu, select
" DTMF tones
" and confi rm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
" Switch
" and conform to return to a call
left on hold.

Interactive voice response

Consultation call

329
ALPHABETICAL INDEX
KMassage function ....................... 73
Mat.............................................. 119
Menu, main ................................ 292
Mini fuel level ............................... 95
Mirror, rear view ........................... 78
Mirrors, door .................. 76, 77, 172
Misfuel prevention ....................... 97
Mountings
for ISOFIX seats ..................... 134
MP3 CD ............................. 272, 298
Music media players .................. 271Parking space sensor ............... 180
Particle emission fi lter......... 190-191
Passenger
compartment fi lter ................... 191
Personalisation ............................ 48
Player, CD MP3 ................. 272, 298
Port, USB............................114, 300
Priming the fuel system ............. 186
Protecting children .............. 125-138,
145, 147
Puncture .................................... 193 Keeping children
safe .................. 125-138, 145, 147
Key in ignition warning................. 82
Key with remote
control ..................... 79, 81, 82, 85
LLabels, identifi cation .................. 231
Lamps, warning
and indicator ................. 32, 39, 42
Lane Departure Warning System
(LDWS) ................................... 171
Level, brake fl uid ....................... 189
Level, power steering fl uid ......... 189
Levels and checks .............. 185-192
Lighting bulbs
(replacement) .................. 203-208
Lighting control stalk ............ 98, 101
Lighting dimmer ................ 28-30, 47
Lighting,
guide-me home............... 101, 102
Lighting, interior .................. 110, 111
Loading ................................ 26, 217
Load reduction mode ................. 216
Load space cover ...................... 124
Locating your vehicle ................... 81
Locking from the inside................ 86
Locking the boot .......................... 91
Long objects, transporting ......... 120
Luggage retaining strap ............. 121
MMain beam ................... 98, 203, 205
Maintenance ................................ 26
Map reading lamps ..................... 110
Markings,
identifi cation............................ 231Navigation.................................. 241
Number plate lamps .................. 208
Oil fi lter ...................................... 191
Oil level ................................ 43, 189
Opening the bonnet ................... 185
Opening the boot ......................... 91
Opening the doors ....................... 90
Opening the panoramic
sunroof blind ............................. 94
Operation indicator
lamps ................................... 32-42
Paint colour code ....................... 231
Panoramic
glass sunroof ............................ 94
Parcel shelf, rear ............... 122, 124
Parking brake .................... 157, 192
Parking brake, electric ....... 150, 192
Parking lamps ............................ 101
Parking sensors, front................ 183
Parking sensors, rear ................ 182 N
O
PRRadio ................................. 267, 293
Radio pre-equipment ................. 221
RCA sockets ...............114, 276, 302
Rear screen (demisting) .............. 69
Recharging the battery .............. 215
Reduction of electrical load ....... 216
Regeneration of the particle
emissions fi lter ........................ 191
Reinitialising
the electric windows ................. 92
Reinitialising the remote
control ................................. 83, 84
Remote control ....................... 79-85
Removable screen
(snow shield) .......................... 217
Removing a wheel ..................... 200
Removing the mat ...................... 119
Repair kit, puncture ................... 193
Replacing bulbs .................. 203-208
Replacing fuses .................. 209-212
Replacing the air fi lter ................ 191
Replacing the oil fi lter ................ 191
Replacing the passenger
compartment fi lter ................... 191
