Citroen C4 AIRCROSS RHD 2017 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2017, Model line: C4 AIRCROSS RHD, Model: Citroen C4 AIRCROSS RHD 2017 1.GPages: 368, PDF Size: 11.44 MB
Page 331 of 368

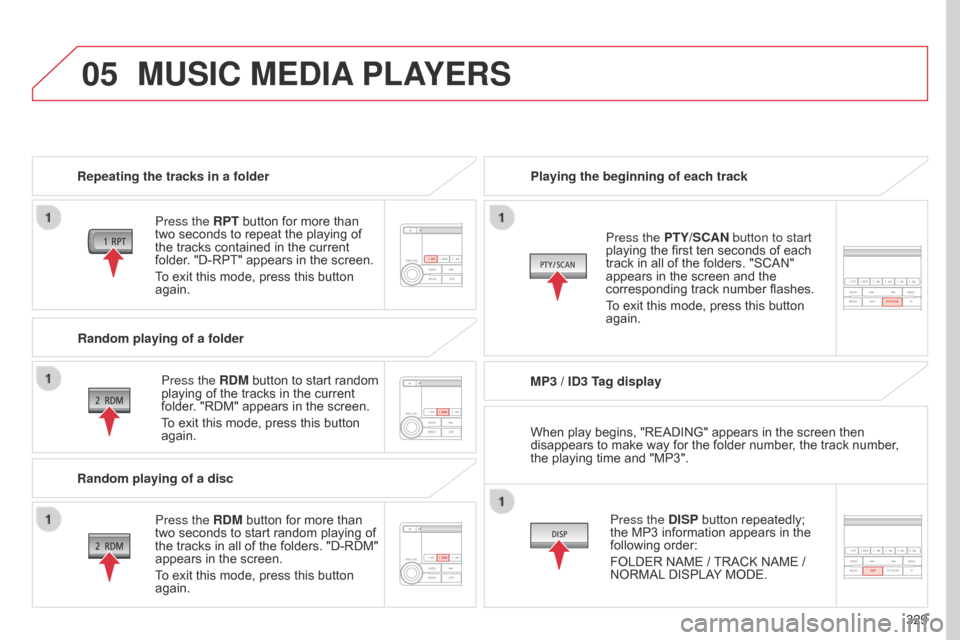

05
329
MUSIC MEDIA PLAYERS
Repeating the tracks in a folder
Press the RPT button for more than
two seconds to repeat the playing of
the tracks contained in the current
folder. "D-RPT" appears in the screen.
To exit this mode, press this button
again.
Press the RDM button to start random
playing of the tracks in the current
folder. "RDM" appears in the screen.
To exit this mode, press this button
again. Playing the beginning of each track
MP3 / ID3 Tag display
Press the DISP button repeatedly;
the MP3 information appears in the
following order:
FOLDER NAME
/ TRACK NAME /
NORMAL DISPLAY MODE.
Press the PTY/SCAN button to start
playing the first ten seconds of each
track in all of the folders. "SCAN"
appears in the screen and the
corresponding track number flashes.
To exit this mode, press this button
again.
Random playing of a folder
Random playing of a disc Press the RDM button for more than
two seconds to start random playing of
the tracks in all of the folders. "D-RDM"
appears in the screen.
To exit this mode, press this button
again. When play begins, "READING" appears in the screen then
disappears to make way for the folder number, the track number,
the playing time and "MP3".
Page 332 of 368

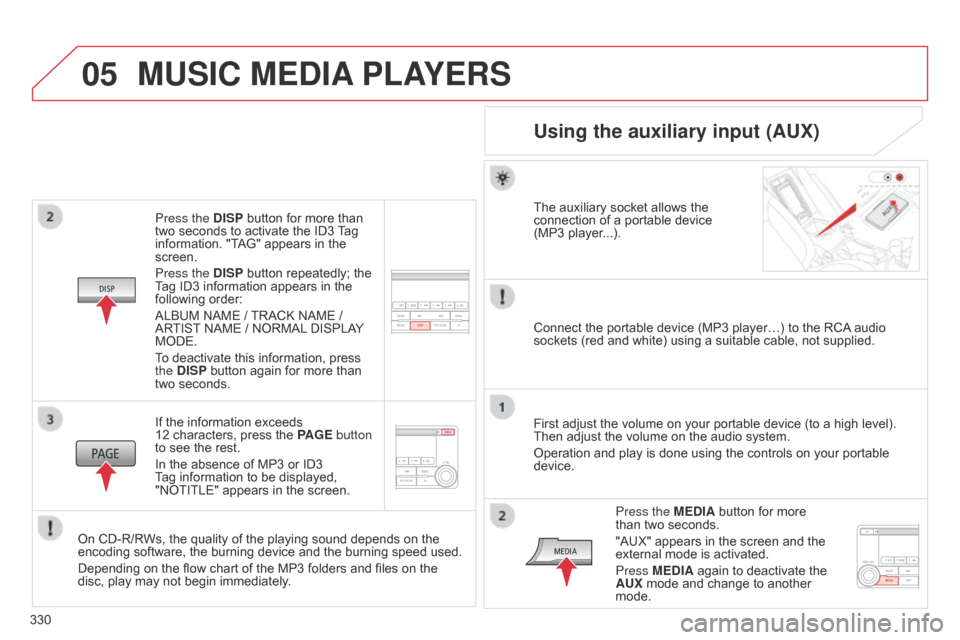

05
330Press the DISP button for more than
two seconds to activate the ID3 Tag
information. "TAG" appears in the
screen.
Press the DISP button repeatedly; the
Tag ID3 information appears in the
following order:
ALBUM NAME
/ TRACK NAME /
ARTIST NAME / NORMAL DISPLAY
MODE.
To deactivate this information, press
the DISP button again for more than
two seconds.
If the information exceeds
12 characters, press the PAGE button
to see the rest.
In the absence of MP3 or ID3
Tag information to be displayed,
"NOTITLE" appears in the screen.
On CD-R/RWs, the quality of the playing sound depends on the
encoding software, the burning device and the burning speed used.
Depending on the flow chart of the MP3 folders and files on the
disc, play may not begin immediately.
MUSIC MEDIA PLAYERS
Using the auxiliary input (AUX)
The auxiliary socket allows the
connection of a portable device
(MP3
player...).
Connect the portable device (MP3 player…) to the RCA audio
sockets (red and white) using a suitable cable, not supplied.
First adjust the volume on your portable device (to a high level).
Then adjust the volume on the audio system.
Operation and play is done using the controls on your portable
device. Press the MEDIA button for more
than two seconds.
"AUX" appears in the screen and the
external mode is activated.
Press MEDIA again to deactivate the
AUX mode and change to another
mode.
Page 333 of 368

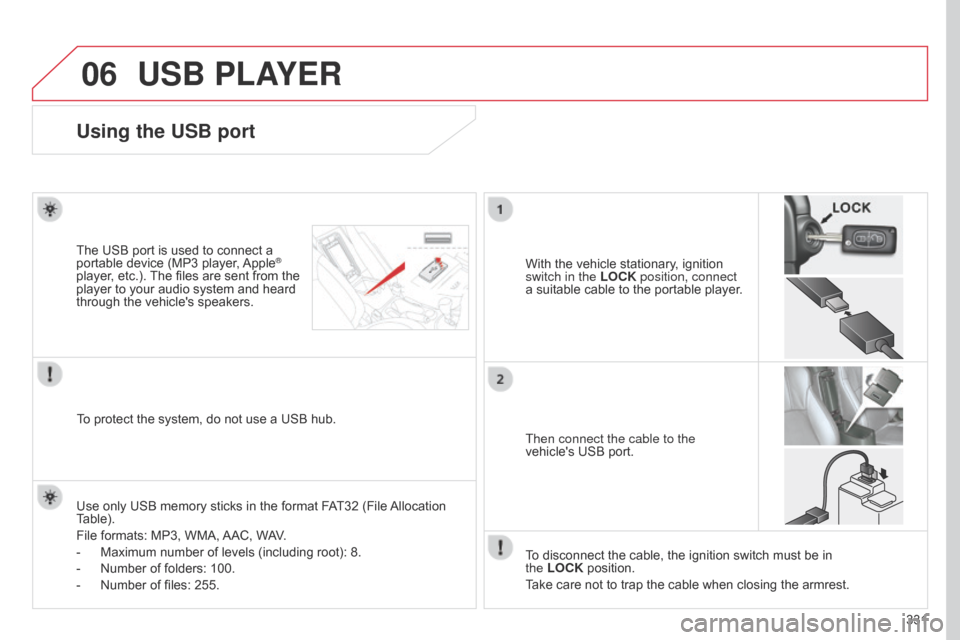

06
331
USB PLAYER
Using the USB port
With the vehicle stationary, ignition
switch in the LOCK position, connect
a suitable cable to the portable player.
The USB port is used to connect a
portable device (MP3 player, Apple®
player, etc.). The files are sent from the
player to your audio system and heard
through the vehicle's speakers.
Then connect the cable to the
vehicle's USB port.
Use only USB memory sticks in the format FAT32 (File Allocation
Table).
File formats: MP3, WMA, AAC, WAV.
-
Maximum number of levels (including root): 8.
-
Number of folders: 100.
-
Number of files: 255. T
o disconnect the cable, the ignition switch must be in
the
LOCK position.
Take care not to trap the cable when closing the armrest.
To protect the system, do not use a USB hub.
Page 334 of 368
06
332Once the portable player / iPod
® is
connected, make several successive
presses on the MEDIA button and
select USB, the source selected is
displayed.
Once the player is selected, play
starts.
Play
Managing a track (or folder)
Stop
Press MEDIA to change mode or on
RADIO. Turn the knob to select a previous or
next track.
Select a folder (or track)
Select a track Press the knob to select the folder
and go down or up one level.
The knob can also be used for tracks.
USB PLAYER
Press the "7" or "8" button to select
the previous or next track respectively.
Press and hold to go faster. Playing the start of each track
Press the PTY/SCAN button to start
the play of the first ten seconds of each
track in all folders. "SCAN" appears in
the screen and the corresponding track
number flashes.
Press this button again to quit this
mode.
Page 335 of 368
07
333
Play
Managing a track
Pause / Stop / Resume*
BLUETOOTH® STREAMING
Press and hold the "
;" button to
pause the play.
Press the "Back" button to stop play. Press this button to start play. Select a track*
Repeat play*
Press this button during play.
Press again to exit this mode.
Press this button during play.
Press again to exit this mode.
* If the function is supported by the device. Random play*
Streaming allows music files on a telephone to be heard via the vehicle's
speakers.
The telephone must support the appropriate Bluetooth
® profiles
(profiles
A2DP
/ AVRCP).
Connect the telephone: see the "BLUETOOTH
® TELEPHONE WITH
VOICE RECOGNITION" section.
Press the MEDIA button repeatedly
and select Bluetooth
® (the source
selected is displayed).
Press the "7" or "8" button to select
the previous or next track respectively.
Page 336 of 368
07
334Press this button.
"PTY/SCAN" appears in the screen
and the start of each track on the
telephone connected via Bluetooth
® is
played for around 10 seconds.
Press again to exit this mode.
Play the start of each track*
Changing the display*
Press and hold this button until an
audible signal is heard and "T
AG" is
displayed.
Press this button to change the
display.
Make a new long press to exit this
mode. The screen displays a maximum of 11 characters at a times. If
the end of the title is cut off, press the PAGE button. The next
characters are displayed each time the button is pressed.
If no title is stored: "NO TITLE" appears in the screen.
Characters that cannot be displayed are replaced by "
.".
* If the function is supported by the device.
BLUETOOTH® STREAMING
Page 337 of 368
335

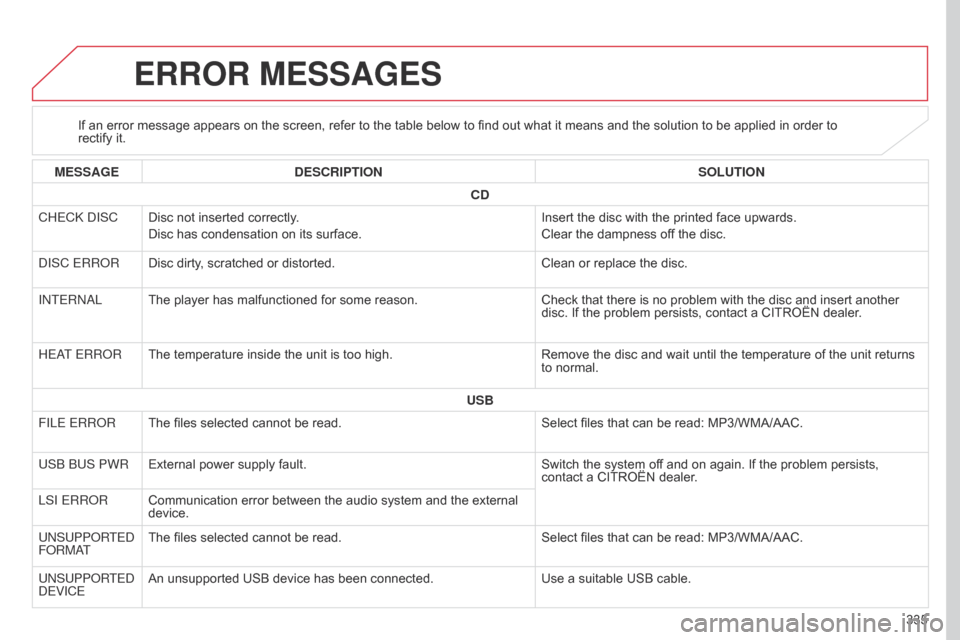

ERROR MESSAGES
If an error message appears on the screen, refer to the table below to find out what it means and the solution to be applied in order to
rectify it.
MESSAGE DESCRIPTION SOLUTION
CD
CHECK DISC Disc not inserted correctly.
Disc has condensation on its surface. Insert the disc with the printed face upwards.
Clear the dampness off the disc.
DISC ERROR Disc dirty, scratched or distorted. Clean or replace the disc.
INTERNAL The player has malfunctioned for some reason. Check that there is no problem with the disc and insert another
disc. If the problem persists, contact a CITROËN dealer.
HEAT ERROR The temperature inside the unit is too high. Remove the disc and wait until the temperature of the unit returns
to normal.
USB
FILE ERROR The files selected cannot be read. Select files that can be read: MP3/WMA/AAC.
USB BUS PWR External power supply fault. Switch the system off and on again. If the problem persists,
contact a CITROËN dealer.
LSI ERROR Communication error between the audio system and the external
device.
UNSUPPORTED
FORMAT The files selected cannot be read.
Select files that can be read: MP3/WMA/AAC.
UNSUPPORTED
DEVICE An unsupported USB device has been connected.
Use a suitable USB cable.
Page 338 of 368
336

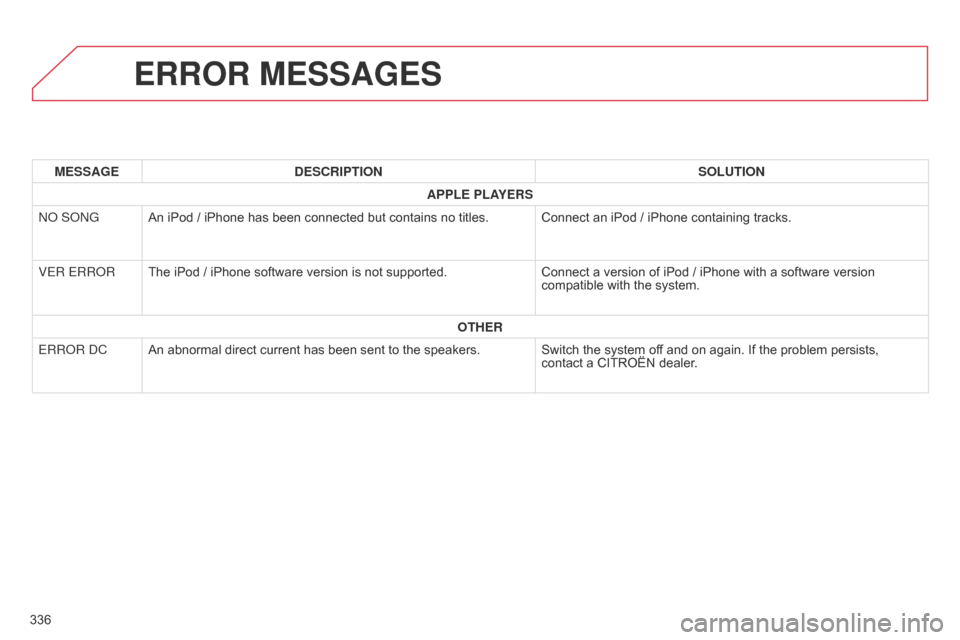

ERROR MESSAGES
MESSAGEDESCRIPTION SOLUTION
APPLE PLAYERS
NO SONG An iPod / iPhone has been connected but contains no titles. Connect an iPod / iPhone containing tracks.
VER ERROR The iPod / iPhone software version is not supported. Connect a version of iPod / iPhone with a software version
compatible with the system.
OTHER
ERROR DC An abnormal direct current has been sent to the speakers. Switch the system off and on again. If the problem persists,
contact a CITROËN dealer.
