Unlocking
Press button A again to unlock
the vehicle.
The red indicator lamp on the button
switches off.
If the vehicle is locked or dead-
locked from the outside, the red in-
d i c a t o r l a m p fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
Central automatic control Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock
automatically.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot is open, the automatic cen-
tral locking of the doors is active.
Unlocking
Above 6 mph (10 km/h), press
button A to unlock the doors and
boot temporarily.
Activation
Press button A for more than two
seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction display.
Deactivation
Press button A again for more
than two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction display.
Emergency control
System which locks or unlocks the
doors mechanically in the event of
a malfunction of the battery or of the
central locking. Locking the driver’s door
Insert the key in the lock, then
turn it to the right.
Locking the front and rear
passenger doors
Insert the key in the lock, located
on the edge of the door, then turn
it one eighth of a turn .
System which provides full automat-
ic locking or unlocking of the doors
and boot while driving.
You can activate or deactivate this
function. Unlocking the driver’s door
Insert the key in the lock, then
turn it to the left.
Unlocking the front and rear
passenger doors
Pull the interior door opening
control.
Page 77 of 282
70
V I S I B I L I T Y
LIGHTING CONTROLS
System for selection and control of
the various front and rear lamps pro-
viding the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
- sidelamps, to be seen,
- dipped headlamps to see with-out dazzling other drivers,
- main beam headlamps to see clearly when the road is clear,
- directional headlamps for im- proved visibility when cornering.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e -
quirements of particular driving con-
ditions:
- a rear fog lamp to be seen from a distance,
- front fog lamps for even better forward vision,
- daytime running lights to be seen during the day. Programming
Various automatic lighting control
modes are also available depending
on options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting.
Manual controls
lights off,
automatic switching on of
the lights,
sidelamps only,
dipped headlamps or
main beam headlamps.
B. stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the off and sidelamps modes, the
driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y p u l l i n g o n t h e s t a l k .
Displays
Lighting of the corresponding indi-
cator lamp on the instrument panel
c o n fi r m s t h e s e l e c t i v e s w i t c h i n g o n
of the lighting selected.
The lighting commands are issued
directly by the driver by means of
the ring
A and the lever B .
A. main lighting mode selection ring,
with:
Page 83 of 282
74
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction occurs,
this warning lamp is
displayed on the in-
strument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your head-
lamps in the lowest position.
If a malfunction occurs, do not
touch the xenon bulbs. Contact a
CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated
if the lighting stalk is in the "AUTO"
or "Dipped/main beam head-
lamps" position. In position "0" , the
function is not activated.
Page 91 of 282
81
VI
L A Y O U T
REMOVABLE ASHTRAY
Pull the cover to open the ash-
tray.
T o e m p t y i t , r e m o v e t h e a s h t r a y
by pulling it upwards.
LIGHTER/12 V ACCESSORIES SOCKET
T o u s e t h e l i g h t e r , p r e s s i t i n a n d
wait a few seconds until it pops
out automatically.
To connect a 12 V accessory
( m a x p o w e r : 1 0 0 W a t t s ) , c o n n e c t
a suitable adaptor to the socket
on the centre console.
Operates with the ignition on.
USB BOX
T h i s c o n n e c t i o n b o x , c o n s i s t i n g o f
a J A C K s o c k e t a n d a U S B p o r t , i s
located on the centre console.
It permits the connection of portable
e q u i p m e n t , s u c h a s a d i g i t a l a u d i o
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
W h e n i t i s i n u s e , t h e p o r t a b l e e q u i p -
ment charges automatically.
For further details concerning the
u s e o f t h i s e q u i p m e n t , r e f e r t o t h e
"Audio and Telematics" section.
Page 97 of 282
81
VI
L A Y O U T
REMOVABLE ASHTRAY
Pull the cover to open the ash-
tray.
T o e m p t y i t , r e m o v e t h e a s h t r a y
by pulling it upwards.
LIGHTER/12 V ACCESSORIES SOCKET
T o u s e t h e l i g h t e r , p r e s s i t i n a n d
wait a few seconds until it pops
out automatically.
To connect a 12 V accessory
( m a x p o w e r : 1 0 0 W a t t s ) , c o n n e c t
a suitable adaptor to the socket
on the centre console.
Operates with the ignition on.
USB BOX
T h i s c o n n e c t i o n b o x , c o n s i s t i n g o f
a J A C K s o c k e t a n d a U S B p o r t , i s
located on the centre console.
It permits the connection of portable
e q u i p m e n t , s u c h a s a d i g i t a l a u d i o
player of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s w h i c h
are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g
the steering wheel controls or the
audio equipment control panel and
display them on the multifunction
screen.
W h e n i t i s i n u s e , t h e p o r t a b l e e q u i p -
ment charges automatically.
For further details concerning the
u s e o f t h i s e q u i p m e n t , r e f e r t o t h e
"Audio and Telematics" section.
Page 115 of 282
96
VIII
S A F E T Y
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
Flat tyre T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
or wheels which are not detected or
indicating a fault in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
v e h i c l e ( e x a m p l e : fi t t i n g o f s n o w
tyres), you must have the system
reinitialised by a CITROËN dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
features" section) to ensure that
the optimum dynamic perform-
ance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous dri-
ving conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radio-electric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 129 of 282
108
IX
D R I V I N G
Displays on the instrument
panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector al-
lows you to view the position se-
lected. Moving off
When the ignition is on, light-
ing of the service warning lamp,
accompanied by
an audible
sig-
nal and the message "Gearbox
faulty" indicates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is dif-
ferent, reposition the selec-
tor on N in order to be able to
start.
To start the engine, the selector
has to be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Operate the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and
accelerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure.
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to
select
reverse gear
when the vehicle is stationary.
If the vehicle is moving rapidly, if
an inadvertent attempt to engage
reverse gear is made, the warning
lamp N w i l l fl a s h a n d y o u r v e h i c l e
will go automatically into neutral. To
re-engage a gear, you have only to
reposition the selector on A , M or R .
Reverse gear
Page 134 of 282
113
IX
D R I V I N G
AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Therefore, you have a choice of four
driving modes:
- automatic operation for elec-
tronic control of the gears by the
gearbox,
- the SPORT programme for a
more dynamic style of driving,
- the SNOW programme to improve
driving in conditions of poor grip,
- manual operation for sequen-
tial changing of the gears by the
driver. Mode selection
automatic mode: selector in posi-
tion D ,
sequential mode: selector in posi-
tion M ,
SPORT mode: selector in posi-
tion D with button S pressed,
SNOW mode: selector in posi-
tion D with button " " pressed.
Displays on the instrument
panel
The position of the gear selector is
displayed on the instrument panel.
A position grille on the selector
allows you to view the position that
is selected.
To start the engine, the selector
has to be in position P or N .
For safety:
- position
P can be disengaged
only if you press the brake pedal,
- when a door is opened, an audible signal is heard if the
selector is not in position P ,
- always make sure that the selector is in position P before
you leave your vehicle.
If the gearbox is in position P but
the position of the selector is diffe-
rent, reposition the selector on P
so that you can start the vehicle.
Moving off
Page 137 of 282
116
IX
D R I V I N G

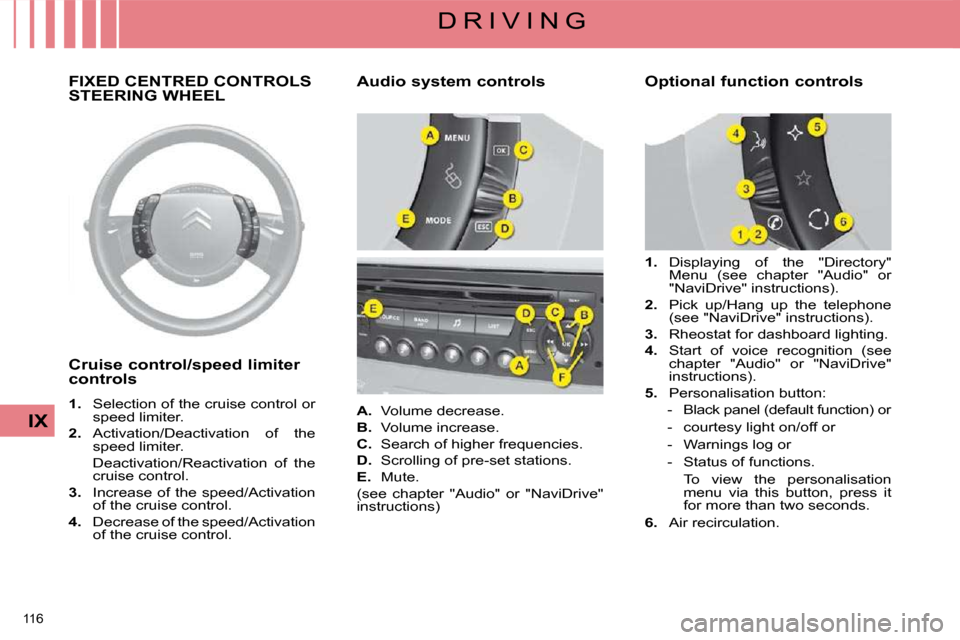

FIXED CENTRED CONTROLS STEERING WHEEL
Cruise control/speed limiter
controls
1. Selection of the cruise control or
speed limiter.
2. Activation/Deactivation of the
speed limiter.
Deactivation/Reactivation of the cruise control.
3. Increase of the speed/Activation
of the cruise control.
4. Decrease of the speed/Activation
of the cruise control. Audio system controls
A. Volume decrease.
B. Volume increase.
C. Search of higher frequencies.
D. Scrolling of pre-set stations.
E. Mute.
(see chapter "Audio" or "NaviDrive"
instructions) Optional function controls
1. Displaying of the "Directory"
Menu (see chapter "Audio" or
"NaviDrive" instructions).
2. Pick up/Hang up the telephone
(see "NaviDrive" instructions).
3. Rheostat for dashboard lighting.
4. Start of voice recognition (see
chapter "Audio" or "NaviDrive"
instructions).
5. Personalisation button:
- Black panel (default function) or
- courtesy light on/off or
- Warnings log or
- Status of functions.
To view the personalisation menu via this button, press it
for more than two seconds.
6. Air recirculation.
Page 138 of 282
117
IX
D R I V I N G
* To comply with legislation in certain countries, the "Menu" control may
be deactivated while the vehicle is
in motion.
Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. Validation of the function chosen
o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current opera-
tion or return to the previous dis-
play.
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched
on manually: a speed of at least
30 km/h (around 20 mph) must be
programmed.
The speed limiter cannot, in any cir-
cumstances, take the place of the
observance of speed limits or of the
vigilance and responsibility of the
driver.
Steering wheel controls
The speed limiter controls are located
on the left-hand side of the steering
wheel.
Displays on the instrument panel
The programmed information is
grouped together in zone A of the
instrument panel display.
Programming
Rotate the control 1 to the "LIM"
position.
On selection of the function, the
previous memorised speed and the
information "OFF" are displayed:
With the engine running, you can
adjust the memorised maximum
speed, by means of short or long
presses on:
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps
of 3 mph.
