Page 29 of 284
27
I
M O N I T O R I N G

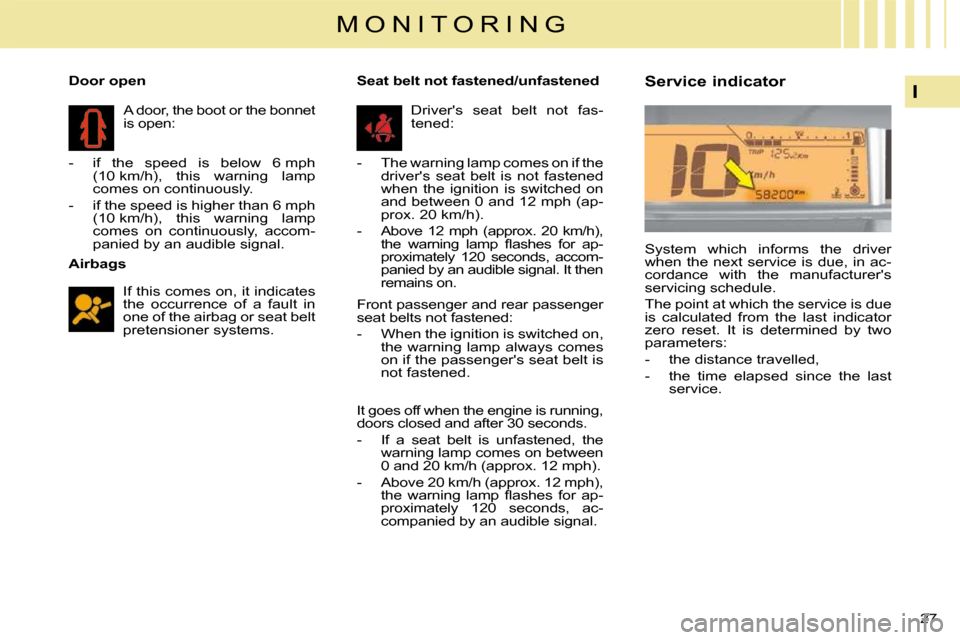

Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bonnet
is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/unfastened
Driver's seat belt not fas-
tened:
- The warning lamp comes on if the driver's seat belt is not fastened
when the ignition is switched on
and between 0 and 12 mph (ap-
prox. 20 km/h).
- Above 12 mph (approx. 20 km/h), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, accom-
panied by an audible signal. It then
remains on.
Front passenger and rear passenger
seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger's seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on between
0 and 20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal. Service indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.
Page 30 of 284
27
I
M O N I T O R I N G
Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bonnet
is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/unfastened
Driver's seat belt not fas-
tened:
- The warning lamp comes on if the driver's seat belt is not fastened
when the ignition is switched on
and between 0 and 12 mph (ap-
prox. 20 km/h).
- Above 12 mph (approx. 20 km/h), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, accom-
panied by an audible signal. It then
remains on.
Front passenger and rear passenger
seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger's seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on between
0 and 20 km/h (approx. 12 mph).
- Above 20 km/h (approx. 12 mph), t h e w a r n i n g l a m p fl a s h e s f o r a p -
proximately 120 seconds, ac-
companied by an audible signal. Service indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer's
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.
Page 32 of 284
29
I
M O N I T O R I N G
Service indicator zero reset Engine oil level indicator
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:
switch off the ignition,
press and hold the trip distance
recorder zero reset button,
switch on the ignition; the dis-
tance recorder display begins a
countdown,
when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is cor-
rect or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Oil level low
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
I f t h e l o w o i l l e v e l i s c o n fi r m e d b y a
check using the dipstick, it is essential
that the level is topped up to prevent
damage to the engine. Oil level gauge fault
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL
--" . Contact a CITROËN dealer.
Dipstick
Refer to the "Checks" section to lo-
c a t e t h e d i p s t i c k a n d t h e o i l fi l l e r c a p
on your engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the lev-
e l v i a t h e o i l fi l l e r c a p ,
using the type of oil
suited to your engine.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n u t e s
for the zero reset to be taken into ac-
count.
Page 47 of 284
42
III
C O M F O R T
Air conditioning
To ensure that your system operates
correctly, it is recommended to have
it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the windows
closed.
If after a lengthy stop in bright sunlight
the interior temperature is excessive,
ventilate the passenger compartment
by opening the windows for a few
moments, then close them again.
The air conditioning operates by using
power from the engine. This results in
a slight increase in fuel consumption.
Dust filter/Odour filter
(active carbon)
T h e r e i s a fi l t e r f o r e x c l u d i n g o d o u r s
and dust.
T h i s fi l t e r h a s t o b e c h a n g e d i n a c -
cordance with the vehicle servicing
schedule (see "Maintenance and
Warranty Guide").
Air circulation
Maximum comfort is obtained when
there is a good distribution of air in
the passenger compartment, both in
the front and in the rear.
F o r o p t i m u m o p e r a t i n g e f fi c i e n c y ,
take care not to obstruct the air out-
lets under the front seats.
Air vents
The face-level air vents have grilles
and thumbwheels to adjust the air
fl o w a n d d i r e c t i o n ( u p - d o w n , r i g h t -
left).
The automatic regulation of the air
conditioning, inside the cabin, uses
the sunshine sensor located on the
dashboard behind the instrument
panel.
Be careful not to obstruct it.
Sensor
Page 48 of 284
43
III
C O M F O R T
HEATING/VENTILATION

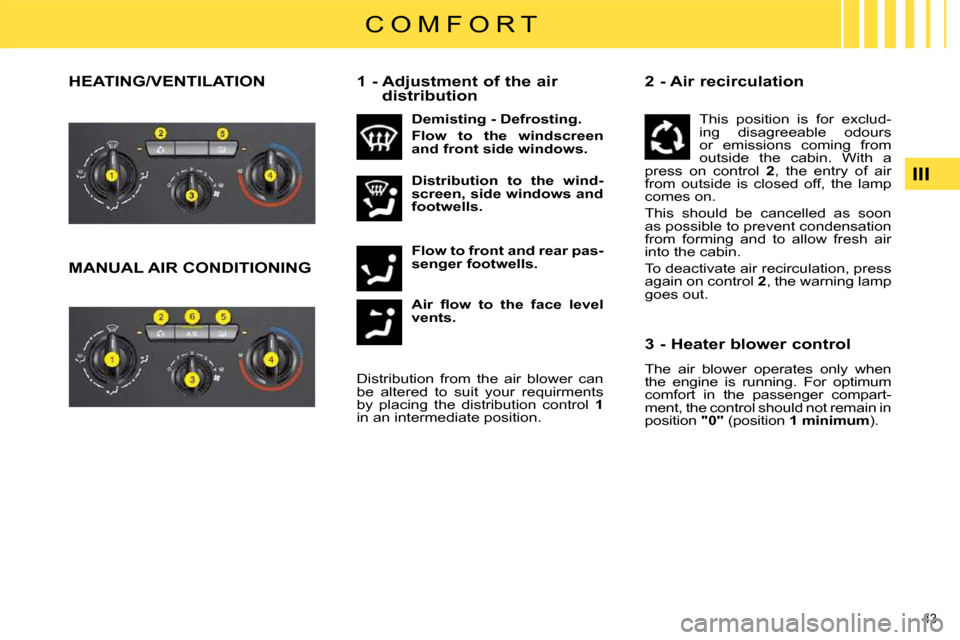

A i r fl o w t o t h e f a c e l e v e l
vents.
1 - A d j u s t m e n t o f t h e a i r
distribution
Demisting - Defrosting.
F l o w t o t h e w i n d s c r e e n
a n d f r o n t s i d e w i n d o w s .
D i s t r i b u t i o n t o t h e w i n d -
s c r e e n , s i d e w i n d o w s a n d
f o o t w e l l s .
F l o w t o f r o n t a n d r e a r p a s -
s e n g e r f o o t w e l l s .
Distribution from the air blower can
be altered to suit your requirments
by placing the distribution control 1
in an intermediate position. 2 - Air recirculation
3 - H e a t e r b l o w e r c o n t r o l
The air blower operates only when
the engine is running. For optimum
comfort in the passenger compart-
ment, the control should not remain in
position
"0" (position 1 minimum ).
This position is for exclud-
ing disagreeable odours
or emissions coming from
outside the cabin. With a
press on control 2 , the entry of air
from outside is closed off, the lamp
comes on.
This should be cancelled as soon
as possible to prevent condensation
from forming and to allow fresh air
into the cabin.
To deactivate air recirculation, press
again on control 2 , the warning lamp
goes out.
MANUAL AIR CONDITIONING
Page 49 of 284
44
III
C O M F O R T
Demisting - defrosting
of
t h e w i n d s c r e e n a n d f r o n t
s i d e w i n d o w s
Place the controls for temperature 4
a n d a i r fl o w 3 on maximum.
Close the central air vents.
Operate the air conditioning by
pressing the control 6 , the warning
lamp comes on.
The system should not be in air re-
circulation.
5 - Rear screen demisting
Can only be operated with the engine
running.
One press on control
5 acti-
vates the electric demisting of
the rear screen and, according
to version, the door mirrors.
The warning lamp comes on.
It switches off automatically to avoid
excessive power consumption.
One press stops the demisting.
A further press starts it again.
If the engine is stopped before the
end of demisting, the operation will
resume the next time the engine is
started. 6 - Air conditioning
The air conditioning will only operate
when the engine is running.
Press on control 6 The warn-
ing lamp comes on.
For air conditioning, the air
blower control 3 must not be
on position "0" .
Air conditioning is obtained by mix-
ing the warm air with refrigerated air.
The temperature control 4 adjusts
the air conditioning provided the
control 6 is operational.
4 - T e m p e r a t u r e c o n t r o l
The heating/ventilation and manual
air conditioning systems can only
function with the engine running.
Page 51 of 284
46
III
C O M F O R T
When you enter the vehicle, the
temperature inside the vehicle
may be much colder (or warmer)
than is comfortable. There is no
point in modifying the displayed
temperature to try to attain the
desired level of comfort. The
system operates automatically
to correct this temperature differ-
ence as rapidly as possible.
When starting the engine from
cold, in order to avoid distributing
too much cold air, the blower will
attain its optimum level gradually.
M a n u a l o p e r a t i o n o f o n e o r m o r e
functions
Each of the functions 4 , 6 and 7 can
be adjusted manually.
Display of the "AUTO" function then
disappears.
Central and lateral air
vents.
Central and lateral air
v e n t s a n d p a s s e n g e r
f o o t w e l l s .
P a s s e n g e r f o o t w e l l s .
T h e w i n d s c r e e n , f r o n t
s i d e w i n d o w s a n d p a s -
s e n g e r f o o t w e l l s .
T h e w i n d s c r e e n a n d
f r o n t s i d e w i n d o w s .
4 - Air conditioning
6 - A d j u s t m e n t o f t h e a i r
distribution
5 - Air recirculation To stop the air conditioning,
press on the control
4 . The
symbol "A/C" disappears.
To restart it, press again
on the control 4 . The symbol "A/C"
displays.
When you press on control 5 ,
the entry of air from outside
is blocked off and the associ-
ated symbol is displayed.
This function can also be accessed
by pressing the appropriate button
on the steering wheel.
While retaining the other settings,
this position excludes disagreeable
odours or emissions coming from
outside. It should be cancelled as
soon as possible to prevent misting
and to allow fresh air into the cabin.
To deactivate the air recirculation,
press again on control 5 . Press the button
6 succes-
sively so that the multifunc-
tion screen shows, in turn,
t h e a i r fl o w t o :
Page 55 of 284
50
III
C O M F O R T

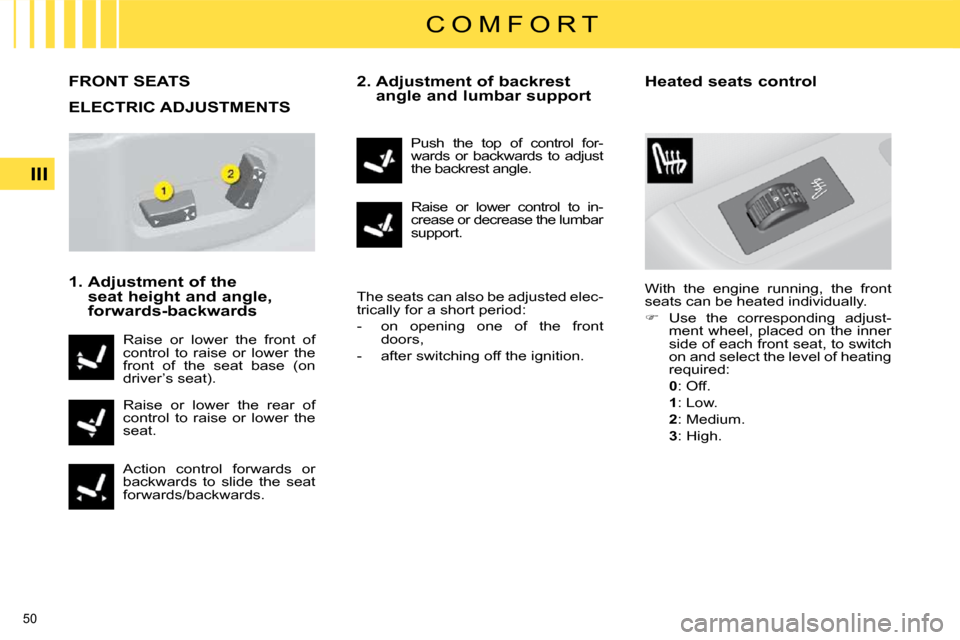

FRONT SEATS
1 . A d j u s t m e n t o f t h e s e a t h e i g h t a n d a n g l e ,
f o r w a r d s - b a c k w a r d s 2 . A d j u s t m e n t o f b a c k r e s t
a n g l e a n d l u m b a r s u p p o r t
The seats can also be adjusted elec-
trically for a short period:
- on opening one of the front doors,
- after switching off the ignition. Heated seats control
ELECTRIC ADJUSTMENTS
Raise or lower the front of
control to raise or lower the
front of the seat base (on
driver’s seat).
Raise or lower the rear of
control to raise or lower the
seat.
Action control forwards or
backwards to slide the seat
forwards/backwards. Push the top of control for-
wards or backwards to adjust
the backrest angle.
Raise or lower control to in-
crease or decrease the lumbar
support.
With the engine running, the front
seats can be heated individually.
Use the corresponding adjust-
ment wheel, placed on the inner
side of each front seat, to switch
on and select the level of heating
required:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
Page 56 of 284
51
III
C O M F O R T

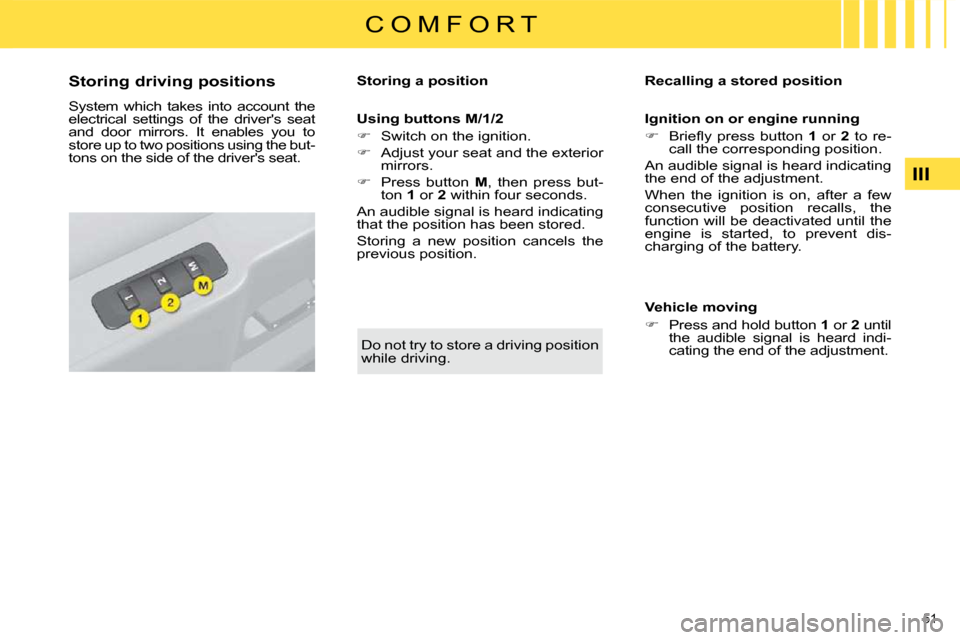

S t o r i n g d r i v i n g p o s i t i o n s
System which takes into account the
electrical settings of the driver's seat
and door mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat. S t o r i n g a p o s i t i o n
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and the exterior
mirrors.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indicating
that the position has been stored.
Storing a new position cancels the
previous position. R e c a l l i n g a s t o r e d p o s i t i o n
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery.
V e h i c l e m o v i n g
Press and hold button 1 or 2 until
the audible signal is heard indi-
cating the end of the adjustment.
Do not try to store a driving position
while driving.
Page 59 of 284
54
III
C O M F O R T
MIRRORS
Door mirrors
Each mirror is adjustable to provide
the rear view needed for overtaking
or parking. They can also be folded
f o r p a r k i n g i n c o n fi n e d s p a c e s .
Adjustment
With the ignition on:
move control A to the right or to
the left to select the correspond-
ing mirror,
move control B in one of four
directions to adjust,
return control A to the central
position. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Folding
From outside: lock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
If the mirrors are folded using con-
trol A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Unfolding
From outside: unlock the vehicle
using the remote control or the
key.
From inside: with the ignition on,
pull control A rearwards.
The folding and unfolding of the door
mirrors using the remote control can
be deactivated by a CITROËN dealer.
Never fold or unfold the electric folding
mirrors manually. Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres
in reverse gear.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand
and right-hand mirrors in suc-
cession.
The adjustment is stored immedi-
ately.
S w i t c h i n g o f f
Exit reverse gear and wait
ten seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the correspond-
ing mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
The demisting/defrosting of the door
mirrors is linked to that of the rear
screen.
