Page 81 of 284
72
V I S I B I L I T Y
V
* According to country.
Daytime-running lamps *
System which switches on the ve-
hicle’s dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.
The lighting of the instruments and
controls (instrument panel, multi-
function screen, air conditioning
c o n t r o l p a n e l , . . . ) i s i n d e p e n d e n t o f
this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle’s igni-
tion has been switched off makes
the driver’s exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. The manual guide-me-home ligh-
ting is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access - §
R e m o t e c o n t r o l k e y " ) .
In countries in which it is imposed by
regulations:
- by default, this function is acti- vated,
- the sidelamps and the number plate lamps are also switched
on.
Page 82 of 284
73
V I S I B I L I T Y
V
Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic illumination
of headlamps is accompanied by
a message on the multifunction
screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
Guide-me-home lighting
Association with the automatic illu-
mination of headlamps provides the
guide-me-home lighting with the fol-
lowing additional options:
- selection of the lighting duration
to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of guide- me-home lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer.
In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
The initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is
adjusted automatically.
Page 83 of 284
72
V I S I B I L I T Y
V
* According to country.
Daytime-running lamps *
System which switches on the ve-
hicle’s dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.
The lighting of the instruments and
controls (instrument panel, multi-
function screen, air conditioning
c o n t r o l p a n e l , . . . ) i s i n d e p e n d e n t o f
this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle’s igni-
tion has been switched off makes
the driver’s exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. The manual guide-me-home ligh-
ting is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access - §
R e m o t e c o n t r o l k e y " ) .
In countries in which it is imposed by
regulations:
- by default, this function is acti- vated,
- the sidelamps and the number plate lamps are also switched
on.
Page 84 of 284
73
V I S I B I L I T Y
V
Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic illumination
of headlamps is accompanied by
a message on the multifunction
screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
Guide-me-home lighting
Association with the automatic illu-
mination of headlamps provides the
guide-me-home lighting with the fol-
lowing additional options:
- selection of the lighting duration
to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of guide- me-home lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer.
In fog or snow, the sunshine sen-
s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
To do this, turn the control, located
below the dashboard to the left of
driver, to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
The initial setting is position "0".
O n v e h i c l e s fi t t e d w i t h x e n o n b u l b s
the height of the headlamps is
adjusted automatically.
Page 85 of 284
74
V I S I B I L I T Y
V

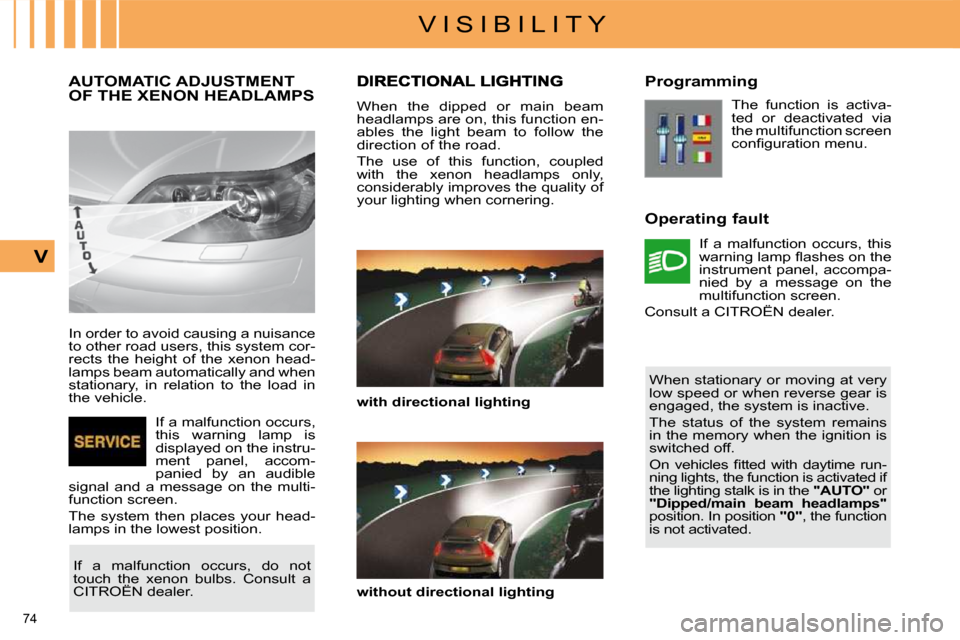

AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction occurs,
this warning lamp is
displayed on the instru-
ment panel, accom-
panied by an audible
signal and a message on the multi-
function screen.
The system then places your head-
lamps in the lowest position.
If a malfunction occurs, do not
touch the xenon bulbs. Consult a
CITROËN dealer.
When the dipped or main beam
headlamps are on, this function en-
ables the light beam to follow the
direction of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activa-
ted or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated if
the lighting stalk is in the "AUTO" or
"Dipped/main beam headlamps"
position. In position "0" , the function
is not activated.
Page 86 of 284
75
V I S I B I L I T Y
V

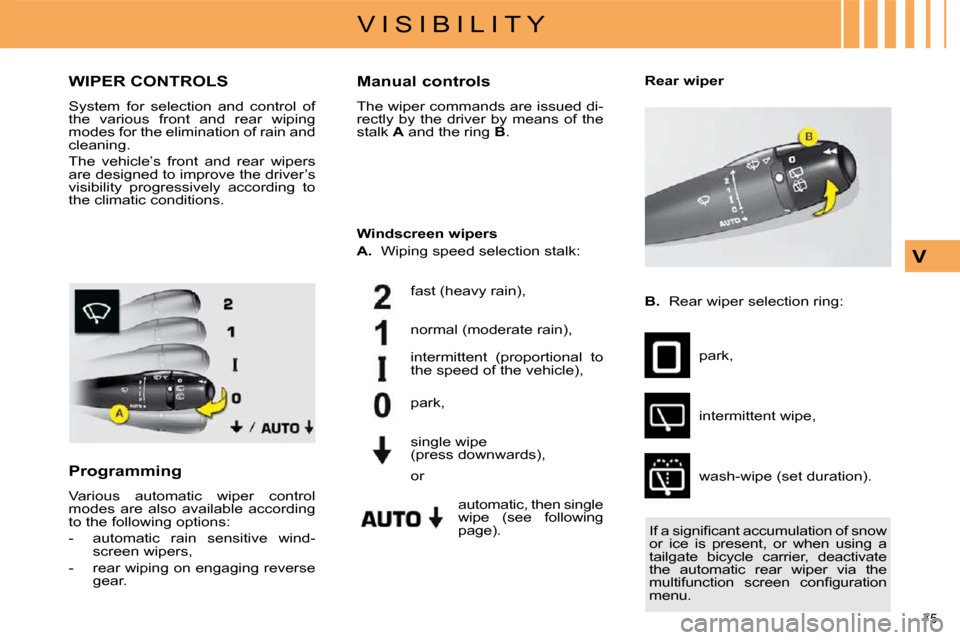

WIPER CONTROLS
System for selection and control of
the various front and rear wiping
modes for the elimination of rain and
cleaning.
The vehicle’s front and rear wipers
are designed to improve the driver’s
visibility progressively according to
the climatic conditions.
Programming
Various automatic wiper control
modes are also available according
to the following options:
- automatic rain sensitive wind-screen wipers,
- rear wiping on engaging reverse gear. Manual controls
The wiper commands are issued di-
rectly by the driver by means of the
stalk
A and the ring B . Rear wiper
B. Rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic, then single
wipe (see following
p a g e ) .
park,
single wipe
( p r e s s d o w n w a r d s ) ,
Windscreen wipers
A. Wiping speed selection stalk:
or I f a s i g n i fi c a n t a c c u m u l a t i o n o f s n o w
or ice is present, or when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
m u l t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu.
Page 87 of 284
76
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by pushing the stalk down-
wards to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. Switching off
This is controlled manually by the
driver by moving the stalk upwards
then returning it to position
"0" .
It is accompanied by a message on
the multifunction screen.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
Page 88 of 284
77
V I S I B I L I T Y
V
Special position of
the windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy lamp
2. Map reading lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In "Permanent lighting" mode, the
duration of lighting varies accord-
ing to the circumstances:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unli- mited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 89 of 284
77
V I S I B I L I T Y
V
Special position of
the windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen.
To park the wipers after this has
been done, switch on the ignition
and operate the stalk. For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear. COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy lamp
2. Map reading lamps
Front courtesy lamp In this position, the courtesy
lamp comes on gradually: Permanently off.
Permanent lighting.
In "Permanent lighting" mode, the
duration of lighting varies accord-
ing to the circumstances:
- with the ignition off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unli- mited.
- when the vehicle is unlocked,
- when a door or the boot is opened,
- when the key is removed from the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Map reading lamps
With the ignition on, press the
corresponding switch.
Page 90 of 284
78
V I S I B I L I T Y
V
This comes on automatically when
the boot is opened and switches
off automatically when the boot is
closed.
Different lighting times are avai-
lable:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
The sill lighting is at the bottom of
each door panel.
The lamps come on automatically
when a door is opened and switch
off automatically when all of the
doors are closed.
Sill illumination
