49
MULTIFUNCTION SCREENS
Choice of language
You can change the screen display
language (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Türkçe * ).
*
Depending on destination country. This menu is used to activate/deac-
tivate the following functions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
Defi ne the vehicle parameters
You can activate or deactivate the
following systems:
-
rear wiper coupled with reverse
gear (refer to the "Visibilty" section),
- automatic guide-me-home lighting,
- directional headlamps,
- automatic functions (application/
release) of the electric parking
brake *
- selective door locking,
- daytime running lamps (refer to
the "Visibilty" section),
Display confi guration
You can make the following adjust-
ments:
- video brightness,
- date and time,
- choice of units.
Personalisation -
Configuration
Page 52 of 352
Downloaded from www.Manualslib.com manuals search engine II
50
MULTIFUNCTION SCREENS
MyWay MULTIFUNCTION
SCREEN
This screen can display the following
information:
- time,
- date,
- ambient temperature
When the ambient temperature
is between +3 °C and -3 °C,
the display fl ashes (risk of ice).
The temperature displayed may
be higher that the actual tem-
perature if the vehicle has been
parked in the sun.
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer (see the end of the
section),
- result of the parking space mea-
surement,
- visual parking sensor information,
- satellite navigation system infor-
mation.
Controls
Displays in the screen
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary. You can press:
A.
Opens a contextual menu.
B.
Navigation through the screen
menus.
C.
Confi rmation of the selection made
in a menu or a modifi ed value.
D.
Abandon the current operation.
E.
Selection of main display (date,
radio-CD/audio, telephone, map,
navigation and trip computer).
B
or F.
In the menus, navigation, se-
lect activation/deactivation of
functions and select settings. To select one of the applications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button to
open the corresponding menu,
For more information on these ap-
plications, refer to the "Audio and
Telematics" section.
Menus in the control panel
Page 53 of 352
Downloaded from www.Manualslib.com manuals search engine II
51
MULTIFUNCTION SCREENS
SETUP menu
)
Press the "SETUP"
button to
open the confi guration menu.
This allows you to select from
the following functions:
- "System language",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
System language
This menu allows you to select
the language used by the dis-
play: Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * .
*
According to country.
Date and time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the
"Audio and Telematics" section.
Display
This menu allows you to set the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear
(refer to the "Visibility" section),
- guide-me-home lighting (refer to
the "Visibility" section),
- directional headlamp lighting (refer
to the "Visibility" section),
- interior mood lighting (refer to
the "Visibility" section),
- electric parking brake automatic
functions (automatic application/
release) * ,
- selective door locking,
- daytime running lamps (refer to
the "Visibility" section),
Units
This menu allows you to select the
units: temperature (°C or °F) and
consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the
factory confi guration, display the soft-
ware version and activate scrolling
text.
Page 54 of 352
Downloaded from www.Manualslib.com manuals search engine II
52
MULTIFUNCTION SCREENS
NAVIDRIVE MULTIFUNCTION
SCREEN
Displays in the screen
The screen can display the following
information:
- time
- date
- ambient temperature
When the ambient temperature
is between +3 °C and -3 °C, the
temperature display fl ashes (risk
of ice). The ambient temperature
displayed may be higher than
the actual temperature if the ve-
hicle is parked in the sun.
- alert messages and state of ve-
hicle systems, displayed tempo-
rarily.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.
Controls
A.
Access to the "Main Menu".
B.
Navigation in the screen menus.
C.
Selection and confi rmation in the
menus of the function chosen or
the value modifi ed.
D.
Cancellation of the current op-
eration or return to the previous
display.
E.
Selection of the principal dis-
play (date, radio-CD/audio, tele-
phone, map, navigation and trip
computer).
B
or F.
In the menus, navigation,
choice of activation/deactiva-
tion of functions and choice
of setting.
- audio functions,
- trip computer (see end of the
section),
- results of the parking space
measurement,
- visual parking sensors,
- satellite navigation system infor-
mation.
Page 55 of 352
Downloaded from www.Manualslib.com manuals search engine II

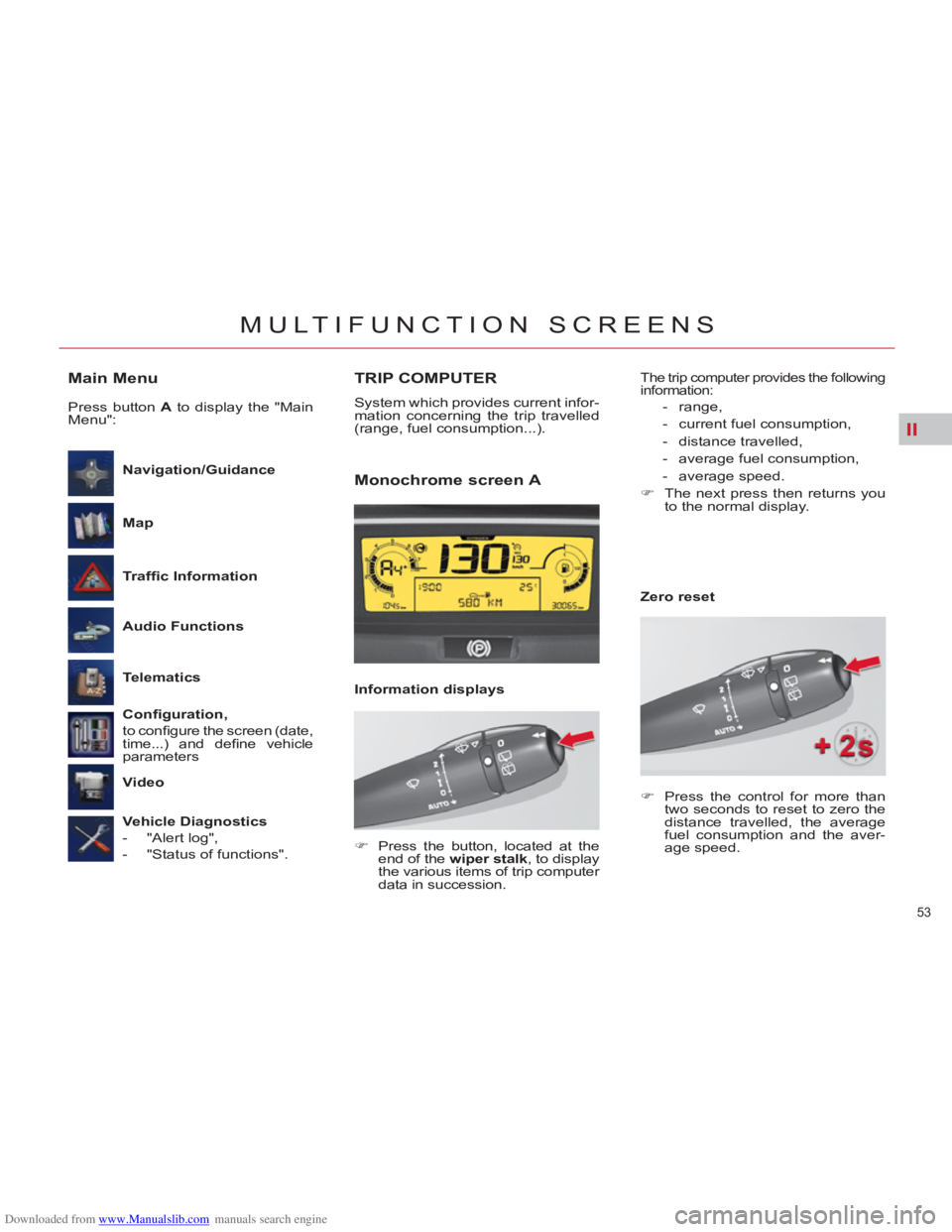

53
MULTIFUNCTION SCREENS
Main Menu
Traffi c Information
Navigation/Guidance
Map
Audio Functions
Telematics
Confi guration,
to confi gure the screen (date,
time...) and defi ne vehicle
parameters
Video
Vehicle Diagnostics
- "Alert log",
- "Status of functions".
Press button A
to display the "Main
Menu":
TRIP COMPUTER
System which provides current infor-
mation concerning the trip travelled
(range, fuel consumption...).
Monochrome screen A
Information displays
)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the aver-
age speed.
Zero reset
The trip computer provides the following
information:
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
)
The next press then returns you
to the normal display.
)
Press the button, located at the
end of the wiper stalk
, to display
the various items of trip computer
data in succession.
Page 56 of 352
Downloaded from www.Manualslib.com manuals search engine II
54
MULTIFUNCTION SCREENS
TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption, …) in the
multifunction screen.
Monochrome screen C
MyWay or NaviDrive colour
screen
Display of information
Trip zero reset
)
Press the button, located at the
end of the wiper stalk
, to display
the various trip computer infor-
mation groups in succession:
- the current information
group with:
●
range,
●
current fuel consump-
tion,
●
distance remaining to
be travelled/Stop &
Start time counter,
- the trip "1"
group with:
●
distance travelled,
●
average fuel con-
sumption,
●
average speed,
for the fi rst trip.
- the trip "2"
group with:
●
the distance travelled,
●
the average fuel con-
sumption,
●
the average speed,
for the second trip.
)
When the trip required is dis-
played, press the control for
more than two seconds.
Trips "1"
and "2"
are independent
but their use is identical.
For example, trip "1"
can be used for
daily fi gures and trip "2"
for monthly
fi gures.
Page 57 of 352
Downloaded from www.Manualslib.com manuals search engine II
55
MULTIFUNCTION SCREENS
A few definitions…
Range
(miles or km)
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel,
the range is recalculated and is dis-
played when it exceeds 60 miles
(100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
or a qualifi ed workshop. This indicates the distance which
can still be travelled with the fuel re-
maining in the tank in relation to the
average fuel consumption over the
last few miles (kilometres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last trip com-
puter zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).
Distance travelled
(miles or km)
This indicates the distance travelled
since the last trip computer zero reset.
Distance remaining to
destination
(miles or km)
This is the distance remaining to be
travelled to the fi nal destination. It
is either calculated instantly by the
navigation system, if guidance is ac-
tivated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
This function is only displayed from
20 mph (30 km/h). This is the average fuel consump-
tion during the last few seconds.
If your vehicle is fi tted with Stop &
Start, a time counter calculates the
time spent in STOP mode during a
journey.
It resets to zero every time the igni-
tion is switched on with the key.
Stop & Start time counter
(minutes/seconds or hours/
minutes)
Page 58 of 352
Downloaded from www.Manualslib.com manuals search engine III
56
COMFORT
RECOMMENDED SETTINGS FOR VENTILATION, HEATING AND
AIR CONDITIONING
Air intake
Check that the exterior grille for the
air intake at the bottom of the wind-
screen, is clean and free of dead
leaves, snow, etc.
Air distribution
1.
Windscreen demisting/defrosting
vents.
2.
Front quarter light window demi-
sting/defrosting vents.
3.
Front side window demisting/
defrosting vents.
Adjustable side air vents.
4.
Adjustable central air vents.
5.
Front passenger footwell air out-
lets.
6.
Adjustable 2nd row side air
vents, with air fl ow and tempera-
ture adjustment.
7.
Rear passenger footwell air out-
lets.
8.
Adjustable 3rd row side air vents.
The side air vents 8
apply only to the
7-seater versions.
Page 59 of 352
Downloaded from www.Manualslib.com manuals search engine III
57
COMFORT
Air conditioning
To ensure that your system operates
correctly, it is recommended that you
have it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To preserve the sealing of the air
conditioning compressor, operate
the air conditioning at least once a
month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sunlight
the interior temperature is excessive,
air the passenger compartment by
opening the windows for a few mo-
ments, then close them again.
The air conditioning operates by
using power from the engine. This
results in a slight increase in fuel
consumption.
Dust filter/Odour filter (active
carbon)
There is a fi lter for excluding odours
and dust.
This fi lter has to be changed in ac-
cordance with the vehicle's servicing
schedule (see the servicing booklet).
Air circulation
Air vents on the fl oor underneath the
front seats provide enhanced heat-
ing for the rear seat positions; take
care not to obstruct them.
Air vents
The air vents to the face have grilles
and thumb wheels to adjust the air
fl ow and direction (up-down, right-
left).
The automatic regulation of the air
conditioning in the passenger com-
partment uses a number of sensors
(sunshine sensor, ambient tempera-
ture sensor...) that relieve you of the
need to make frequent adjustments to
the displayed temperature.
Take care not to obstruct the sun-
shine sensor, located on the dash-
board behind the instrument panel.
Sensors
Page 60 of 352
Downloaded from www.Manualslib.com manuals search engine III
58
COMFORT
MANUAL AIR CONDITIONING
The air conditioning system oper-
ates with the engine running.
A. DRIVER'S CONTROL PANEL
1. Adjustment of the air fan
speed
The air fan adjustment only operates
when the engine is running.
To adjust the air fl ow, press button 1
:
to increase the fl ow of air,
to decrease the fl ow of air. The level of air fl ow is shown by the
progressive lighting of the warning
lamps depicting the fan blades 1
.
By reducing the fl ow to minimum,
you deactivate the air conditioning
system (OFF).
To maintain an acceptable level of
comfort in the passenger compart-
ment, you should not leave this con-
trol too long in the OFF position.
2. Adjustment of air
distribution
)
Press button 2
to make the dis-
play run through the different
types of air distribution.
The air distribution chosen
is shown by the lighting of
the corresponding warning
lamps on the display 2
.
3. Mode of adjustment
of temperature for the
passenger
)
Press button 3
to have indepen-
dent passenger control of cabin
air temperature. The warning
lamp goes off.
While the passenger is adjusting tem-
perature, the warning lamp comes on.
4. Air recirculation
This control is for isolating disagree-
able odours or fumes coming from
outside.
)
Press button 4
to cut off the intake
of outside air and to activate recir-
culation of the air in the passenger
compartment. The warning lamp
comes on.
Avoid the extended use of air re-
circulation (risk of deterioration
of air quality and misting).
)
Press button 4
again to allow the
intake of exterior air. The warning
lamp goes off.
5. Air conditioning
The air fan control (adjusting the fl ow
of air) has to be activated in order for
air conditioning to be obtained.
)
Press button 5
. The warning
lamp comes on.
To be effective,
the air condi-
tioning should be operated only
with the windows closed.
If your vehicle is not equipped with
air conditioning, you will have the
same control panel but without the
A/C
button.
