Page 9 of 324
7
FAMILIARISATION
OPENING
Fuel tank
Panoramic sunroof
A.
Opening the fuel fi ller fl ap.
Capacity of the fuel tank: approximately
60 litres.
1.
Opening the blind (four positions
possible).
2.
Closing the blind (initial position).
93
92
Page 39 of 324
1
MONITORING
37
Warning lamp
is on
Cause
Action/Observations
Anti-lock
Braking
System (ABS)
fi xed. The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and
contact a CITROËN dealer or a qualifi ed
workshop without delay.
Engine
autodiagnosis
system
fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a
qualifi ed workshop.
fi xed. The emission control system
has a fault. The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or qualifi ed workshop without delay.
Low fuel level
fi xed,
accompanied
by and audible
signal and a
message. When it fi rst comes on there
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to use
the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
Until suffi cient fuel is added, this warning
lamp will come on every time the ignition
is switched on, accompanied by an
audible signal and a message.
Depending on version, the audible
signal and message are repeated with
increasing frequency as the fuel level
drops towards "0"
.
Fuel tank capacity: approximately
60 litres
.
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.
Page 95 of 324
4
ACCESS
93
FUEL TANK
Capacity of the tank: approximately
60 litres.
When the low fuel level in the
tank is reached, this warning
lamp comes on in the instru-
ment panel, accompanied by
an audible warning and an alert
message. When it fi rst comes
on, around 6 litres
of fuel re-
main in the tank.
Until suffi cient fuel has been added,
every time the ignition is switched on,
this warning lamp appears, accompa-
nied by an audible signal and an alert
message. Depending on version, when
driving, this audible signal and the dis-
play of this alert message are repeated
with increasing frequency, as the level
drops towards 0
.
You must refuel as soon as possible to
avoid running out.
If you run out of fuel (Diesel), refer also
to "Checks".
Low fuel level
Refuelling
Additions of fuel must be of at least
5 litres to be registered by the fuel gauge.
Opening the fi ller cap may result in an
inrush of air. This vacuum is entirely
normal and results from the sealing of
the fuel system.
If you have put in the wrong
fuel for your vehicle, you must
have have the tank drained and
refi lled with the correct fuel be-
fore you start the engine.
)
Press control A
until the automatic
opening of the fuel fl ap is heard.
This control remains active for a few
minutes after switching off the igni-
tion. If necessary, switch the ignition
on again to reactivate it.
If you are fi lling your tank to the top,
do not persist after the third cut-off;
this could cause your vehicle to mal-
function.
)
Take care to select the pump that
delivers the correct fuel for your ve-
hicle.
)
Introduce the nozzle so as to push
in the metal non-return fl ap B.
)
Make sure that the nozzle is pushed
in as far as possible before starting
to refuel (risk of blowback).
)
Maintain this position while refuel-
ling.
)
Push the fuel fl ap to close it.
With Stop & Start, never refuel
with the system in STOP mode;
you must switch off the ignition
with the key.
Page 97 of 324
4
ACCESS
95
MISFUEL PREVENTION
(DIESEL) *
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
Operation
When a petrol fi ller nozzle is introduced
into the fuel fi ller neck of your Diesel
vehicle, it comes into contact with the
fl ap. The system remains closed and
prevents fi lling.
Do not persist but introduce a Diesel
type fi ller nozzle.
It remains possible to use a fuel
can to fi ll the tank; this must be
done slowly.
In order to ensure a good fl ow of
fuel, do not place the nozzle of
the fuel can in direct contact with
the fl ap of the misfuel prevention
device.
This equipment will become available
during the year.
*
According to country of sale.
Travelling abroad
As Diesel fuel pump nozzles
may be different in other coun-
tries, the presence of the misfuel
prevention device may make re-
fuelling impossible.
Before travelling abroad, we
recommend that you check with
the CITROËN dealer network,
whether your vehicle is suitable
for the fuel pumps in the country
in which you want to travel.
Page 179 of 324
10
CHECKS
177
*
According to engine.
DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.
1.
Power steering reservoir.
2.
Screenwash and headlamp wash
reservoir.
3.
Coolant reservoir.
4.
Brake fl uid reservoir.
5.
Battery/Fuses.
6.
Fusebox.
7.
Air fi lter.
8.
Engine oil dipstick.
9.
Engine oil fi ller cap.
10.
Priming pump * .
11 .
Bleed screw * .

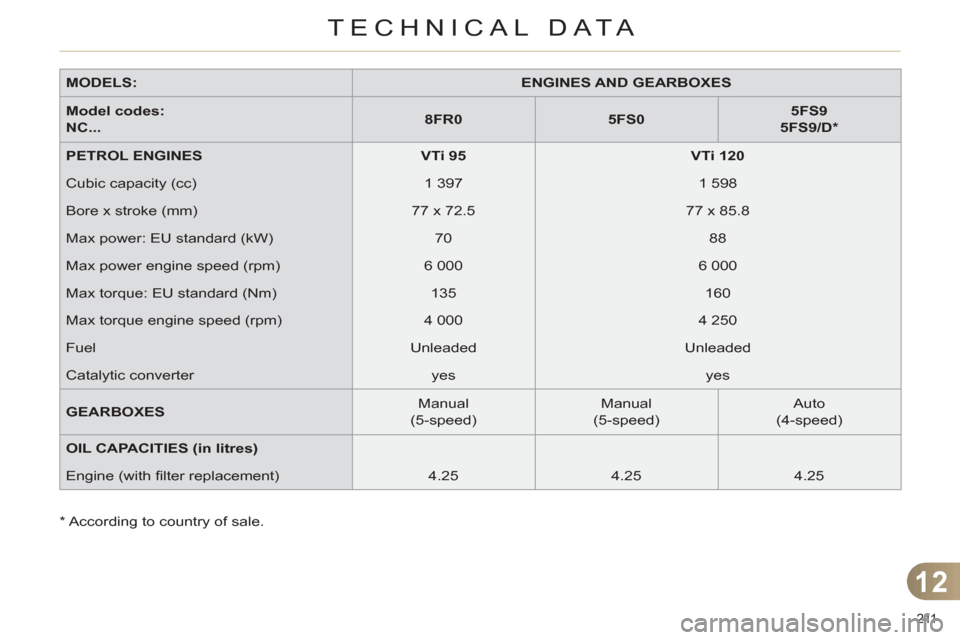

Page 213 of 324
12
TECHNICAL DATA
211
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
8FR0
5FS0
5FS9
5FS9/D *
PETROL ENGINES
VTi 95
VTi 120
Cubic capacity (cc)
1 397
1 598
Bore x stroke (mm)
77 x 72.5
77 x 85.8
Max power: EU standard (kW)
70
88
Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
135
160
Max torque engine speed (rpm)
4 000
4 250
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Auto
(4-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
4.25
4.25
4.25
* According to country of sale.

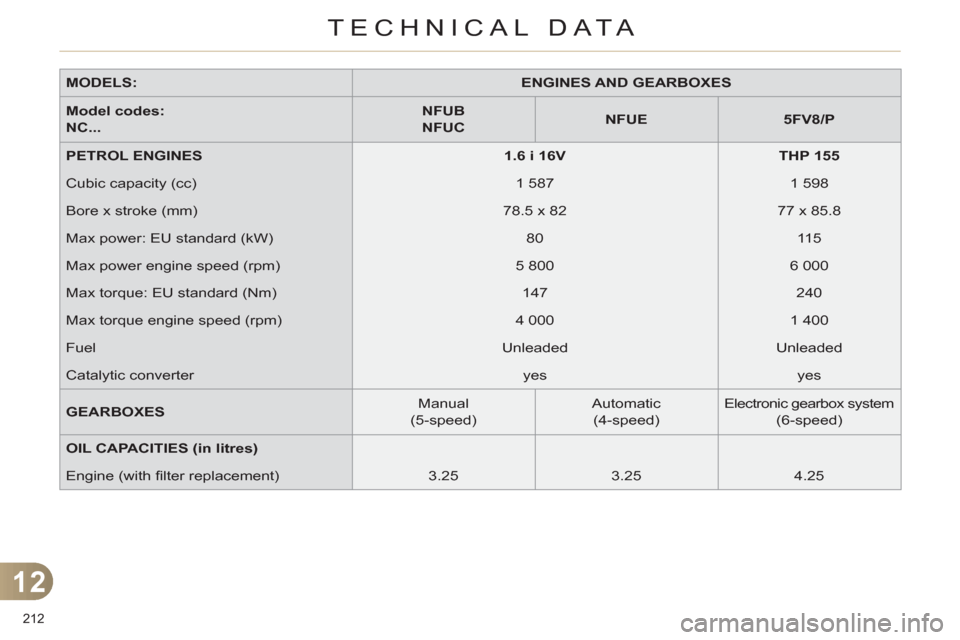

Page 214 of 324
12
TECHNICAL DATA
212
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
NFUB
NFUC
NFUE
5FV8/P
PETROL ENGINES
1.6 i 16V
THP 155
Cubic capacity (cc)
1 587
1 598
Bore x stroke (mm)
78.5 x 82
77 x 85.8
Max power: EU standard (kW)
80
115
Max power engine speed (rpm)
5 800
6 000
Max torque: EU standard (Nm)
147
240
Max torque engine speed (rpm)
4 000
1 400
Fuel
Unleaded
Unleaded
Catalytic converter
yes
yes
GEARBOXES
Manual
(5-speed)
Automatic
(4-speed)
Electronic gearbox system
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.25
3.25
4.25
Page 217 of 324
12
TECHNICAL DATA
215
MODEL:
ENGINE AND GEARBOX
Model codes:
NC...
5FL0/GL
LPG ENGINE
VTi 120
Cubic capacity (cc)
1 598
Bore x stroke (mm)
77 x 85.8
Max. power: EU standard (kW)
88
Max. power speed (rpm)
6 000
Max torque: EU standard (Nm)
160
Max. torque speed (rpm)
4 250
Fuel
LPG/Unleaded
Catalytic converter
Yes
GEARBOX
Manual
(5-speed)
OIL CAPACITY (in litres)
Engine (with fi lter replacement)
4.25
For more information on the operation and use of your LPG vehicle, refer to the specifi c insert attached to the other vehicle
documents.

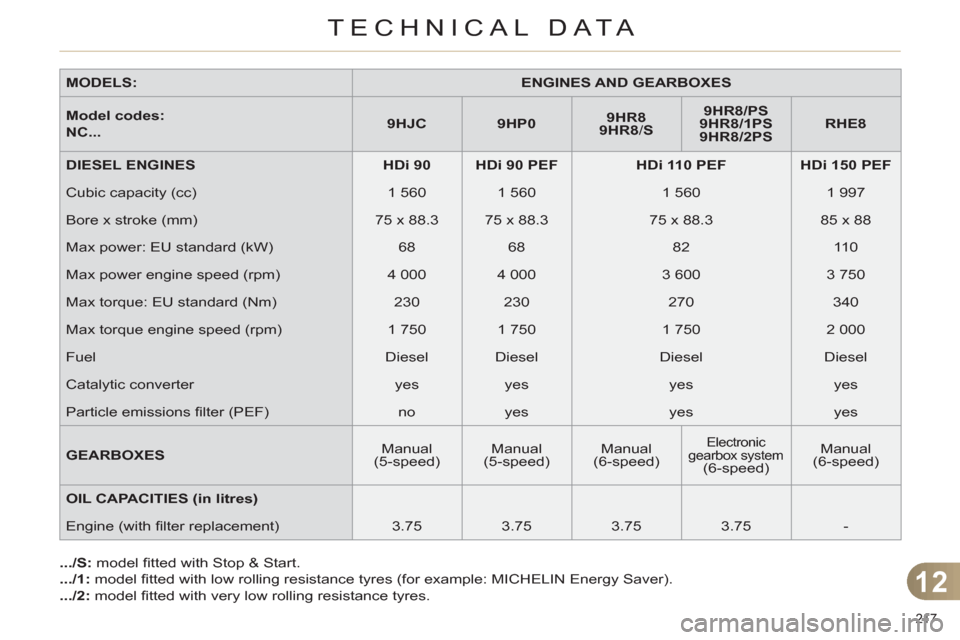

Page 219 of 324
12
TECHNICAL DATA
217
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
9HJC
9HP0
9HR8
9HR8
/ S
9HR8/PS
9HR8/1PS
9HR8/2PS
RHE8
DIESEL ENGINES
HDi 90
HDi 90 PEF
HDi 110 PEF
HDi 150 PEF
Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power: EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
4 000
4 000
3 600
3 750
Max torque: EU standard (Nm)
230
230
270
340
Max torque engine speed (rpm)
1 750
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
yes
Particle emissions fi lter (PEF)
no
yes
yes
yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)
Electronic
gearbox system
(6-speed)
Manual
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-
.../S:
model fi tted with Stop & Start.
.../1:
model fi tted with low rolling resistance tyres (for example: MICHELIN Energy Saver).
.../2:
model fi tted with very low rolling resistance tyres.
Page 317 of 324
315
ALPHABETICAL INDEX
A ABS and EBFD systems ............132
Accessories ................................209
Accessory socket,
12 V ................... 112, 113, 115, 119
Adjusting headlamps ..................102
Adjusting head restraints ..............73
Adjusting seat belt height ...135, 136
Adjusting the steering wheel ........78
Airbags, curtain ..................140, 141
Airbags, front ......................138, 141
Airbags, lateral ...................140, 141
Air conditioning .............................26
Air conditioning, digital ...........64, 67
Air conditioning, manual .........64, 65
Air fi lter .......................................180
Air fl ow .........................................26
Air vents .......................................63
Alarm ............................................86
Anti-lock braking system
(ABS) ........................................132
Anti-pinch .....................................90
Anti-theft .......................................81
Armrest, front ..................... 114, 115
Armrest, rear .............................. 117
Ashtray, portable ........................ 111
Assistance call ...................134, 224
Audible warning ..........................130
Audio streaming
(Bluetooth) ........................264, 290
Audio system ..................51, 53, 277
Automatic illumination
of headlamps ......................97, 100
Automatic operation of hazard
warning lamps ..........................130
Automatic rain sensitive
windscreen wipers ............105, 106
Auxiliary socket .......... 112, 265, 289B Battery ................................180, 201
Battery, charging ........................201
Battery, remote control ...........82, 83
Black panel ...................................49
Blind spot sensors ......................161
Bluetooth (hands-free) .......248, 291
Bluetooth (telephone) .................248
Bonnet ........................................174
Bonnet stay ................................174
Boot ..............................................89
Boot lamp ...........................109, 120
Brake discs .................................181
Brake lamps ...............................195
Brake pads .................................181
Brakes ........................................181
Braking assistance system .........132
C Capacity, fuel tank ........................93
CD ..............................................284
CD MP3 ..............................285, 286
Central locking .......................80, 84
Centre console ........................... 113
Changing a bulb .................191, 195
Changing a fuse .........................197
Changing a wheel ......................187
Changing a wiper blade .....107, 203
Changing the date ..............267, 302
Changing the remote
control battery ............................82
Changing the time ........48, 267, 302
CHECK ...................................31, 47
Checking levels ..................178, 179
Checking the engine oil level .......44
Checking tyre pressures
(using the kit) ............................182
Checks ...............176, 177, 180, 181
Child lock ....................................129C Children ......................124, 127, 128
Child seats ................ 121, 123-125
Cigar lighter ................................ 112
Clock ............................................48
Closing the boot .....................80, 89
Closing the doors ...................80, 88
Cold climate screen ....................204
Commandes au volant .......228, 279
Connectors, audio ...... 112, 287, 289
Coolant level ..............................178
Courtesy lamps ..................101, 108
Courtesy mirror .......................... 111
Cruise control .....................164, 167
Cup holder .................................. 113
D Date (setting) ..............................267
Daytime
running lamps .............97, 191, 193
Deactivating the passenger
airbag .......................................138
Deadlocking .................................80
Defrosting .....................................70
Diesel additive level ...................179
Dimensions ................................220
Dipped beam ................96, 191, 193
Dipstick .................................44, 178
Directional lighting ..............103, 104
Direction
indicators ....99, 130, 191, 192, 195
Doors ............................................88
Doors, rear .................................129
Doors emergency control .............85
Door trays ................................... 110
Dynamic
emergency braking ...........142, 145
