146
V
A
B
L E V E L S
R E F E R T O T H E C H A P T E R : U S E R P R E C A U T I O N S
Air fi lter
Follow the requirements set out in the Maintenance Guide.
Screen wash and headlamp wash fl uid
Use CITROËN-approved products wherever possible.
Capacity: See “Capacities”.
Engine coolant
The fl uid level should be between the marks MIN. and MAX. on the header tank.
Engine hot, wait at least 15 minutes.
Quality: See “Maintenance Guide”.
Never do anything relating to the cooling system of an engine that is hot.
Poles “+” and “-” for starting with a slave battery (only on V6 HDi engine)
See “Starting with a slave battery”.
Engine oil
Check the engine oil level on horizontal ground with the engine having been switched off for at least 15 min-utes.
Quality: See “Maintenance Guide”.
Pull out the manual dip-stick.
The level should be between the marks MIN.and MAX. on the gauge.
It must never exceed the maximum.
MAX.
MIN.
Brake fl uid
The level of fl uid should be between the marks MIN.and MAX. on the reservoir.
Quality: See “Maintenance Guide”.
If the warning lamp comes on while you are driving, stop imme-diately and contact a CITROËN while you are driving, stop imme-stop imme-
dealer.
Power steering oil or power steering and suspension oil
For topping up, it is neces-sary to go to a CITROËN dealer.For topping up, it is neces-topping up, it
Quality: See “Maintenance Guide”.
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Between routine servicing visits, check the level of engine oil frequently as well as before going on a long journey.

150
V

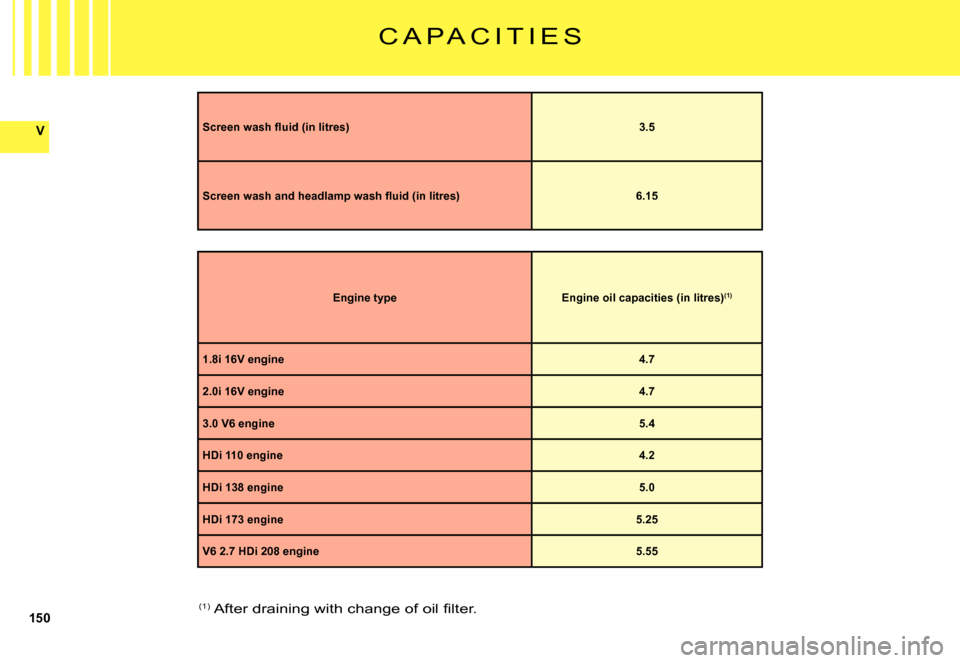

Engine typeEngine oil capacities (in litres)(1)
1.8i 16V engine4.7
2.0i 16V engine4.7
3.0 V6 engine5.4
HDi 110 engine4.2
HDi 138 engine5.0
HDi 173 engine5.25
V6 2.7 HDi 208 engine5.55
Screen wash fl uid (in litres)3.5
Screen wash and headlamp wash fl uid (in litres)6.15
(1) After draining with change of oil fi lter.
C A P A C I T I E S
