Dual-zone automatic air conditioning
This function enables you to adjust the comfort levels of the driver and the front passenger independently. It is also automatically regulated depending on the external climatic conditions.
Audio and communication systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t e s t technology : MP3 compatible RD4 radio, Bluetooth®technology technology hands-free kit, NaviDrive (See ®
NaviDrive instructions).
Electric parking brake
The electric parking brake combines automatic engagement when the engine is switched off, and automatic release when the vehicle is set in motion (automatic function activated by default).Note: Manual locking/unlocking is possible.
9892
77
Parking space sensor
The “Parking Space Sensor” function assists you in fi n d i n g a p a r k i n g s p a c e .
120
Page 5 of 231
I
8
9
10
17
18
11
1
2
12
1314
153
5
8
6
4
7
16
19
20
21
IN BRIEF
1 Electric windows / Rear view mirrors / Child
safety controls
2 Memorisation of driver's seat and exterior rear
view mirror adjustments
3 Bonnet release
4 Controls at the steering wheel:
Speed limiter
Cruise control
5 Horn
6 Audio/telematic controls under steering wheel
7 Driver's airbag
8 Navigation controls
9 Driver's air vent
10 Instrument panel
11 Driver's air vent
12 Lighting control
13 Windscreen wiper / Screen wash controls
14 Ignition switch
15 Controls:
Central locking/unlocking of doors and boot
Lane Departure Warning System
16 Steering column adjustment
17 Knees airbag
18 Oddments tray
19 Checks / Anti-intrusion alarm / Parking space
sensor controls
20 Lighting / Direction indicators / Foglamp / Voice
recognition controls
21 Manual headlamp height adjustment
-
-
-
-
D A S H B O A R D
Page 6 of 231
II
99
24
33
38
39
3736
35
22
23
30
28
25
27
2629
31
32
34
41
40
IN BRIEF
D A S H B O A R D
22 Sunlight sensor
23 Soft diffusion air conditioning adjustment knob
24 Passenger's airbag
25 Side window demister
26 Key switch:
Passenger' airbag activation/deactivation
27 Passenger's air vents
28 Hazard lamps button
29 Glovebox:
Vehicle document storage
Audio-video sockets
F u s e b o x a c c e s s fl a p
30 ESP / Parking assistance controls
31 Automatic gearbox SPORT/SNOW mode con-
trols
32 Electric parking brake
33 Armrest with cup-holder
34 Suspension controls:
Ground clearance adjustment
Sport mode
35 Ashtray with lighter
36 Gear lever
37 Storage
38 Radio mono CD or NaviDrive
39 Air conditioning controls
40 Storage
41 Multifunction display
-
-
-
-
-
-
Page 14 of 231
II
1717
BC
A
IN BRIEF

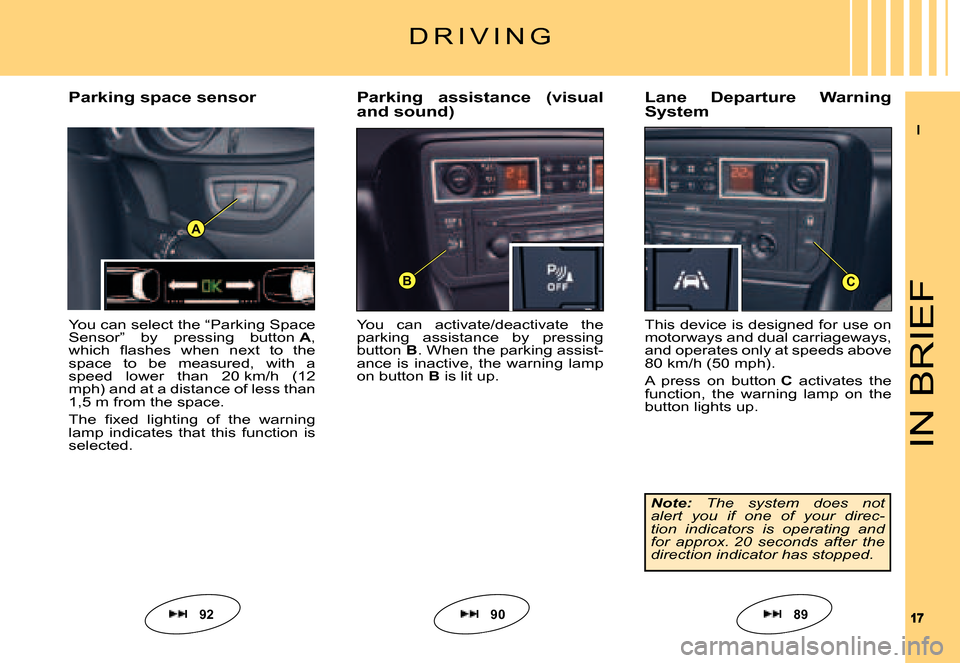

You can activate/deactivate the parking assistance by pressing button B. When the parking assist-ance is inactive, the warning lamp on button B is lit up.
Parking assistance (visual and sound)Lane Departure Warning System
This device is designed for use on motorways and dual carriageways, and operates only at speeds above 80 km/h (50 mph).
A press on button C activates the function, the warning lamp on the button lights up.
Parking space sensor
You can select the “Parking Space Sensor” by pressing button A, w h i c h fl a s h e s w h e n n e x t t o t h e space to be measured, with a speed lower than 20 km/h (12 mph) and at a distance of less than 1,5 m from the space.
T h e fi x e d l i g h t i n g o f t h e w a r n i n g lamp indicates that this function is selected.
899092
Note: The system does not alert you if one of your direc-tion indicators is operating and for approx. 20 seconds after the direction indicator has stopped.
D R I V I N G
Page 23 of 231
26
II
BC
A
A N T I - I N T R U S I O N A L A R M
The ANTI-INTRUSION ALARM provides:Exterior perimeter protection by means of detectors on the vehi-cle access points (doors, boot, bonnet).
Electrical supply protection.
Interior volumetric protection by means of ultrasonic sensors (detecting movement inside the passenger compartment). This can be deactivated using the control A.
Anti-lifting protection by means of sensors.
Page 44 of 231
47
II
A
3
1
2
4
1

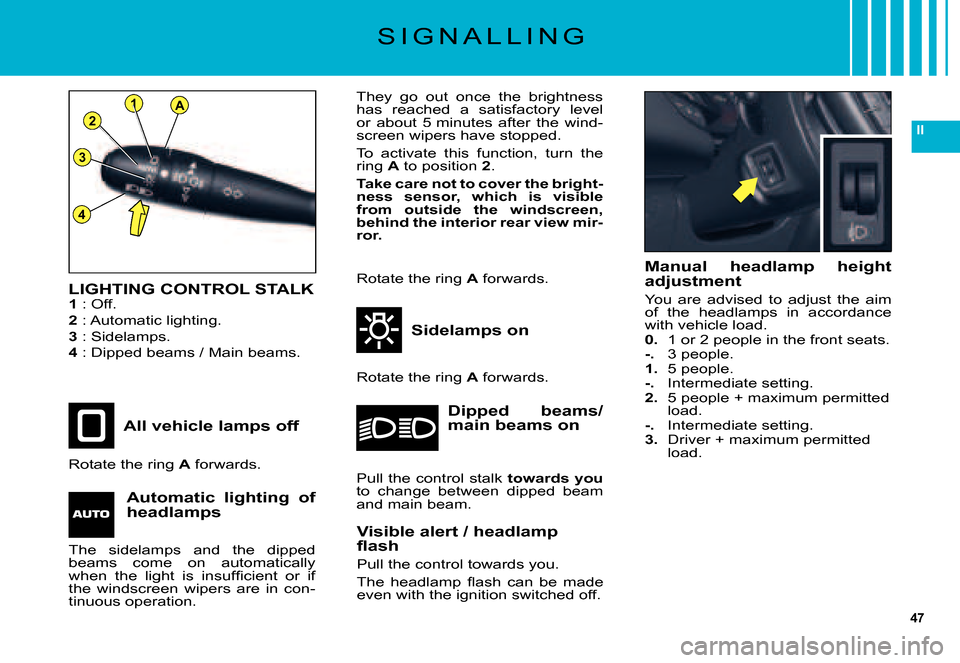

LIGHTING CONTROL STALK1 : Off.
2 : Automatic lighting.
3 : Sidelamps.4 : Dipped beams / Main beams.
All vehicle lamps off
Rotate the ring A forwards.
They go out once the brightness has reached a satisfactory level or about 5 minutes after the wind-screen wipers have stopped.
To activate this function, turn the ring A to position 2.
Take care not to cover the bright-ness sensor, which is visible from outside the windscreen, behind the interior rear view mir-ror.
Automatic lighting of headlamps
The sidelamps and the dipped beams come on automatically w h e n t h e l i g h t i s i n s u f fi c i e n t o r i f the windscreen wipers are in con-tinuous operation.
Rotate the ring A forwards.
Sidelamps on
Dipped beams/main beams on
Pull the control stalk towards youto change between dipped beam and main beam.
Rotate the ring A forwards.
S I G N A L L I N G
Manual headlamp height adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.0. 1 or 2 people in the front seats.-. 3 people.1. 5 people.-. Intermediate setting.2. 5 people + maximum permitted load.-. Intermediate setting.3. Driver + maximum permitted load.
Visible alert / headlamp fl a s h
Pull the control towards you.
T h e h e a d l a m p fl a s h c a n b e m a d e even with the ignition switched off.
Page 65 of 231
69
II
A

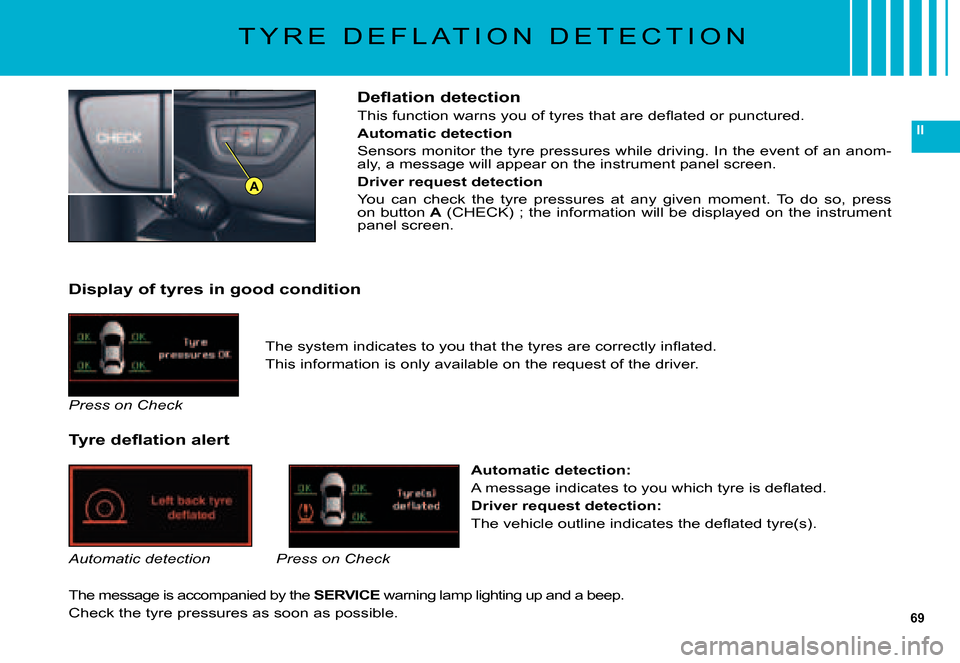

D e fl a t i o n d e t e c t i o n
T h i s f u n c t i o n w a r n s y o u o f t y r e s t h a t a r e d e fl a t e d o r p u n c t u r e d .
Automatic detection
Sensors monitor the tyre pressures while driving. In the event of a n anom-aly, a message will appear on the instrument panel screen.
Driver request detection
You can check the tyre pressures at any given moment. To do so, press on button A (CHECK) ; the information will be displayed on the instrument panel screen.
Display of tyres in good condition
Automatic detection:
A m e s s a g e i n d i c a t e s t o y o u w h i c h t y r e i s d e fl a t e d .
Driver request detection:
T h e v e h i c l e o u t l i n e i n d i c a t e s t h e d e fl a t e d t y r e ( s ) .
T Y R E D E F L A T I O N D E T E C T I O N
T y r e d e fl a t i o n a l e r t
T h e s y s t e m i n d i c a t e s t o y o u t h a t t h e t y r e s a r e c o r r e c t l y i n fl a t e d .
This information is only available on the request of the driver.
Press on Check
Press on CheckAutomatic detection
The message is accompanied by the SERVICE warning lamp lighting up and a beep.
Check the tyre pressures as soon as possible.
Page 66 of 231
70
II
T Y R E D E F L A T I O N D E T E C T I O N
Wheel not detected
T h e d e fl a t i o n d e t e c t i o n s y s t e m i s a d r i v i n g a i d , b u t w h i c h d o e s n o t a b s o l v e t h e d r i v e r f r o m t h e n e e d t o b e v i g i l a n t a n d responsible.
T h i s s y s t e m d o e s n o t d i s p e n s e w i t h t h e r e q u i r e m e n t t o c h e c k t h e t y r e s o n a r e g u l a r b a s i s ( s e e “ V e h i c l e i d e n t i fi c a -tion”), to make sure that the vehicle is behaving correctly and to avoid premature tyre wear arising from driving too fast etc.
Do not forget to check the pressure in the spare wheel.
Any repair or replacement of a tyre on a wheel that is equipped with a sensor must be carried out by a CITROËN dealer.Any repair or replacement repair or
The system may suffer from temporary interference caused by radio transmissions on neighbouring frequencies.
Automatic detection:
A message indicates to you which tyre is punctured.
Driver request detection:
The vehicle outline indicates the punctured tyre(s).
Puncture
Automatic detection:
A message indicates to you which wheel is not detected.
Driver request detection:
The vehicle outline indicates the wheel(s) which is/are not detected.
Press on CheckAutomatic detection
Press on CheckAutomatic detection
The message is accompanied by the STOP warning lamp lighting up and a beep.
Note: I f y o u h a v e fi t t e d a w h e e l / w h e e l s n o t e q u i p p e d w i t h t y r e d e fl a t i o n d e t e c t i o n ( e . g . s n o w t y r e s ) , c o n t a c t a C I T R O Ë N dealer.
The message is accompanied by the SERVICE warning lamp lighting up and a beep.
Contact a CITROËN dealer to have the faulty sensor(s) replaced.
Page 85 of 231
89
II
A

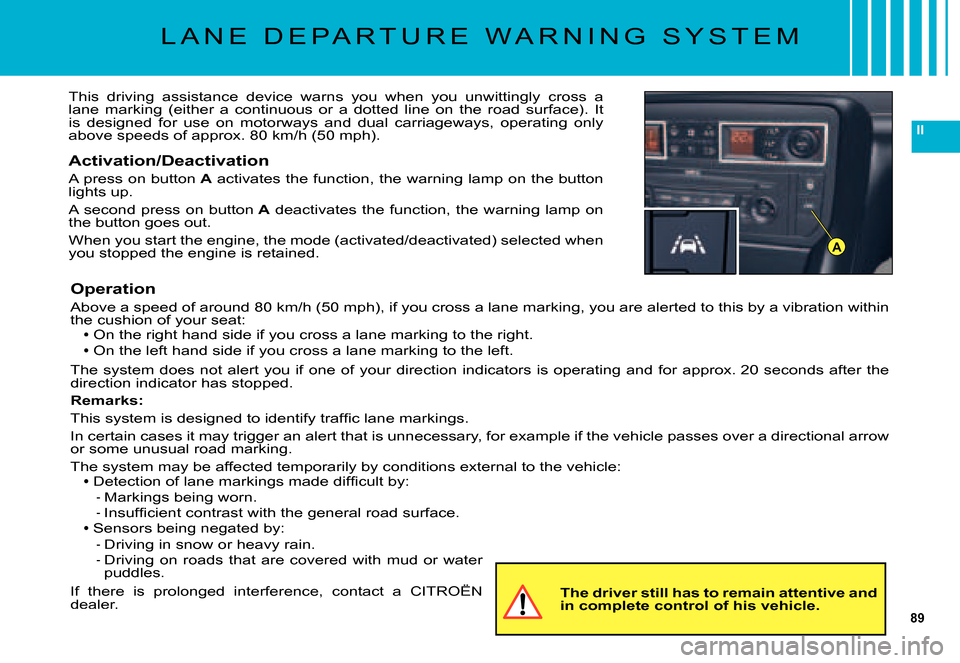

L A N E D E P A R T U R E W A R N I N G S Y S T E M
This driving assistance device warns you when you unwittingly cross a lane marking (either a continuous or a dotted line on the road surface). It is designed for use on motorways and dual carriageways, operatin g only above speeds of approx. 80 km/h (50 mph).
Activation/Deactivation
A press on button A activates the function, the warning lamp on the button lights up.
A second press on button A deactivates the function, the warning lamp on the button goes out.
When you start the engine, the mode (activated/deactivated) selected when you stopped the engine is retained.
Operation
Above a speed of around 80 km/h (50 mph), if you cross a lane markin g, you are alerted to this by a vibration within the cushion of your seat:On the right hand side if you cross a lane marking to the right.On the left hand side if you cross a lane marking to the left.
The system does not alert you if one of your direction indicato rs is operating and for approx. 20 seconds after the direction indicator has stopped.
Remarks:
T h i s s y s t e m i s d e s i g n e d t o i d e n t i f y t r a f fi c l a n e m a r k i n g s .
In certain cases it may trigger an alert that is unnecessary, for e xample if the vehicle passes over a directional arrow or some unusual road marking.
The system may be affected temporarily by conditions external to th e vehicle: D e t e c t i o n o f l a n e m a r k i n g s m a d e d i f fi c u l t b y :
Markings being worn. I n s u f fi c i e n t c o n t r a s t w i t h t h e g e n e r a l r o a d s u r f a c e .Sensors being negated by:
Driving in snow or heavy rain.Driving on roads that are covered with mud or water puddles.
If there is prolonged interference, contact a CITROËN dealer.
Page 86 of 231
90
II

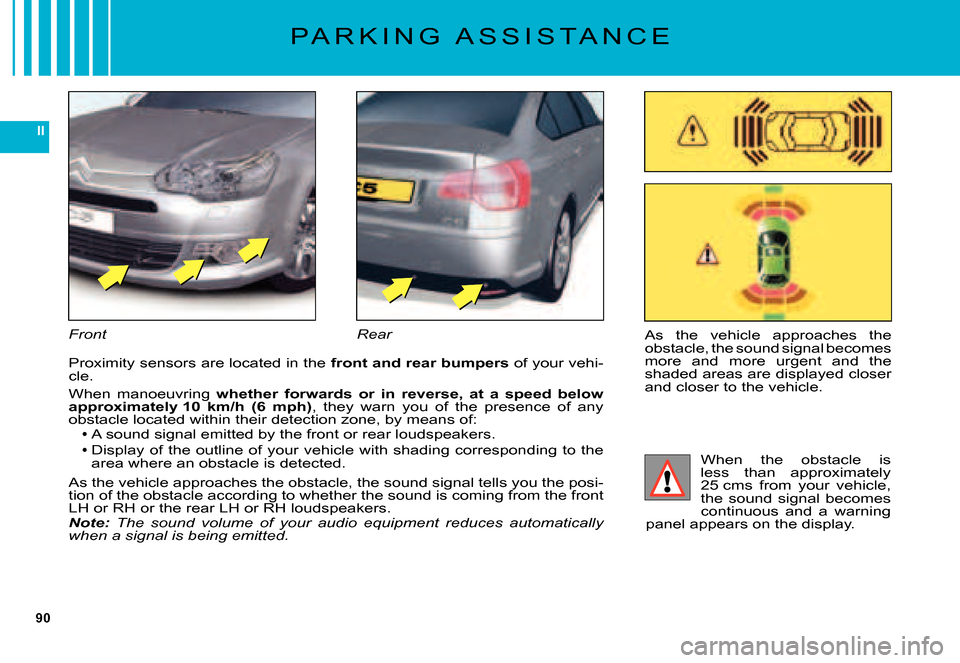

P A R K I N G A S S I S T A N C E
As the vehicle approaches the obstacle, the sound signal becomes more and more urgent and the shaded areas are displayed closer and closer to the vehicle.
Proximity sensors are located in the front and rear bumpers of your vehi-cle.
When manoeuvring whether forwards or in reverse, at a speed below approximately 10 km/h (6 mph), they warn you of the presence of any obstacle located within their detection zone, by means of:A sound signal emitted by the front or rear loudspeakers.
Display of the outline of your vehicle with shading corresponding to the area where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal tells you the posi-tion of the obstacle according to whether the sound is coming from the front LH or RH or the rear LH or RH loudspeakers.Note: The sound volume of your audio equipment reduces automatically when a signal is being emitted.
