washer fluid CITROEN C5 2020 Owners Manual

141
C5_en_Chap05_eclairage-et-visibilite_ed01-2016

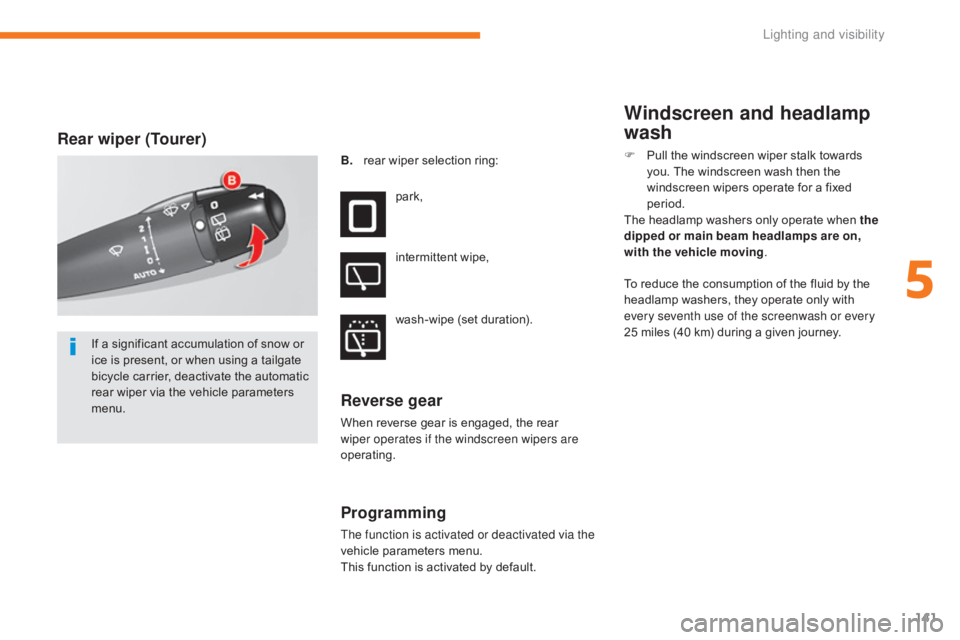

Rear wiper (Tourer)
B. rear wiper selection ring:park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear
wiper operates if the windscreen wipers are
operating.
Programming
The function is activated or deactivated via the
vehicle parameters menu.
This function is activated by default.
Windscreen and headlamp
wash
F Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when the
dipped or main beam headlamps are on,
with the vehicle moving .
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the vehicle parameters
menu. To reduce the consumption of the fluid by the
headlamp washers, they operate only with
every seventh use of the screenwash or every
25 miles (40 km) during a given journey.
5
Lighting and visibility

191
C5_en_Chap07_info-pratiques_ed01-2016
Diesel additive level
(Diesel engine with
particle filter)
To p p i n g u p
This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.
Used products
A low additive level is indicated by
illumination of this warning lamp,
accompanied by an audible warning
and a message in the instrument
panel screen.

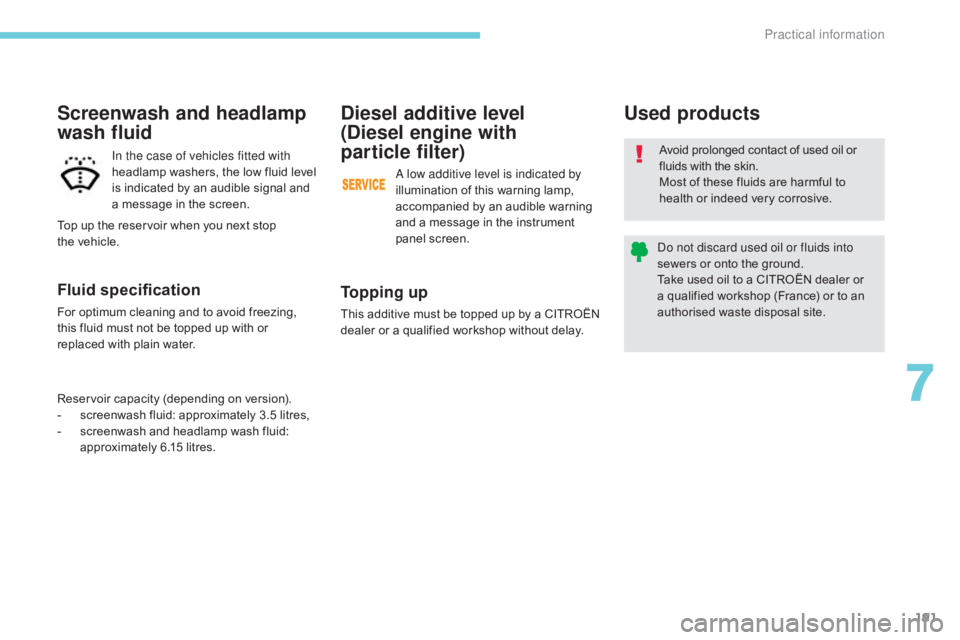

Screenwash and headlamp
wash fluid
In the case of vehicles fitted with
headlamp washers, the low fluid level
is indicated by an audible signal and
a message in the screen.
Fluid specification
For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.
Reservoir capacity (depending on version).
-

s
creenwash fluid: approximately 3.5 litres,
-

s
creenwash and headlamp wash fluid:
approximately 6.15 litres.
Top up the reservoir when you next stop
the
vehicle. Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
7
Practical information
