Citroen DS3 2012 1.G Owner's Manual

209Practical information
Changing main beam headlamp
bulbs
)Remove the protective cover by pulling on
the tab. )Disconnect the bulb connector. )Spread the springs to release the bulb.)Remove the bulb and change it.
To r efit, carry out these operations in reverseorder.
Changing sidelamp bulbs
)
Remove the protective cover by pulling on
the tab.) Pull the bulb holder pressing on the tabs on both sides. )
Pull the bulb and change it.
To r efit, carry out these operations in reverse order.

Changing integrated directionindicator side repeaters
)
Insert a screwdriver towards the centre of
the repeater between the repeater and the
base of the door mirror.) Tilt the screwdriver to extract the repeater and remove it. )
Disconnect the repeater connector.)
Replace the module.
To r efit, carry out these operations in reverse order.
Contact a CITROËN dealer or a qualified workshop to obtain areplacement side repeater module.

To obtain a replacement module,contact your CITROËN dealer or a qualified workshop.If you experience any difficulty in replacing bulbs, contact your CITROËNdealer or a qualified workshop.

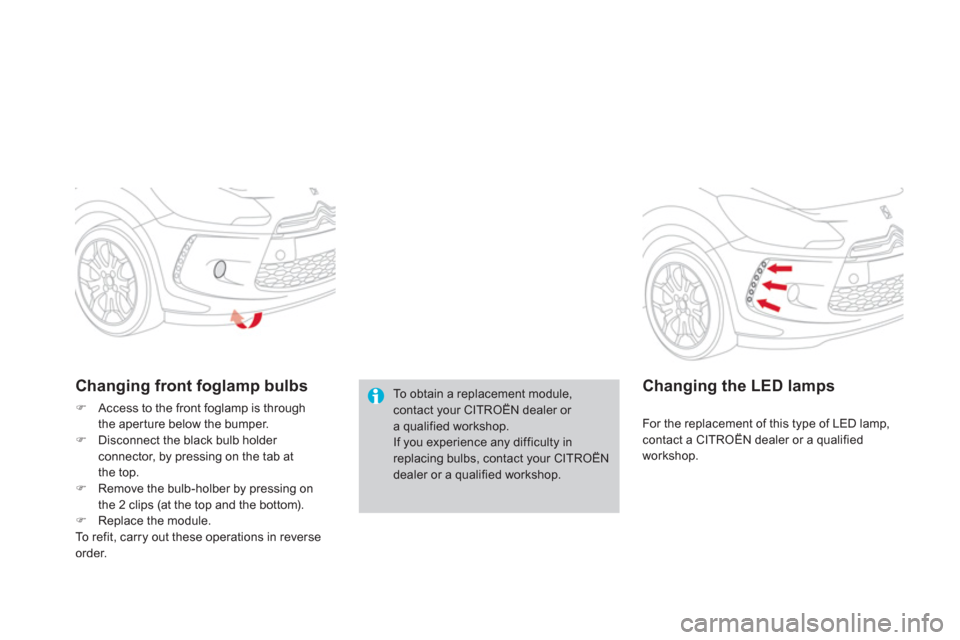

Changing front foglamp bulbs
)Access to the front foglamp is through
the aper ture below the bumper.
)Disconnect the black bulb holder connector, by pressing on the tab at
the top.
)Remove the bulb-holber by pressing on
the 2 clips (at the top and the bottom).)Replace the module.
To r efit, carry out these operations in reverse order.
Changing the LED lamps
For the replacement of this type of LED lamp,contact a CITROËN dealer or a qualified
workshop.

211Practical information

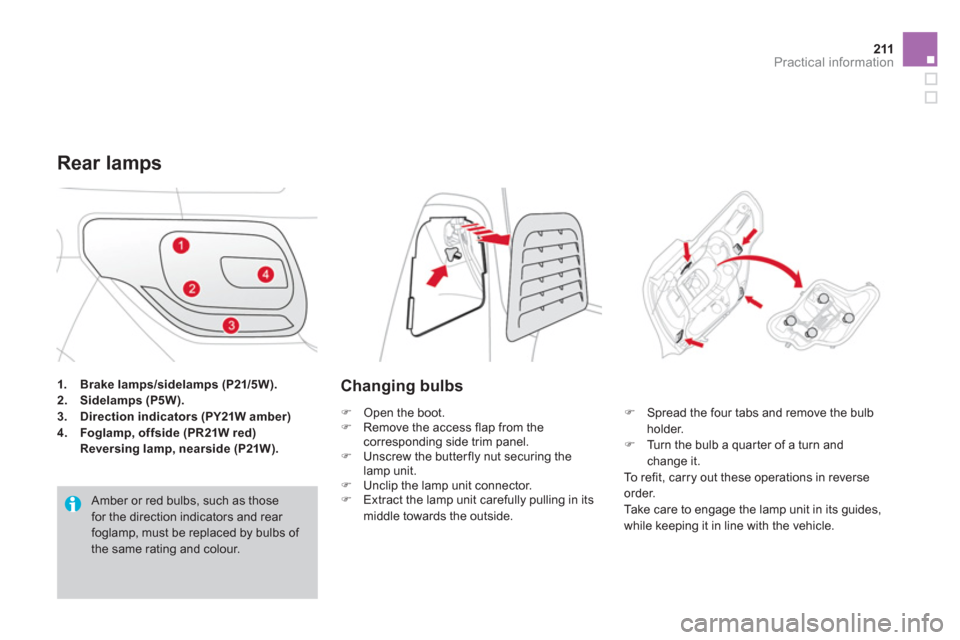

1.Brake lamps/sidelamps (P21/5W).2.Sidelamps (P5W).3.Direction indicators (PY21W amber)
4.Foglamp, offside (PR21W red)Reversing lamp, nearside (P21W).
Rear lamps
Amber or red bulbs, such as thosefor the direction indicators and rear foglamp, must be replaced by bulbs of the same rating and colour.
Changing bulbs
) Open theboot. )
Remove the access flap from the corresponding side trim panel.)
Unscrew the butter fly nut securing thelamp unit.)
Unclip the lamp unit connector.)
Extract the lamp unit carefully pulling in its
middle towards the outside.
) Spread the four tabs and remove the bulbholder. )
Turn the bulb a quar ter of a turn andchange it.
To r efit, carry out these operations in reverseorder.
Take care to engage the lamp unit in its guides,
while keepin
g it in line with the vehicle.

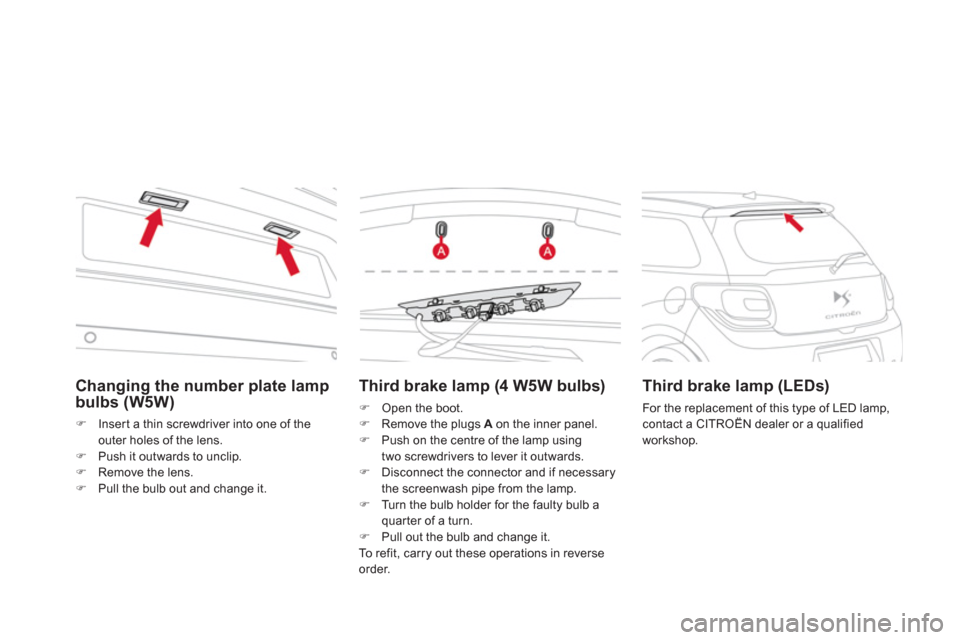

Changing the number plate lamp
bulbs (W5W)
)Insert a thin screwdriver into one of the
outer holes of the lens.)Push it outwards to unclip. )Remove the lens.)Pull the bulb out and change it.
Third brake lamp (4 W5W bulbs)
) Open the boot. )
Remove the plugs A
on the inner panel.)
Push on the centre of the lamp using
two screwdrivers to lever it outwards.) Disconnect the connector and if necessary
the screenwash pipe from the lamp.) Turn the bulb holder for the faulty bulb aquarter of a turn. )
Pull out the bulb and change it.
To r e f i t , c a r ry out these operations in reverseorder.




Third brake lamp (LEDs)

For the replacement of this type of LED lamp,contact a CITROËN dealer or a qualified
workshop.

213Practical information

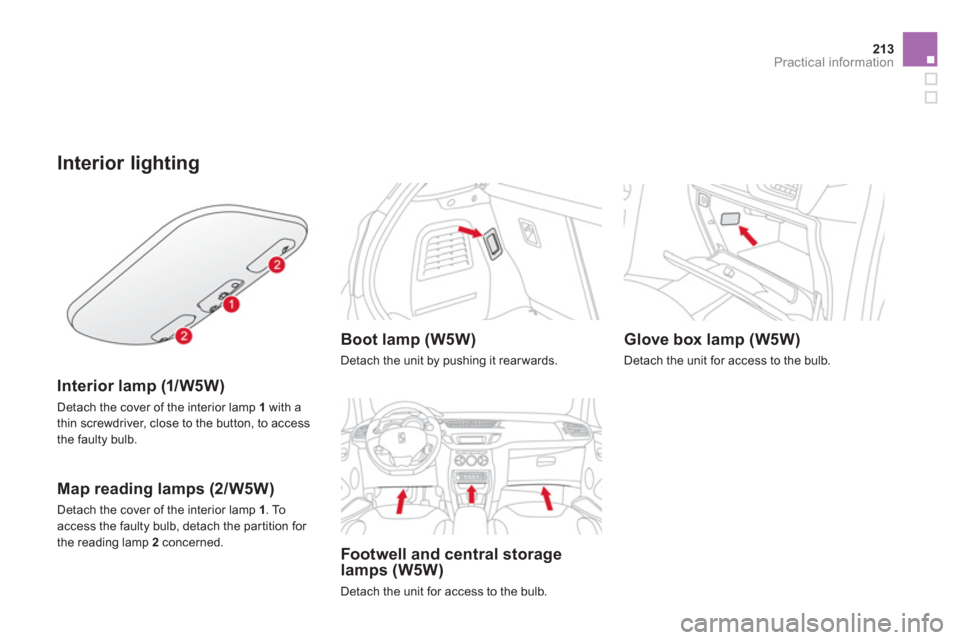

Interior lighting

Interior lamp (1/W5W)


Detach the cover of the interior lamp 1
with athin screwdriver, close to the button, to access
the faulty bulb.



Map reading lamps (2/W5W)


Detach the cover of the interior lamp 1
. To
access the faulty bulb, detach the par tition for
the reading lamp 2concerned.

Boot lamp (W5W)

Detach the unit by pushing it rear wards.

Footwell and central storage lamps (W5W)

Detach the unit for access to the bulb.


Glove box lamp (W5W)

Detach the unit for access to the bulb.

Changing a fuse

Installing electricalaccessories
Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electricalequipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.

CITROËN will not accept responsibilityfor the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
The extraction tweezer and the s
pare fuse
locations are on the back of the dashboardfusebox cover.
For access to them:)unclip the cover by pulling on the side, )remove the cover completely,)remove the tweezer.

Access to the tools

Before changing a fuse,the cause of the failure must be identifiedand rectified. )
Identify the faulty fuse by checking thecondition of its filament.


Changing a fuse
GoodFailed
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the failed fuse with a fuse of the same rating.)
Check that the number marked on the
box, the rating marked on the fuse and the
tables below all agree.

215
Practical information

Dashboard fusebox

The fusebox is located in the lower dashboard(left-hand side).


Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 ATr a i l e r r e l ay unit.
FH37
-Not used.
FH3
820 AHi-Fi amplifier.
FH3
920 AHeated seats.
FH40
40 ATr a i l e r r e l ay unit.
Fuse N°RatingFunctions
F115 ARear wiper.
F2-Not used.
F
35 A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochromatic mirror,particle filter pump (Diesel), diagnostic socket, air flowsensor (Diesel).
F5
30 AElectric windows panel, passenger's electric window control,front electric window motor.
F
630 ADriver's electric window motor.
F7 5
ACourtesy lamp, glove box lighting.

Fuse N°RatingFunctions
F
820 AMultifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F
930 A12 V socket, portable navigation suppor t supply.
F1
015 ASteering mounted controls.
F1
115 AIgnition, diagnostic socket, automatic gearbox control unit.
F12 15
ARain/sunshine sensor, trailer relay unit.
F1
35 AMain stop switch, engine relay unit.
F1415 AParking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi amplifier.
F1
530 ALocking.
F16
-Not used.
F1740 ARear screen and door mirrors demisting/defrosting.
S
H-PA RC shunt.

217Practical information

Engine compartment
fusebox

The fusebox is located in the enginecompartment near the battery (left-hand side).Access to the fuses
)
Unclip the cover.
)
Change the fuse (see correspondingparagraph). )
When you have finished, close the cover carefully to ensure the sealing of the fuse box.

All work on the fuses in the box located on the battery, must be doneby a CITROËN dealer or a qualifiedworkshop.

Fuse table
Fuse N°RatingFunctions
F120 A Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump(Diesel).
F
215 A Horn.
F
310 A Front/rear screenwash.
F420 A LED lamps.
F
515 A Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), blow-by heater and electrovalves (VTi).
F
610 A ABS/ESP control unit, secondary stop switch.
F
710 A Electric power steering, automatic gearbox.
F
825 A Starter control.
F9
10 A Switching and protection unit (Diesel).
F10
30 A Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.
