steering Citroen DS3 2013 1.G Owner's Manual

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen (MyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Window controls
98 Doors
101Boot
102Fuel tank
104Misfuel prevention (Diesel)
108Lighting controls
113LED lamps
113Headlamp adjustment
114 Wiper controls
118Courtesy lamp
119Interior mood lighting
119Boot lamp
004004005005002002003003

11Familiarisation
Instruments and controls
1.
Cruise control/speed limiter controls.2.Headlamp height adjustment. 3.Steering wheel adjustment. 4.
Lighting and direction indicator stalk
5. Instrument panel.
6.Driver's airbag.
Horn. 7. Gear lever. 8.12 V accessory socket
USB por t/auxiliary socket.9. Heated seat control. 10.Bonnet release lever.11.
Door mirror controls.
Electric window controls. 12. Fusebox.13.Stop & Star t switch
Electronic stability programme switch(ESP/ASR).14 .Front door window demisting/defrosting
vent. 15.Speaker (tweeter). 16. Windscreen demisting/defrosting vent.

Instruments and controls
1.
Steering lock and ignition. 2.
Audio equipment steering wheel controls.3.
Wiper/screenwash/trip computer stalk.4.
Scented air freshener.5.
Central locking switch.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Side adjustable air vent. 12.Glove box/Passenger's airbag deactivation. 13.Parking brake.14.Central armrest with storage.15.
Upper and lower storage.16.
MyWay or Audio system. 17.Heating/air conditioning controls.

Sitting comfortably
)To raise it, pull it upwards. )To lower it, press simultaneously on the
tab A
and down on the head restraint.
Adjusting the height of
a head restraint
Other function available...
Heated seats.
80, 83
1.
Release the adjustment mechanism. 2.Adjust for height and reach.3.Lock the adjustment mechanism.


Steering wheel adjustment
85

For reasons of safety, these operationsmust only be carried out with the vehicle stationary.


Access to rear seats
)
Pull the control lever up to fold the backrestand move the seat forwards.

8
1
Take care to use only the correctcontrol, located at the top of the backrest.

Driving safely
the choice of the comfort of automated
operation or the pleasure of manual gear changing.1. Gear lever.2.
Steering mounted "-" control paddle.3.
Steering mounted "+" control paddle.
Electronic gearbox


Display in the instrument panel

The gear engaged or the driving mode selected
appears in the instrument panel screen.
N
.Neutral.
R. Reverse.
1 to 5/6.Gears engaged.
AUTO.Automated mode.

Starting and moving off
)Select position N.)Press the brake pedal firmly.)Star t the engine.)Select automated mode (position A) or Amanual mode (position M) by moving the gear lever 1 ,

or
engage reverse by pushing the gear lever 1to position R
. )Release the parking brake. )Progressively take your foot off the brake pedal, then move off.
161

41Monitoring
Airbagstemporarily. This lamp comes on for a few seconds
when you turn on the ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or aqualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified workshop.
Warning lampis onCauseAction/Observations
Seat belt notfastened/unfastenedfixed then flashin
gaccompanied by anincreasing audible
signal. The driver and/or the front passen
ger
has not fastened or has unfastened
their seat belt.Pull the strap then inser t the ton
gue in the buckle.
Power steeringfixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked b
y a CITROËN dealer or a qualified workshop.

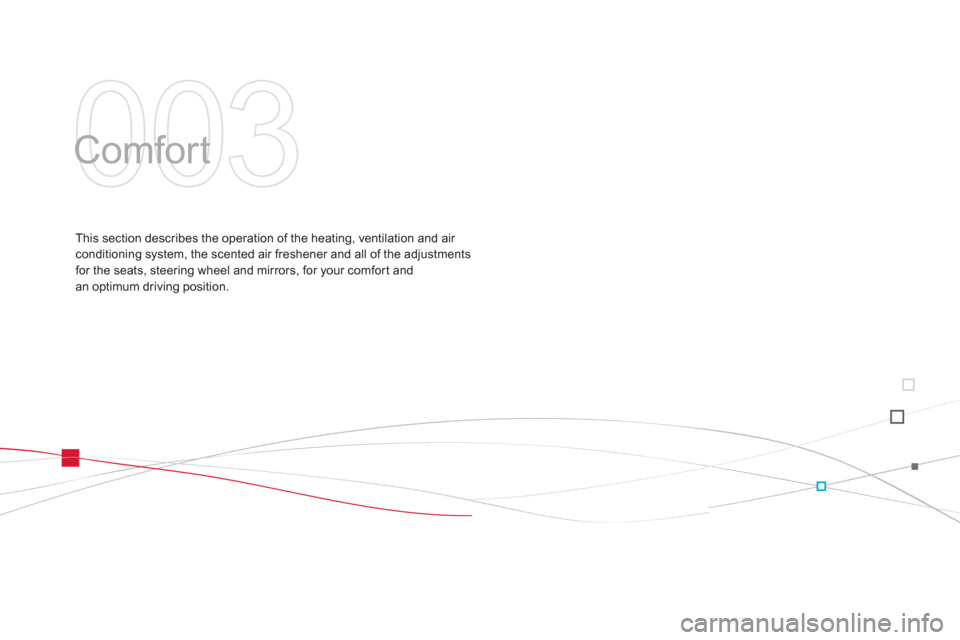

003
Comfort
This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments
for the seats, steering wheel and mirrors, for your comfor t and an optimum driving position.

85
Comfort
These have one position for use (up) and a stowed position (down).
They can also be removed.
To remove a head restraint: )release the backrest using control 1,)tilt the backrest 2 slightly forwards, )pull the head restraint upwards to the stop, )then, press the lug A
.

Rear head restraints

Never drive with the head restraints removed; they must be in place and correctly adjusted.









Steering wheel
adjustment
)When stationary, pull the control lever toyrelease the adjustment mechanism.) Adjust the height and reach to suit your
driving position. ) Push the control lever to lock the
adjustment mechanism.
As a safety precaution, theseoperations should only be carried outwhile the vehicle is stationary.

Auxiliary socket
The auxiliary socket is located in the " AUX "box on the centre console.
It permits the connection of a por table device,such as a digital audio player of the iPod ®type,
to listen to your music files using the vehicle'sspeakers.














USB Player
For more information on the use of this equipment, refer to the MyWay or Audio systempar t of the "Audio and Telematics" section.
When it is in use, the por table devicecharges automatically.
The U
SB por t is located in the "AU X "box on
the centre console.
It permits the connection of a por table device,
such as a digital audio player of the iPod®
generation 5 and later type or USB memory
stick type.
It reads the audio file formats (mp3, ogg,
wma, wav...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio equipmentcontrol panel and display them on the
multifunction screen.

F
or more information on the use of thisequipment, refer to the Audio system par t of the
"Audio and Telematics" section.






12 V accessory
socket
)To connect a 12 V accessory(max power: 120 W), lift the cover and connect a suitable adaptor.

The management of the files is doneusing your por table device.

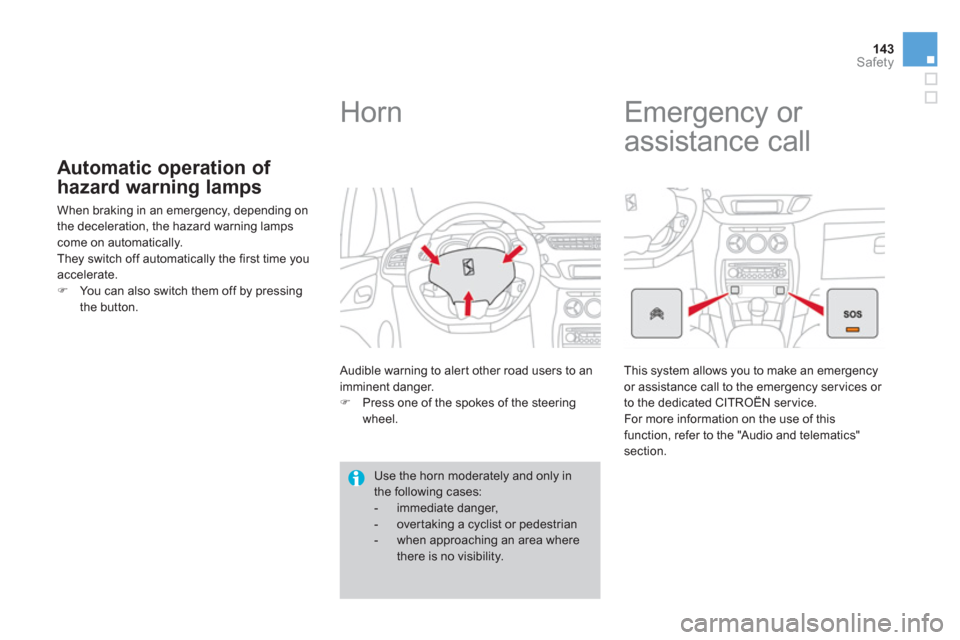

143Safety
Automatic operation of
hazard warnin
g lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps come on automatically.
They switch off automatically the first time you accelerate.)You can also switch them off by pressingthe button.









Horn

Audible warning to aler t other road users to an
imminent danger. )Press one of the spokes of the steeringwheel.

Use the horn moderately and only inthe following cases:


- immediate danger,

- over taking a cyclist or pedestrian


- when approaching an area wherethere is no visibility.










Emergency or
assistance call
This system allows you to make an emergency or assistance call to the emergency ser vices or
to the dedicated CITROËN ser vice.
F
or more information on the use of this function, refer to the "Audio and telematics" section.
