light Citroen DS4 2012 1.G Service Manual

Interior fi ttings
1.Sun visor(see "Familiarisation - § Panoramic
windscreen") 2.Ticket/card holder
3.Illuminated glove box(see details on a following page)4. Door pockets5.USB port/Auxiliary socket(see details on a following page)6.Cigar lighter/12 V accessory socket(see details on following pages)7.Por table ashtray(see details on following pages)8.Centre armrest with storage(see details on a following page)

Cigarette lighter/12 V
accessory socket
)To use the cigarette lighter, press it in and wait a few seconds until it pops outautomatically. )To connect a 12 V accessory (max power:
120 W
), remove the cigarette lighter and connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back intoplace straight away.




















USB port/auxiliary
socket

Connected to the USB por t, theportable device charges automatically while in use.
The "AU X "
connection box, located in thecentre console, comprises an auxiliary JACK
socket and/or a USB por t.
It permits the connection of a por table device,
such as a di
gital audio player of the iPod® or ®
USB memory stick type.
It reads cer tain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them on the multi
functionscreen.
F
or more information on the use of this equipment, refer to the "Audio and Telematics" section.

Fittings








Front armrest Comfor t and storage system for the driver and front passenger.
The height and length of the armrest cover can be adjusted.
Longitudinal adjustment
Height adjustment
Storage
)Raise the cover to the required position (low, intermediate or high). )If you raise the cover slightly beyond the high position, guide it when lowering it to
the low position.
) Slide the cover fully for wards or rear wards. The storage space in the armrest can hold up
to 6 CDs.
This storage space may be fitted with a
230 V/50 Hz socket. ) Raise the lever. )
Raise the cover fully.

To remove the shelf: )unhook the two cords, )raise the shelf slightly, then remove it.
There are several options for storing the shelf:
- either upright behind the front seats,
- or flat at the base of the boot.

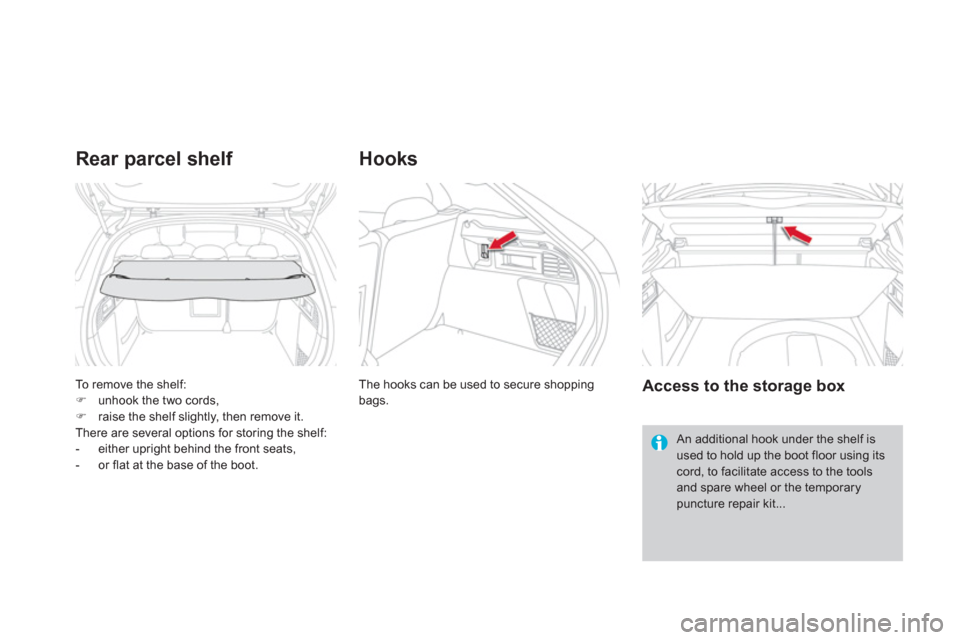

Rear parcel shelf
The hooks can be used to secure shoppingbags.
Hooks


Access to the storage box

An additional hook under the shelf is used to hold up the boot floor using its cord, to facilitate access to the tools and spare wheel or the temporarypuncture repair kit...

157
Fittings
)To connect a 12 V accessory(max power: 120 W), remove the cap andconnect an appropriate adaptor. )Turn the key to the ignition on position.
12 V acc essory socket
This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Torch


Operation

This torch operates with NiMH type
rechargeable batteries.
It has a batter
y life of approximately 45 minutes
and charges while you are driving.
Observe the polarities when fitting therechargeable batteries. Never replace the rechargeable batterieswith normal disposable batteries.

Direction indicators
)Left: lower the lighting stalk passing thepoint of resistance.)Right: raise the lighting stalk passing the point of resistance.
"Motorway" function
)
Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will
flash 3 times.










Hazard warning lamps
A visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident. )Press this button, the direction indicators
fl
ash.
They can operate with the ignition off.

If you forget to cancel the direction indicators for more than twenty seconds, the volume of theaudible signal will increase if the speedis above 40 mph (60 km/h).

Braking assistance systems
Group of supplementary systems which helpyou to obtain optimum braking in complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution
(EBFD),
- emergency braking assistance (EBA).

Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in par ticular on poor or slippery surfaces.
Activation
The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.
When braking in an emergency, pressvery firmly without releasing thepressure.


Operating fault
If this warning lamp comes on,
together with the STOPand ABSwarning lamps, accompanied by an
audible signal and a message in the screen, it
indicates a malfunction of the electronic brake force distribution which could result in loss of control of the vehicle when braking.You must stop as soon as it is safe to do so.

When replacing wheels (tyres andrims), ensure that they conform to themanufacturer's recommendations.
If this warnin
g lamp comes on,
accompanied by an audible signaland a message in the screen, it
indicates a malfunction of the anti-lock brakingsystem which could result in loss of control of
the vehicle when braking.
In either case, contact a CITROËN dealer or a
qualified workshop.

The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off.
Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys. Do not interchange the seat belt buckles as they will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the lengthof the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower part of the strap must be positioned as low as possible on the pelvis.
The upper par t must be positioned in the hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can release the device by pulling firmly on the strap and releasing it so that it reels in slightly.

In order to be effective, a seat belt must:


- be tightened as close to the body as possible,


- be pulled in front of you with a smooth movement, checking that it does nottwist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modified to avoidaffecting its per formance.
In accordance with current safety regulations, for all repairs on your vehicle, go to aqualified workshop with the skills and equipment needed, which a CITROËN dealer is able to provide. Have your seat belts checked regularly by a CITROËN dealer or a qualified workshop, particularly if the straps show signs of damage.
Clean the seat belt straps with soapy water or a textile cleaning product, sold by CITROËN dealers.
After folding or moving a seat or rear benchseat, ensure that the seat belt is positioned and reeled in correctly.


Recommendations for children

Use a suitable child seat if the passenger is less than 12 years old or shor ter than one and a half metres.
Never use the same seat belt to secure more than one person.
Never allow a child to travel on your lap.


In the event of an impact
Depending on the nature andseriousness of the impact , the pretensioning device may be deployed before and independently of the airbags.Deployment of the pretensioners is accompanied by a slight discharge of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridge incorporated in the system.
In all cases, the airbag warning lampcomes on.
Following an impact, have the seat beltssystem checked, and if necessary replaced, by a CITROËN dealer or a qualified workshop.

185
Safety

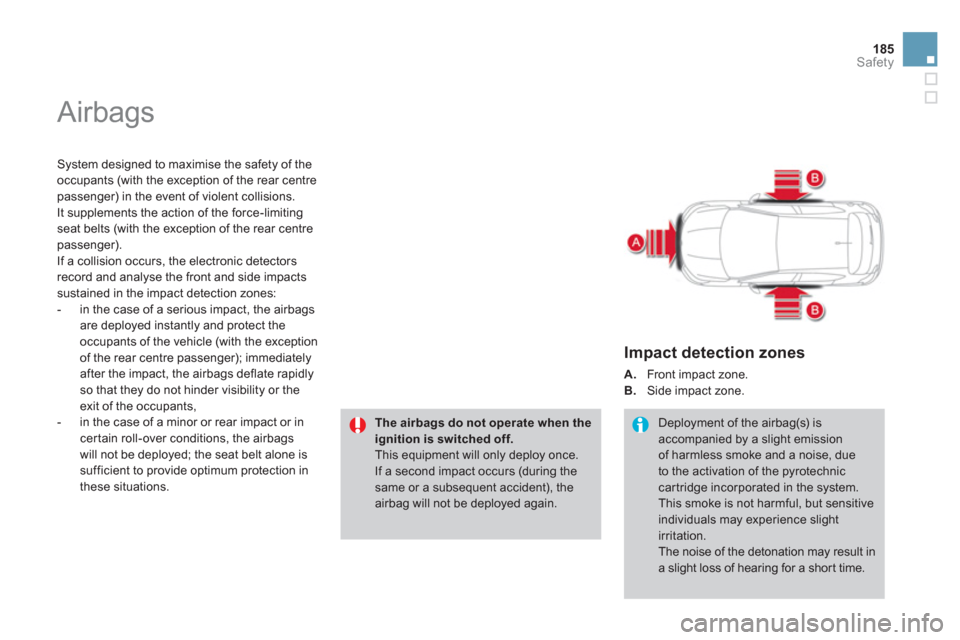

Airbags


System designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
It supplements the action of the force-limiting
seat belts (with the exception of the rear centrepassenger).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts sustained in the impact detection zones:


- in the case of a serious impact, the airbagsare deployed instantly and protect the
occupants of the vehicle (with the exception
of the rear centre passenger); immediatelyafter the impact, the airbags deflate rapidlyso that they do not hinder visibility or theexit of the occupants,

- in the case of a minor or rear impact or incer tain roll-over conditions, the airbags
will not be deployed; the seat belt alone is sufficient to provide optimum protection in
these situations.
The airbags do not operate when theignition is switched off.This equipment will only deploy once. If a second impact occurs (during the same or a subsequent accident), theairbag will not be deployed again.


Impact detection zones
A.Front impact zone.
B. Side impact zone.

Deployment of the airbag(s) isaccompanied by a slight emissionof harmless smoke and a noise, dueto the activation of the pyrotechnic cartridge incorporated in the system.
This smoke is not harmful, but sensitive individuals may experience slightirritation.
The noise of the detonation may result ina slight loss of hearing for a shor t time.

Invalid value during manualoperation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).

Stopping the vehicle
Before switching off the engine, you canengage position Por N
to place the gearbox in neutral.
In both cases, apply the parking brake toimmobilise the vehicle, unless it is programmedto automatic mode.

If the lever is not in position P, when thePdriver's door is opened or approximately45 seconds after the ignition is switched off, there is an audible signal and amessage appears.)Return the lever to position P
; the audible signal stops and themessage disappears.


Operating fault

When the ignition is on, the lighting of this
warning lamp, accompanied by an audible
signal and a message in the multifunction
screen, indicates a gearbox malfunction.
In this case, the gearbox switches to back-up
mode and is locked in 3rd
gear. You may feel
a substantial knock when changing from Pto R
and from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (10 0 km/h), local speed restrictions permitting.
Have it checked by a CITROËN dealer or aqualified workshop.
This warning lamp may also come on if a door
is opened.
You risk damaging the gearbox:


- if you press the accelerator and brake pedals at the same time,

- if you force the lever from position Pto another position when the batteryis flat.

To reduce fuel consumption when stationary for long periods with the engine running (traffic jam...), positionthe gear lever at Nand apply theparking brake, unless it is programmed in automatic mode.
