279Practical information

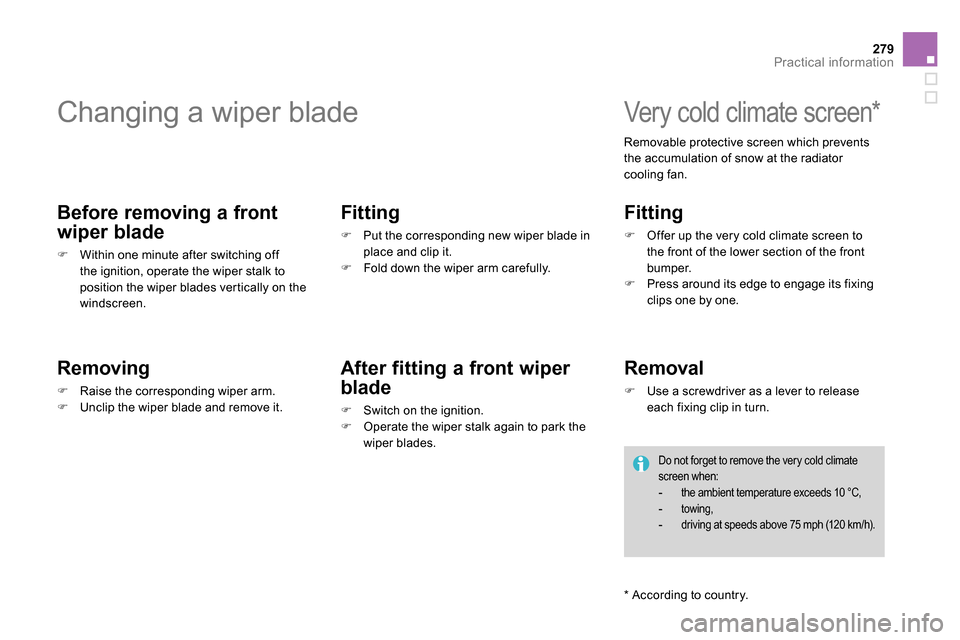

Changing a wiper blade


Before removing a front
wiper blade



Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.



Removing




Raise the corresponding wiper arm.


Unclip the wiper blade and remove it.



Fitting




Put the corresponding new wiper blade in
place and clip it.


Fold down the wiper arm carefully.



After fitting a front wiper
blade



Switch on the ignition.


Operate the wiper stalk again to park the
wiper blades.










Very cold climate screen *


Fitting




Offer up the very cold climate screen to
the front of the lower section of the front
bumper.


Press around its edge to engage its fixing
clips one by one.



Removal




Use a screwdriver as a lever to release
each fixing clip in turn.

* According to country.


Do not forget to remove the very cold climate
screen when:


-
the ambient temperature exceeds 10 °C,
-
towing,
-
driving at speeds above 75 mph (120 km/h).



Removable protective screen which prevents
the accumulation of snow at the radiator
cooling fan.

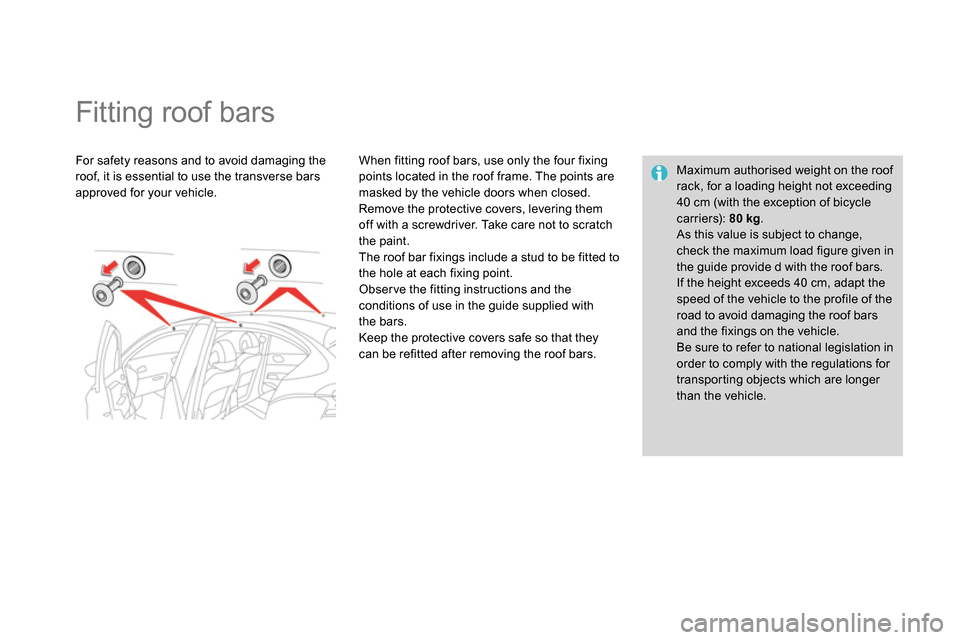

Fitting roof bars


For safety reasons and to avoid damaging the
roof, it is essential to use the transverse bars
approved for your vehicle.
When fitting roof bars, use only the four fixing
points located in the roof frame. The points are
masked by the vehicle doors when closed.
Remove the protective covers, levering them
off with a screwdriver. Take care not to scratch
the paint.
The roof bar fixings include a stud to be fitted to
the hole at each fixing point.
Obser ve the fitting instructions and the
conditions of use in the guide supplied with
the bars.
Keep the protective covers safe so that they
can be refitted after removing the roof bars.
Maximum authorised weight on the roof
rack, for a loading height not exceeding
40 cm (with the exception of bicycle
carriers): 80
kg
.
As this value is subject to change,
check the maximum load figure given in
the guide provide d with the roof bars.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the vehicle.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.

281Practical information





Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
The towing eye is installed in the boot under
the floor.
To gain access to it:



open the boot,


raise the floor,


secure it by hooking its cord on the hook on
the rear parcel shelf support,


remove the towing eye from the holder.



Access to the tools


General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel
of the towed vehicle and must have a
valid driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering. In the following cases, you must always call
on a professional recovery ser vice:


- vehicle broken down on a motor way or
fast road,

- 4 wheel drive vehicle,

- when it is not possible to put the gearbox
into neutral, unlock the steering, or
release the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...


On the front bumper, unclip the cover by
pressing at the bottom.


Screw the towing eye in fully.


Install the towing bar.


On the rear bumper, unclip the cover by
pressing at the bottom.


Screw the towing eye in fully.


Install the towing bar.


Switch on the hazard warning lamps on
both vehicles.


Move off gently, drive slowly and for a short
distance.



Towing your vehicle
Towing another vehicle



Place the gear lever in neutral
(position N
on an electronic or
automatic gearbox).
Failure to obser ve this instruction
could result in damage to
certain components (braking,
transmission...) and the absence
of braking assistance the next time
the engine is started.


Unlock the steering by turning the key
in the ignition one notch and release the
parking brake.


Switch on the hazard warning lamps on
both vehicles.


Move off gently, drive slowly and for a short
distance.

283Practical information








Towing a trailer


Towbar suitable for the attachment of a trailer or installation of a bicycle carrier, with additional
lighting and signalling.

We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a CITROËN
dealer, it is imperative that it is
fitted in accordance with the vehicle
manufacturer's instructions.

Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.

Driving advice


Distribution of loads




Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.


Side wind




Take into account the increased sensitivity
to side wind.



Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.



To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.



If the warning lamp and the STOP

warning lamp come on, stop the
vehicle and switch off the engine
as soon as possible.

The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.



Braking

Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.


Ty r e s




Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting




Check the electrical lighting and signalling
on the trailer.

Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.

285Practical information





Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.



"Comfort":

door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, scented ar freshener and
cartridges, parking sensors...


"Transpor t systems":

child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
DS roof boxes, towbars, wiring harnesses...

"Styling":

gear lever knobs, aluminium foot rest, alloy
wheels, chrome mirror shells...


"Security and safety":

anti-intrusion alarm, anti-tilt unit, stolen
vehicle tracking system, child seats and
booster cushions, breathalyser, first aid kit, fire
extinguisher, dog guard, pet seat belt, warning
triangle, high visibility vest, wheel security
bolts, snow chains, non-slip covers... If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done following
the manufacturer's recommendations.

* To avoid any risk of jamming the pedals:


- ensure that mats are correctly positioned
and secured,

- never fit one mat on top of another.



"Protection":

mats * , seat covers compatible with lateral
airbags, mud flaps, door protective mouldings,
bumper protection strips, vehicle cover,
protective covers for pets...



Conversion kits

You can obtain an "Enterprise" kit to convert a
trade vehicle to a private car and vice-versa.

"Multimedia":

audio systems, steering mounted audio
controls, speakers, Hi-Fi module, Bluetooth
hands-free system, portable satellite navigation
system, semi-integral support bracket for
portable navigation system, mapping update
CD, driving assistant, portable video screen,
portable video support bracket,
230 V/50 Hz socket, 230 V/12 V adaptor,
iPhone
® compatible mobile phone charger,
mobile phone/smartphone bracket, Wi-Fi on
board...
By visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact
colour of your vehicle, refills (sealant cartridge
for the temporary puncture repair kit...), ...



Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.

Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle, breathalyzers and
spare bulbs and fuses available in the
vehicle.
