185
Practical information

Removing the cartridge
)Stow the black pipe. )Detach the angled base from the white pipe.)Suppor t the compressor ver tically.)Unscrew the car tridge from the bottom.


Beware of discharges of fluid.
The expiry date of the fluid is indicated on the car tridge.The sealant car tridge is designed for
single use; even if only partly used, itmust be replaced. After use, do not discard the car tridgeinto the environment, take it to an authorised waste disposal site or a CITROËN dealer.
Do not forget to obtain a new sealantcartridge, available from CITROËN dealers or from a qualified workshop.

Checking tyre pressures/
inflating accessories
You can also use the compressor, withoutinjecting any product, to:
- check or adjust the pressure of your tyres,
- inflate other accessories(balls, bicycle tyres...).
)
Turn the selector Ato the "Air"
position.
) Uncoil the black pipe H
fully.)
Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptorssupplied with the kit first.
) Connect the compressor's electrical connector to the vehicle's 12 V socket. )
Star t the vehicle and let the engine run. )
Adjust the pressure using the compressor (to inflate: switch B
in position "I"
; to deflate: switch B
in position "O"and press button C), according to the vehicle's tyrepressure label or the accessory's pressure
label. ) Remove the kit then stow it.

The various caps and covers allow access for
checking the levels of the various fluids and for replacing cer tain components.














Petrol engines
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery/Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.THP1556-SPEED AUTOTHP 200 6- SPEED MANUAL

221Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.

*

According to engine.















Diesel engines
1.
Power steering reservoir.2.Screenwash and headlamp wash reser voir.3.Coolant reservoir.4.
Brake fluid reservoir.
5. Battery/Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick.9.
Engine oil filler cap.10.Priming pump * . 11.
Bleed screw * .
e-HDi1106-SPEED ELECTRONIC
HDi 160 PEF 6- SPEED MANUAL/HDi 160 PEF 6- SPEED AUTO

223Checks






































Checking levels Check all of these levels regularly and top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.


When working under the bonnet, take care, as cer tain areas of the engine may be extremely hot (risk of burns).
Oil level
The check is carried out either when
the ignition is switched on using theoil level indicator on the instrument panel, or using the dipstick.
This manual check will only be correct if the
vehicle is on level ground and the engine has
been off for more than 30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel will only be
valid 30 minutes after topping up.

Engine oil change

Refer to the ser vicing booklet for details of the
interval for this operation.
In order to maintain the reliabilit
y of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your engine and conform to the manufacturer's
recommendations.
It is normal to top up the oil level between services. CITROËN recommends that you check the oil level and top up if necessary every 3 000 miles (5 000 kilometres).

Manual gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the ser vicing booklet for the
details of the level checking interval
for this component.
6-speed electronic
gearbox system
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
details of the checking inter val for
this component.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).

Refer to the servicing booklet for
details of the level checking interval
for this component.Brake wear depends on the style
o
f driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It ma
y be necessary to
have the condition of the brakes checked, even between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn.















Brake pads
For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.


Brake disc wear
Electric parking brake
This system does not require any routine servicing. However, in the
event of a problem, have the systemchecked by a CITROËN dealer or a qualified workshop.
For more information, see "Driving - Electric parking brake - § Operating faults".
















Only use products recommended by CITROËN or products of equivalent quality and specification.
In order to optimise the operationof units as impor tant as the braking system, CITROËN selects and offersvery specific products.
To a v o i d d a m aging the electrical units,the use of a high pressure washer in the engine compar tment is strictly prohibited .

A
Accessories....................................51, 95, 213Accessory position..................................51, 95Accessory socket, 12 V ..........................78, 79Adjusting headlamps..................................140Adjusting head restraints ........................68, 71Adjusting seat belt height ............................171Adjusting the steering wheel.........................77Airbags..................................................37, 173Airbags, curtain...................................175,176Airbags, front.......................................173,176Airbags, lateral....................................175,176Air conditioning.............................................24Air conditioning, digital ............................85, 86Air filter........................................................r226Air flow..........................................................84Air vents ........................................................84Alarm.............................................................57Anti-pinch................................................60, 62Anti-theft........................................................95Armrest..........................................................78Armrest, front................................................80Armrest, rear.................................................r81Ashtray, removeable.....................................78Assistance call ....................................165,243Audible warning .......................................... 165Audio streaming (Bluetooth)................................285, 312,314Audio system...............................................299Automatic headlampdipping.................30, 137Automatic illumination
of headlamps ....................................133,136Automatic operation of hazard warninglamps ........................................................164
Automatic rain sensitivewindscreen wipers............................143, 145Auxiliary socket.............................80, 286,311
Battery.................................................204, 226Battery, charging.........................................205Battery, remote control.................................53Black panel....................................................43Bluetooth (hands-free)........................268, 313Bluetooth (telephone)..........................268, 313Boot...............................................................56Boot (unlocking)............................................48Brake discs..................................................228Brake lamps................................................198Brake pads ..................................................228Brakes .........................................................228
Changing a wheel................................186-192Changing a wiper blade......................146,208Changing the date ...............................288,323Changing the remotecontrol battery .............................................53Changing the time........................ 43,288,323Checking levels ................................... 223-225Checking the engine oil level................41, 223Checking tyre pressures(using the kit)............................................185Checks................................................220-228Children.................................152-161, 172 , 174Child seats ..................................152,155-160Child seats, conventional ....................155, 156Cigarette lighter.............................................r79Clock ............................................ 43, 288, 323Closing the boot............................................56Closing the doors....................................48,50Connectors, audio.................80, 286,309, 311Coolant level.........................................38,224Coolant temperature indicator......................r38Courtesy lamps ...........................................147Cruise control......................................122, 125Cup holder.....................................................r78
B
Capacity, fuel tank ........................................63CD.......................................................282, 306CD MP3.......................................282,307,308Central locking..............................................48Changing a bulb..................................193-200Changing a fuse ...................................201-203
C
Date (display)......................................288, 323Daytime running lamps ...............193, 196,197Deactivating DSC ........................................ 169Deactivating the passenger airbag.............174
D

343Visual search

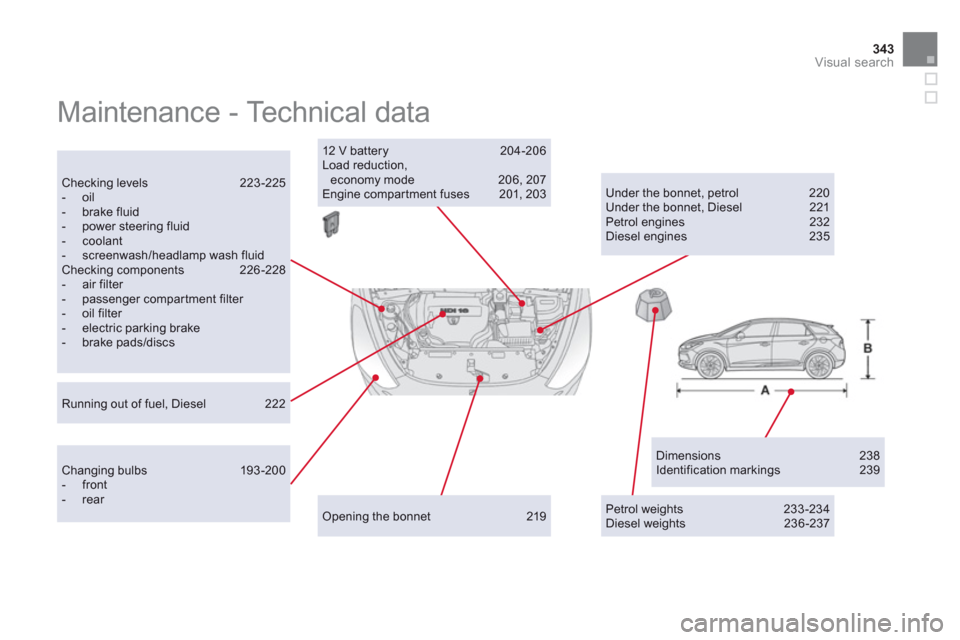

Maintenance - Technical data
Dimensions 238 Identification markings 239
Checking levels 223-225- oil - brake fluid - power steering fluid - coolant- screenwash/headlamp wash fluid Checking components 226-228- air filter - passenger compartment filter - oil filter - electric parking brake- brake pads/discs

Changing bulbs 193 -200 - front- rear


12 V battery 204-206 Load reduction,economy mode 206, 207 Engine compar tment fuses 201, 203
Opening the bonnet 219

Petrol weights 233-234
Diesel weights 236-237
Running out of fuel, Diesel 222


Under the bonnet, petrol 220
Under the bonnet, Diesel 221
Petrol engines 232
Diesel engines 235
