Page 41 of 500
39
Monochrome screen C
Depending on the context, it displays:
- time,
-
dat
e,
-
am
bient temperature (this flashes if there is
a risk of ice),
-
vi
sual parking sensor information,
-
cu
rrent audio source,
-
te
lephone or Bluetooth system information,
-
se
ttings menus for the screen and the
vehicle equipment. From the control panel of your Audio system,
press:
F
b
utton A to chooses between the display
of audio information in full screen or the
shared display of the audio source and the
time,
F
t
he "MENU" button for access to the main
menu ,
F
th
e "5" or " 6" buttons to scroll through the
items in the screen,
F
th
e "7" or " 8" buttons to change a setting
value,
F
t
he "OK" button to confirm,
or
F t
he "Back" button to abandon the
operation in progress. F
Pr
ess the "MENU"
button for access to the
main menu :
-
"M
ultimedia",
-
"T
elephone",
-
"B
luetooth connection",
-
"P
ersonalisation-configuration",
F Pr ess the "
7" or " 8" button to select the
menu required, then confirm by pressing
the "OK" button.
displays in the screencontr olsMain menu
Monitoring
Page 42 of 500
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB
/ F
M auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, see the "Audio and telematics"
section.
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, see the "Audio and telematics"
section. Wit the audio system on, this menu allows a
Bluetooth device (telephone, media player)
to be connected or disconnected and the
connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" application, see the "Audio and
telematics" section.
This menu gives access to the following
functions:
-
"D
efine the vehicle parameters",
-
"C
hoice of language",
-
"D
isplay configuration",
Define the vehicle parameters
This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
-
"A
ccess to the vehicle" (see the "Access"
section):
●
"P
lip action" (Selective unlocking of the
driver's door),
●
"U
nlocking boot only" (Selective
unlocking of the boot).
"Multimedia" menu "Bluetooth
connection" menu
"Telephone" menu "Personalisation-
configuration"
menu

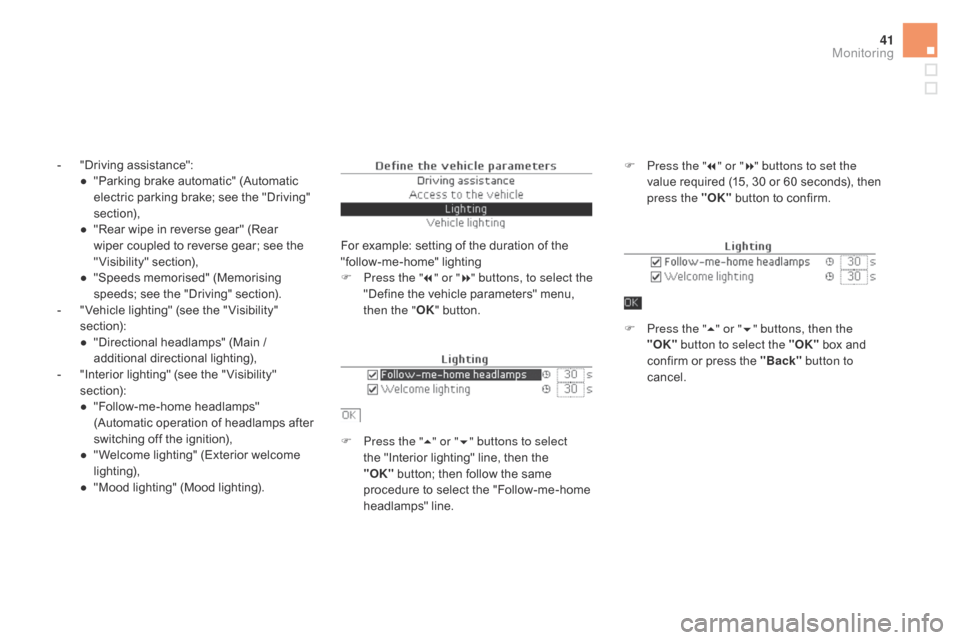

Page 43 of 500
41
- "Driving assistance":
● "Parking brake automatic" (Automatic
electric parking brake; see the "Driving"
section),
●
"R
ear wipe in reverse gear" (Rear
wiper coupled to reverse gear; see the
"Visibility" section),
●
"S
peeds memorised" (Memorising
speeds; see the "Driving" section).
-
" V
ehicle lighting" (see the " Visibility"
section):
●
"D
irectional headlamps" (Main /
additional directional lighting),
-
"I
nterior lighting" (see the " Visibility"
section):
●
"F
ollow-me-home headlamps"
(Automatic operation of headlamps after
switching off the ignition),
●
" W
elcome lighting" (Exterior welcome
lighting),
●
"M
ood lighting" (Mood lighting). For example: setting of the duration of the
"follow-me-home" lighting
F
Pr
ess the "7" or " 8" buttons, to select the
"Define the vehicle parameters" menu,
then the " OK" button.
F
Pr
ess the "5" or " 6" buttons to select
the "Interior lighting" line, then the
"OK"
b
utton; then follow the same
procedure to select the "Follow-me-home
headlamps" line. F Pr
ess the "7" or " 8" buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK" button to confirm.
F
Pr
ess the "5" or " 6" buttons, then the
"OK" button to select the "OK" box and
confirm or press the "Back" button to
cancel.
Monitoring
Page 44 of 500
choice of language
Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.
Display configuration
This menu gives access to the following
settings:
-
"C
hoice of units",
-
"D
ate and time adjustment",
-
"D
isplay parameters",
-
"B
rightness".
As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.
Adjusting the date and time
F
Pr
ess the "
7" or " 8" button to display
the "Display configuration" menu, then
press
"O
K"
.
F
Pr
ess the "
5" or " 6" button to select the
"Date and time adjustment" button, then
press "OK" .
F
Pr
ess the "
7" or " 8" button to select
the setting to modify. Confirm by
pressing "OK "
, then modify the setting and
confirm again to save the modification.
F
Ad
just the settings one by one, confirming
with the "OK" button.
F
Pr
ess the "5" or " 6" button, then the "OK"
button to select the "OK" box and confirm
or the "Back" button to cancel. The analogue clock, located in the
dashboard, is synchronised with the
time in the screen. It is set after the
time is adjusted using the configuration
menu and every time the ignition is
switched on.
Page 45 of 500
43
Touch screen
Associated with the navigation system, this
screen gives access to:
-
me
nus for adjusting settings for vehicle
functions and systems,
-
au
dio and display settings menus,
-
au
dio system and telephone controls and
the display of associated information.
-
th
e controls for the navigation system
and Internet services and the display of
associated information.
It also allows the display of:
-
th
e ambient temperature (a blue snowflake
appears if there is a risk of ice),
-
th
e trip computer,
-
vi
sual parking sensor information,
-
th
e image from the reversing camera. As a safety measure, the driver
should only carr y out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.General operation
Recommendations
Its use is possible at all temperatures and when
wearing gloves.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Principles
Press the virtual buttons in the touch screen.
Each menu is displayed over one or two pages
(primary page and secondary page).
Use the "Options" button to go to the
secondary page.
After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
Use this button for access to
additional information and to the
settings for certain functions.
Use this button to confirm.
Use this button to quit the current
display and return to the primary
page.
For versions equipped with a navigation
system in the touch screen, refer to the
supplement in the handbook pack.
Monitoring
Page 46 of 500
Menus
Press one of the buttons on the control panel
for direct access to a particular menu.
dri
ving
Allows settings to be adjusted for
certain vehicle functions.
See the corresponding section.
Navigation .
See the "Audio and telematics"
section.
Radio Media .
See the "Audio and telematics"
section.
Telephone .
See the "Audio and telematics"
section.
con
nected services .
The connected services are
accessible via Bluetooth, Wi-Fi,
MirrorLink™ or CarPlay
® connections.
See the "Audio and telematics"
section. Settings
.
Allows configuration of the display
and the system.
Language, units, date and time,
colour schemes, ... 1.
Vol
ume.
2.
On / O
ff.
3.
Bl
ack panel (comfortable night driving
display).
4.
Ch
ange audio source.
5.
Ac
cess to audio settings.
See the "Audio and telematics" section.
Page 47 of 500
45
"driving" menu
The systems with settings that can be adjusted are detailed in the table below.Button
cor
responding function
com
ments
Speed settings Memorisation of speeds for use with the speed limiter or cruise control.
veh
icle settings Access to other functions with settings that can be adjusted:
-
Au
tomatic parking brake (Automatic electric parking brake; see the "Driving" section),
-
Au
tomatic rear wiper in reverse (Activation of rear wiper coupled to reverse gear; see the
"Visibility" section).
-
Gu
ide-me-home lighting (Automatic guide me home lighting; see the " Visibility" section),
-
We
lcome lighting (Exterior welcome lighting; see the " Visibility" section),
-
Mo
od lighting (Mood lighting; see the " Visibility" section),
-
Ad
aptive lighting (Main / additional directional lighting; see the " Visibility" section).
-
Dr
iver plip action (Selective unlocking of the driver's door; see the "Access" section),
-
Un
locking boot (Selective unlocking of the boot; see the "Access" section).
Stop & Star t Deactivation of the function.
Function deactivated = indicator lamp on (orange).
Monitoring
Page 48 of 500
Trip computer
System that gives you information on the current journey (range, fuel consumption…).
Instrument panel screen
Information display
F Press the button on the end of the wiper
control stalk to display the various tabs in
succession. -
Th
e current information tab with:
●
th
e range,
●
th
e current fuel consumption,
●
th
e Stop & Start time counter.
-
Tr
ip "1"
with:
●
th
e average speed,
●
th
e average fuel consumption
fo
r the first trip.
-
Tr
ip "2"
with:
●
th
e average speed,
●
th
e average fuel consumption fo
r the second trip.F
Wh
en the desired trip is displayed, press
for more than two seconds on the end of
the wiper control stalk .
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
- Ra dio or media.
-
Sat
ellite navigation.
Trip reset
Page 49 of 500
47
Touch screen
1. "Instantaneous ".
2. " Tr
i p 1".
3.
" T
r i p 2".
4.
" 00
.0 / Reset ".
display of information
The current instantaneous fuel consumption tab with:- the range,- the current fuel consumption,- the Stop & Start time counter.
The trip "1" tab with:
- th e average speed,
-
th
e average fuel consumption,
fo
r the first trip.
The trip "2" tab with:
-
th
e average speed,
-
th
e average fuel consumption,
fo
r the second trip. F
Wh
en the desired trip is
displayed, press the reset button
or press and hold the end of the
wiper control stalk.
Trip reset
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
The trip computer information is displayed in
the primary page of the menu.
F
Pr
ess one of the buttons to display the
desired tab. F
Selec
t the "
dri
ving
" menu.
Monitoring
Page 50 of 500
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or
a
q
ualified workshop.
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
Trip computer, a few definitions…
Range
(miles or km)
This indicates the distance which
can still be travelled with the fuel
remaining in the tank in relation
to the average fuel consumption
over the last few
m
iles
(kilometres) travelled.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km). This function is only displayed from
20
m
ph (30 km/h).
current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero
reset (ignition on).
Stop & Start time
counter
(minutes / seconds or hours /
minutes)
If your vehicle is fitted with Stop & Start,
a
t
ime counter calculates the time spent in
STOP
m
ode during a journey.
It resets to zero every time the ignition is
switched on.
