phone Citroen DS5 HYBRID4 RHD 2013.5 1.G Owner's Manual

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label. The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised. The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution, never leave children alone in the vehicle, even for a very short time. In all cases, take the remote control or electronic key (if Keyless Entry and Starting) with you when leaving the vehicle.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and started.

11 7Comfort

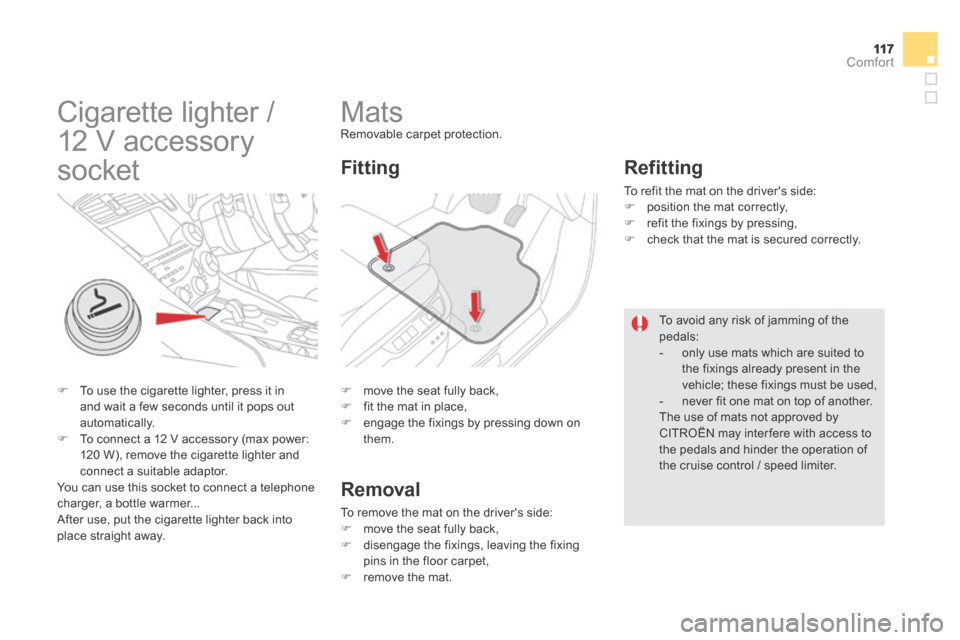

Mats Removable carpet protection.
 move the seat fully back,  fit the mat in place,  engage the fixings by pressing down on them.
Fitting
Removal
To remove the mat on the driver's side:  move the seat fully back,  disengage the fixings, leaving the fixing pins in the floor carpet,  remove the mat.
Refitting
To refit the mat on the driver's side:  position the mat correctly,  refit the fixings by pressing,  check that the mat is secured correctly.
To avoid any risk of jamming of the pedals: - only use mats which are suited to the fixings already present in the vehicle; these fixings must be used, - never fit one mat on top of another. The use of mats not approved by
CITROËN may inter fere with access to the pedals and hinder the operation of the cruise control / speed limiter.
 To use the cigarette lighter, press it in and wait a few seconds until it pops out automatically.  To connect a 12 V accessory (max power: 120 W), remove the cigarette lighter and connect a suitable adaptor. You can use this socket to connect a telephone charger, a bottle warmer... After use, put the cigarette lighter back into
place straight away.
Cigarette lighter /
12 V accessory
socket

USB Player
This connection box, consisting of a JACK auxiliary socket and a USB port, is located in the front armrest (under the cover). It permits the connection of portable device, such as a digital audio player of the iPod ® type ® type ®
or a USB memory stick. It reads the audio file formats (MP3, OGG, WMA, WAV, ...) which are transmitted to your audio equipment and played via the vehicle's speakers. You can manage these files using the steering mounted controls or the audio system control panel and display them in the instrument panel screen.
When the USB port is used, the portable device charges automatically.
For more information on the use of this system, refer to the "Audio and telematics" section.
Comfort and storage system for the driver and front passenger.

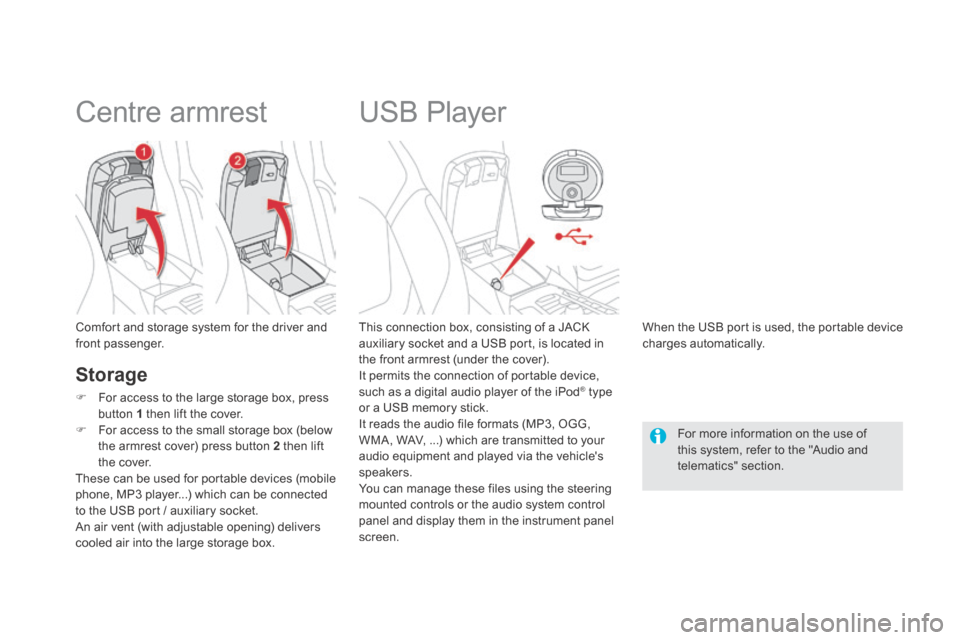

Centre armrest
Storage
 For access to the large storage box, press button 1 then lift the cover.
 For access to the small storage box (below the armrest cover) press button 2 then lift the cover. These can be used for portable devices (mobile phone, MP3 player...) which can be connected to the USB port / auxiliary socket. An air vent (with adjustable opening) delivers cooled air into the large storage box.

241Practical information
System which manages the duration of use of certain functions to conserve a sufficient level of charge in the battery. After the engine has stopped, you can still use functions such as the audio and telematics system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined duration of about forty minutes.
Energy economy mode
Switching to economy mode
A message then appears in the instrument panel screen indicating that the vehicle has switched to economy mode and the active functions are put on standby. If a telephone call is being made at this time, it
will be maintained for around 10 minutes with the Bluetooth hands-free system of your audio system.
Exiting economy mode
These functions are reactivated automatically next time the vehicle is driven. In order to restore the use of these functions immediately, start the engine and let it run: - for less than ten minutes, to use the equipment for approximately five minutes, - for more than ten minutes, to use the equipment for up to approximately thirty minutes. Let the engine run for the duration specified to ensure that the battery charge is sufficient. Do not repeatedly and continuously restart the engine in order to charge the battery. A flat battery prevents the engine from starting (refer to the "Battery" section).
In this energy economy mode and when starting up the hybrid system, it may take a few seconds before the Readylamp comes on.
Load reduction mode
System which manages the use of certain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air conditioning, the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.

The fitting of electrical equipment or accessories which are not recommended by CITROËN may result in a failure of your vehicle's electronic system and excessive electrical consumption. Please note this precaution. You are advised to contact a CITROËN representative to be shown the range of recommended equipment and accessories.
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter, you can contact a CITROËN dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, certain safety equipment may be compulsory: high visibility safety vests, warning triangles, breathalyzers, spare bulbs, spare fuses, a fire extinguisher, a first aid kit, mud flaps at the rear of the vehicle.
By visiting a CITROËN dealer you can also obtain cleaning and maintenance products (interior and exterior) - including ecological products in the "TECHNATURE" range, products for topping up (screenwash...), paint touch-up pens and aerosols for the exact colour of your vehicle, refills (sealant cartridge for the temporary puncture repair kit...), ...
"Multimedia":
Bluetooth hands-free system, portable satellite navigation system, mapping update CD, driving assistance systems, portable video screen, portable video support bracket, multimedia system support, 230 V/50 Hz socket, 230 V/12 V adaptor, mobile phone charger compatible with iPhone ® , Wi-Fi on board...

277
The system is protected in such a way that it will only operate in your vehicle.

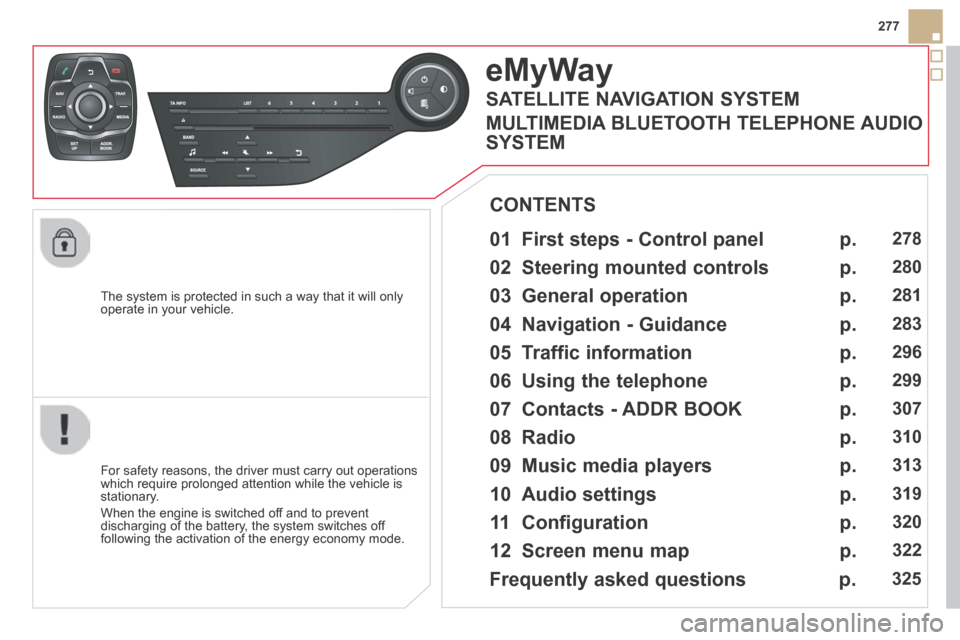

eMyWay
01 First steps - Control panel
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Contacts - ADDR BOOK
08 Radio
09 Music media players
10 Audio settings
11 Configuration
12 Screen menu map
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
278
280
281
283
296
299
307
310
313
319
320
322
Frequently asked questions p. 325
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

01
279
Access to the " Telephone " menu and display the list of recent calls or accept an incoming call.
Access to the " Navigation - guidance " menu and display the recent destinations.
Radio source, access to the " RADIO " menu and display the list of stations received.
Access to the " Confi guration " menu.
Long press: access to the GPS coverage and navigation demonstration mode.
Reject an incoming call or end a call in progress.
Access to the " Traffi c information " menu and display of current traffi c alerts.
Display the list of contacts / Access to the " Directory of contacts " menu.
Media source, access to " MEDIA " menu and display the list of tracks.
Abandon the current operation, go up one level.
Long press: return to permanent display.
Selection and OK confi rmation dial:
Select an item on the screen or in a list or a menu, then confi rm with a short press.
Other than for menus and lists, a short press calls up a contextual memory, according to the display in the screen.
Rotation with the map displayed: zoom in/out in the map.
FIRST STEPS

SRC

02


-
+

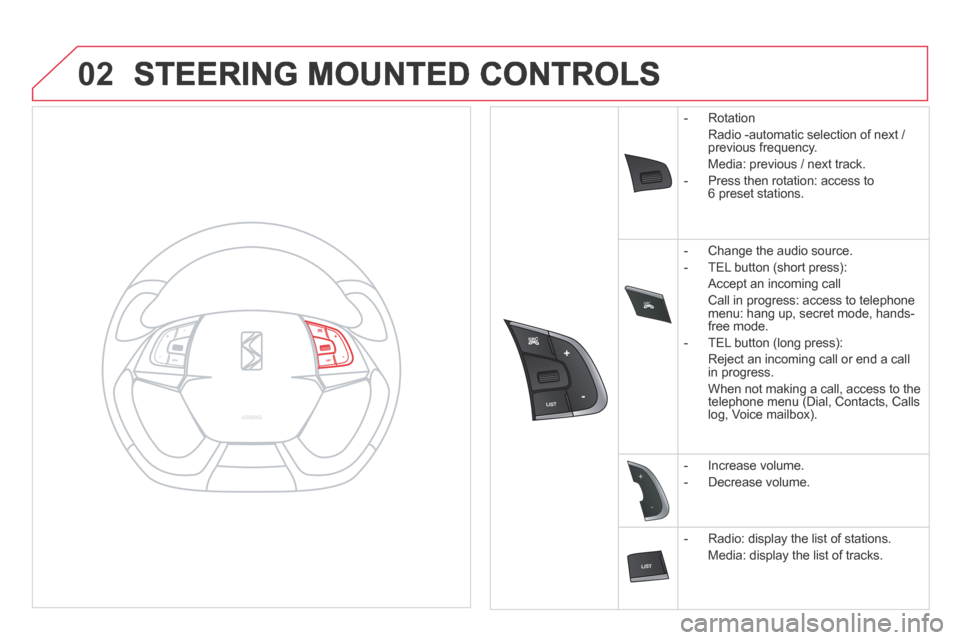

STEERING MOUNTED CONTROLS
- Rotation
Radio -automatic selection of next / previous frequency.
Media: previous / next track.
- Press then rotation: access to 6 preset stations.
- Change the audio source.
- TEL button (short press):
Accept an incoming call
Call in progress: access to telephone menu: hang up, secret mode, hands-free mode.
- TEL button (long press):
Reject an incoming call or end a call in progress.
When not making a call, access to the telephone menu (Dial, Contacts, Calls log, Voice mailbox).
- Increase volume.
- Decrease volume.
- Radio: display the list of stations.
Media: display the list of tracks.

03
281
For the details of the menus, refer to the "Screen menu map" section. For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product.
" RADIO "
" TELEPHONE "
(If conversation in progress)
SETUP : PARAMETERS
date and time, display confi guration, sound, vehicle settings.
Changing the audio source:
RADIO : RADIO broadcasts.
MUSIC : playing MUSIC.
Press the MODE button several times in succession for access to the following displays\
:
GENERAL OPERATION
" FULL SCREEN MAP "
" MAP IN WINDOW "
(If navigation guidance in progress)
HYBRID FLOW
For more information, refer to the "Hybrid System" section, then "View hybrid fl ow information".
HYBRID CONSUMPTION
For more information, refer to the "Hybrid System" section, then "Consumption of your hybrid".

03

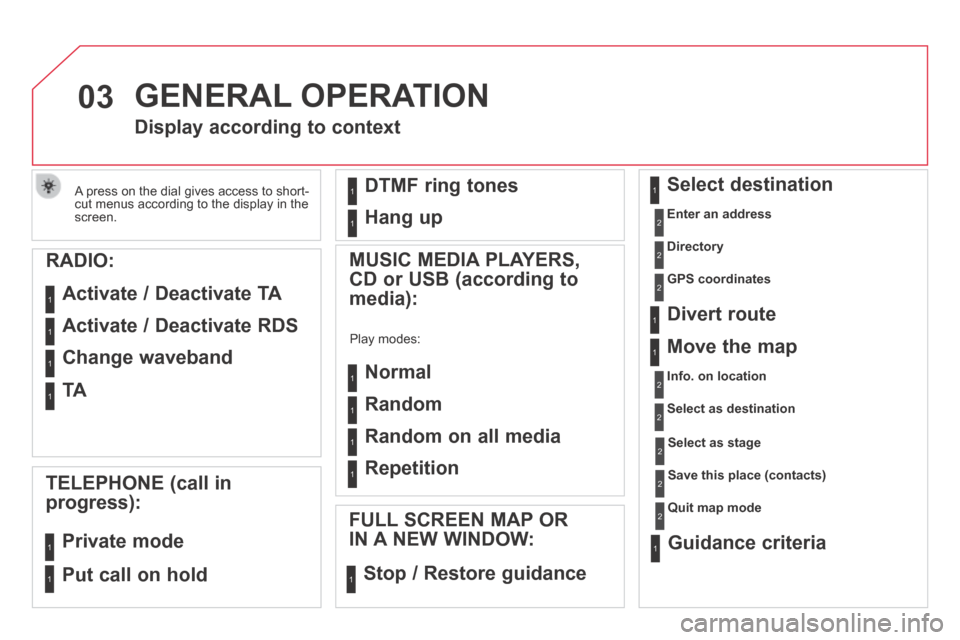

A press on the dial gives access to short-cut menus according to the display in the screen.
GENERAL OPERATION
Display according to context
MUSIC MEDIA PLAYERS,
CD or USB (according to
media):
Play modes:
Normal
Random
Random on all media
Repetition
FULL SCREEN MAP OR
IN A NEW WINDOW:
Stop / Restore guidance
Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as stage
Save this place (contacts)
Quit map mode
Guidance criteria
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
DTMF ring tones
Hang up 1
1
RADIO:
Activate / Deactivate TA
Activate / Deactivate RDS
TELEPHONE (call in
progress):
Private mode
Put call on hold
1
1
1
1
Change waveband 1
TA 1
