HINGED REAR DOORS

When parked with the rear
doors open to 90°, the doors
mask the rear lamps.
To signal your position to road
users travelling in the same
direction who may not have
noticed that you have stopped,
use a warning triangle or any
other device stipulated by the
legislation and regulations of
your country.

TAILGATE


From the outside

The two hinged doors open to 90°.
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door.


Opening to 180°

A retractable check strap system permits
extension of the opening from 90° to 180°.
Disengage the check strap towards you
when the door is partially open.
The check strap will re-attach automatically
on closing.

From the outside

If fitted on your vehicle, locking/unlocking is
via the remote control.
To open, press the control then raise the
tailgate.
A strap is provided to secure the tailgate in
the upper position.


From inside


Emergency control
In the event of a central unlocking operating
fault, this permits unlocking of the tailgate
from the inside.
Fold the rear seats to gain access to the lock.
Insert a small screwdriver in this opening
to unlock the tailgate.

69


Seats

EASE OF USE and COMFOR
T
3


- an active adjustment: operate the handle
upwards or downwards until the desired
position is reached.


Head restraint height adjustment
To raise or lower the restraint, pull it
forwards, then slide it. The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Front heated seat controls


Adjustable armrest
To place the armrest in its rest position:


- raise it until it is in the centreline of the
seat back.

4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain the
required position. To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
To place the armrest in a position for use:


- fold it down fully,

- raise it slowly to the required position,

- if you pass the required position, raise it
fully then repeat the operations above.


Press the corresponding control,
located on the overhead storage
unit.
The temperature is controlled
automatically.
Pressing a second time stops operation.

Seats

EASE OF USE and COMFOR
T
3

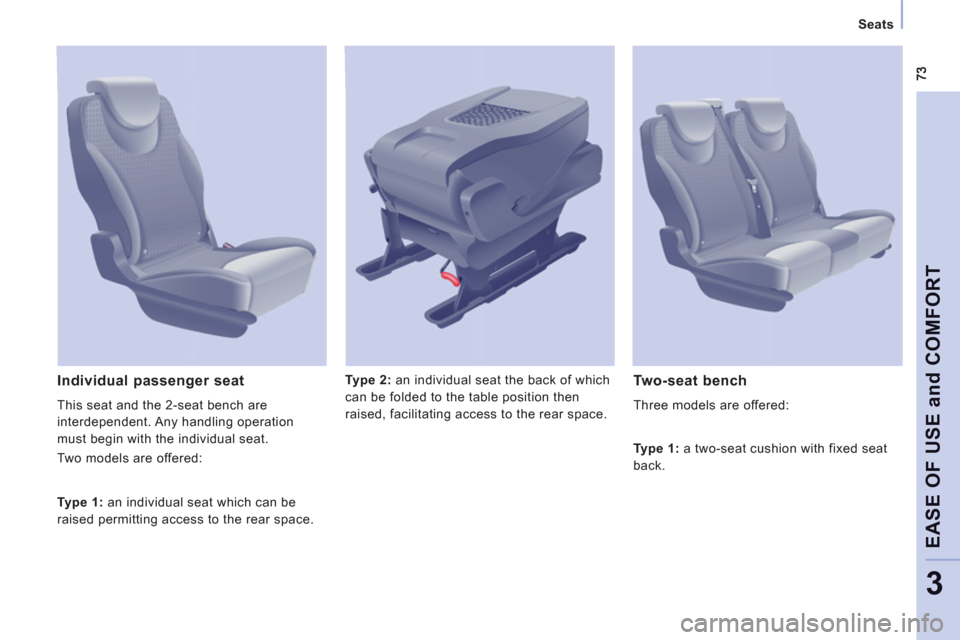

Type 2:
an individual seat the back of which
can be folded to the table position then
raised, facilitating access to the rear space.
Individual passenger seat

This seat and the 2-seat bench are
interdependent. Any handling operation
must begin with the individual seat.
Two models are offered:

Two-seat bench

Three models are offered:

Type 1:
an individual seat which can be
raised permitting access to the rear space.
Type 1:
a two-seat cushion with fixed seat
back.

74


Seats

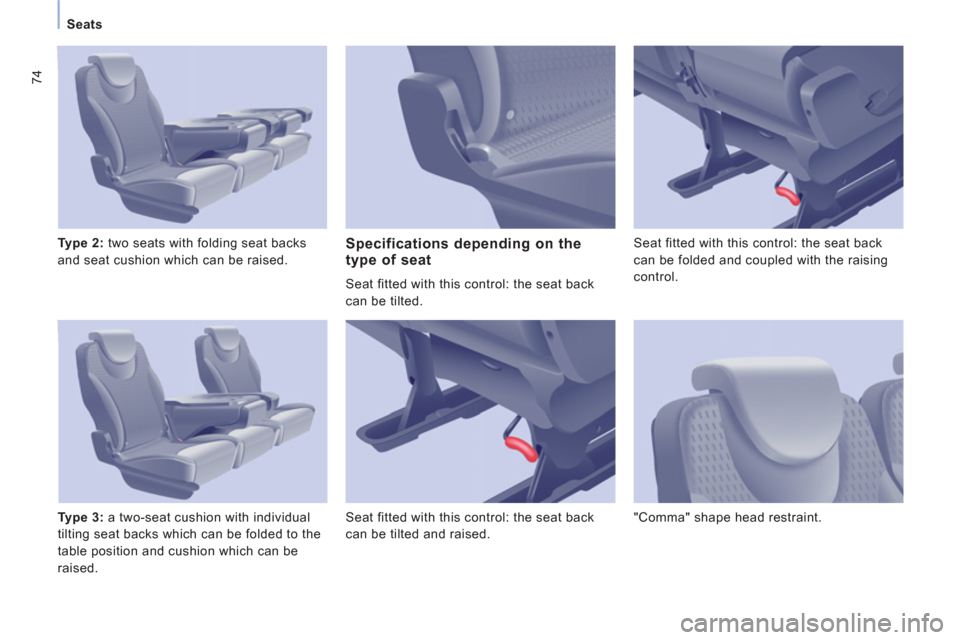

Type 2:
two seats with folding seat backs
and seat cushion which can be raised.

Type 3:
a two-seat cushion with individual
tilting seat backs which can be folded to the
table position and cushion which can be
raised.


Specifications depending on the
type of seat
Seat fitted with this control: the seat back
can be tilted.
Seat fitted with this control: the seat back
can be tilted and raised. Seat fitted with this control: the seat back
can be folded and coupled with the raising
control.
"Comma" shape head restraint.

76


Seats


Handling

Folding the seat back to the table position
(centre seat example)


- Place the head restraints in the low
position.

- Raise this handle to unlock the seat
back (from the rear, lower the handle).

- Tilt the seat back onto the seat cushion.

Seat and bench of type 1:


- Raise the seat.

Seat and bench of type 2/type 3:


- Fold the seat back to the table position
using this handle.

- Raise the seat.
- Unlock the front feet using this handle.

- Disengage the seat from its anchorages.

- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.

- Unlock the front feet using this handle.

- Disengage the seat from its anchorages.

- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.

Enter, exit the vehicle: raise the seat
Always start with the individual seat located
on the right-hand side and place the head
restraint in the low position.

77


Seats

EASE OF USE and COMFOR
T
3


Installing the seat
Always install the bench first.


- Check that there are no objects
obstructing the anchorages and
preventing correct locking of the feet.

- Engage the front feet in the anchorages
on the floor.
- Lock the front feet using this handle.

- Tilt the seat towards the rear until the
rear feet lock. Be aware of the feet of
passengers when tilting. For the type 2 seat and the type 2/3 bench:
fold up the seat back.

Correct anchoring of the front feet
Check that the seat is locked correctly
on the floor when it is returned to the
sitting position.

78


Seats

Precautions
Following the various handling operations:


- do not remove a head restraint without
storing it and fix it to a support,

- check that the seat belts are always
accessible to the passenger and easy to
fasten,

- a passenger must not take his seat
without adjusting his seat's head
restraint correctly and adjusting and
fastening his seat belt.


Labels
While driving, it is prohibited to have
a passenger:


- in row 3 if the seat back in front (row 2)
is in the table position.

- in row 3 if the seat/bench in front (row 2)
is in the folded position.

- in row 3 if the seat in front (row 2) has
been removed.

- on the centre seat if the right-hand side
seat is in the folded position.

144


Changing a fuse
PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the
cover carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


20
Row 3 12 V socket


3


40/50
Trailer fusebox (accessory)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


10
Rear ventilation


40


5
Folding mirrors
