Anomalies de fonctionnement (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Jaune NoirNoir texte
OPERATING FAULTS (2/5)
On the road POSSIBLE CAUSESWHAT TO DO
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged.Check the tyre pressures; if this is not the
cause, have their condition checked by an
approved dealer.
Mud or snow in the wheels. Clean the vehicle, particularly the wheels
(refer to the information on “Bodywork
maintenance/engine compartment” in
Section 4).
Abnormal white smoke from the ex-
haust. Mechanical fault: damaged cylinder
head gasket.
orStop the engine.
Contact an approved dealer.
This is not necessarily a fault.
Smoke may be caused by
regeneration of the particle filter. Refer to the information on “Special
features of diesel versions” in Section 2.
The oil pressure warning light comes
on: on a bend or under braking The engine oil level is too low. Top up the engine oil (refer to the informa-
tion on “Engine oil level, topping up/refilling”
in Section 4).
at idle speed Low oil pressure.Go to your nearest approved dealer.
Page 173 of 200
JauneNoirNoir texte
5.41
ENG_UD20968_2
Anomalies de fonctionnement (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
OPERATING FAULTS (3/5)
On the road POSSIBLE CAUSESWHAT TO DO
The oil pressure warning light takes
a long time to go out or remains lit
during acceleration. Loss of oil pressure.
Stop the vehicle: contact a an approved
dealer.
The oil change warning light remains
lit after an oil change. Warning not reset after oil change. Reset the warning after changing the oil;
refer to the information on “Resetting the
warning after an oil change” in Section 4.
The “2WD” mode and electronic fault
warning lights come on. Fault in the 4-wheel drive system. Drive as soon as possible at a moderate
speed to an approved dealer. The problem
may be resolved by replacing the wheels.
The system will not switch to “2WD”
or “4WD Lock” mode. “AUTO” mode
remains active. Fault in the 4-wheel drive system. Contact an approved dealer as soon as
possible.
Whistling Roof aerial poorly positioned.Position the aerial.
Coolant boiling in the coolant reser-
voir. Mechanical fault: damaged cylinder
head gasket, defective water pump.Stop the engine.
Contact an approved dealer.
Smoke under the bonnet. Short circuit or cooling system leak. Stop, switch off the ignition, stand away
from the vehicle and contact an approved
Dealer.
Page 174 of 200
5.42
ENG_UD20968_2
Anomalies de fonctionnement (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Jaune NoirNoir texte
On the road POSSIBLE CAUSESWHAT TO DO
The power-assisted steering be-
comes heavy. Belt broken.
Lack of power-assisted steer-
ing oil in the pump.Have the belt replaced.
For maintenance operations on the power-assisted
steering, contact an approved dealer.
The engine overheats. The coolant
temperature indicator light comes
on. Engine cooling fan not work-
ing.
Stop the vehicle, switch off the engine and contact
an approved dealer.
Coolant leaks. Stop the vehicle, switch off the engine and check
the coolant reservoir: it should contain fluid. If there
is no coolant, consult an approved dealer as soon
as possible.
Radiator blocked or clogged. Stop the vehicle, switch off the engine and clean the radiator (refer to the information on “Bodywork
maintenance/engine compartment” in Section 2). If
it is clean, consult an approved dealer as soon as
possible.
OPERATING FAULTS (4/5)
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.
Page 177 of 200
6.1
ENG_UD25065_7
Sommaire 6 (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_6
Section 6: Technical specifications
Vehicle identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5
W
eights/Towing weights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6
Replacement parts and repairs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7
Service sheets
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.8
Anti-corrosion check
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.14
Page 179 of 200
JauneNoirNoir texte
6.3
ENG_UD22553_4
Plaques d’identification moteur (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_6

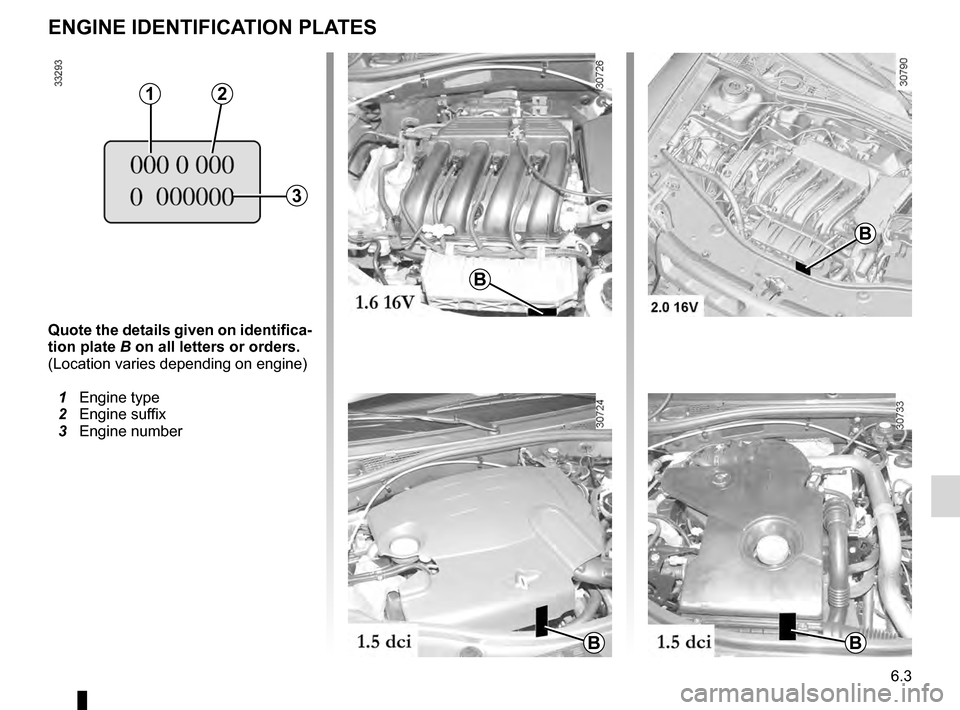

ENGINE IDENTIFICATION PLATES
Quote the details given on identifica-
tion plate B on all letters or orders.
(Location varies depending on engine)
1
Engine type 2
Engine suf
fix
3
Engine num
ber
BB
B
B
12
3
Page 181 of 200
engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.5
ENG_UD22505_2
Caractéristiques moteur (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_6
Engine specifications
ENGINE SPECIFICATIONS
Versions 1.6 16V2.0 16V 1.5 dCi
Engine type
(see engine plate) K4M
F4R K9K
Cubic capacity (cc) 1,5981998 1,461
Type of fuel
Octane rating Petrol
It is essential to use unleaded petrol and this must
be of the octane rating stated on the label inside the
fuel filler flap.
If not available, for a limited time only, use unleaded
fuel:
–
with
an octane rating of 91 for a label with the rat-
ings 95 or 98;
–
with
an octane rating of 87 for a label showing 91,
95 or 98. Diesel
The label located in the fuel filler
flap indicates the authorised fuels.
Spark plugs Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine compartment. If it is not
then contact an authorised dealer.
Fitting spark plugs which are not to specification may damage the engine\
.
Page 182 of 200
technical specifications ......................... (up to the end of the DU)
weight ................................................... (up to the end of the DU)
towing ................................................... (up to the end of the DU)
towing a caravan ................................................... (current page)
towing weights ....................................................... (current page)
weights .................................................................. (current page)
6.6
ENG_UD22464_3
Masses/Charges remorquables (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_6
Weights/Towing weights
WEIGHTS (in kg)
Versions 4x2
4x4
1.6 16V 2.0 16V 1.5 dCi 1.6 16V 2.0 16V 1.5 dCi
Maximum permissible all-up weight (MMAC)
Total train weight (MTR) Weights shown on the vehicle identification plate (refer to the
information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* found by calculating: MTR - MMAC
Unbraked trailer weight* 615 640 625 660 685 680
Permissible nose weight* 5075
Maximum permissible load on roof with a carrying
device 100 (including the carrying device)
*Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero.
–
It
is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an authorised dealer for any towing equipment m\
odifications.
–
For
vehicles fitted with a trailer, the gross train weight (vehicle + trailer) must never be exceeded . However, the following
is tolerated:
–
the Maximum permissible wei
ght at the rear may be exceeded by no more than 15%,
–
the maximum permissible all-
up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In
either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 kph) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
–
The
engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
The weights shown are for a basic vehicle without options: they will vary depending on the equipment level of your ve-
hicle. Please consult an authorised dealer.
