Feux avant : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Jaune NoirNoir texte
Changing bulbs
Front lights
The bulbs detailed below can be re-
placed. However, we recommend that
these be replaced by an approved
dealer if this proves difficult.
Dipped beam headlights
Remove cover A .
Unclip bulb
4
by pressing connector
3
downwards to release the bulb from
clips
2 and 1.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
FRONT LIGHTS: changing bulbs (1/3)
Do not touch the bulb glass. Hold it
by its base.
It is essential to use anti-UV bulbs so
as not to damage the plastic on the
headlights .
Remove bulb
4
from connector 3.
Bulb type: H7
Once the bulb has been replaced, be
sure to correctly reposition lug
5
in
notch
6, then refit cover A.
A
1
2
3
4
34
5
6
Page 148 of 200
5.16
ENG_UD20700_2
Feux avant : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

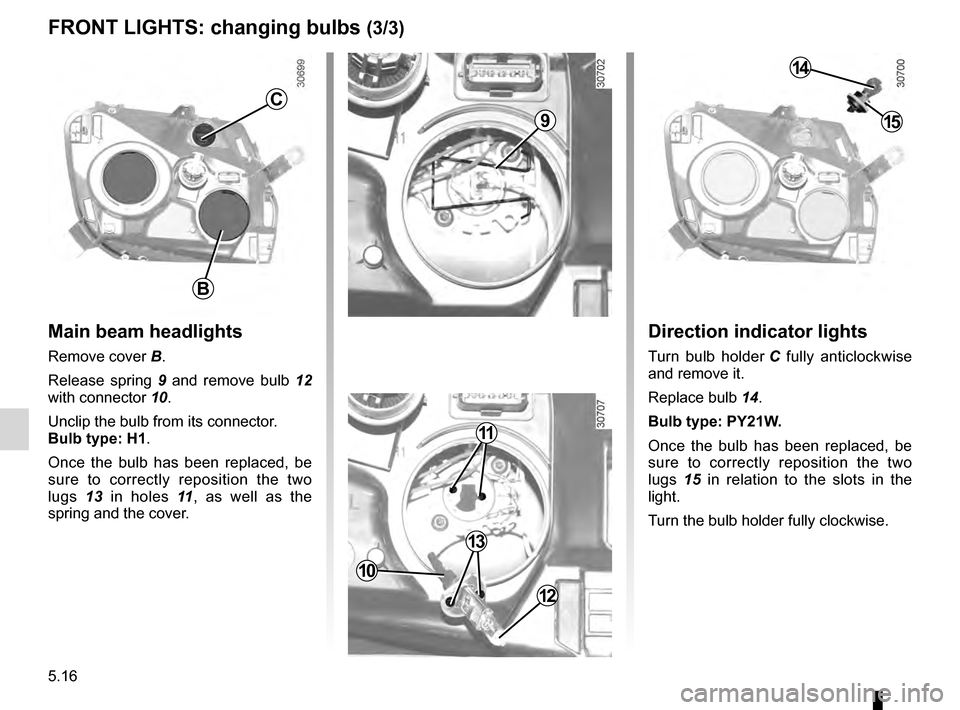

FRONT LIGHTS: changing bulbs (3/3)
Main beam headlights
Remove cover B .
Release spring
9
and remove bulb
1
2
with connector
10
.
Unclip the bulb from its connector.
Bulb type:
H1.
Once the bulb has been replaced, be
sure to correctly reposition the two
lugs
1
3 in holes
1
1, as well as the
spring and the cover.
Direction indicator lights
Turn bulb holder C fully anticlockwise
and remove it.
Replace bulb
14
.
Bulb type: PY21W.
Once the bulb has been replaced, be
sure to correctly reposition the two
lugs
1
5 in relation to the slots in the
light.
Turn the bulb holder fully clockwise.
B
C
9
14
15
10
11
12
13
Page 149 of 200
bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
5.17
ENG_UD20701_2
Projecteurs antibrouillard : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.
Fog lights

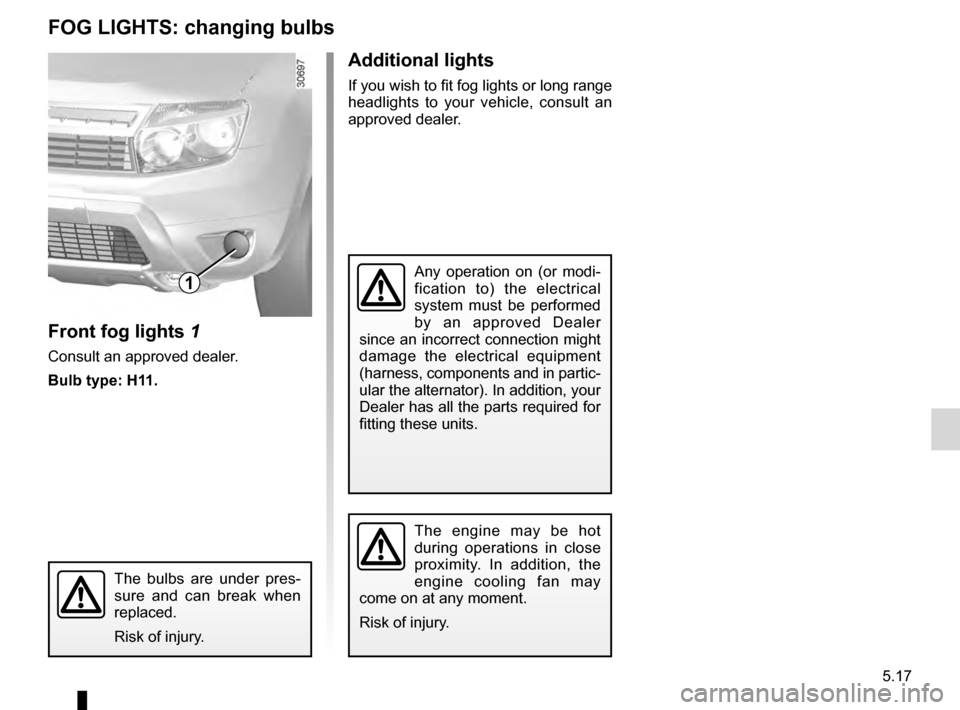

FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H11.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
Page 175 of 200
JauneNoirNoir texte
5.43
ENG_UD20968_2
Anomalies de fonctionnement (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

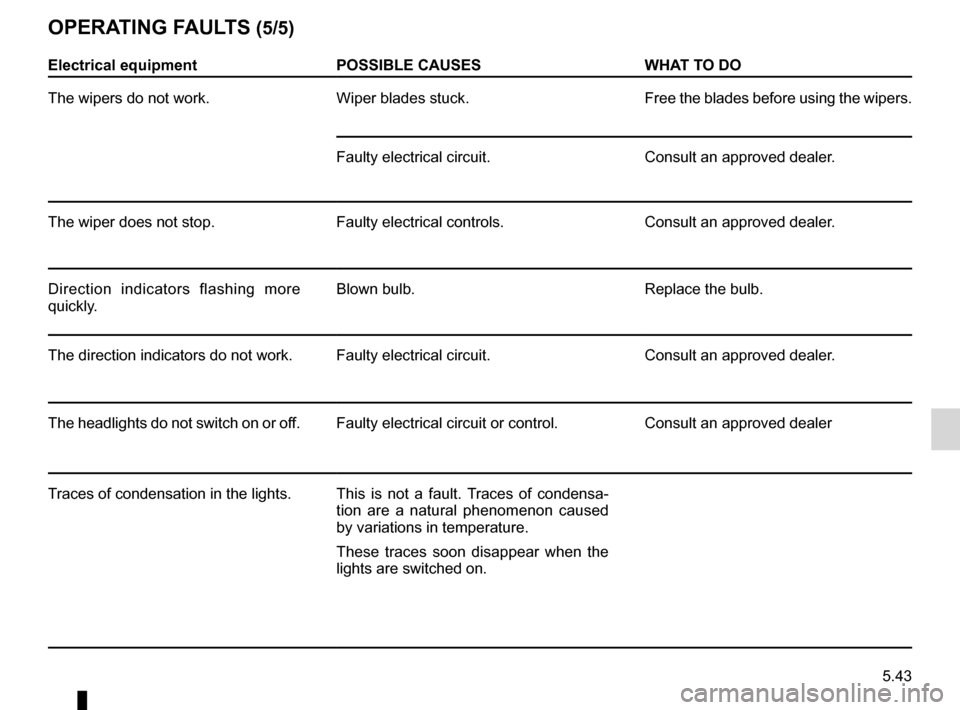

OPERATING FAULTS (5/5)
