Page 117 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.7
ENG_UD24441_1
Air conditionné : informations et conseils utilisation (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
Fuel consumption
You will normally notice an increase in
fuel consumption (especially when driv-
ing in town) when the air conditioning is
operating.
For vehicles fitted with air conditioning
with no automatic mode, switch off the
system when it is not required.
Advice for reducing consumption
and helping to preserve the environ-
ment
Drive with the air vents open and the
windows closed.
If the vehicle has been parked in the
sun, open the doors for a few moments
to let the hot air escape before starting
the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection fre-
quency.

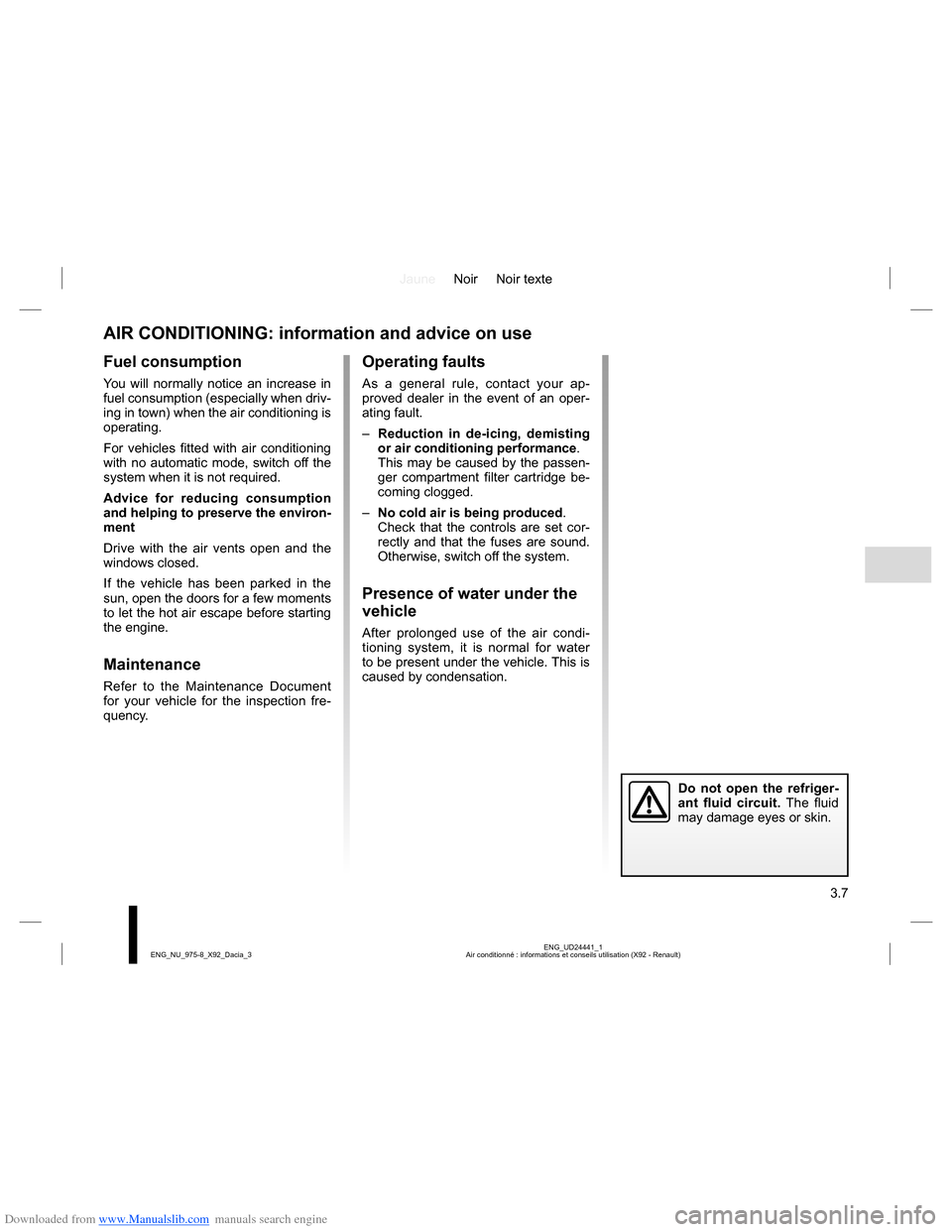

AIR CONDITIONING: information and advice on use
Operating faults
As a general rule, contact your ap-
proved dealer in the event of an oper-
ating fault.
– Reduction in de-icing, demisting
or air conditioning performance.
This may be caused by the passen-
ger compartment filter cartridge be-
coming clogged.
– No cold air is being produced.
Check that the controls are set cor-
rectly and that the fuses are sound.
Otherwise, switch off the system.
Presence of water under the
vehicle
After prolonged use of the air condi-
tioning system, it is normal for water
to be present under the vehicle. This is
caused by condensation.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
Page 167 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.1
ENG_UD38224_8
Sommaire 5 (X92 - Renault) ENG_NU_975-8_X92_Dacia_5

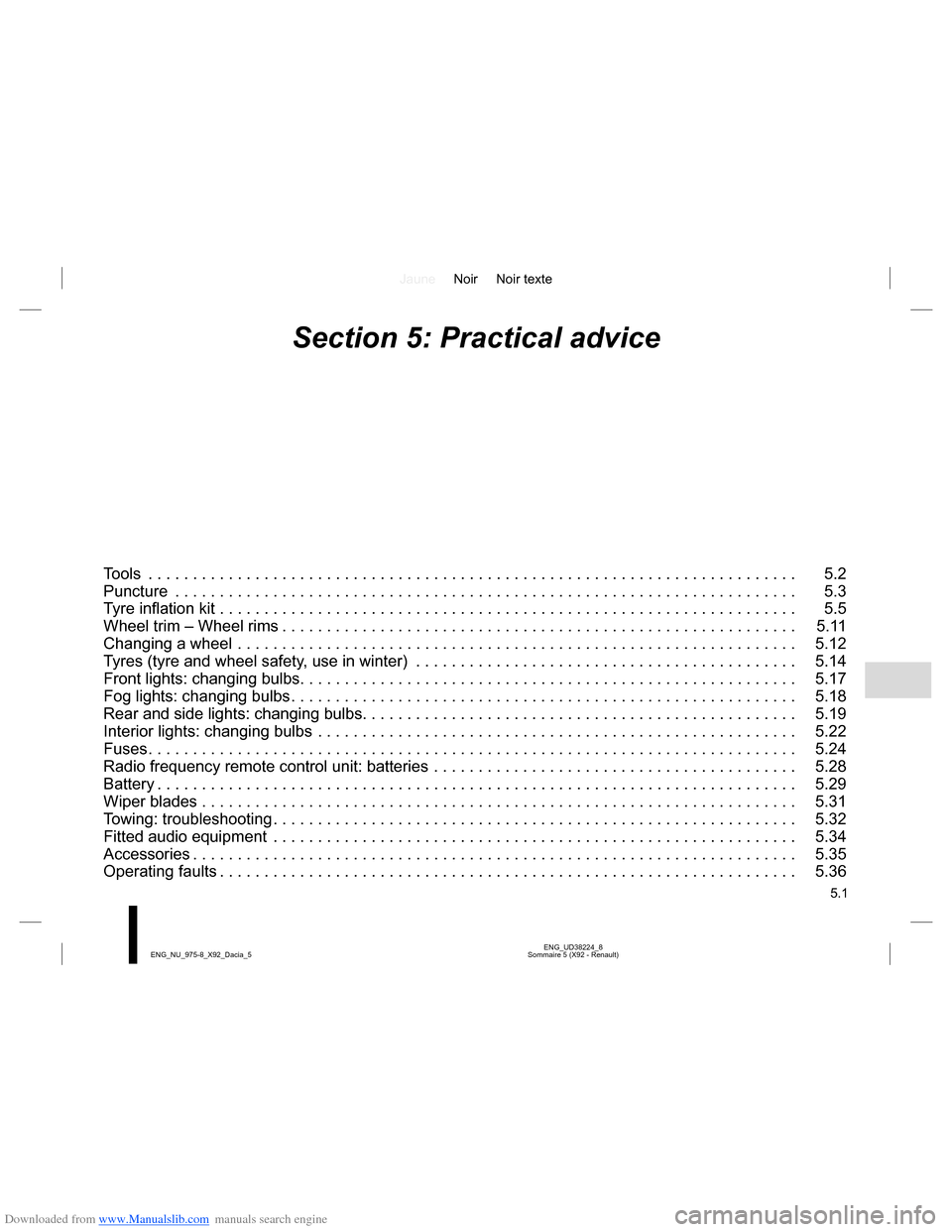

Section 5: Practical advice
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3
Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5
Wheel trim – Wheel rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.12
Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.14
Front lights: changing bulbs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.17
Fog lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.18
Rear and side lights: changing bulbs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.19
Interior lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.22
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.24
Radio frequency remote control unit: batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.28
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.29
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.31
Towing: troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.32
Fitted audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.35
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.36
Page 183 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.17
ENG_UD36383_3
Feux avant : remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
The following bulbs can be replaced.
However, we would advise you to have
them replaced by an approved dealer if
it proves difficult.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Main beam headlights, dipped
beam headlights
Remove the connector from the bulb 5.
Remove cover A.
Unclip the spring 4 and take out the
bulb.
Bulb type: H4 anti UV (see box).
It is essential to use anti-U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
FRONT LIGHTS: changing bulbs
5
4
23
A
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
1Daytime running light
Turn the bulb holder 1 a quarter of a
turn and take out the bulb.
Bulb type: P21W.
Front side light
Turn the bulb holder 2 a quarter of a
turn and take out the bulb.
Bulb type: W5W.
Direction indicator lights
Turn the bulb holder 3 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.
1
32
Page 184 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.18
ENG_UD29945_2
Feux de brouillard : remplacement des lampes (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.

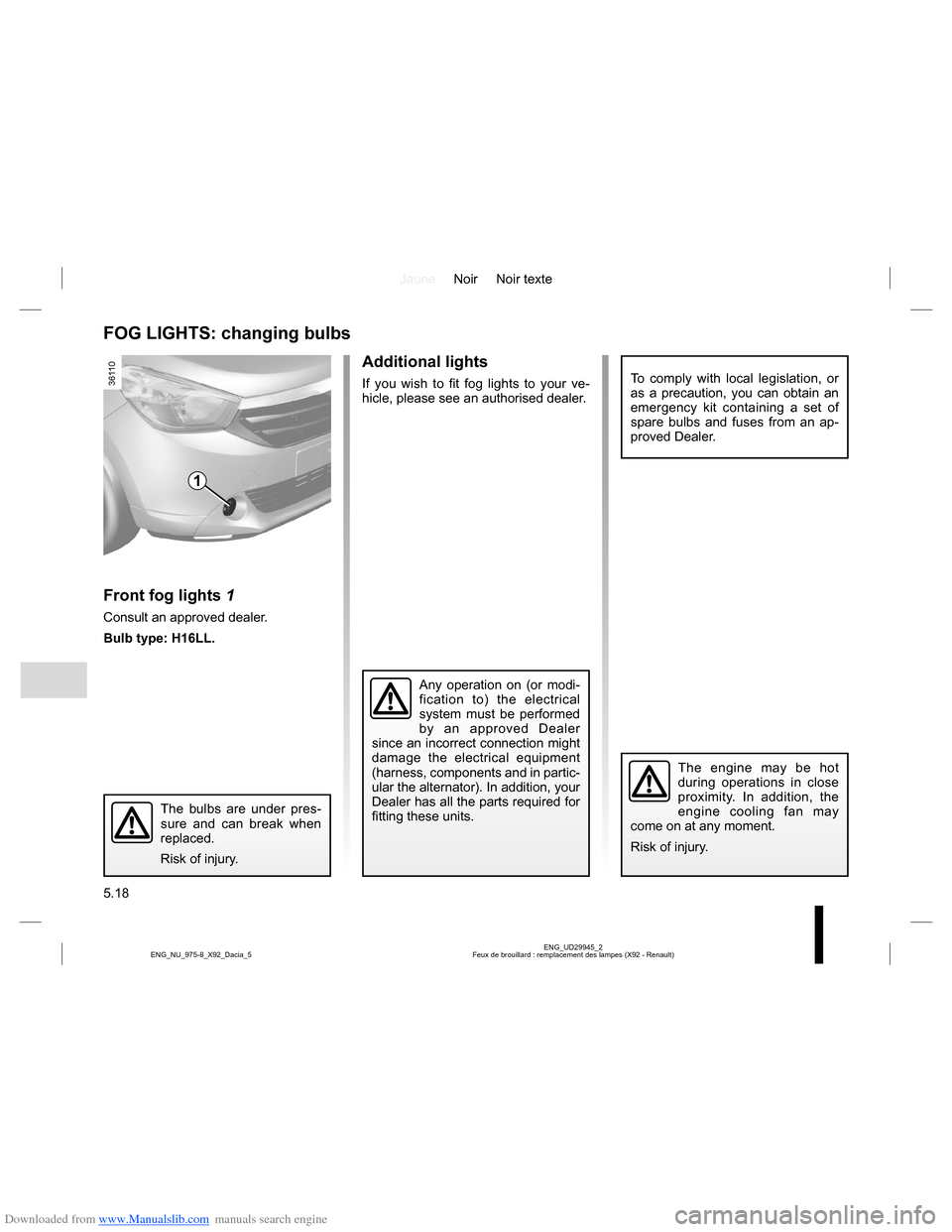

FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H16LL.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved Dealer.
1
Page 190 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.24
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
Fuses in passenger compartment A
If any electrical component does not
work, check the condition of the fuses.
Unclip the access flap A.
Check the fuse in question
and replace it, if necessary,
with a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.

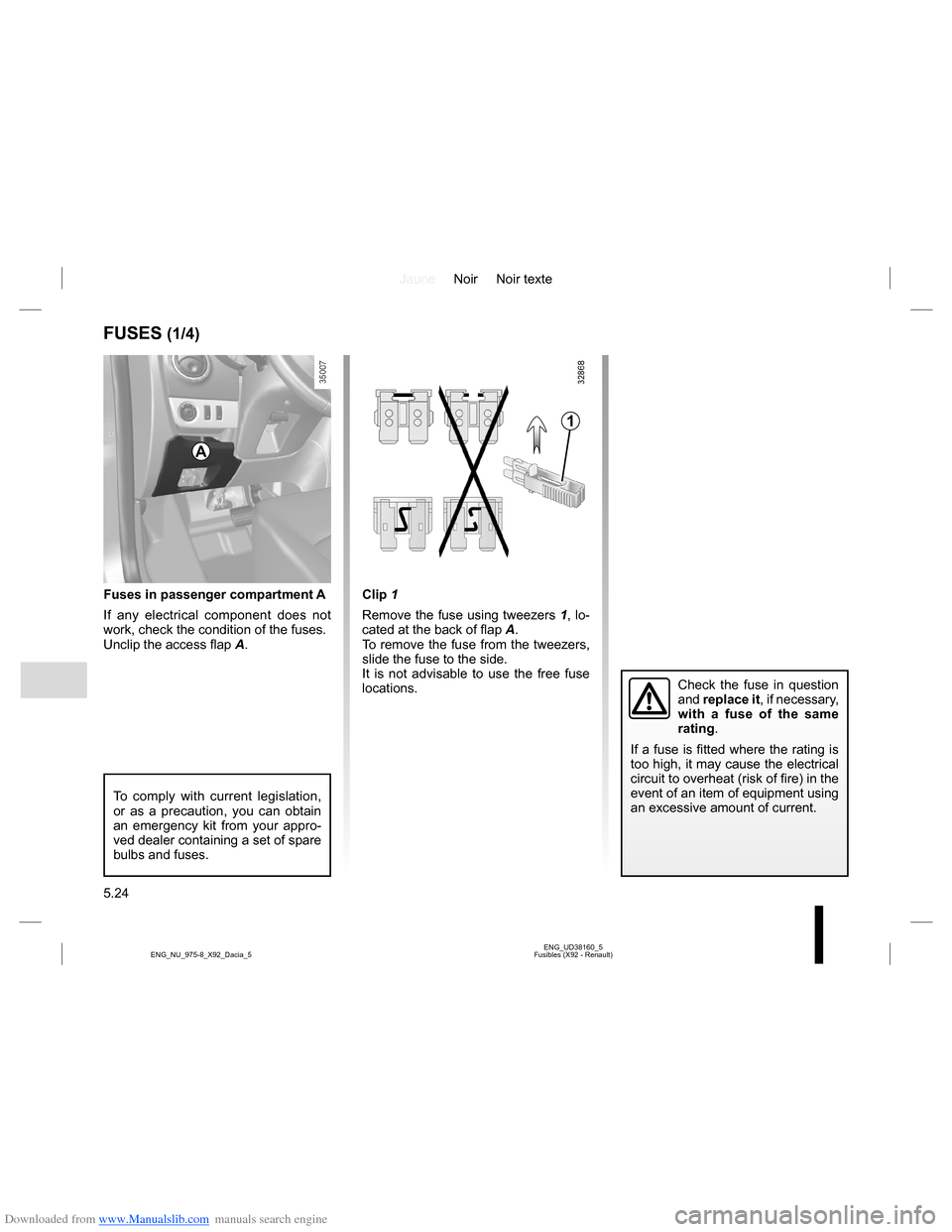

FUSES (1/4)
A
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from your appro-
ved dealer containing a set of spare
bulbs and fuses.
Clip 1
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
1
Page 191 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.25
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
FUSES (2/4)
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer.
B
Special features of LPG versions
The specific LPG circuit shut-off fuse 2
is located in the box B.
2
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.
Page 192 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.26
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5

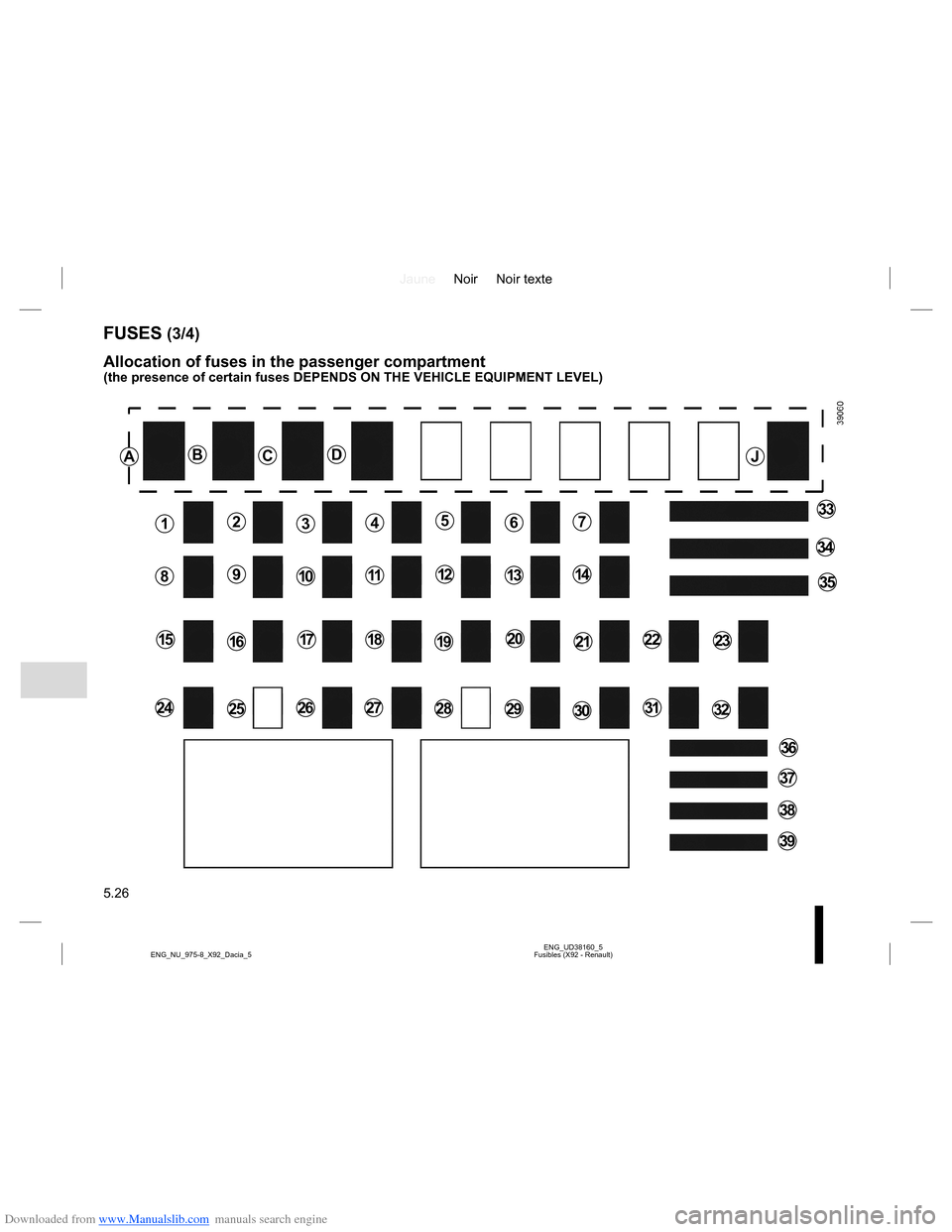

FUSES (3/4)
Allocation of fuses in the passenger compartment
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)
ABCDJ
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
28
6
13
20
29
7
14
21
30
22
31
23
32
33
34
35
36
37
38
39
Page 193 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.27
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
FUSES (4/4)
Number Allocation
A Electric rear window
BElectric door mirrors
CFront electric window
DAutomatic or sequential
gearbox
JThird row accessories
socket
1LPG
2Left-hand main beam
headlight
3Right-hand main beam
headlight
4Left-hand dipped beam
headlight
5Right-hand dipped beam
headlight
6Front side lights
7Rear side lights
8Rear accessories socket
9Rear fog lights
10HornNumber Allocation
11Automatic door locking
12Electronic stability
program ESC
13Courtesy light
14Reverse
15Windscreen wiper
16Heated seats
17Daytime running lights
18Brake lights
19Fuel pump, Injection
20Airbag
21Cruise control-Speed
limiter, rear windscreen,
unfastened seatbelt
warning, parking distance
control
22Power-assisted steering
23Location reserved for
additional equipment.Number Allocation
24 Direction indicator light
25 Not used
26Passenger compartment
ECU
27
and 29Steering column control
28Not used
30Location reserved for
additional equipment.
31Instrument panel
32Radio
33Starter, manual gearbox
34Windscreen wiper
35Passenger compartment
ventilation
36Cigar lighter
37Diagnostic socket
38Defrosting rearview mirror
39Front fog lights
Page 228 of 258
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
7.2
FRA_UD38226_8
Index (X92 - Renault) ENG_NU_975-8_X92_Dacia_7
ALPHABETICAL INDEX (2/5)
emergency braking ................................................2.24 → 2.26
emergency spare wheel ........................5.3 – 5.4, 5.14 → 5.16
engine
technical specifications .................................................. 6.4
engine coolant ..................................................................... 4.8
engine immobiliser (switch) ................................................. 2.2
engine oil ...................................................................4.4 → 4.6
engine oil level ............................................................ 4.5 – 4.6
engine specifications ........................................................... 6.4
engine standby ..........................................................2.5 → 2.7
environment ....................................................................... 2.18
ESC: electronic stability control .............................2.24 → 2.26
F
faults
operating faults ................................................5.36 → 5.40
filter
diesel filter .................................................................... 1.65
particle filter ................................................................... 2.9
fitting a radio ...................................................................... 5.34
fittings ....................................................................3.13 → 3.16
fog lights ............................................................................ 1.56
front passenger air bag deactivation ................................. 1.36
front seat adjustment ......................................................... 1.11
front seats .......................................................................... 1.11
adjustment ................................................................... 1.11
fuel
advice on fuel economy ...................................2.13 → 2.16
consumption ....................................................2.13 → 2.16
filling ............................................................................. 1.62
grade ..................................................................... 1.61, 6.4
fuel consumption ...................................................2.13 → 2.16
fuel economy .........................................................2.13 → 2.16
fuel filler cap ...................................................................... 1.61
fuel grade........................................................................... 1.61
fuel level ............................................................................ 1.48fuel priming bulb ................................................................ 1.65
fuel tank .................................................................1.61 → 1.65
fuel tank capacity ............................................................... 1.61
fuses ......................................................................5.24 → 5.27
G
gear lever........................................................................... 2.22
glove box ........................................................................... 3.13
grab handle........................................................................ 3.12
H
handbrake.......................................................................... 2.23
hands-free telephone integrated control ............................ 3.37
hazard warning lights signal .............................................. 1.58
headlight beam adjustment ............................................... 1.57
headlight flashers .............................................................. 1.58
headrest......................................................... 1.10, 3.19 – 3.20
heated seats ...................................................................... 1.11
heating and air conditioning system ..........................3.2 → 3.7
heating system ..........................................................3.2 → 3.7
horn ................................................................................... 1.58
hubcap tool .......................................................................... 5.2
I
ignition switch ...................................................................... 2.2
indicators .................................................................. 1.58, 5.17
indicators:
direction indicators ....................................................... 1.58
instrument panel ............................................... 1.47 – 1.48
instrument panel ....................................................1.42 → 1.53
instrument panel messages...................................1.49 → 1.53
interior trim
maintenance ..................................................... 4.16 – 4.17
Isofix ......................................................................1.26 → 1.35
Page 235 of 258

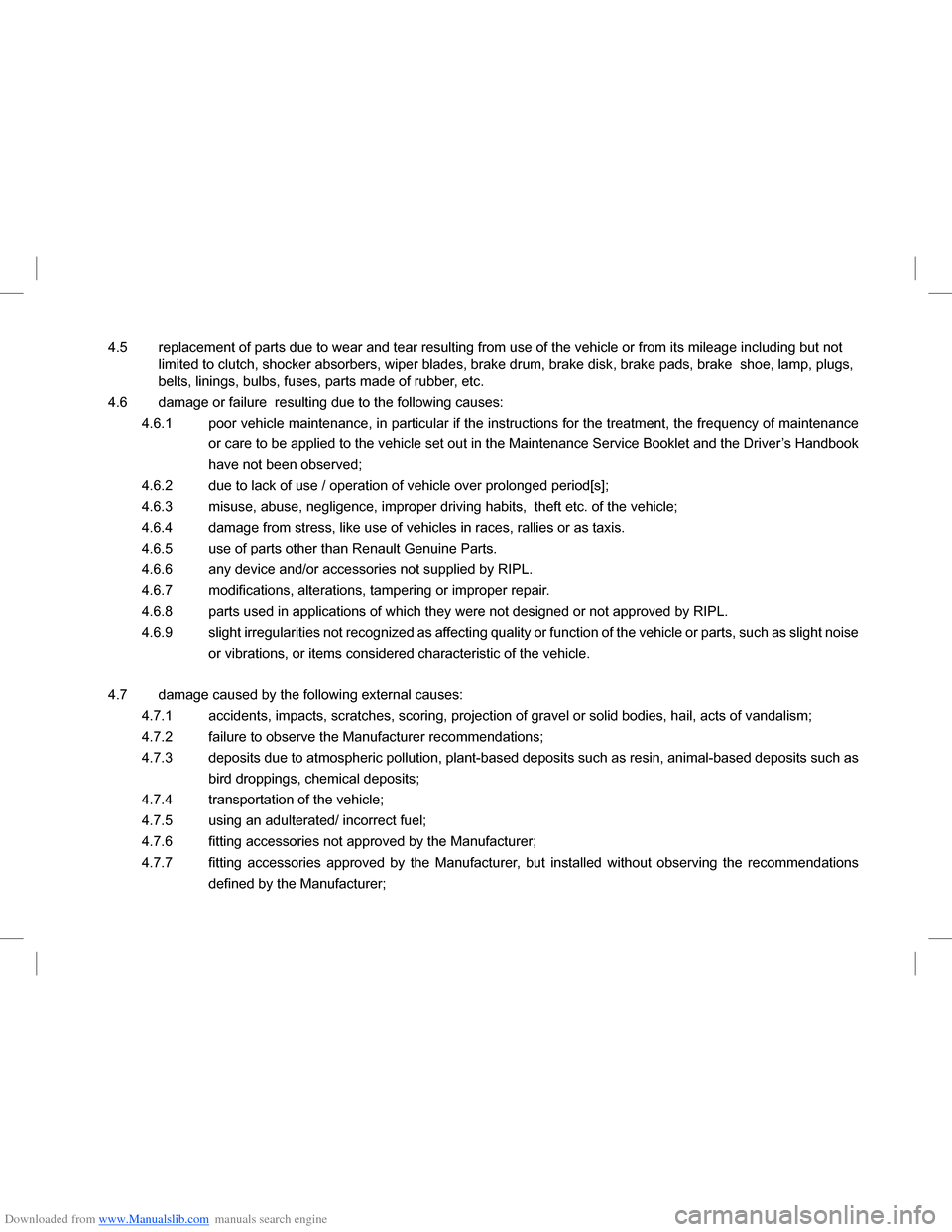

Downloaded from www.Manualslib.com manuals search engine 4.5 replacement of parts due to wear and tear resulting from use of the vehicle or from its mileage including but not
limited to clutch, shocker absorbers, wiper blades, brake drum, brake disk, brake pads, brake shoe, lamp, plugs,
belts, linings, bulbs, fuses, parts made of rubber, etc.
4.6 damage or failure resulting due to the following causes:
4.6.1 poor vehicle maintenance, in particular if the instructions for the treatment, the frequency of maintenance
or care to be applied to the vehicle set out in the Maintenance Service Booklet and the Driver’s Handbook
have not been observed;
4.6.2 due to lack of use / operation of vehicle over prolonged period[s];
4.6.3 misuse, abuse, negligence, improper driving habits, theft etc. of the vehicle;
4.6.4 damage from stress, like use of vehicles in races, rallies or as taxis.
4.6.5 use of parts other than Renault Genuine Parts.
4.6.6 any device and/or accessories not supplied by RIPL.
4.6.7 modifications, alterations, tampering or improper repair.
4.6.8 parts used in applications of which they were not designed or not approved by RIPL.
4.6.9 slight irregularities not recognized as affecting quality or function of the vehicle or parts, such as slight noise
or vibrations, or items considered characteristic of the vehicle.
4.7 damage caused by the following external causes:
4.7.1 accidents, impacts, scratches, scoring, projection of gravel or solid bodies, hail, acts of vandalism;
4.7.2 failure to observe the Manufacturer recommendations;
4.7.3 deposits due to atmospheric pollution, plant-based deposits such as resin, animal-based deposits such as
bird droppings, chemical deposits;
4.7.4 transportation of the vehicle;
4.7.5 using an adulterated/ incorrect fuel;
4.7.6 fitting accessories not approved by the Manufacturer;
4.7.7 fitting accessories approved by the Manufacturer, but installed without observing the recommendations
defined by the Manufacturer;
