DODGE CALIBER 2008 1.G Owners Manual

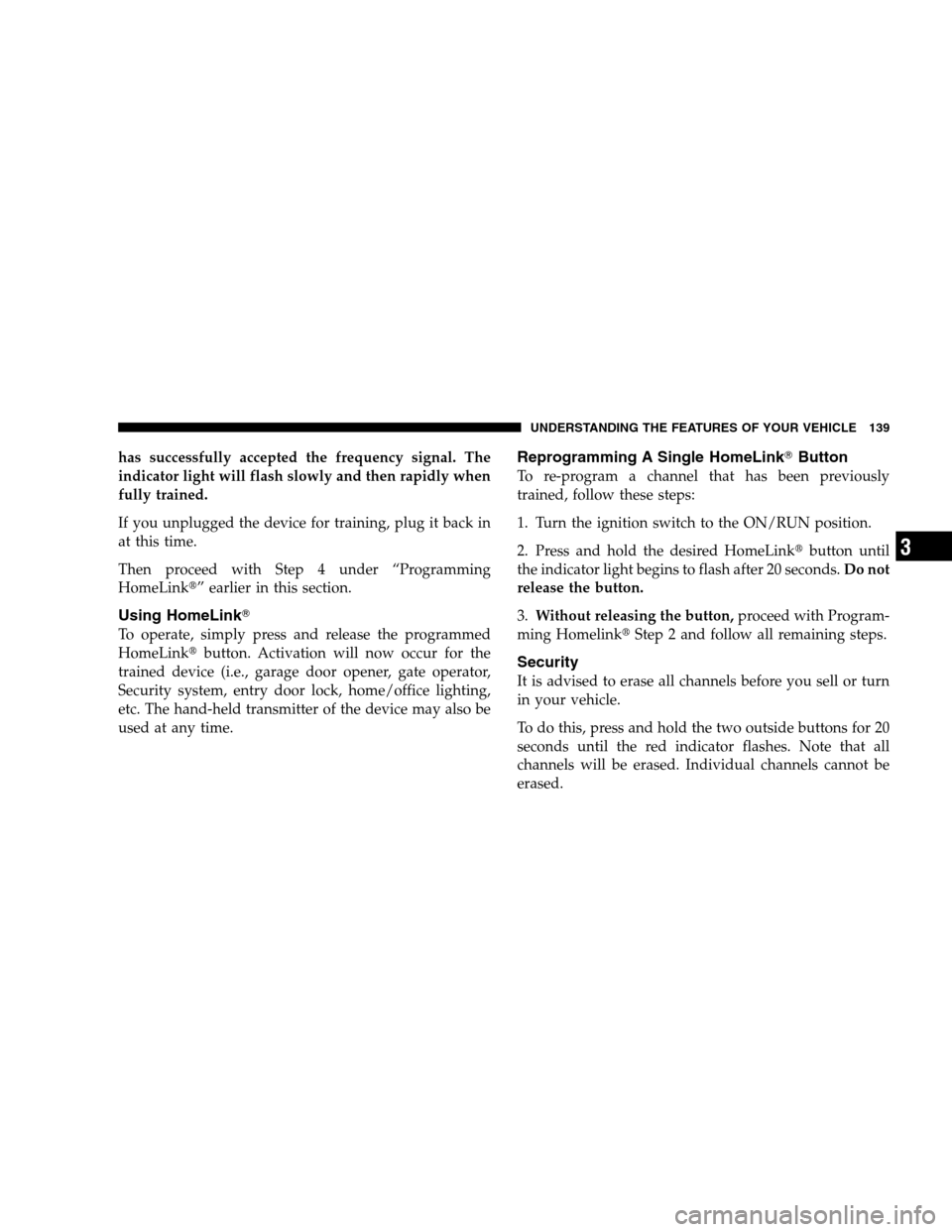

has successfully accepted the frequency signal. The
indicator light will flash slowly and then rapidly when
fully trained.
If you unplugged the device for training, plug it back in
at this time.
Then proceed with Step 4 under “Programming
HomeLink” earlier in this section.
Using HomeLink
To operate, simply press and release the programmed
HomeLinkbutton. Activation will now occur for the
trained device (i.e., garage door opener, gate operator,
Security system, entry door lock, home/office lighting,
etc. The hand-held transmitter of the device may also be
used at any time.
Reprogramming A Single HomeLinkButton
To re-program a channel that has been previously
trained, follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinkbutton until
the indicator light begins to flash after 20 seconds.Do not
release the button.
3.Without releasing the button,proceed with Program-
ming HomelinkStep 2 and follow all remaining steps.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for 20
seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3

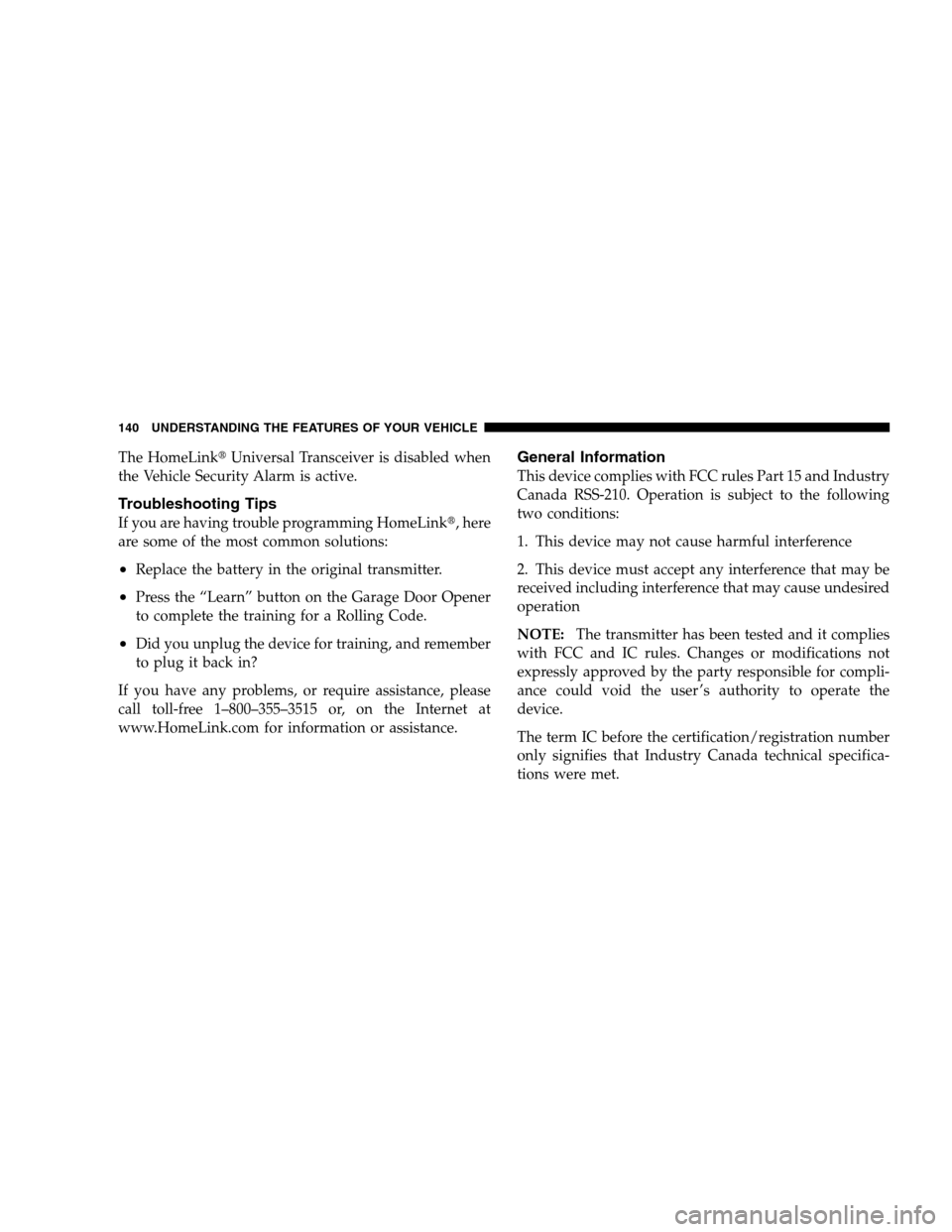

The HomeLinkUniversal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink, here
are some of the most common solutions:
•Replace the battery in the original transmitter.
•Press the “Learn” button on the Garage Door Opener
to complete the training for a Rolling Code.
•Did you unplug the device for training, and remember
to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference that may be
received including interference that may cause undesired
operation
NOTE:The transmitter has been tested and it complies
with FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
The term IC before the certification/registration number
only signifies that Industry Canada technical specifica-
tions were met.
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

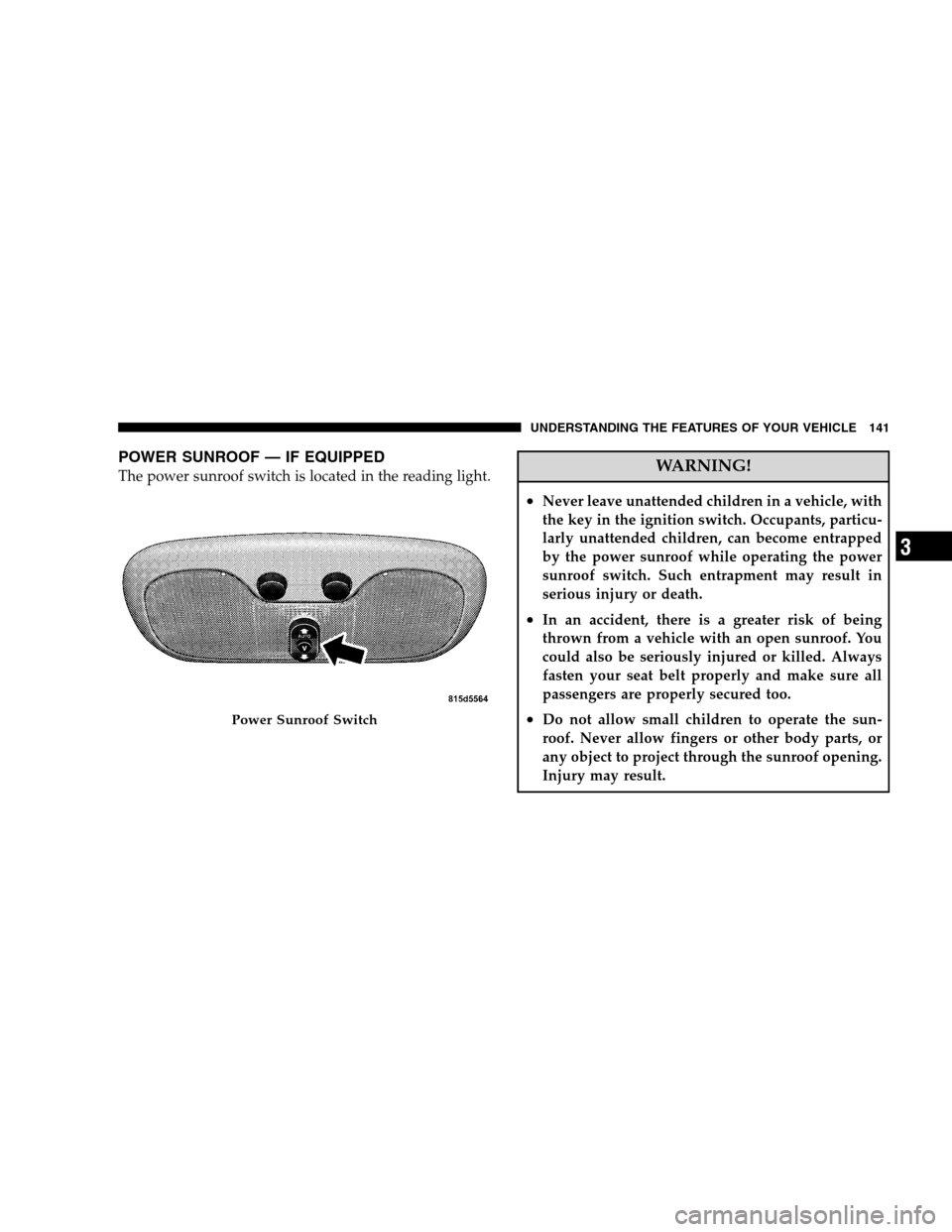

POWER SUNROOF — IF EQUIPPED
The power sunroof switch is located in the reading light.WARNING!
•Never leave unattended children in a vehicle, with
the key in the ignition switch. Occupants, particu-
larly unattended children, can become entrapped
by the power sunroof while operating the power
sunroof switch. Such entrapment may result in
serious injury or death.
•In an accident, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.
•Do not allow small children to operate the sun-
roof. Never allow fingers or other body parts, or
any object to project through the sunroof opening.
Injury may result.Power Sunroof Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

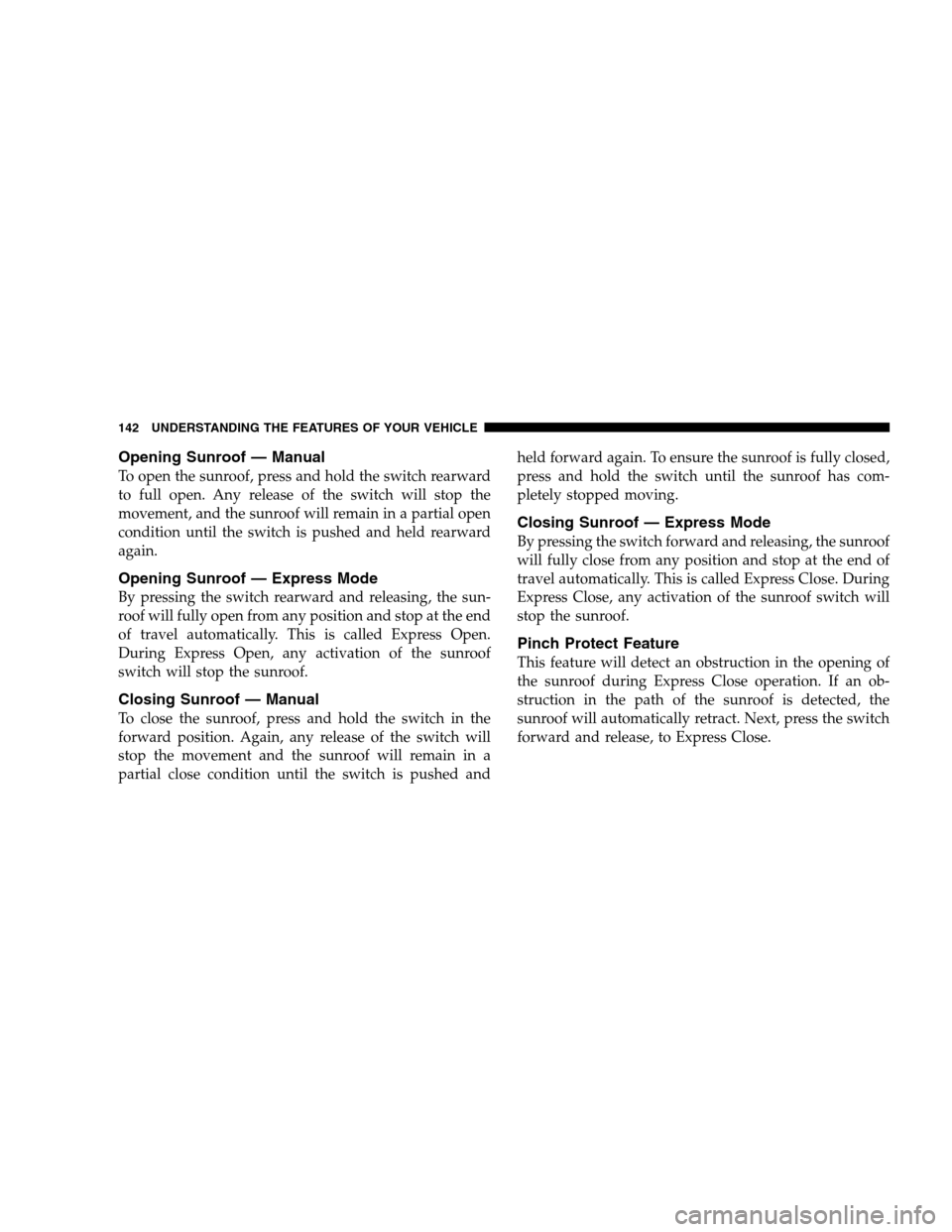

Opening Sunroof — Manual
To open the sunroof, press and hold the switch rearward
to full open. Any release of the switch will stop the
movement, and the sunroof will remain in a partial open
condition until the switch is pushed and held rearward
again.
Opening Sunroof — Express Mode
By pressing the switch rearward and releasing, the sun-
roof will fully open from any position and stop at the end
of travel automatically. This is called Express Open.
During Express Open, any activation of the sunroof
switch will stop the sunroof.
Closing Sunroof — Manual
To close the sunroof, press and hold the switch in the
forward position. Again, any release of the switch will
stop the movement and the sunroof will remain in a
partial close condition until the switch is pushed andheld forward again. To ensure the sunroof is fully closed,
press and hold the switch until the sunroof has com-
pletely stopped moving.
Closing Sunroof — Express Mode
By pressing the switch forward and releasing, the sunroof
will fully close from any position and stop at the end of
travel automatically. This is called Express Close. During
Express Close, any activation of the sunroof switch will
stop the sunroof.
Pinch Protect Feature
This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction in the path of the sunroof is detected, the
sunroof will automatically retract. Next, press the switch
forward and release, to Express Close.
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

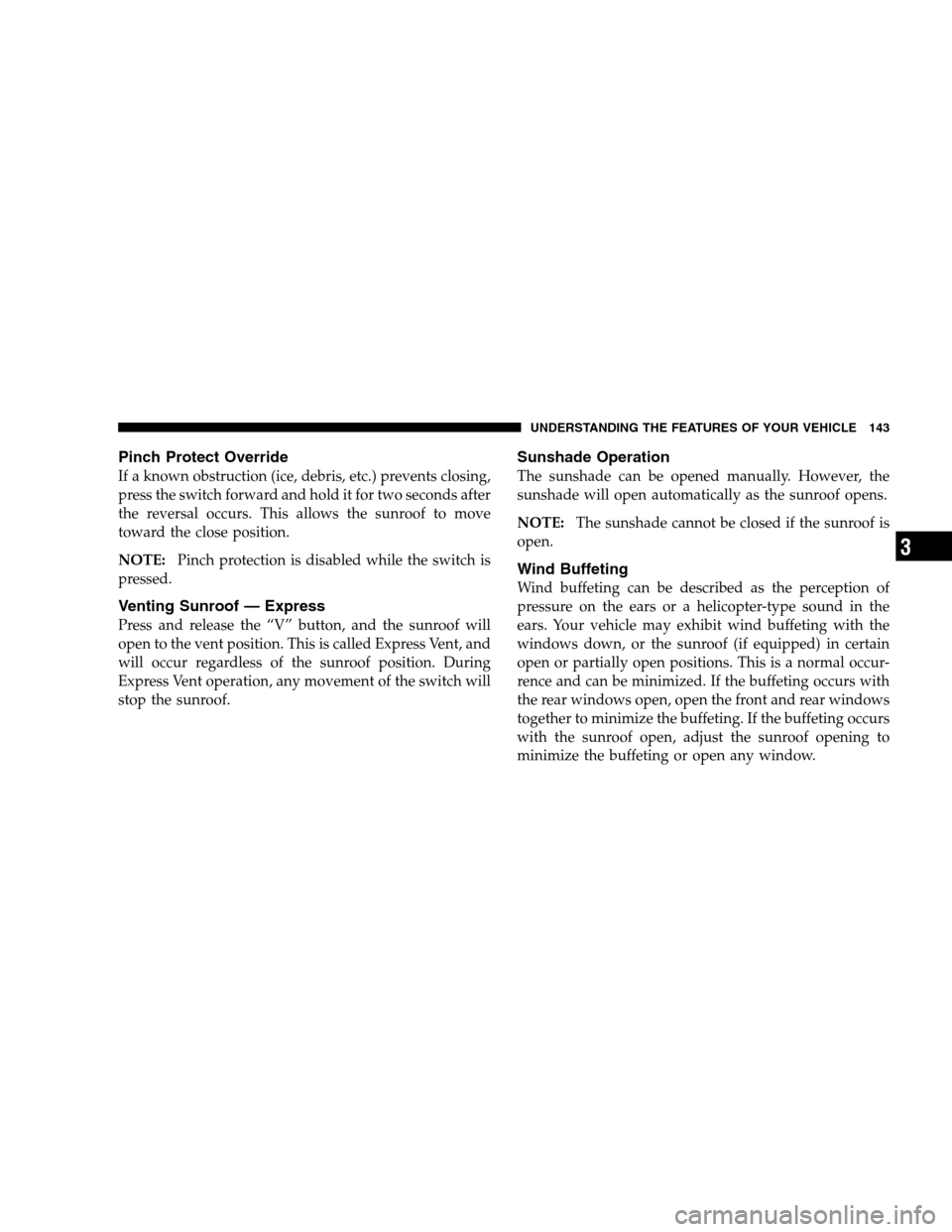

Pinch Protect Override
If a known obstruction (ice, debris, etc.) prevents closing,
press the switch forward and hold it for two seconds after
the reversal occurs. This allows the sunroof to move
toward the close position.
NOTE:Pinch protection is disabled while the switch is
pressed.
Venting Sunroof — Express
Press and release the “V” button, and the sunroof will
open to the vent position. This is called Express Vent, and
will occur regardless of the sunroof position. During
Express Vent operation, any movement of the switch will
stop the sunroof.
Sunshade Operation
The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.
NOTE:The sunshade cannot be closed if the sunroof is
open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

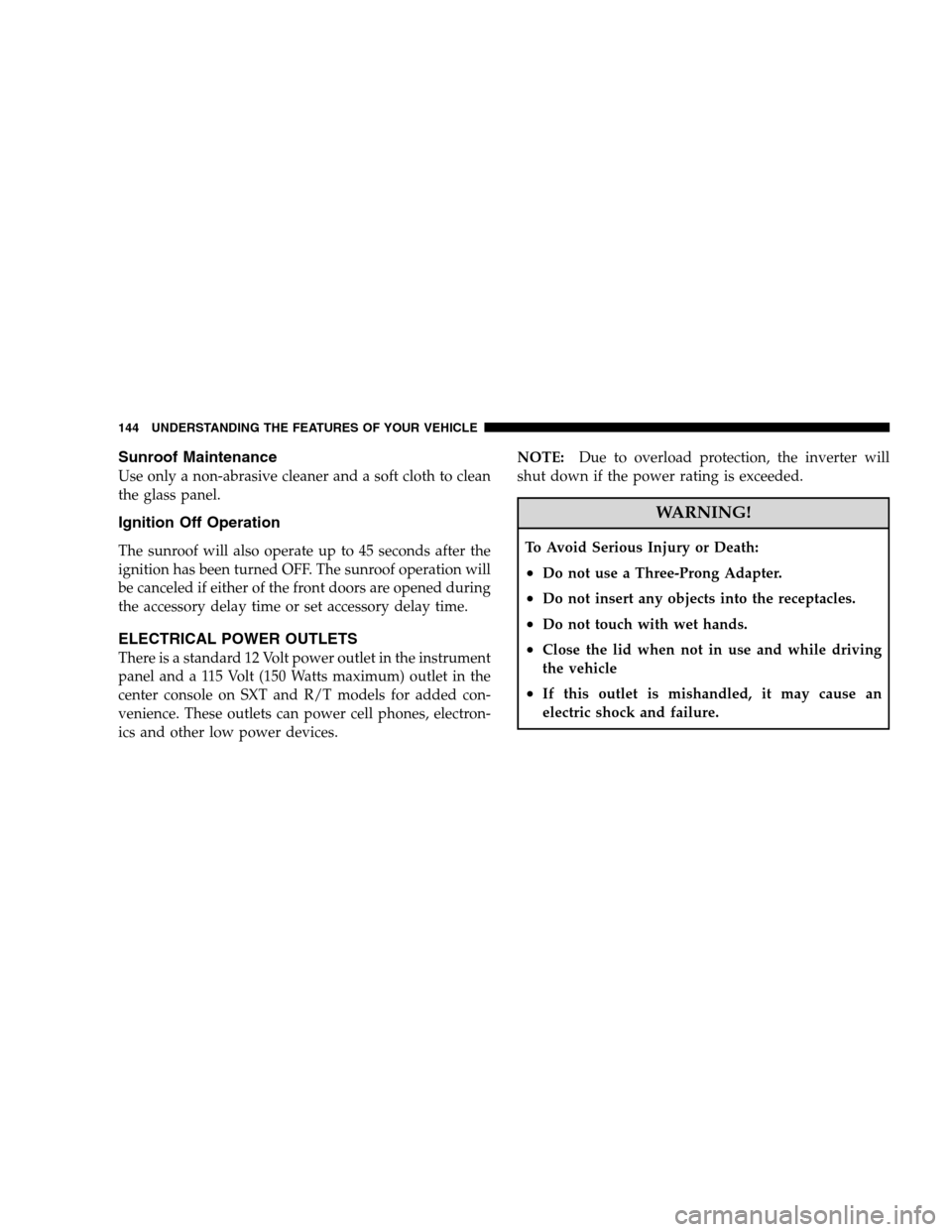

Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
Ignition Off Operation
The sunroof will also operate up to 45 seconds after the
ignition has been turned OFF. The sunroof operation will
be canceled if either of the front doors are opened during
the accessory delay time or set accessory delay time.
ELECTRICAL POWER OUTLETS
There is a standard 12 Volt power outlet in the instrument
panel and a 115 Volt (150 Watts maximum) outlet in the
center console on SXT and R/T models for added con-
venience. These outlets can power cell phones, electron-
ics and other low power devices.NOTE:Due to overload protection, the inverter will
shut down if the power rating is exceeded.
WARNING!
To Avoid Serious Injury or Death:
•Do not use a Three-Prong Adapter.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle
•If this outlet is mishandled, it may cause an
electric shock and failure.
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

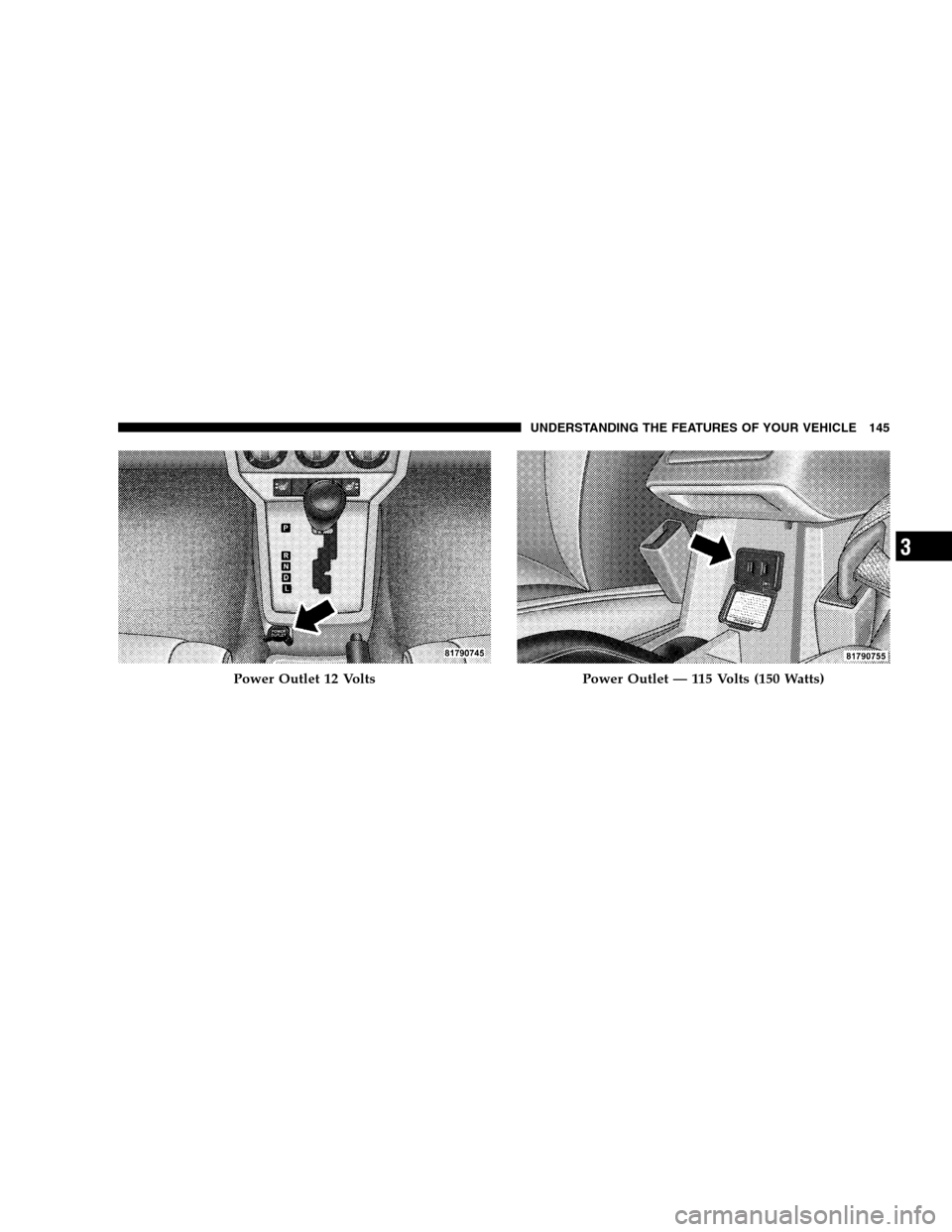

Power Outlet 12 VoltsPower Outlet — 115 Volts (150 Watts)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

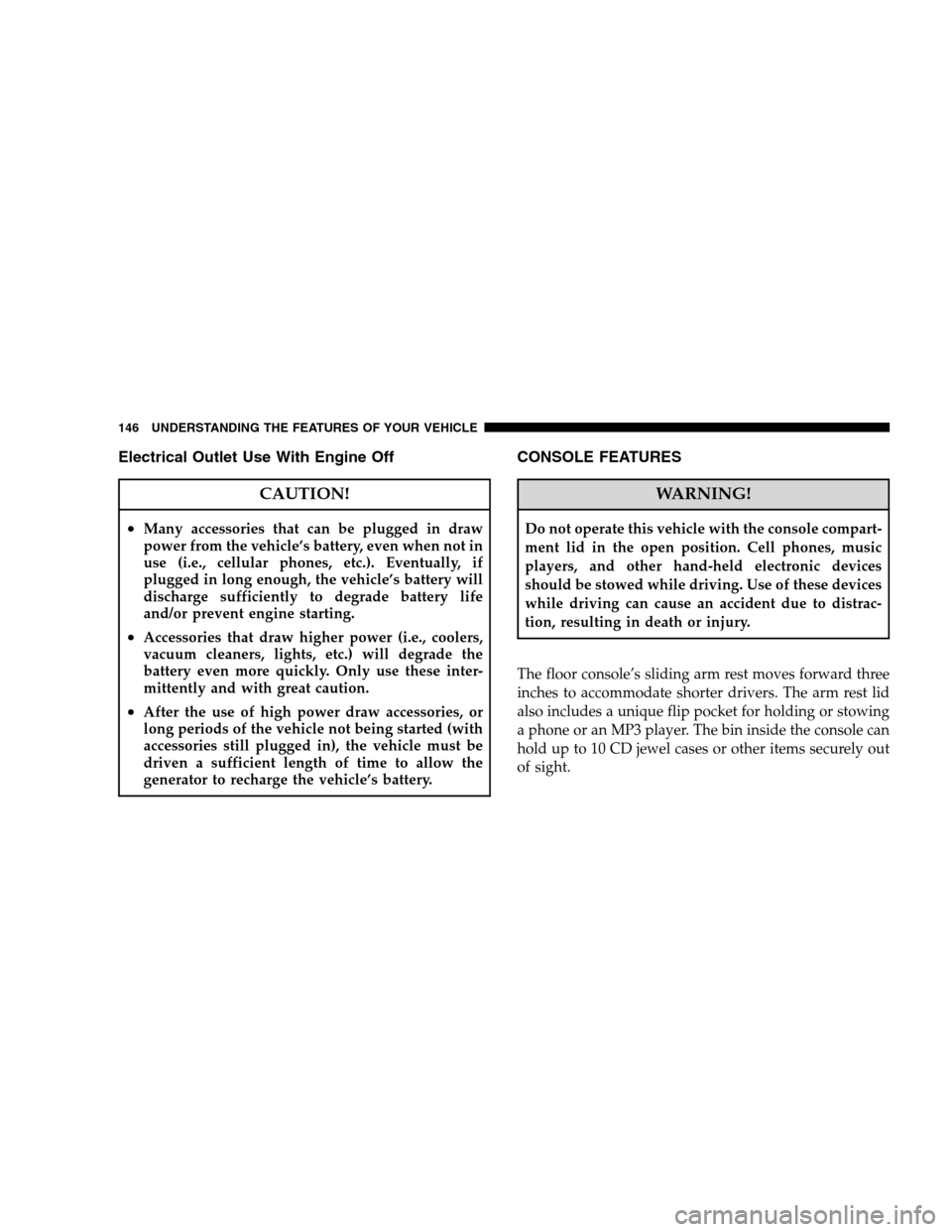

Electrical Outlet Use With Engine Off
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with great caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
CONSOLE FEATURES
WARNING!
Do not operate this vehicle with the console compart-
ment lid in the open position. Cell phones, music
players, and other hand-held electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
The floor console’s sliding arm rest moves forward three
inches to accommodate shorter drivers. The arm rest lid
also includes a unique flip pocket for holding or stowing
a phone or an MP3 player. The bin inside the console can
hold up to 10 CD jewel cases or other items securely out
of sight.
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

A 115 Volt outlet to power small electronics is on the
console and is standard on all models except the SE
model. For more information on this outlet, refer to the
“Electrical Power Outlets” section in this book.NOTE:The flip pocket and console lid features are
intended to be used in the upright or open position only
while the vehicle is parked. While driving, all hand-held
devices should be properly stowed, and the flip pocket
and the console lid should be closed.
CARGO AREA FEATURES
Cargo Light/Removable Self-Recharging
Flashlight – If Equipped
The dual-function light is mounted in the headliner
above the cargo area to illuminate the cargo area, and
part of it snaps out of the bezel to serve as a flashlight
when needed. The flashlight features two bright LED
light bulbs and is powered by rechargeable lithium
batteries that recharge when snapped back into place for
convenience.

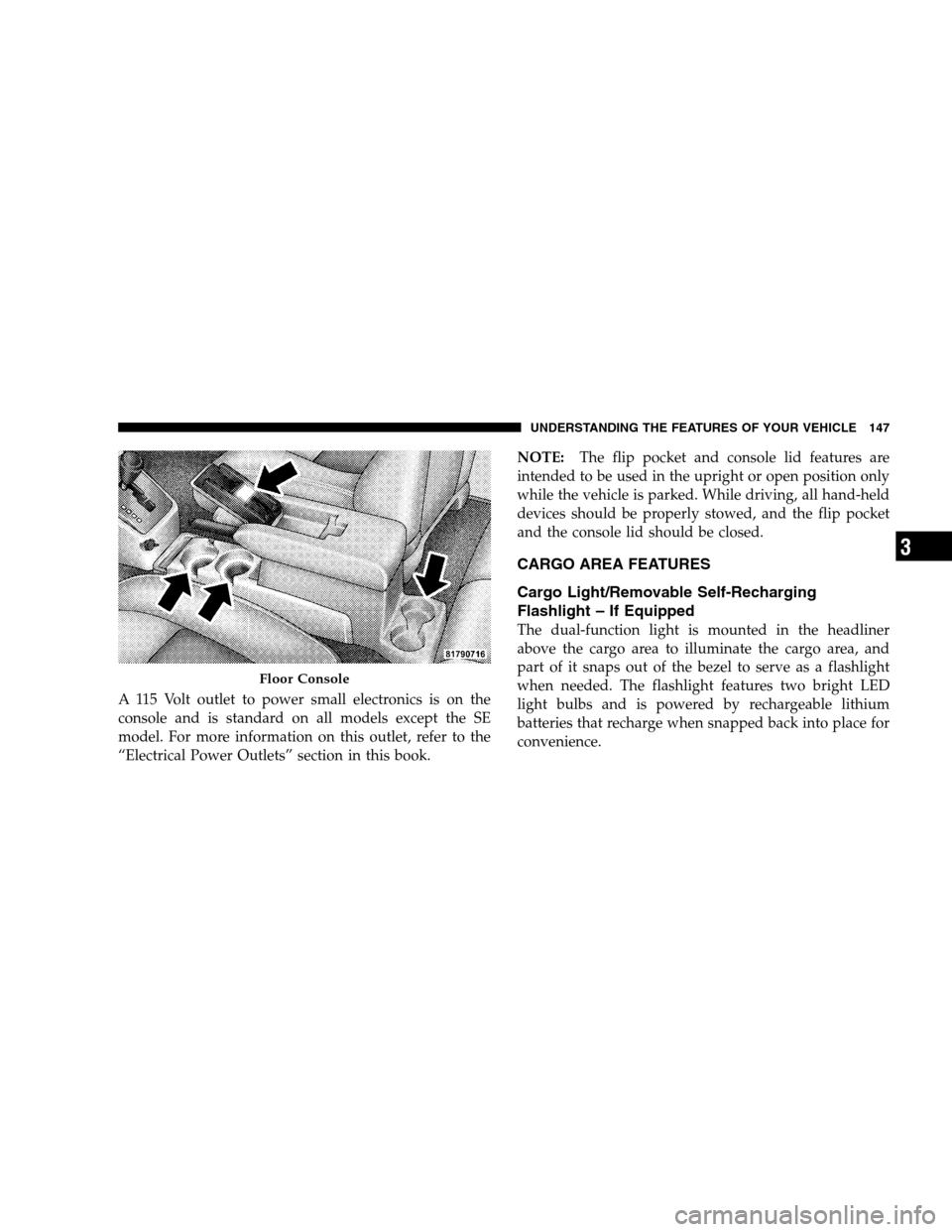

Floor Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

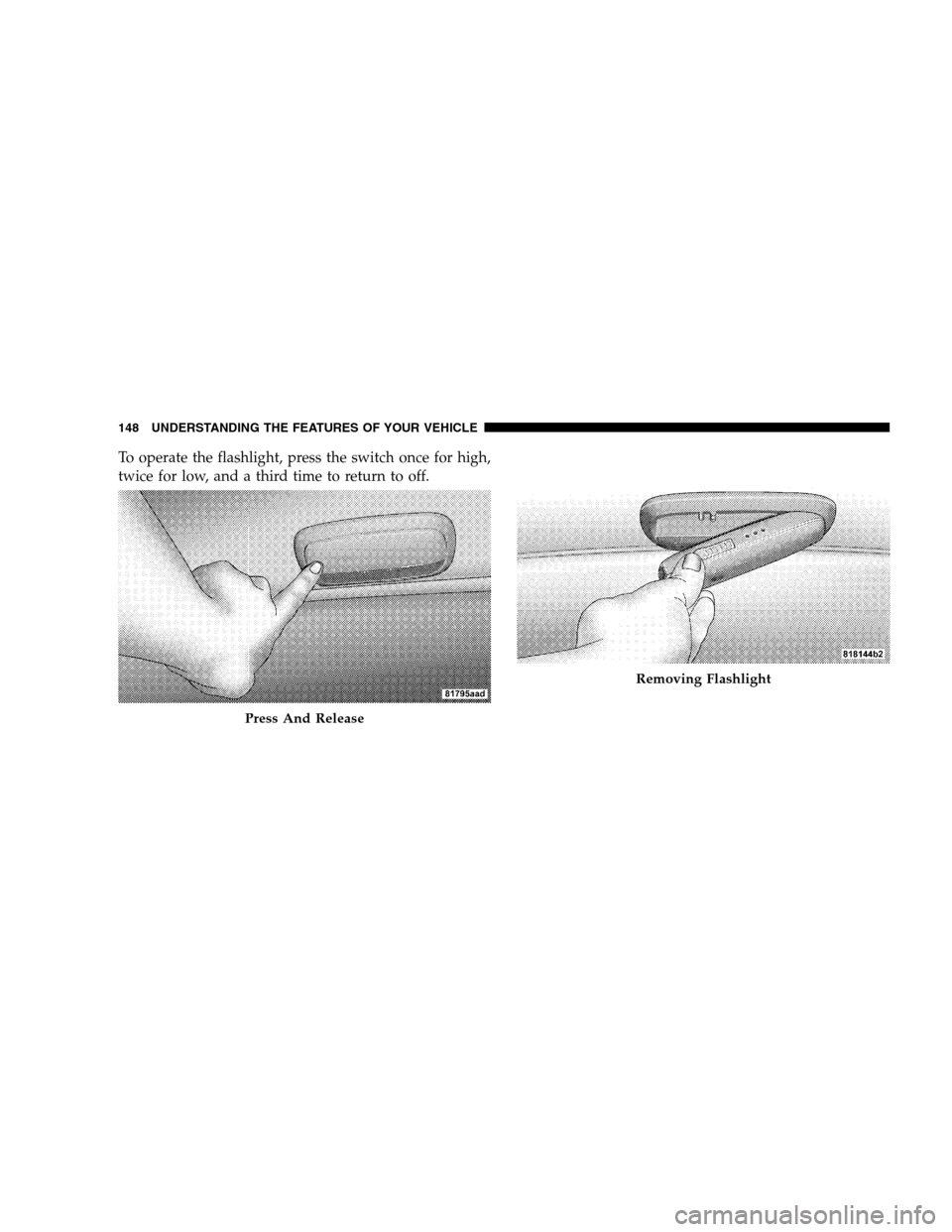

To operate the flashlight, press the switch once for high,
twice for low, and a third time to return to off.
Press And Release
Removing Flashlight
