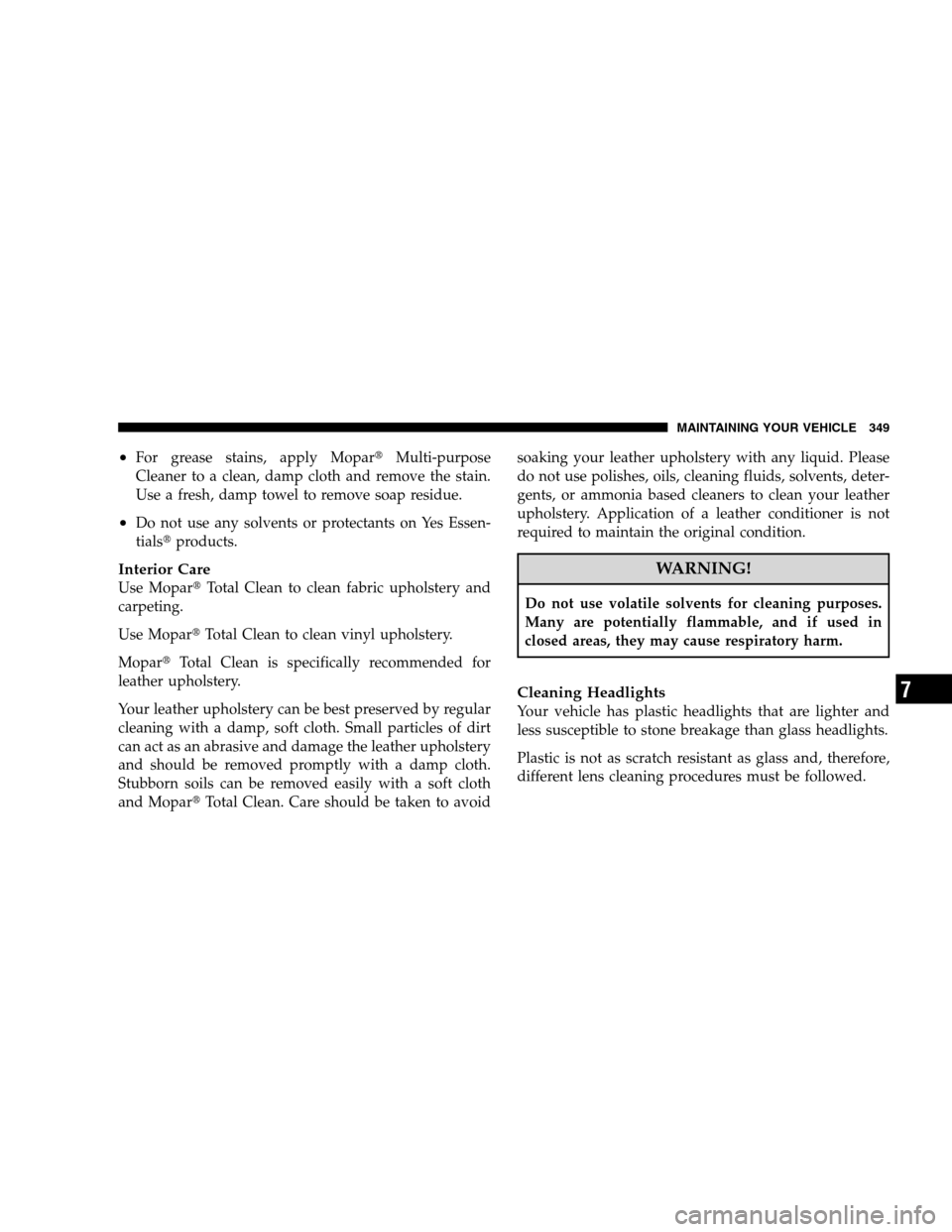

•For grease stains, apply MoparMulti-purpose
Cleaner to a clean, damp cloth and remove the stain.
Use a fresh, damp towel to remove soap residue.
•Do not use any solvents or protectants on Yes Essen-
tialsproducts.
Interior Care
Use MoparTotal Clean to clean fabric upholstery and
carpeting.
Use MoparTotal Clean to clean vinyl upholstery.
MoparTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp, soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MoparTotal Clean. Care should be taken to avoidsoaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas, they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and, therefore,
different lens cleaning procedures must be followed.
MAINTAINING YOUR VEHICLE 349
7

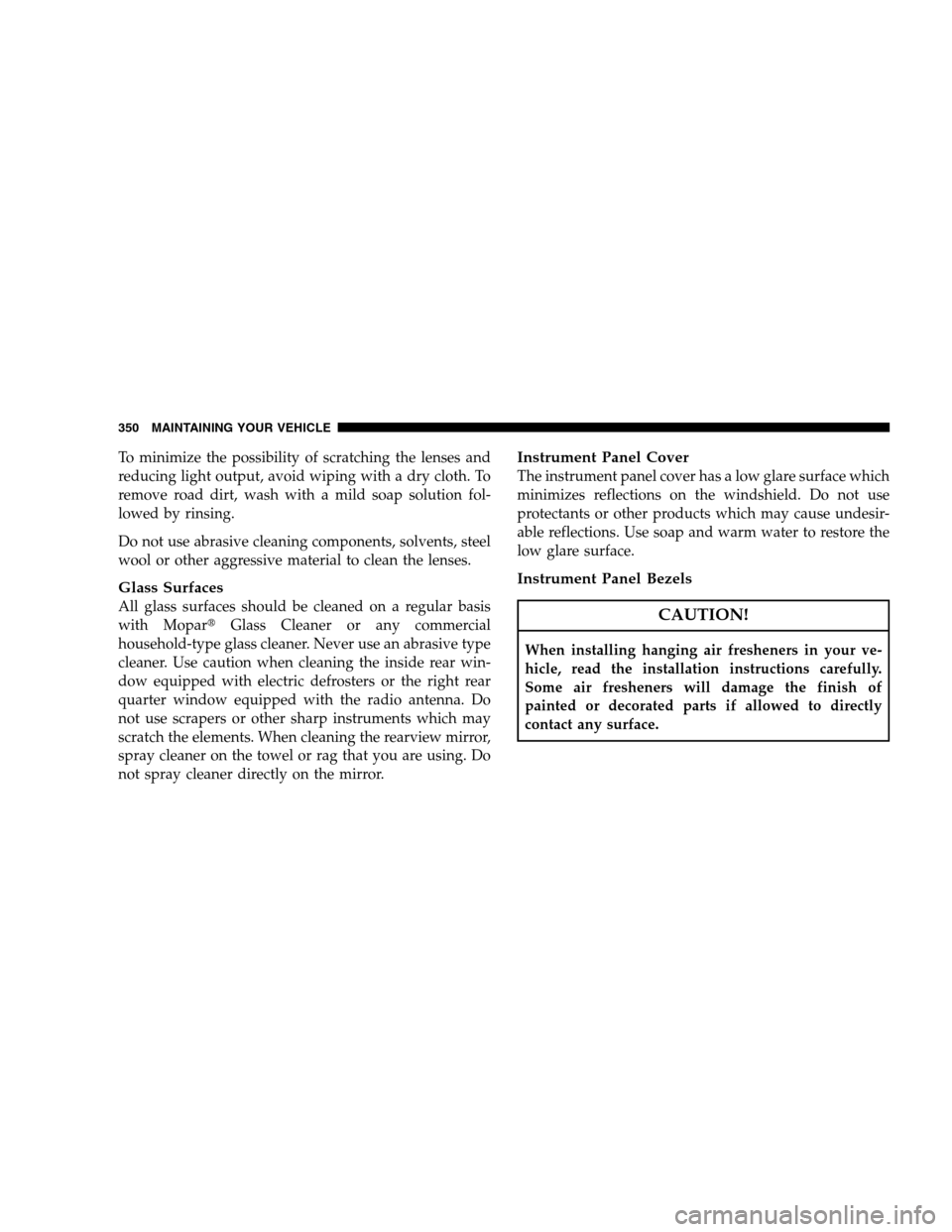

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MoparGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may
scratch the elements. When cleaning the rearview mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
Instrument Panel Bezels
CAUTION!
When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.
350 MAINTAINING YOUR VEHICLE

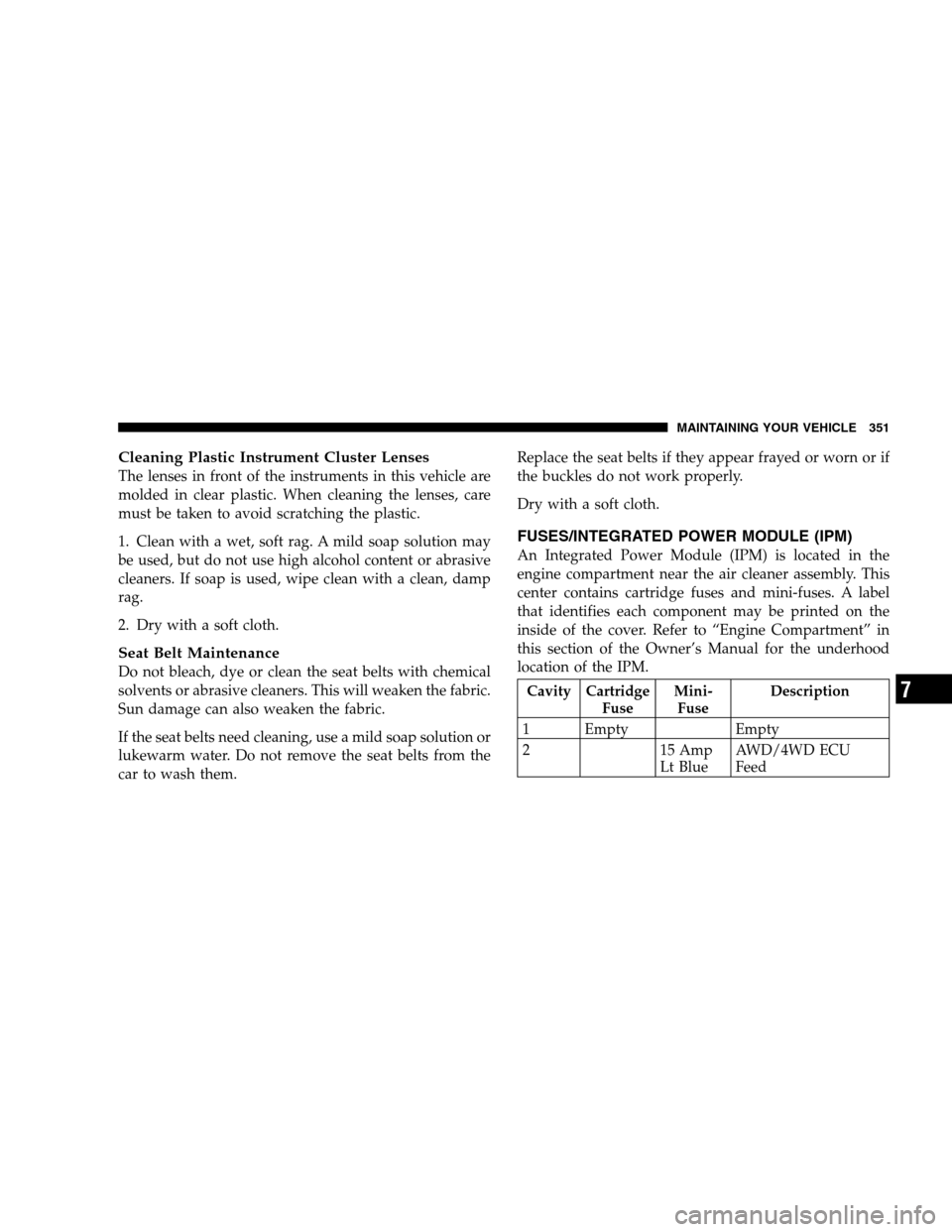

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet, soft rag. A mild soap solution may
be used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean, damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the seat belts from the
car to wash them.Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.
Dry with a soft cloth.
FUSES/INTEGRATED POWER MODULE (IPM)
An Integrated Power Module (IPM) is located in the
engine compartment near the air cleaner assembly. This
center contains cartridge fuses and mini-fuses. A label
that identifies each component may be printed on the
inside of the cover. Refer to “Engine Compartment” in
this section of the Owner’s Manual for the underhood
location of the IPM.
Cavity Cartridge
FuseMini-
FuseDescription
1 Empty Empty
2 15 Amp
Lt BlueAWD/4WD ECU
Feed
MAINTAINING YOUR VEHICLE 351
7

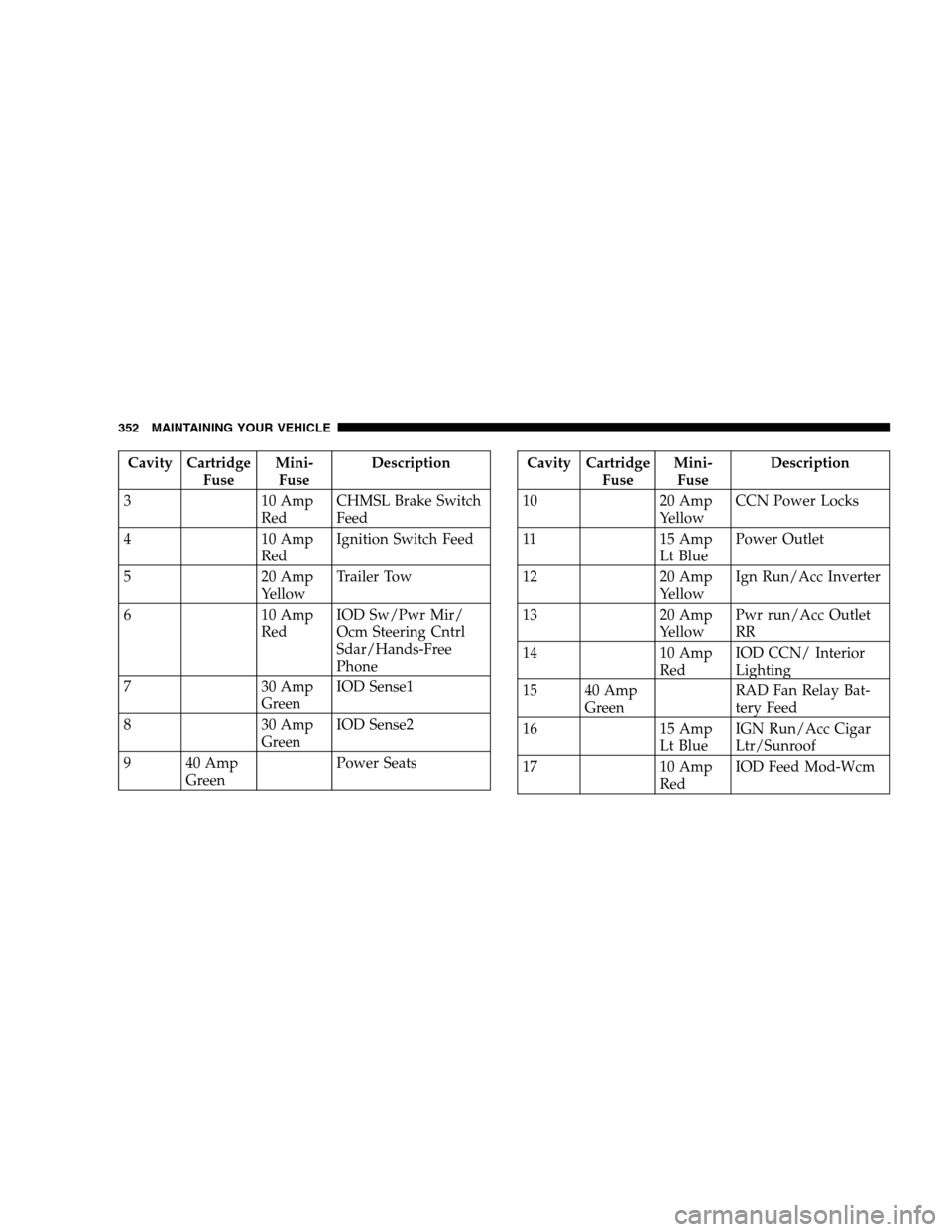

Cavity Cartridge
FuseMini-
FuseDescription
3 10 Amp
RedCHMSL Brake Switch
Feed
4 10 Amp
RedIgnition Switch Feed
5 20 Amp
YellowTrailer Tow
6 10 Amp
RedIOD Sw/Pwr Mir/
Ocm Steering Cntrl
Sdar/Hands-Free
Phone
7 30 Amp
GreenIOD Sense1
8 30 Amp
GreenIOD Sense2
9 40 Amp
GreenPower SeatsCavity Cartridge
FuseMini-
FuseDescription
10 20 Amp
YellowCCN Power Locks
11 15 Amp
Lt BluePower Outlet
12 20 Amp
YellowIgn Run/Acc Inverter
13 20 Amp
YellowPwr run/Acc Outlet
RR
14 10 Amp
RedIOD CCN/ Interior
Lighting
15 40 Amp
GreenRAD Fan Relay Bat-
tery Feed
16 15 Amp
Lt BlueIGN Run/Acc Cigar
Ltr/Sunroof
17 10 Amp
RedIOD Feed Mod-Wcm
352 MAINTAINING YOUR VEHICLE

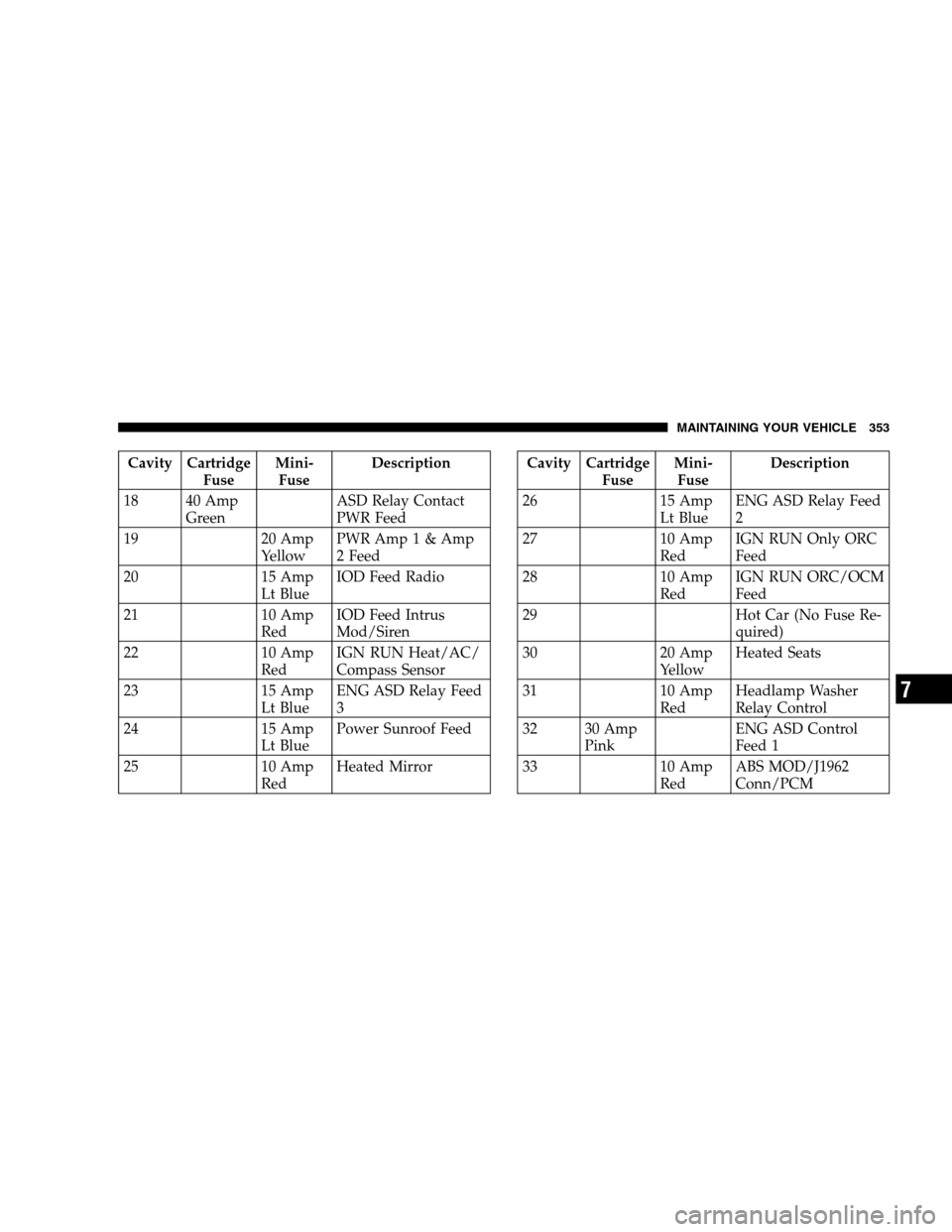

Cavity Cartridge
FuseMini-
FuseDescription
18 40 Amp
GreenASD Relay Contact
PWR Feed
19 20 Amp
YellowPWR Amp 1 & Amp
2 Feed
20 15 Amp
Lt BlueIOD Feed Radio
21 10 Amp
RedIOD Feed Intrus
Mod/Siren
22 10 Amp
RedIGN RUN Heat/AC/
Compass Sensor
23 15 Amp
Lt BlueENG ASD Relay Feed
3
24 15 Amp
Lt BluePower Sunroof Feed
25 10 Amp
RedHeated MirrorCavity Cartridge
FuseMini-
FuseDescription
26 15 Amp
Lt BlueENG ASD Relay Feed
2
27 10 Amp
RedIGN RUN Only ORC
Feed
28 10 Amp
RedIGN RUN ORC/OCM
Feed
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
YellowHeated Seats
31 10 Amp
RedHeadlamp Washer
Relay Control
32 30 Amp
PinkENG ASD Control
Feed 1
33 10 Amp
RedABS MOD/J1962
Conn/PCM
MAINTAINING YOUR VEHICLE 353
7

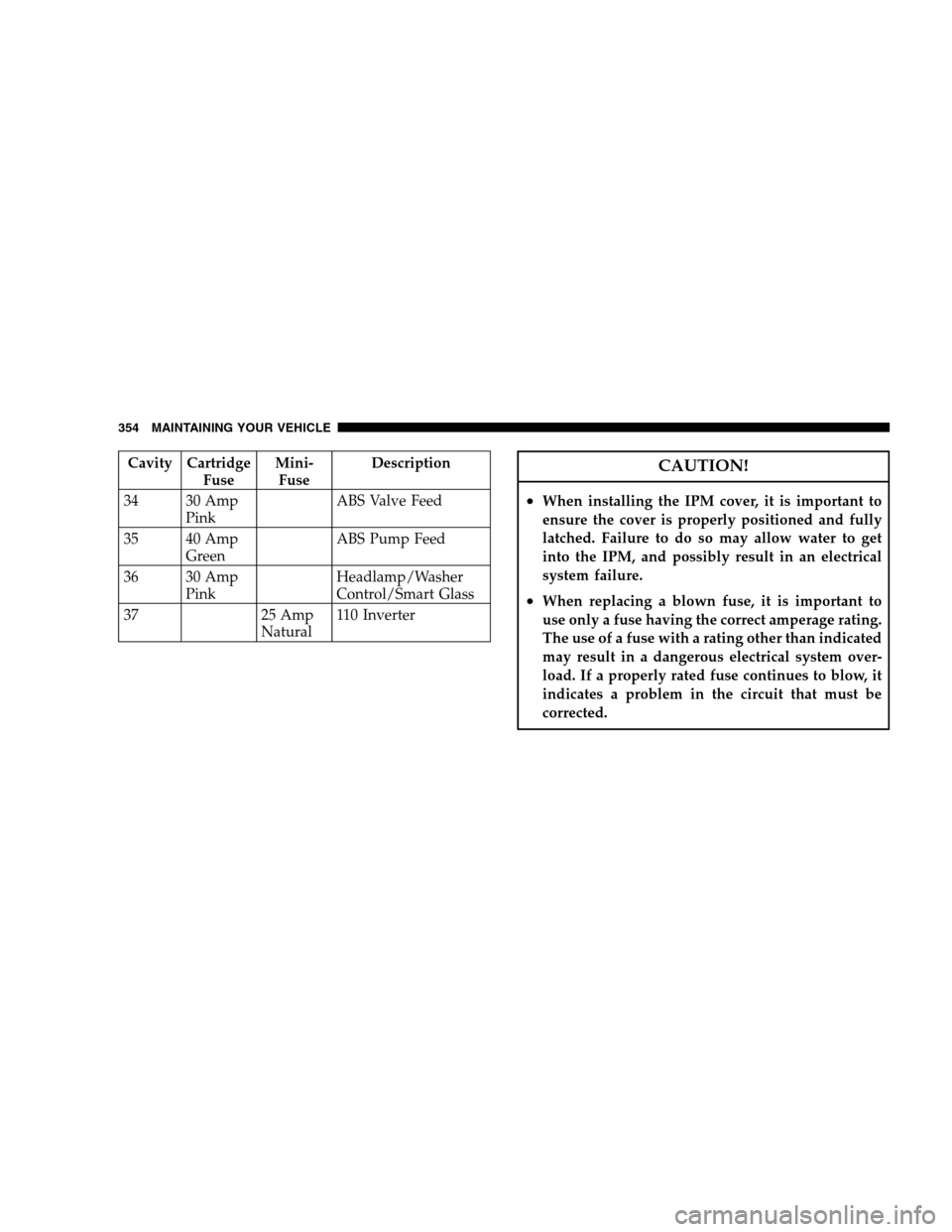

Cavity Cartridge
FuseMini-
FuseDescription
34 30 Amp
PinkABS Valve Feed
35 40 Amp
GreenABS Pump Feed
36 30 Amp
PinkHeadlamp/Washer
Control/Smart Glass
37 25 Amp
Natural110 InverterCAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
354 MAINTAINING YOUR VEHICLE

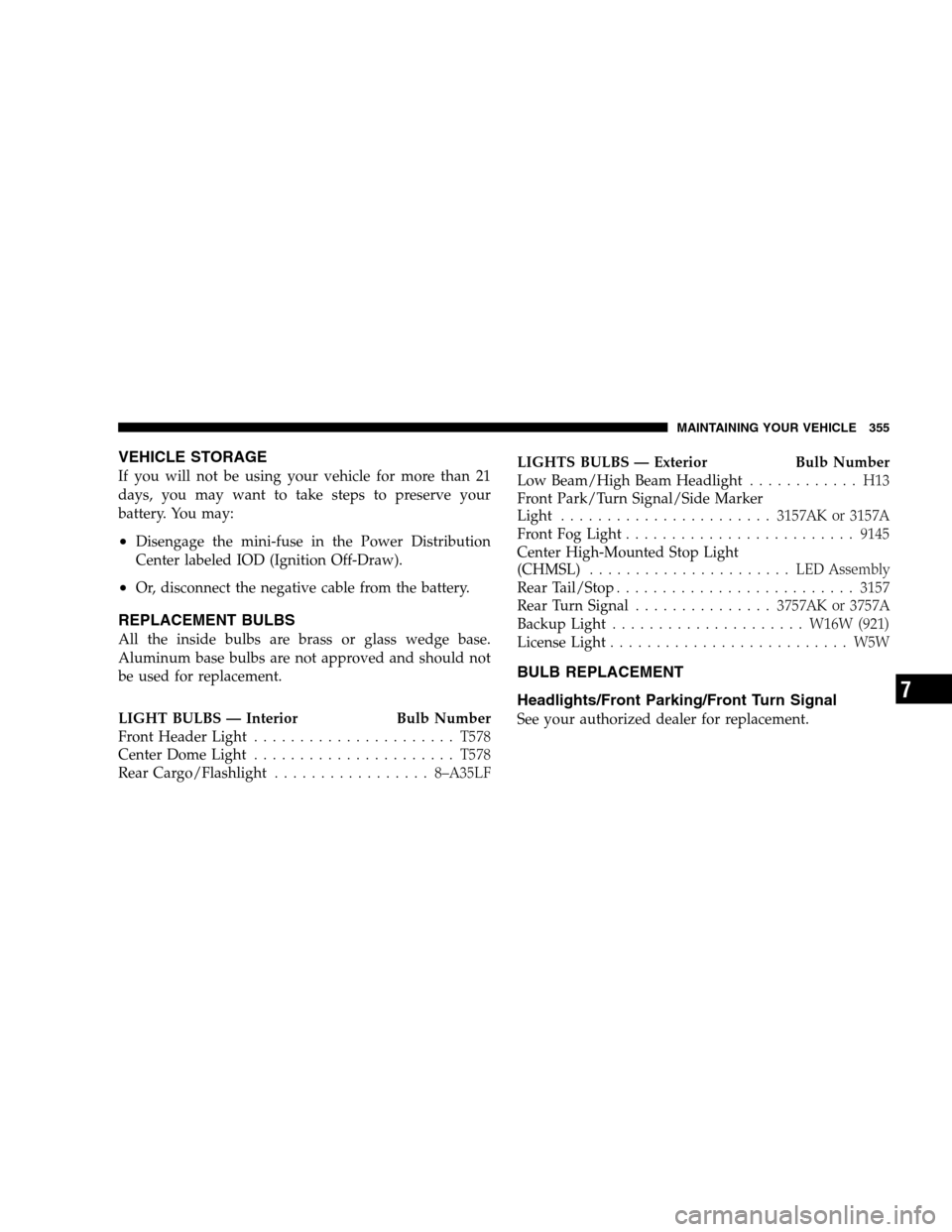

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery. You may:
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or, disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Front Header Light......................T578
Center Dome Light......................T578
Rear Cargo/Flashlight.................8–A35LFLIGHTS BULBS — Exterior Bulb Number
Low Beam/High Beam Headlight............ H13
Front Park/Turn Signal/Side Marker
Light.......................3157AK or 3157A
Front Fog Light.........................9145
Center High-Mounted Stop Light
(CHMSL)...................... LEDAssembly
Rear Tail/Stop..........................3157
Rear Turn Signal...............3757AK or 3757A
Backup Light..................... W16W(921)
License Light.......................... W5W
BULB REPLACEMENT
Headlights/Front Parking/Front Turn Signal
See your authorized dealer for replacement.
MAINTAINING YOUR VEHICLE 355
7

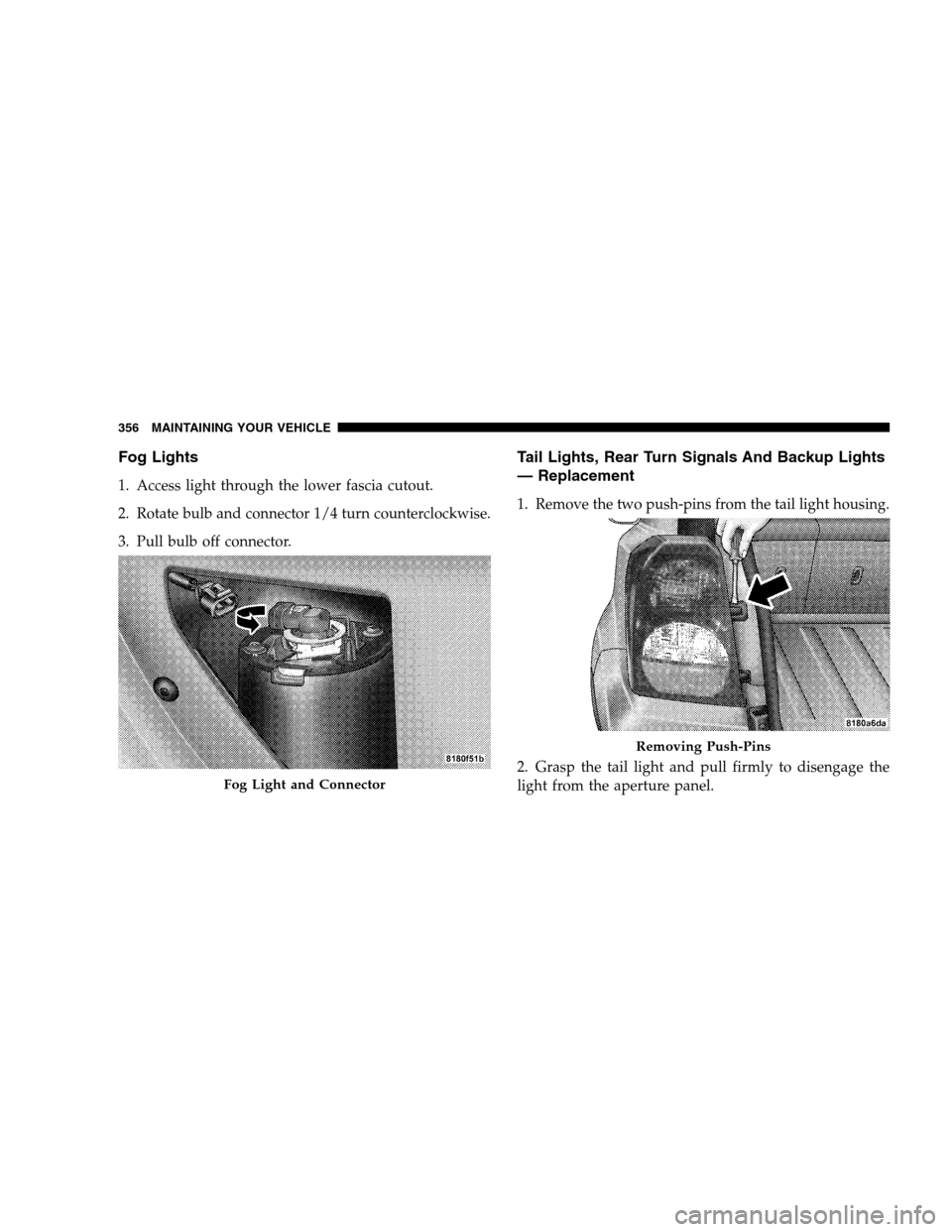

Fog Lights
1. Access light through the lower fascia cutout.
2. Rotate bulb and connector 1/4 turn counterclockwise.
3. Pull bulb off connector.
Tail Lights, Rear Turn Signals And Backup Lights
— Replacement
1. Remove the two push-pins from the tail light housing.
2. Grasp the tail light and pull firmly to disengage the
light from the aperture panel.
Fog Light and Connector
Removing Push-Pins
356 MAINTAINING YOUR VEHICLE

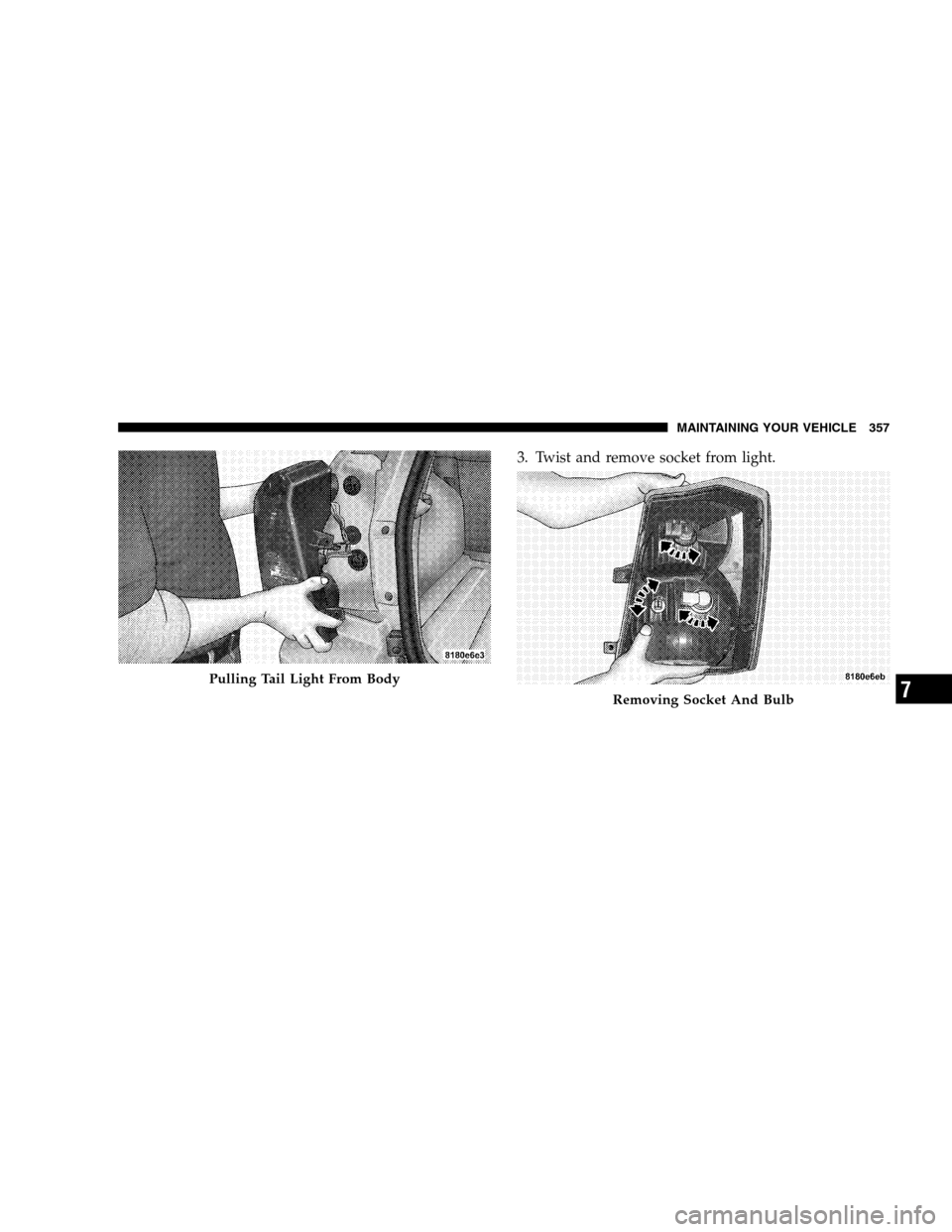

3. Twist and remove socket from light.
Pulling Tail Light From Body
Removing Socket And Bulb
MAINTAINING YOUR VEHICLE 357
7

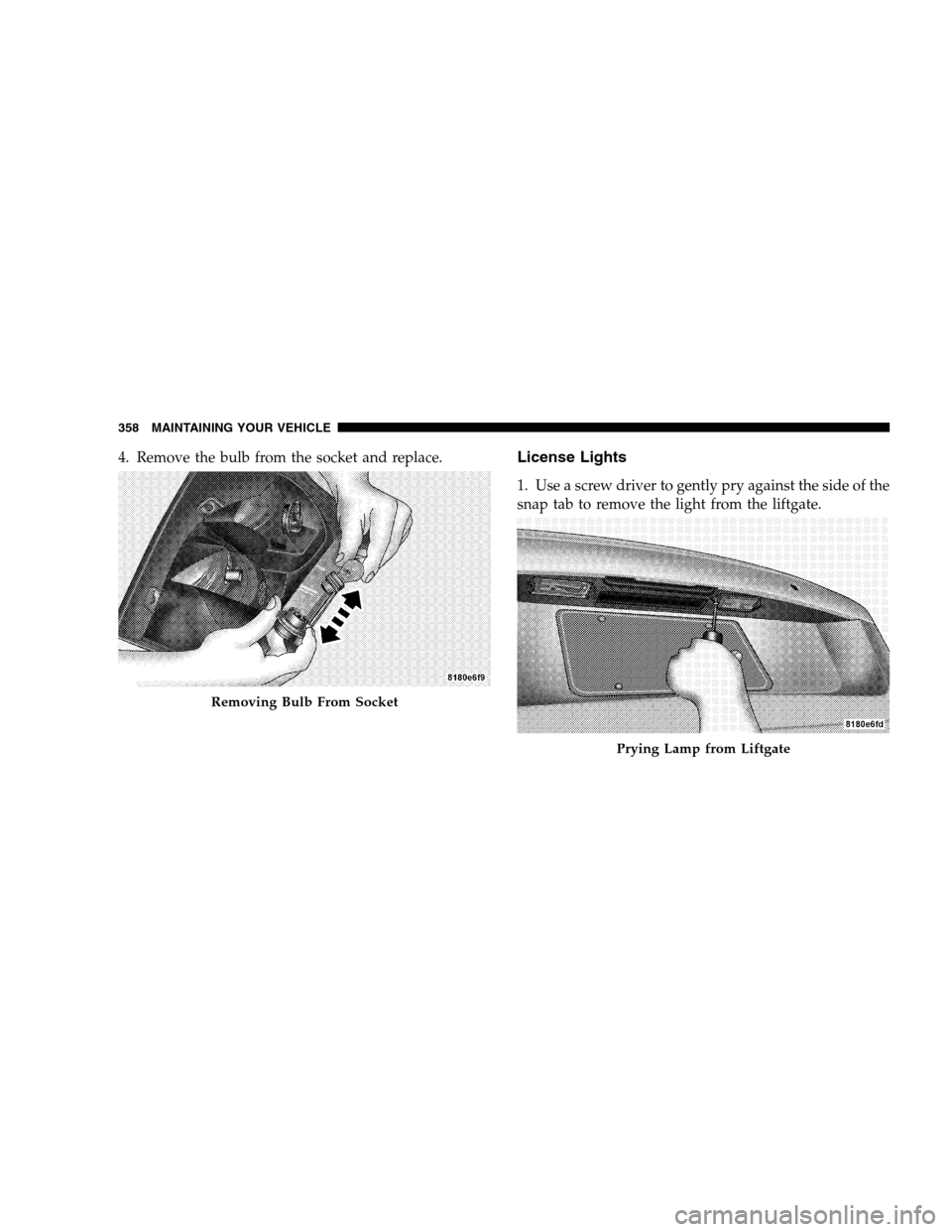

4. Remove the bulb from the socket and replace.License Lights
1. Use a screw driver to gently pry against the side of the
snap tab to remove the light from the liftgate.
Removing Bulb From Socket
Prying Lamp from Liftgate
