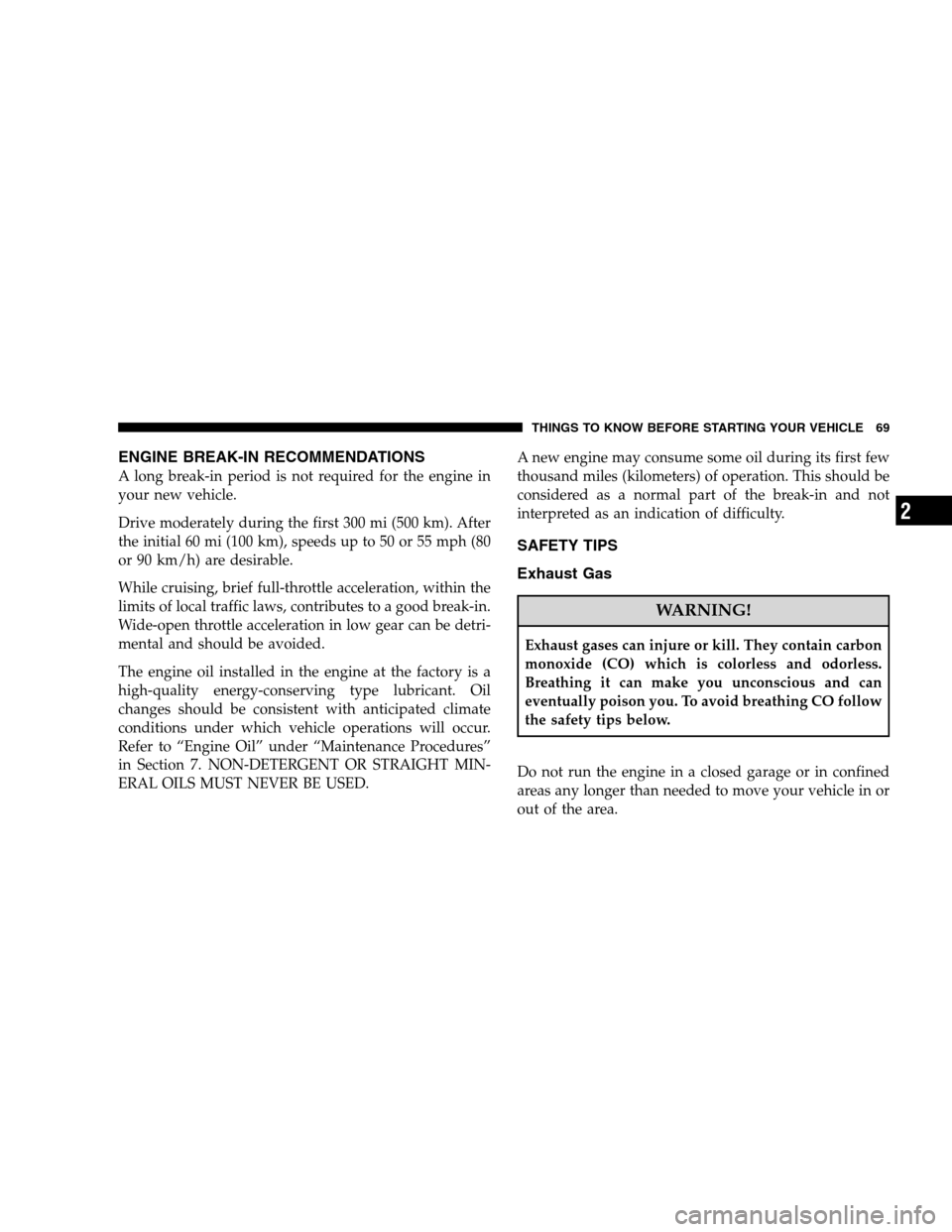

ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine in
your new vehicle.
Drive moderately during the first 300 mi (500 km). After
the initial 60 mi (100 km), speeds up to 50 or 55 mph (80
or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration, within the
limits of local traffic laws, contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy-conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
Refer to “Engine Oil” under “Maintenance Procedures”
in Section 7. NON-DETERGENT OR STRAIGHT MIN-
ERAL OILS MUST NEVER BE USED.A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered as a normal part of the break-in and not
interpreted as an indication of difficulty.
SAFETY TIPS
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing CO follow
the safety tips below.
Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
2

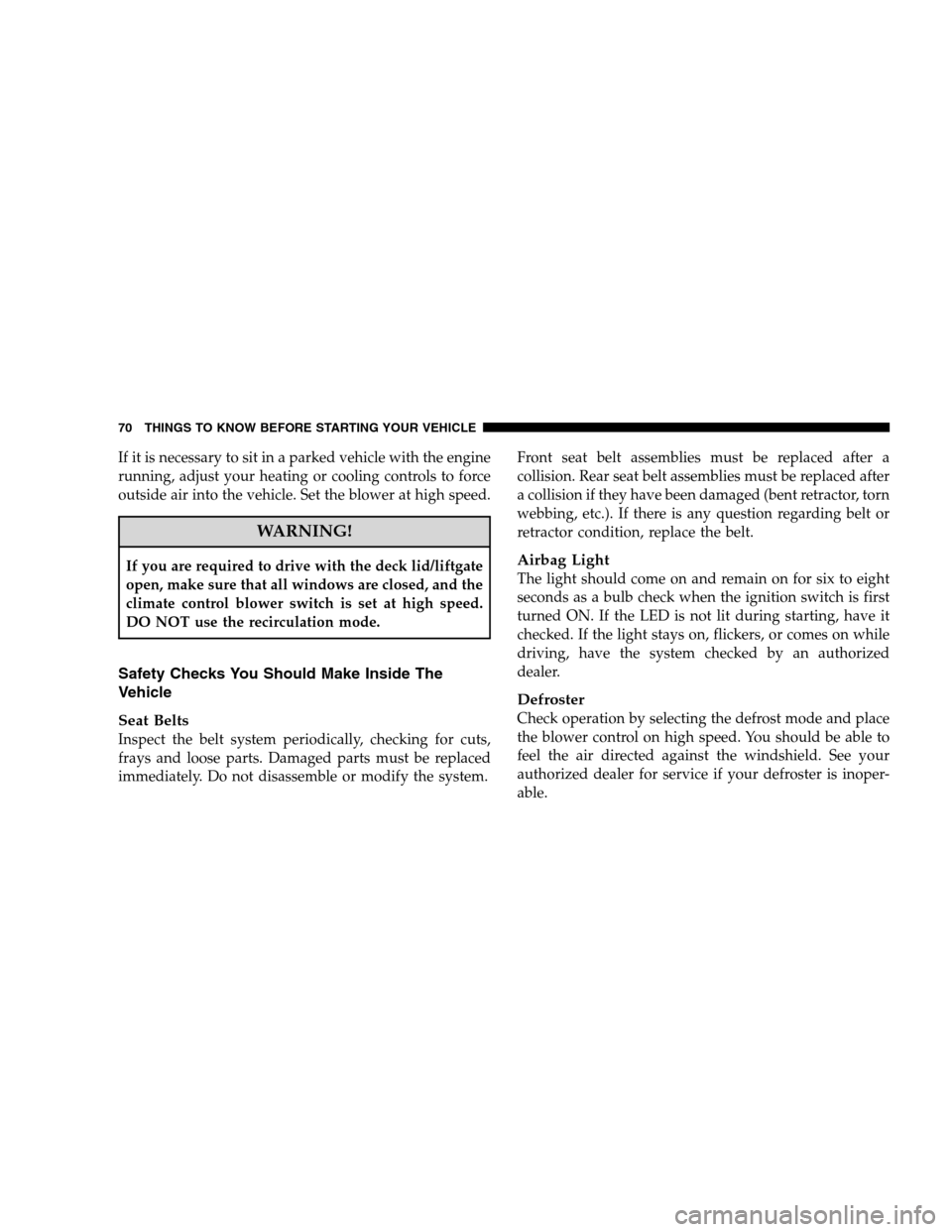

If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.
WARNING!
If you are required to drive with the deck lid/liftgate
open, make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (bent retractor, torn
webbing, etc.). If there is any question regarding belt or
retractor condition, replace the belt.
Airbag Light
The light should come on and remain on for six to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the LED is not lit during starting, have it
checked. If the light stays on, flickers, or comes on while
driving, have the system checked by an authorized
dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

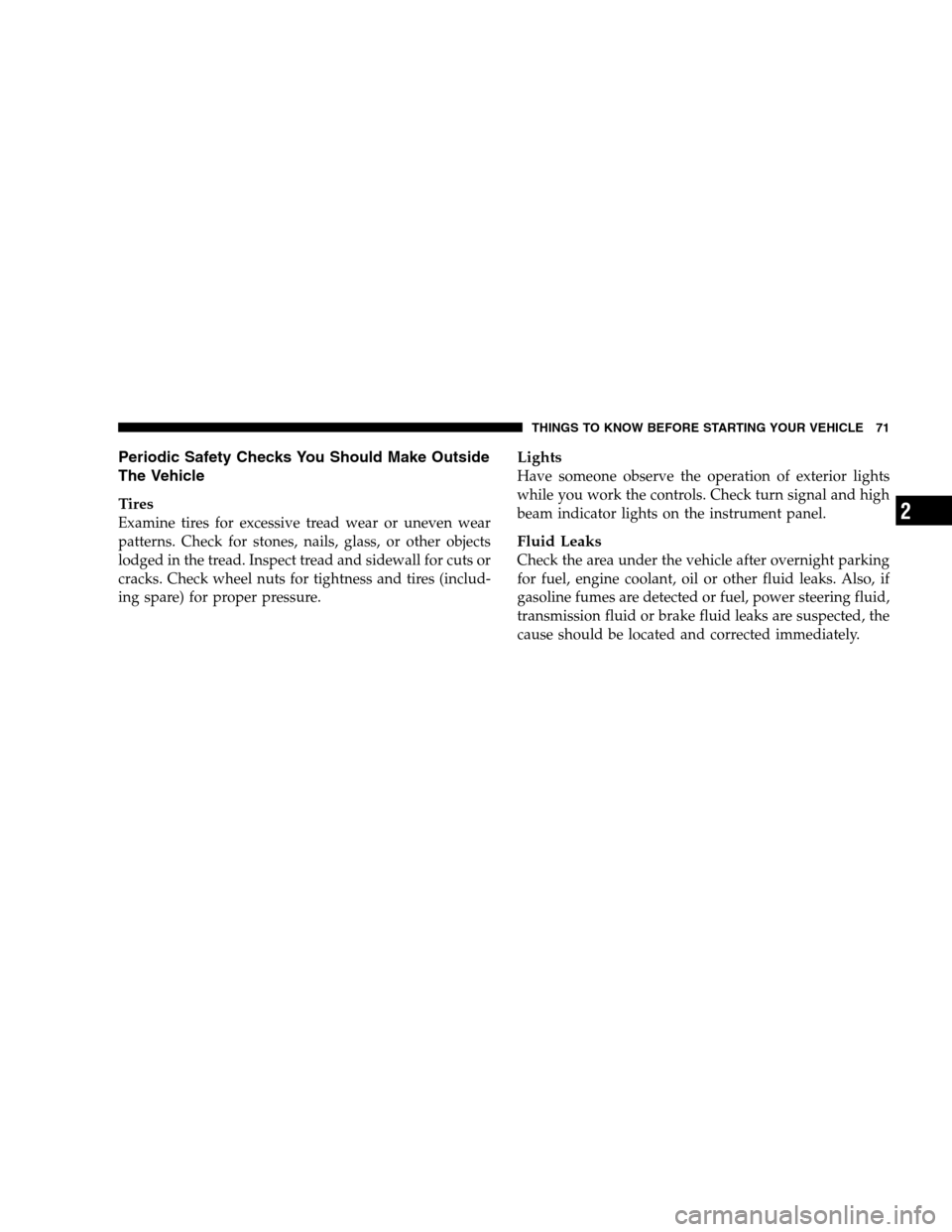

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect tread and sidewall for cuts or
cracks. Check wheel nuts for tightness and tires (includ-
ing spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check the area under the vehicle after overnight parking
for fuel, engine coolant, oil or other fluid leaks. Also, if
gasoline fumes are detected or fuel, power steering fluid,
transmission fluid or brake fluid leaks are suspected, the
cause should be located and corrected immediately.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71
2

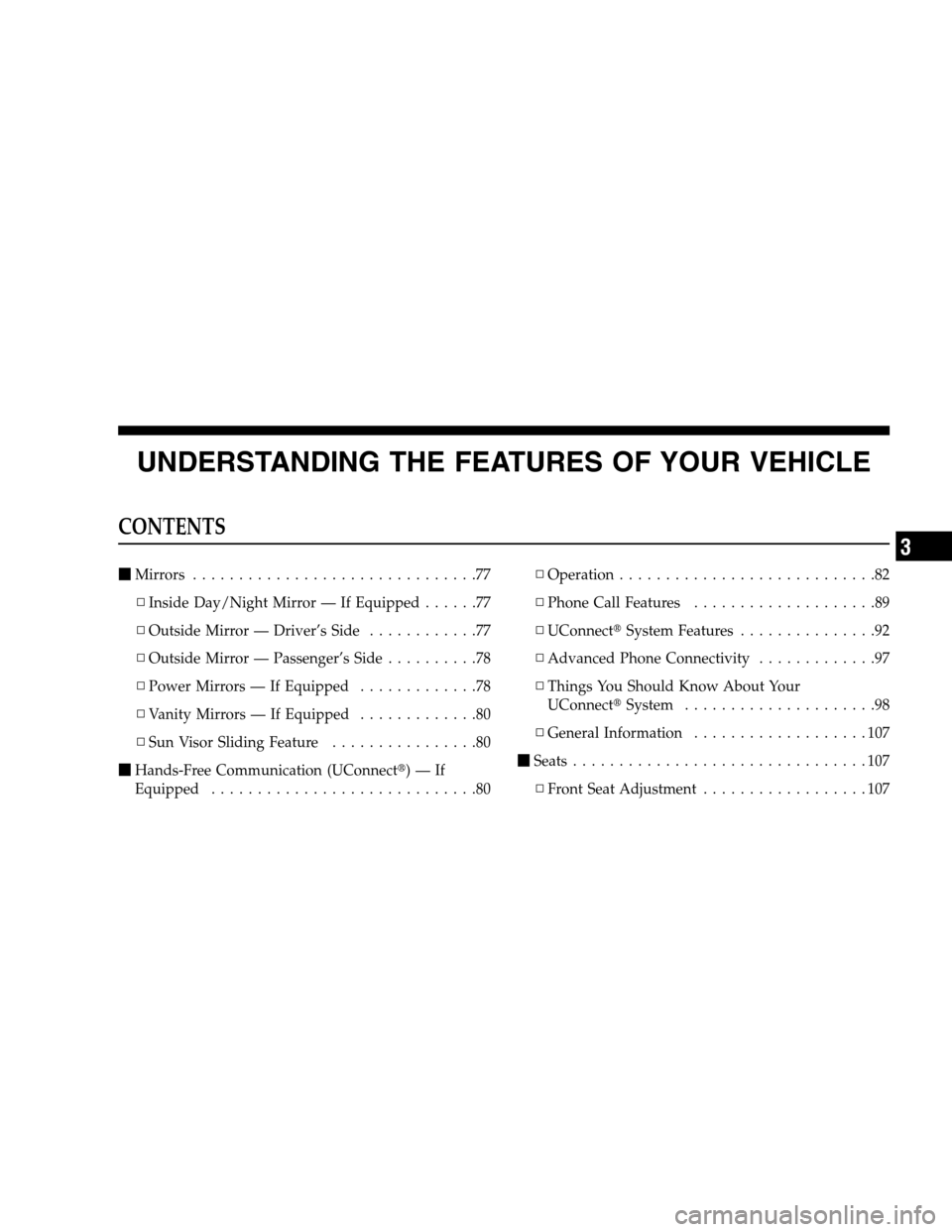

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS

Mirrors ...............................77
▫Inside Day/Night Mirror — If Equipped......77
▫Outside Mirror — Driver’s Side............77
▫Outside Mirror — Passenger’s Side..........78
▫Power Mirrors — If Equipped.............78
▫Vanity Mirrors — If Equipped.............80
▫Sun Visor Sliding Feature................80

Hands-Free Communication (UConnect)—If
Equipped.............................80▫Operation............................82
▫Phone Call Features....................89
▫UConnectSystem Features...............92
▫Advanced Phone Connectivity.............97
▫Things You Should Know About Your
UConnectSystem.....................98
▫General Information...................107

Seats................................107
▫Front Seat Adjustment..................107
3

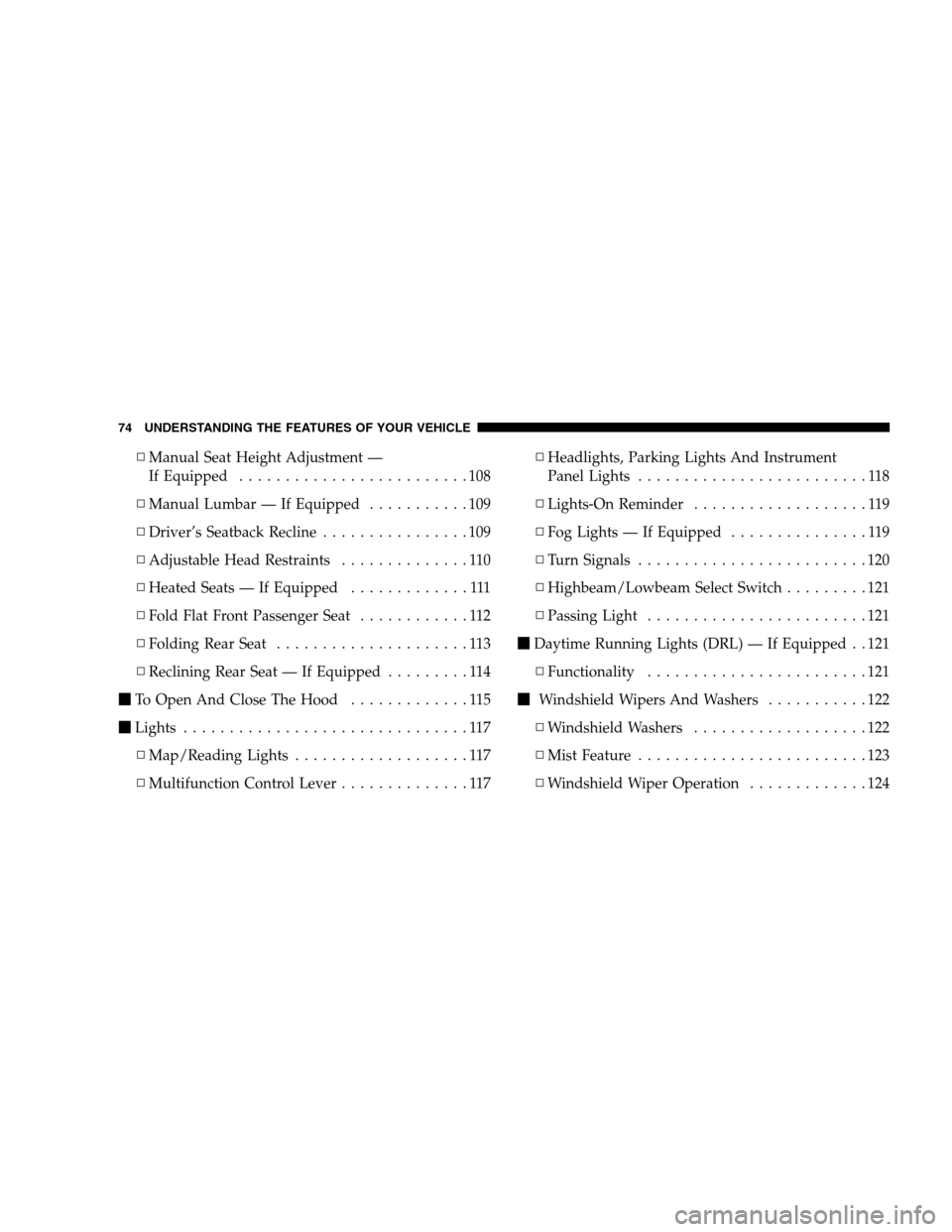

▫Manual Seat Height Adjustment —
If Equipped.........................108
▫Manual Lumbar — If Equipped...........109
▫Driver’s Seatback Recline................109
▫Adjustable Head Restraints..............110
▫Heated Seats — If Equipped.............111
▫Fold Flat Front Passenger Seat............112
▫Folding Rear Seat.....................113
▫Reclining Rear Seat — If Equipped.........114

To Open And Close The Hood.............115

Lights...............................117
▫Map/Reading Lights...................117
▫Multifunction Control Lever..............117▫Headlights, Parking Lights And Instrument
Panel Lights.........................118
▫Lights-On Reminder...................119
▫Fog Lights — If Equipped...............119
▫Turn Signals.........................120
▫Highbeam/Lowbeam Select Switch.........121
▫Passing Light........................121

Daytime Running Lights (DRL) — If Equipped . . 121
▫Functionality........................121

Windshield Wipers And Washers...........122
▫Windshield Washers...................122
▫Mist Feature.........................123
▫Windshield Wiper Operation.............124
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

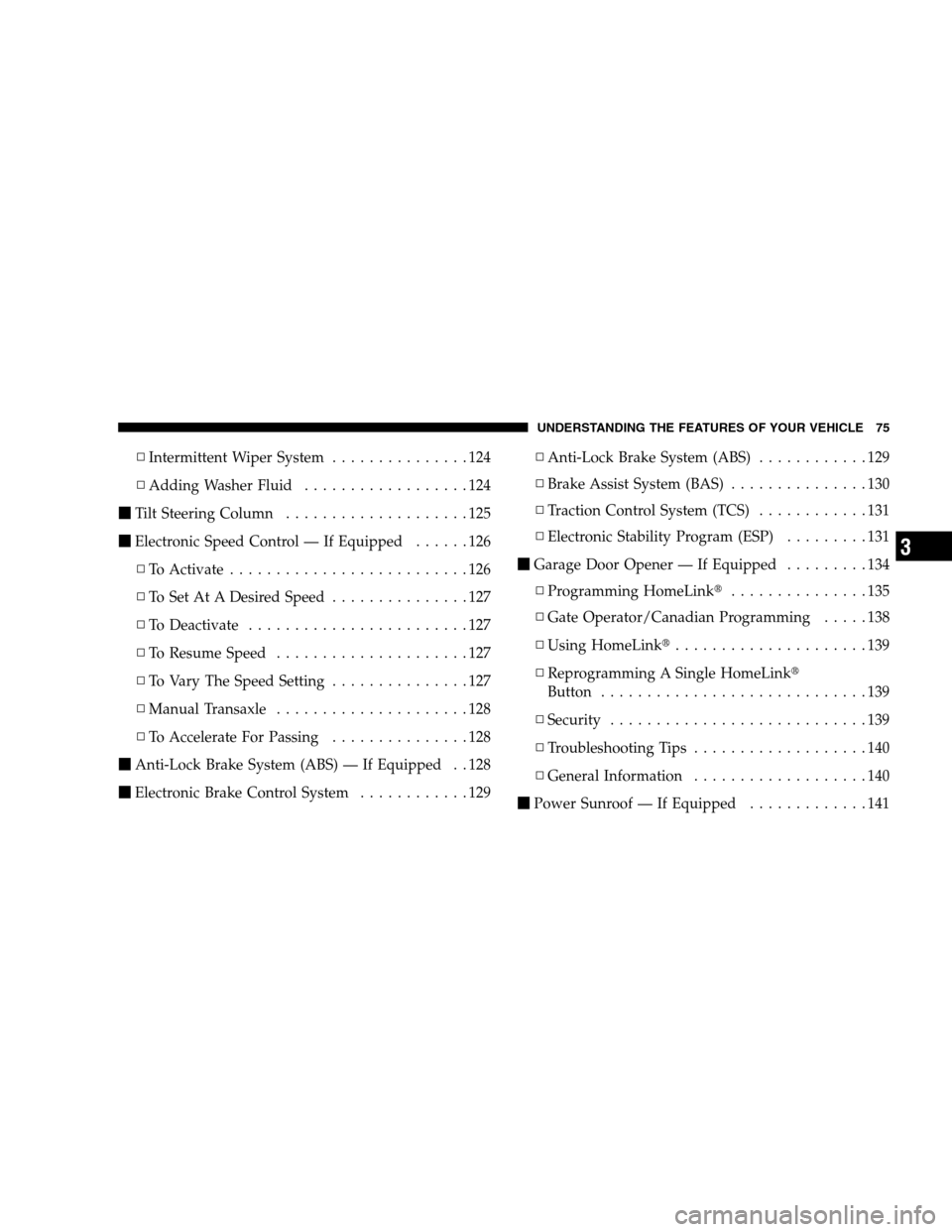

▫Intermittent Wiper System...............124
▫Adding Washer Fluid..................124

Tilt Steering Column....................125

Electronic Speed Control — If Equipped......126
▫To Activate..........................126
▫To Set At A Desired Speed...............127
▫To Deactivate........................127
▫To Resume Speed.....................127
▫To Vary The Speed Setting...............127
▫Manual Transaxle.....................128
▫To Accelerate For Passing...............128

Anti-Lock Brake System (ABS) — If Equipped . . 128

Electronic Brake Control System............129▫Anti-Lock Brake System (ABS)............129
▫Brake Assist System (BAS)...............130
▫Traction Control System (TCS)............131
▫Electronic Stability Program (ESP).........131

Garage Door Opener — If Equipped.........134
▫Programming HomeLink...............135
▫Gate Operator/Canadian Programming.....138
▫Using HomeLink.....................139
▫Reprogramming A Single HomeLink
Button.............................139
▫Security............................139
▫Troubleshooting Tips...................140
▫General Information...................140

Power Sunroof — If Equipped.............141
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

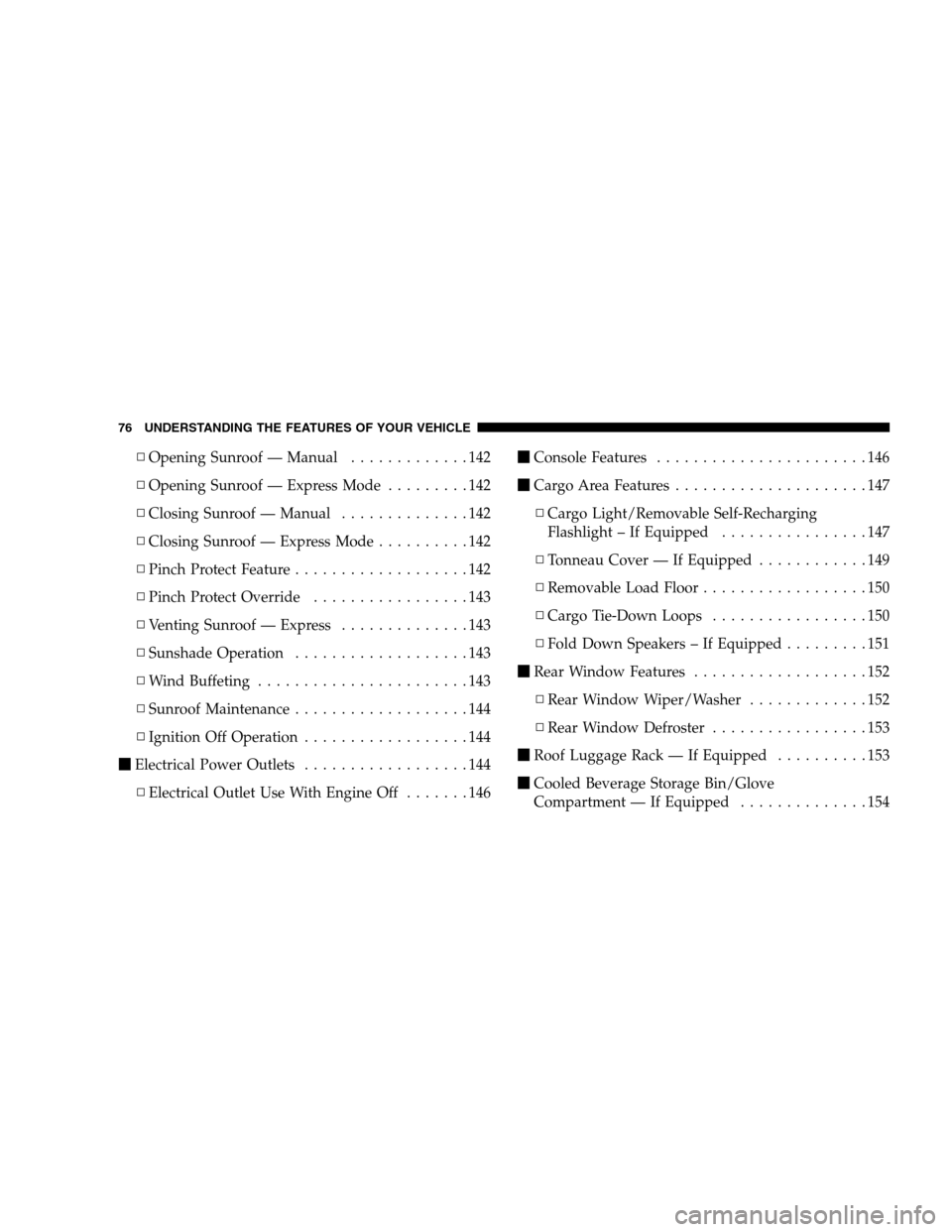

▫Opening Sunroof — Manual.............142
▫Opening Sunroof — Express Mode.........142
▫Closing Sunroof — Manual..............142
▫Closing Sunroof — Express Mode..........142
▫Pinch Protect Feature...................142
▫Pinch Protect Override.................143
▫Venting Sunroof — Express..............143
▫Sunshade Operation...................143
▫Wind Buffeting.......................143
▫Sunroof Maintenance...................144
▫Ignition Off Operation..................144

Electrical Power Outlets..................144
▫Electrical Outlet Use With Engine Off.......146
Console Features.......................146

Cargo Area Features.....................147
▫Cargo Light/Removable Self-Recharging
Flashlight – If Equipped................147
▫Tonneau Cover — If Equipped............149
▫Removable Load Floor..................150
▫Cargo Tie-Down Loops.................150
▫Fold Down Speakers – If Equipped.........151

Rear Window Features...................152
▫Rear Window Wiper/Washer.............152
▫Rear Window Defroster.................153

Roof Luggage Rack — If Equipped..........153

Cooled Beverage Storage Bin/Glove
Compartment — If Equipped..............154
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

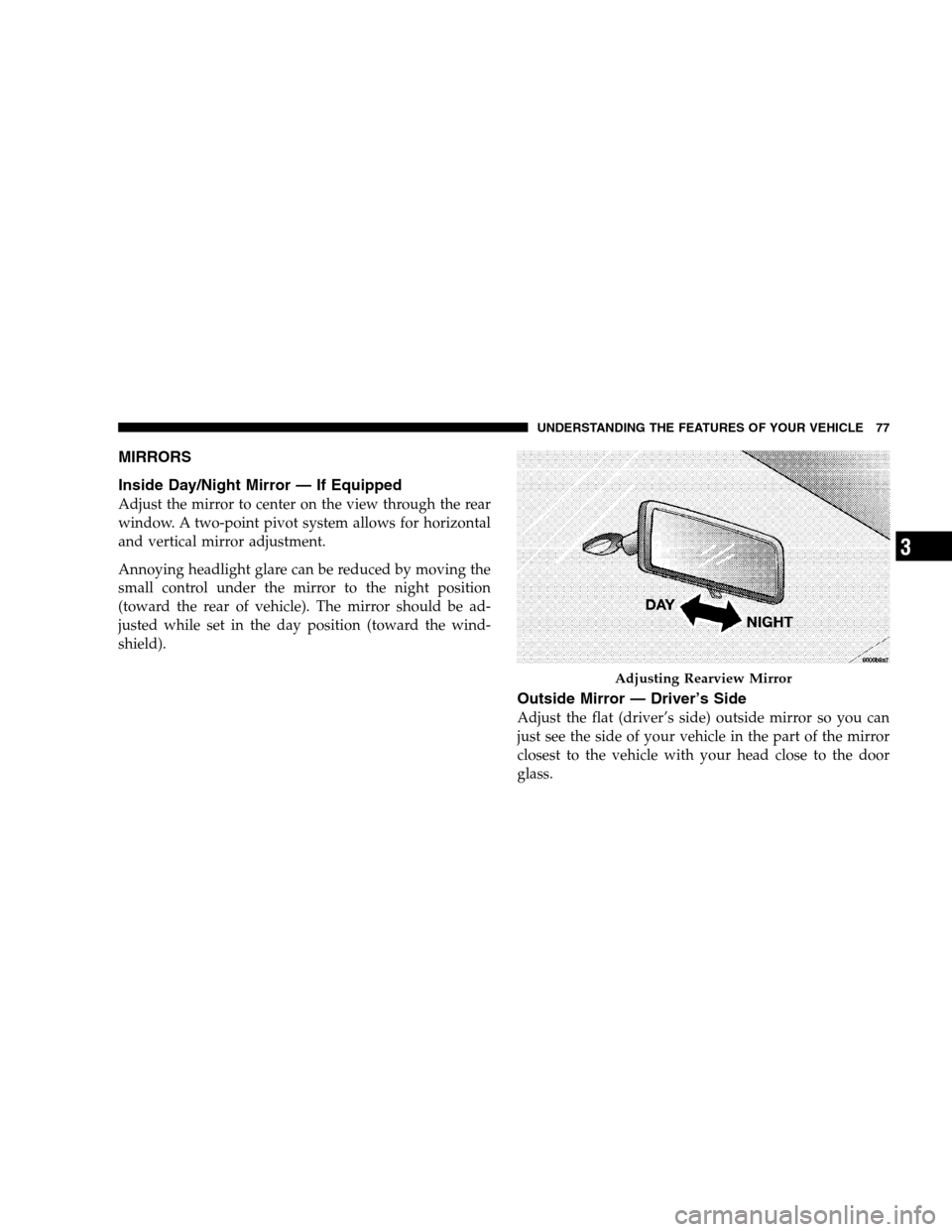

MIRRORS
Inside Day/Night Mirror — If Equipped
Adjust the mirror to center on the view through the rear
window. A two-point pivot system allows for horizontal
and vertical mirror adjustment.
Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward the rear of vehicle). The mirror should be ad-
justed while set in the day position (toward the wind-
shield).
Outside Mirror — Driver’s Side
Adjust the flat (driver’s side) outside mirror so you can
just see the side of your vehicle in the part of the mirror
closest to the vehicle with your head close to the door
glass.
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

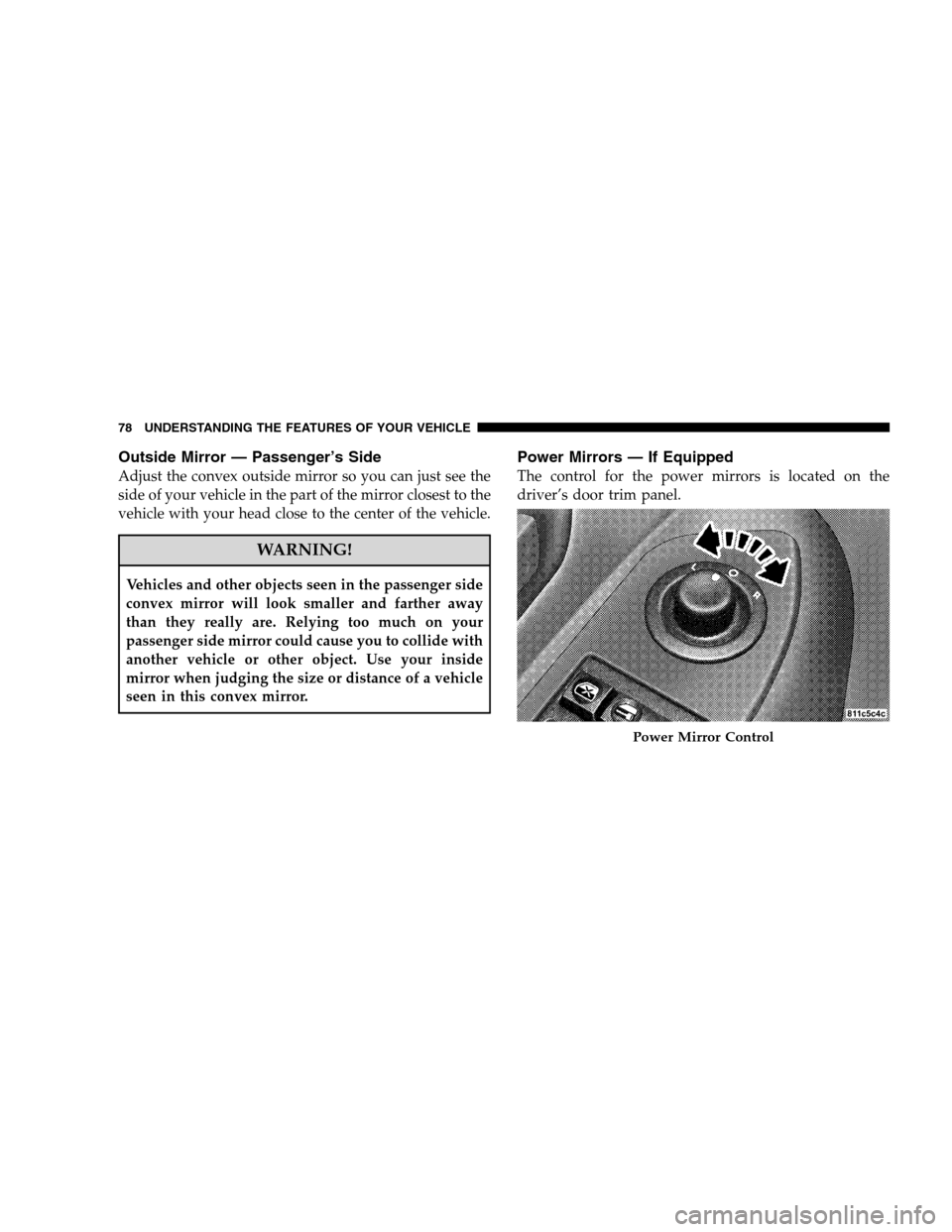

Outside Mirror — Passenger’s Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle with your head close to the center of the vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Power Mirrors — If Equipped
The control for the power mirrors is located on the
driver’s door trim panel.
Power Mirror Control
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
