oil viscosity DODGE CHALLENGER 2010 3.G Owners Manual

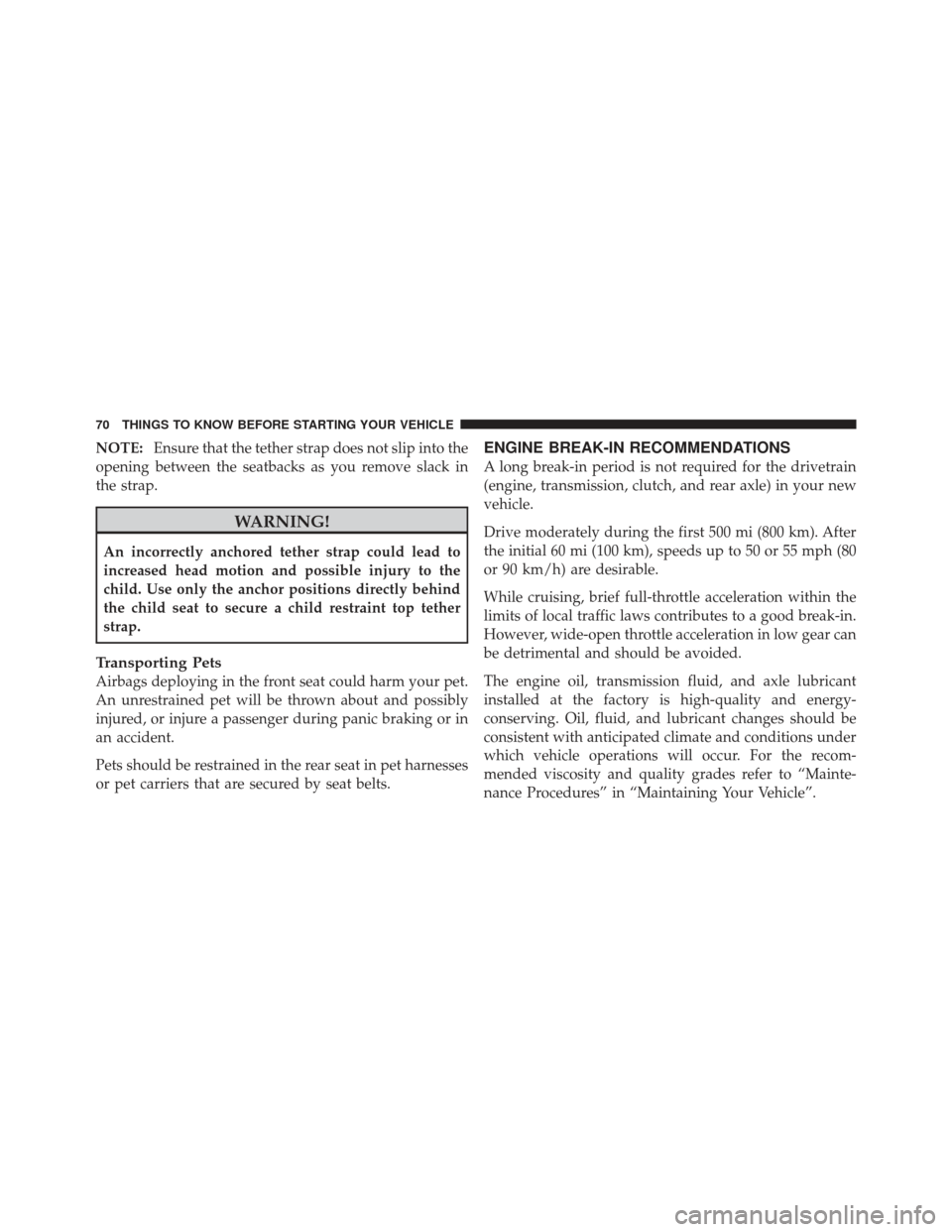

NOTE:Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove slack in
the strap.
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.
Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
an accident.
Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the drivetrain
(engine, transmission, clutch, and rear axle) in your new
vehicle.
Drive moderately during the first 500 mi (800 km). After
the initial 60 mi (100 km), speeds up to 50 or 55 mph (80
or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
However, wide-open throttle acceleration in low gear can
be detrimental and should be avoided.
The engine oil, transmission fluid, and axle lubricant
installed at the factory is high-quality and energy-
conserving. Oil, fluid, and lubricant changes should be
consistent with anticipated climate and conditions under
which vehicle operations will occur. For the recom-
mended viscosity and quality grades refer to “Mainte-
nance Procedures” in “Maintaining Your Vehicle”.
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

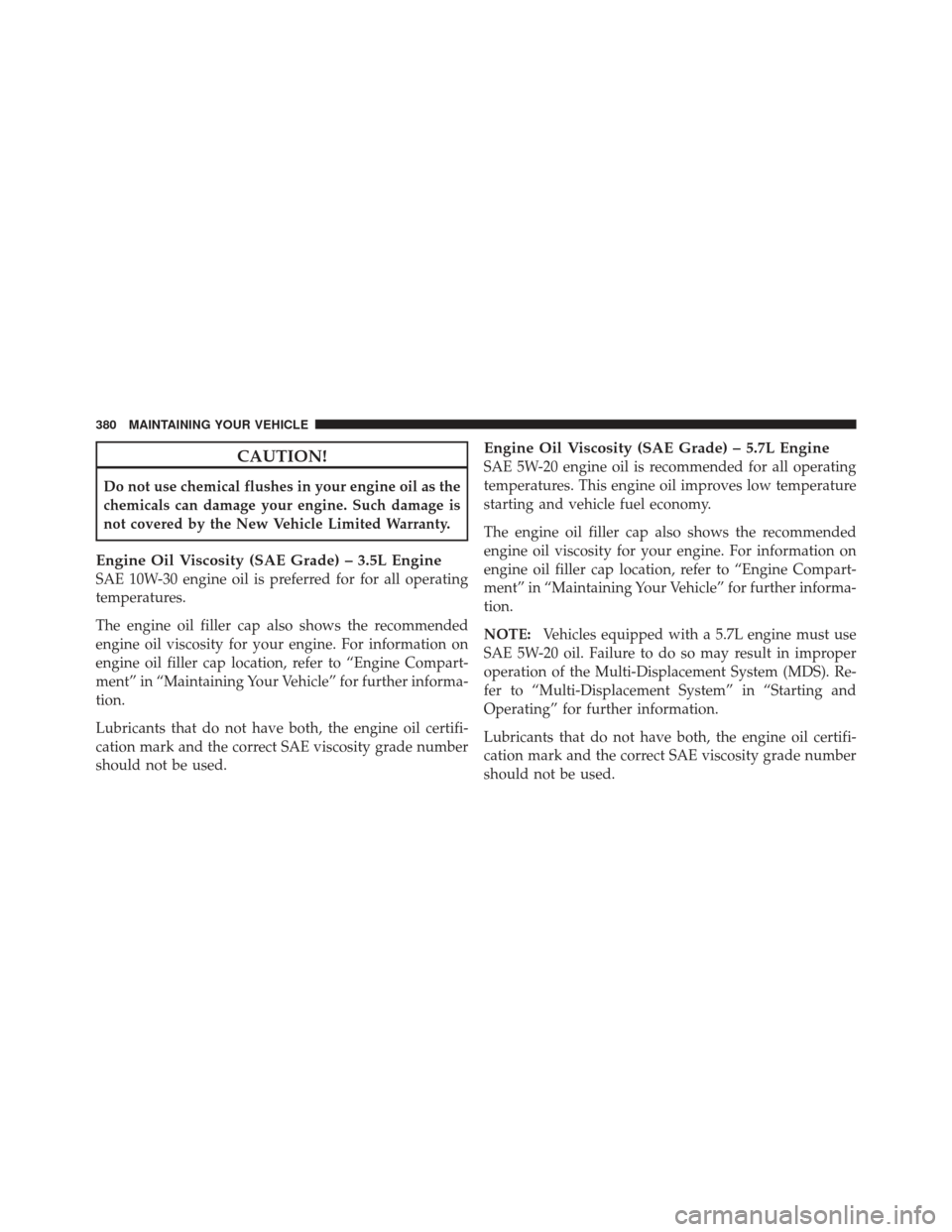

CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.
Engine Oil Viscosity (SAE Grade) – 3.5L Engine
SAE 10W-30 engine oil is preferred for for all operating
temperatures.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.
Lubricants that do not have both, the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Engine Oil Viscosity (SAE Grade) – 5.7L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.
NOTE:Vehicles equipped with a 5.7L engine must use
SAE 5W-20 oil. Failure to do so may result in improper
operation of the Multi-Displacement System (MDS). Re-
fer to “Multi-Displacement System” in “Starting and
Operating” for further information.
Lubricants that do not have both, the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
380 MAINTAINING YOUR VEHICLE

Checking Oil Level..................... 378
Compartment ...................... 372,373
Coolant (Antifreeze) ................. 390,422
Cooling ............................. 390
Exhaust Gas Caution .................. 72,318
Fails to Start .......................... 251
Flooded, Starting ...................... 251
Fuel Requirements ..................... 314
Jump Starting ......................... 361
Oil ........................... 378,421,422
Oil Change Interval .................. 172,379
Oil Filler Cap ......................... 380
Oil Filter ............................ 381
Oil Filter Disposal ..................... 381
Oil Selection ....................... 379,421
Oil Synthetic ......................... 381
Overheating .......................... 339
Starting ............................. 245
Temperature Gauge .................... 166 Engine Oil Viscosity
...................... 380
Enhanced Accident Response Feature .......... 57
Entry System, Illuminated .................. 20
Ethanol ............................... 315
Event Data Recorder ...................... 60
Exhaust Gas Caution ................... 72,318
Exhaust System ....................... 72,387
Exterior Folding Mirrors ................... 82
Exterior Lighting ........................ 127
Exterior Lights .......................... 75
Filler Location Fuel ...................... 319
Filters Air Cleaner .......................... 382
Engine Oil ........................ 381,422
Engine Oil Disposal .................... 381
Flashers Hazard Warning ....................... 339
Turn Signal ...................... 75,130,167
10
INDEX 459

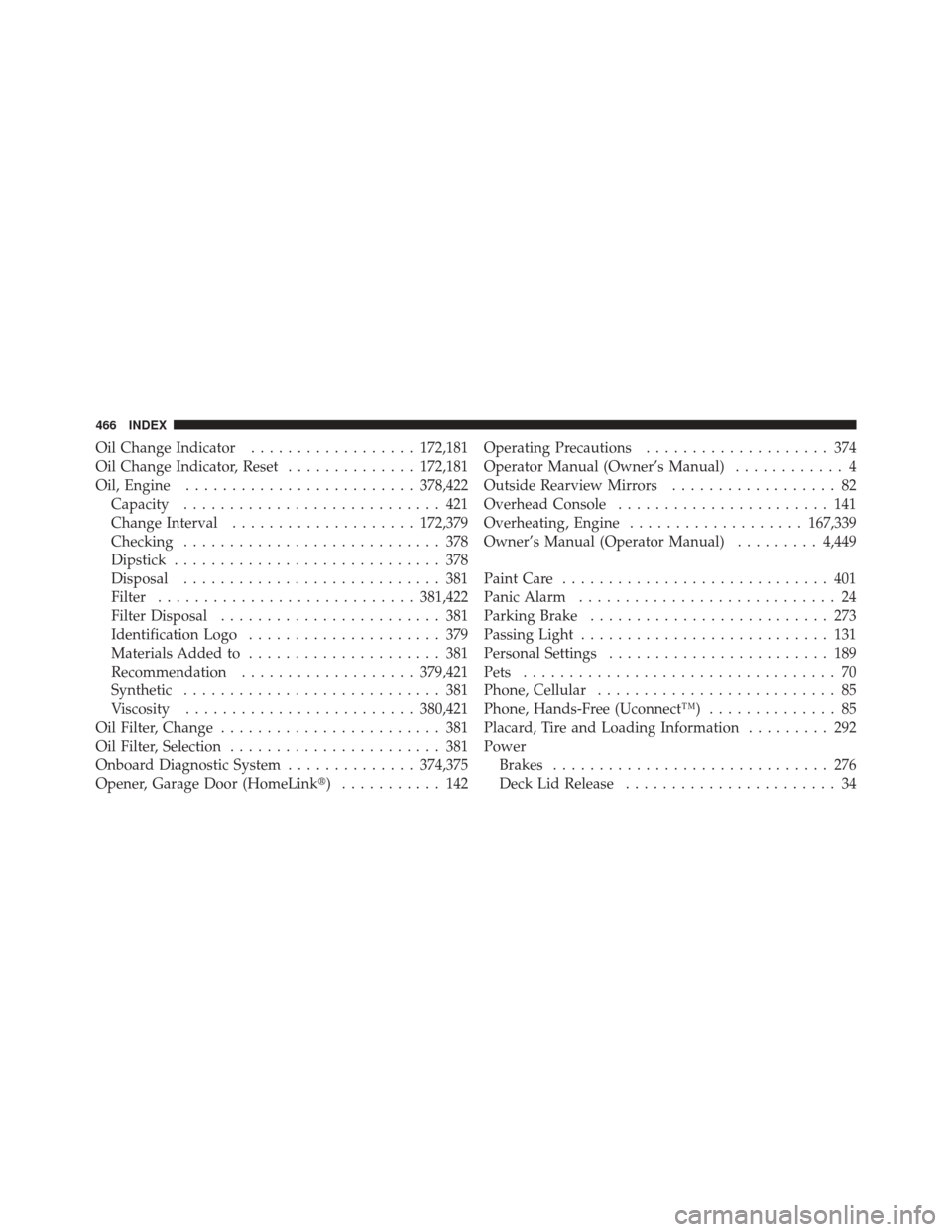

Oil Change Indicator.................. 172,181
Oil Change Indicator, Reset ..............172,181
Oil, Engine ......................... 378,422
Capacity ............................ 421
Change Interval .................... 172,379
Checking ............................ 378
Dipstick ............................. 378
Disposal ............................ 381
Filter ............................ 381,422
Filter Disposal ........................ 381
Identification Logo ..................... 379
Materials Added to ..................... 381
Recommendation ................... 379,421
Synthetic ............................ 381
Viscosity ......................... 380,421
Oil Filter, Change ........................ 381
Oil Filter, Selection ....................... 381
Onboard Diagnostic System ..............374,375
Opener, Garage Door (HomeLink) ........... 142 Operating Precautions
.................... 374
Operator Manual (Owner’s Manual) ............ 4
Outside Rearview Mirrors .................. 82
Overhead Console ....................... 141
Overheating, Engine ................... 167,339
Owner’s Manual (Operator Manual) .........4,449
Paint Care ............................. 401
Panic Alarm ............................ 24
Parking Brake .......................... 273
Passing Light ........................... 131
Personal Settings ........................ 189
Pets .................................. 70
Phone, Cellular .......................... 85
Phone, Hands-Free (Uconnect™) .............. 85
Placard, Tire and Loading Information ......... 292
Power Brakes .............................. 276
Deck Lid Release ....................... 34
466 INDEX

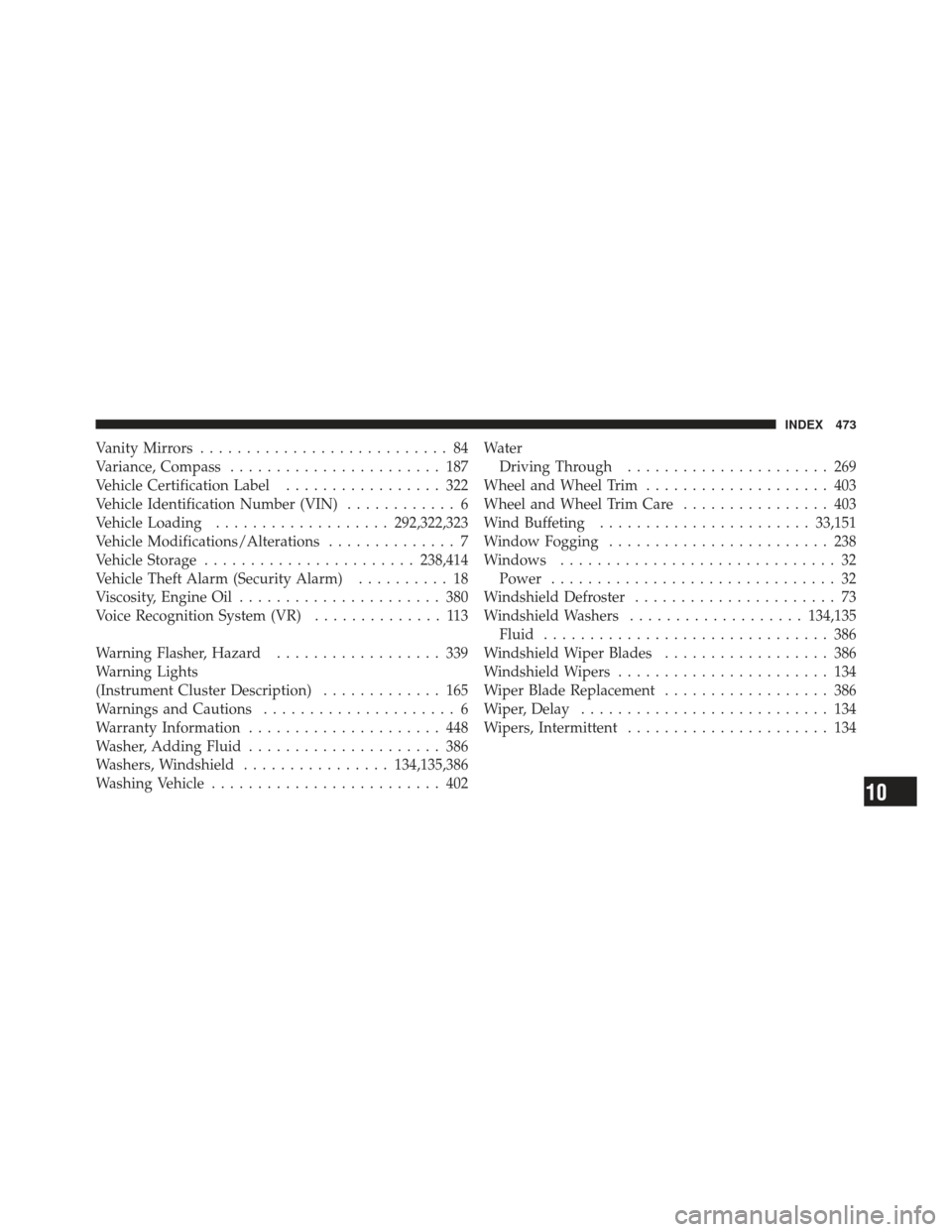

Vanity Mirrors........................... 84
Variance, Compass ....................... 187
Vehicle Certification Label ................. 322
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 292,322,323
Vehicle Modifications/Alterations .............. 7
Vehicle Storage ....................... 238,414
Vehicle Theft Alarm (Security Alarm) .......... 18
Viscosity, Engine Oil ...................... 380
Voice Recognition System (VR) .............. 113
Warning Flasher, Hazard .................. 339
Warning Lights
(Instrument Cluster Description) ............. 165
Warnings and Cautions ..................... 6
Warranty Information ..................... 448
Washer, Adding Fluid ..................... 386
Washers, Windshield ................ 134,135,386
Washing Vehicle ......................... 402 Water
Driving Through ...................... 269
Wheel and Wheel Trim .................... 403
Wheel and Wheel Trim Care ................ 403
Wind Buffeting ....................... 33,151
Window Fogging ........................ 238
Windows .............................. 32
Power ............................... 32
Windshield Defroster ...................... 73
Windshield Washers ................... 134,135
Fluid ............................... 386
Windshield Wiper Blades .................. 386
Windshield Wipers ....................... 134
Wiper Blade Replacement .................. 386
Wiper, Delay ........................... 134
Wipers, Intermittent ...................... 134
10
INDEX 473
