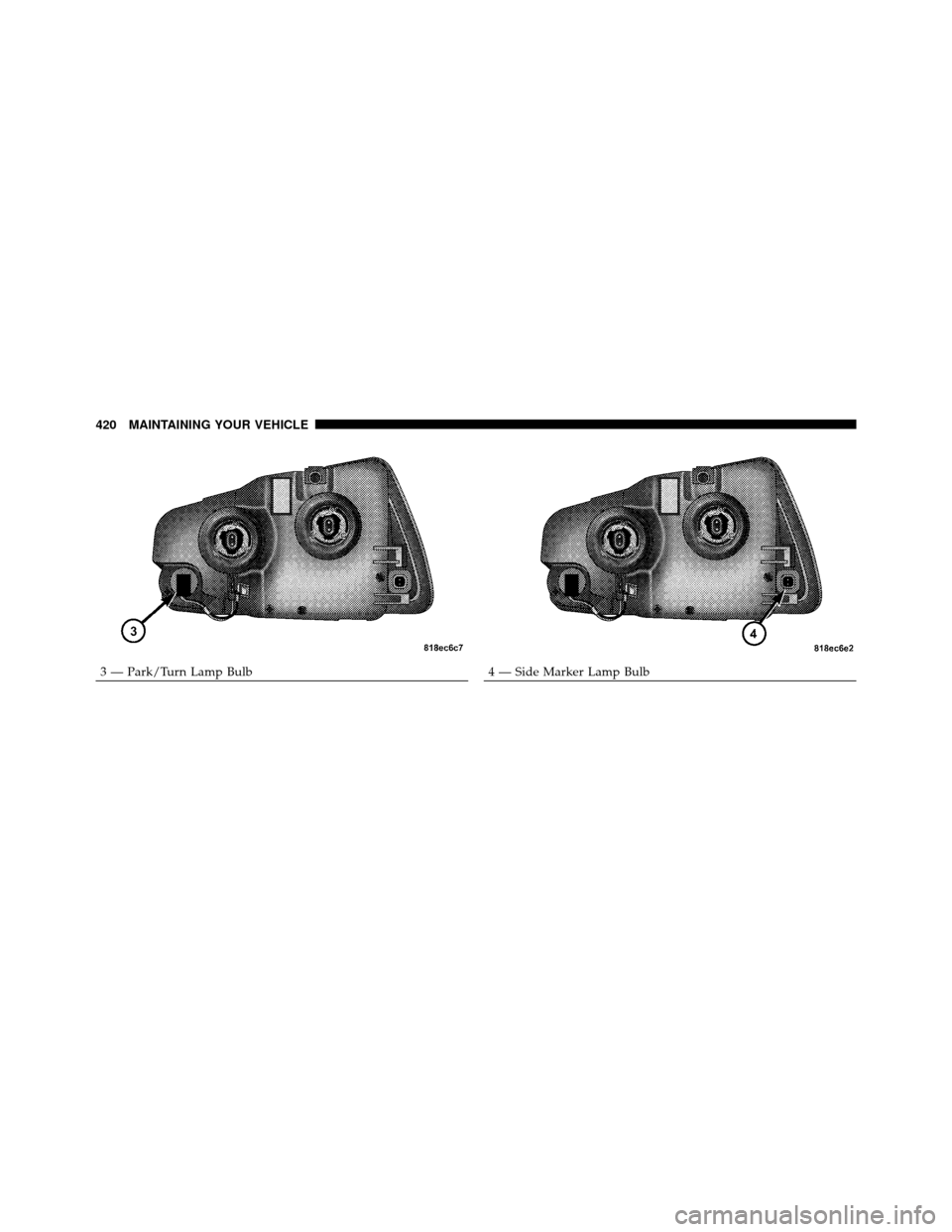

3 — Park/Turn Lamp Bulb4 — Side Marker Lamp Bulb
420 MAINTAINING YOUR VEHICLE

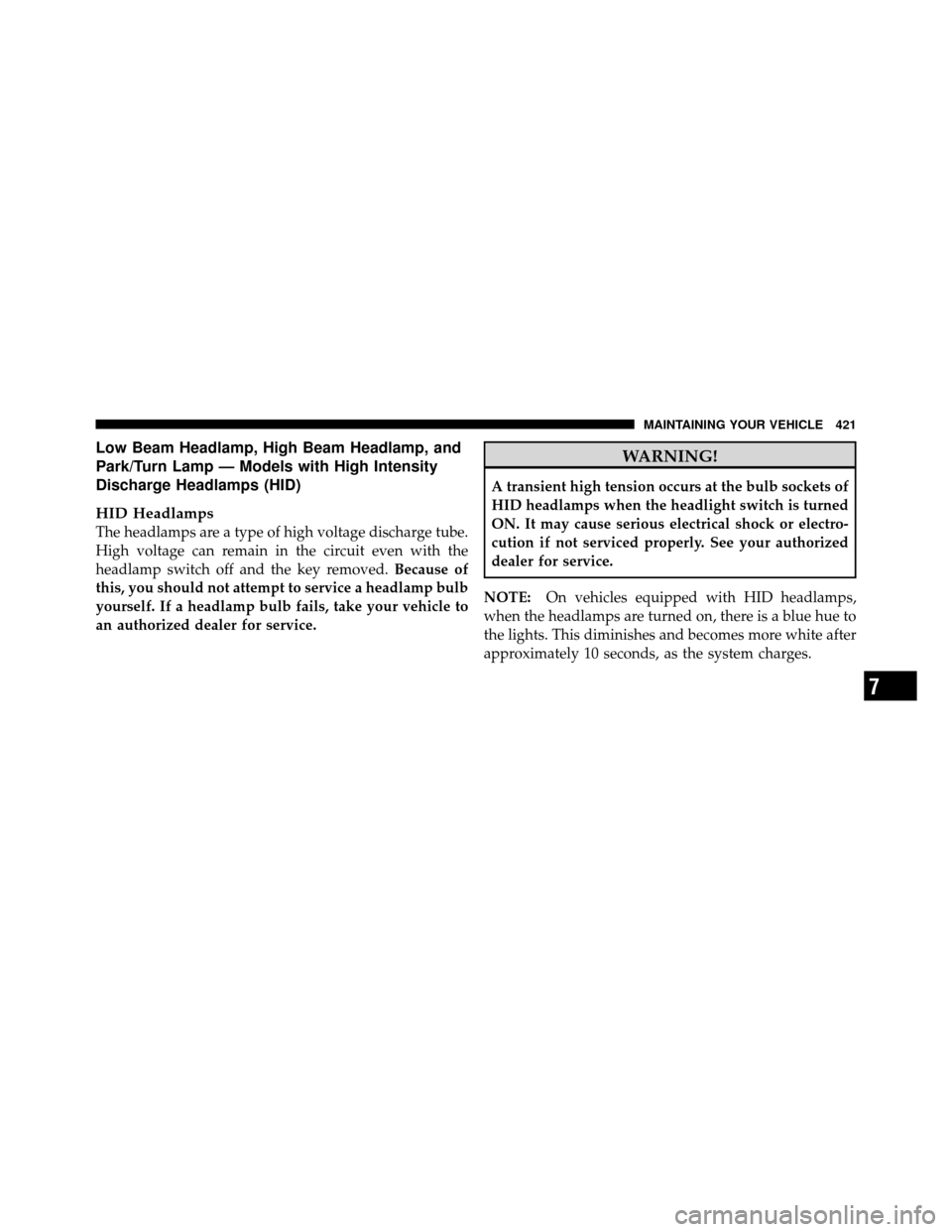

Low Beam Headlamp, High Beam Headlamp, and
Park/Turn Lamp — Models with High Intensity
Discharge Headlamps (HID)
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb sockets of
HID headlamps when the headlight switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
7
MAINTAINING YOUR VEHICLE 421

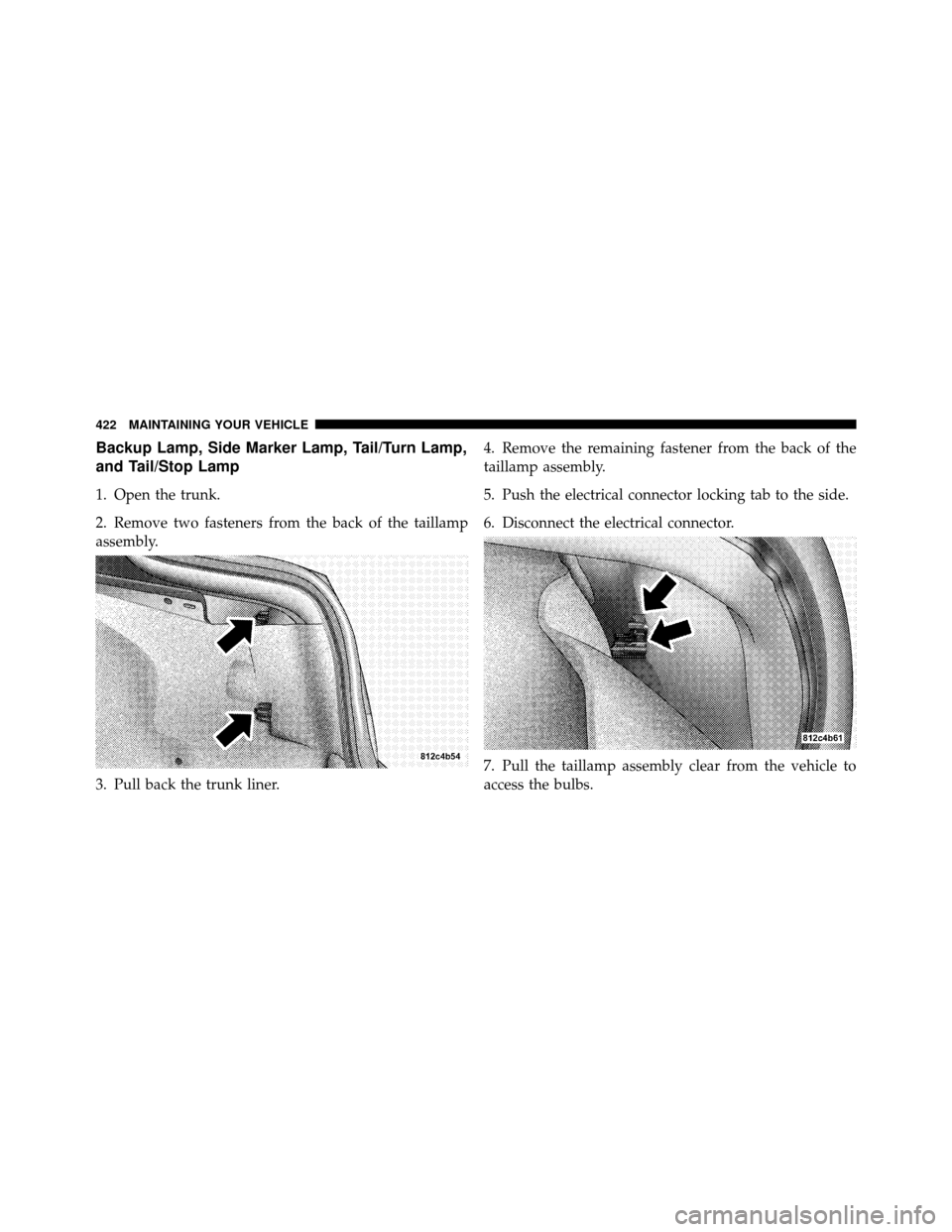

Backup Lamp, Side Marker Lamp, Tail/Turn Lamp,
and Tail/Stop Lamp
1. Open the trunk.
2. Remove two fasteners from the back of the taillamp
assembly.
3. Pull back the trunk liner.4. Remove the remaining fastener from the back of the
taillamp assembly.
5. Push the electrical connector locking tab to the side.
6. Disconnect the electrical connector.
7. Pull the taillamp assembly clear from the vehicle to
access the bulbs.
422 MAINTAINING YOUR VEHICLE

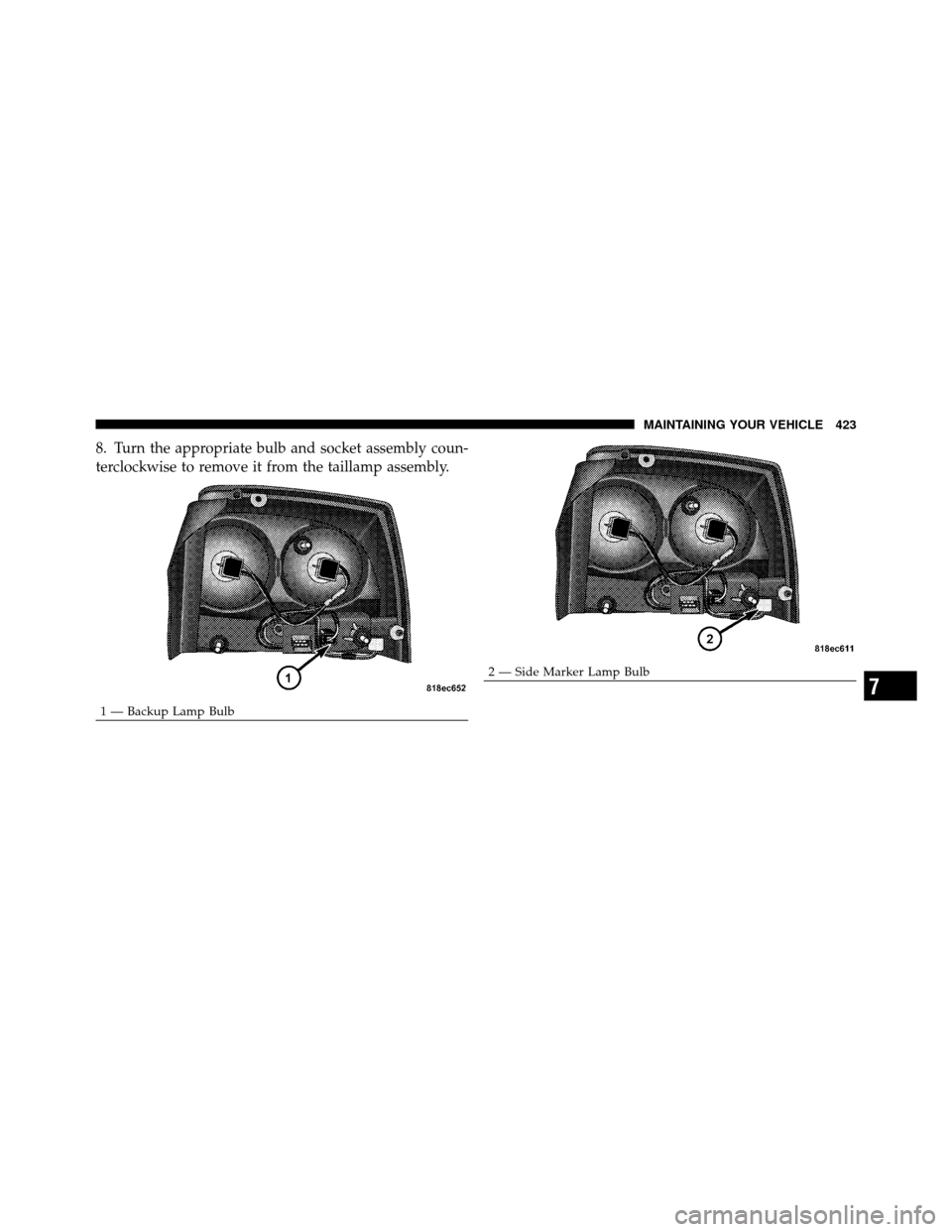

8. Turn the appropriate bulb and socket assembly coun-
terclockwise to remove it from the taillamp assembly.
1 — Backup Lamp Bulb
2 — Side Marker Lamp Bulb
7
MAINTAINING YOUR VEHICLE 423

9. Disconnect the bulb from the socket assembly and
install the replacement bulb.
10. Reinstall the bulb and socket assembly into the
taillamp assembly, and then turn it clockwise.

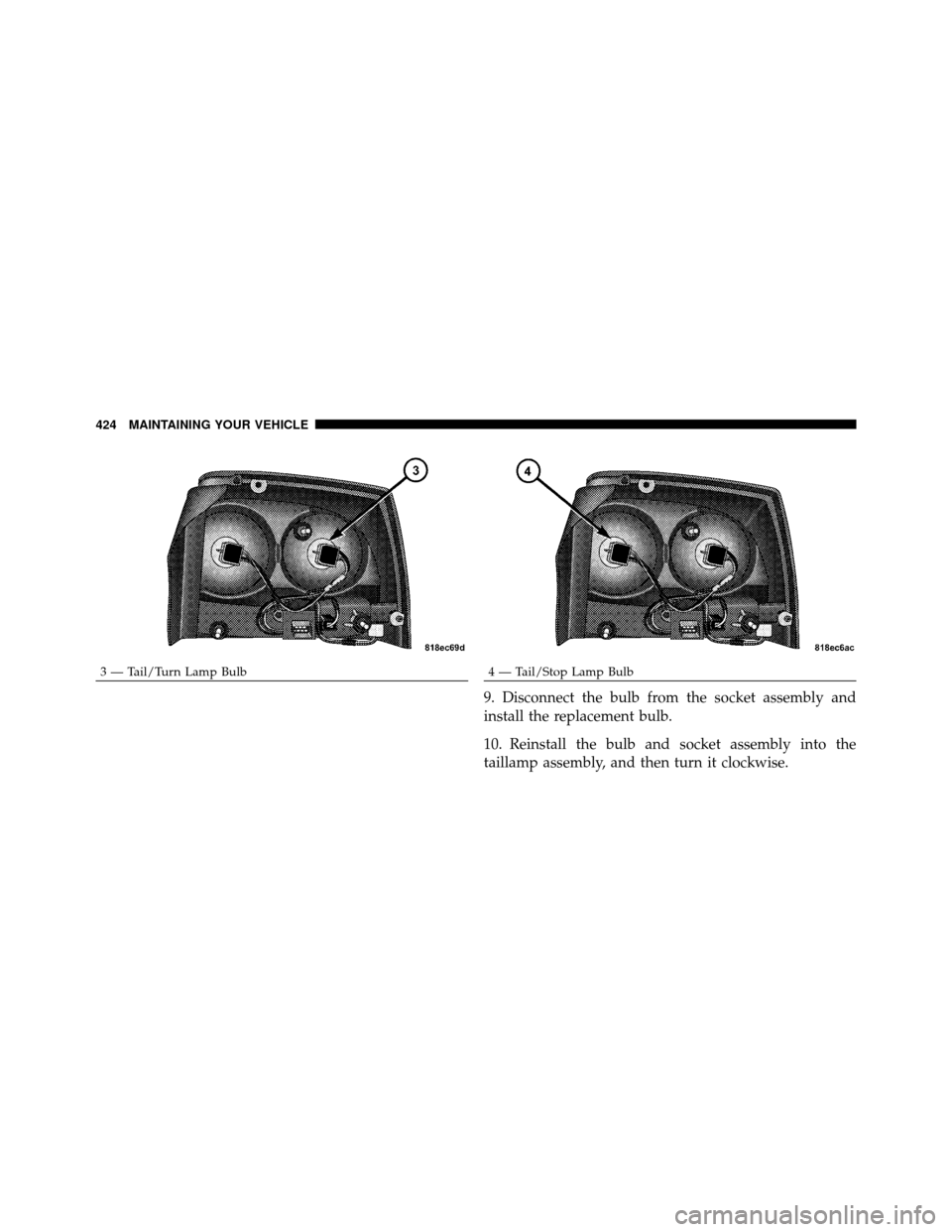

3 — Tail/Turn Lamp Bulb4 — Tail/Stop Lamp Bulb
424 MAINTAINING YOUR VEHICLE

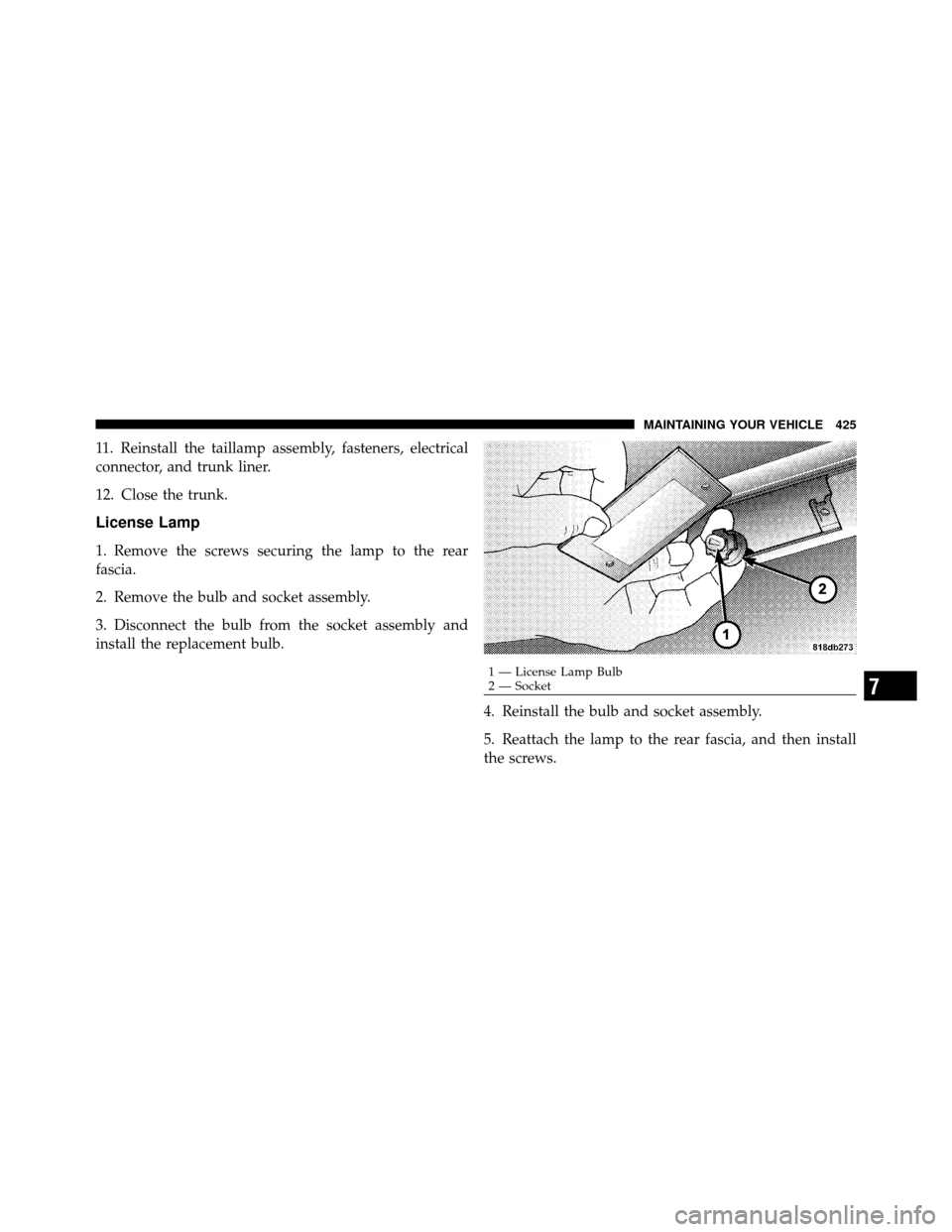

11. Reinstall the taillamp assembly, fasteners, electrical
connector, and trunk liner.
12. Close the trunk.
License Lamp
1. Remove the screws securing the lamp to the rear
fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then install
the screws.
1 — License Lamp Bulb
2 — Socket
7
MAINTAINING YOUR VEHICLE 425

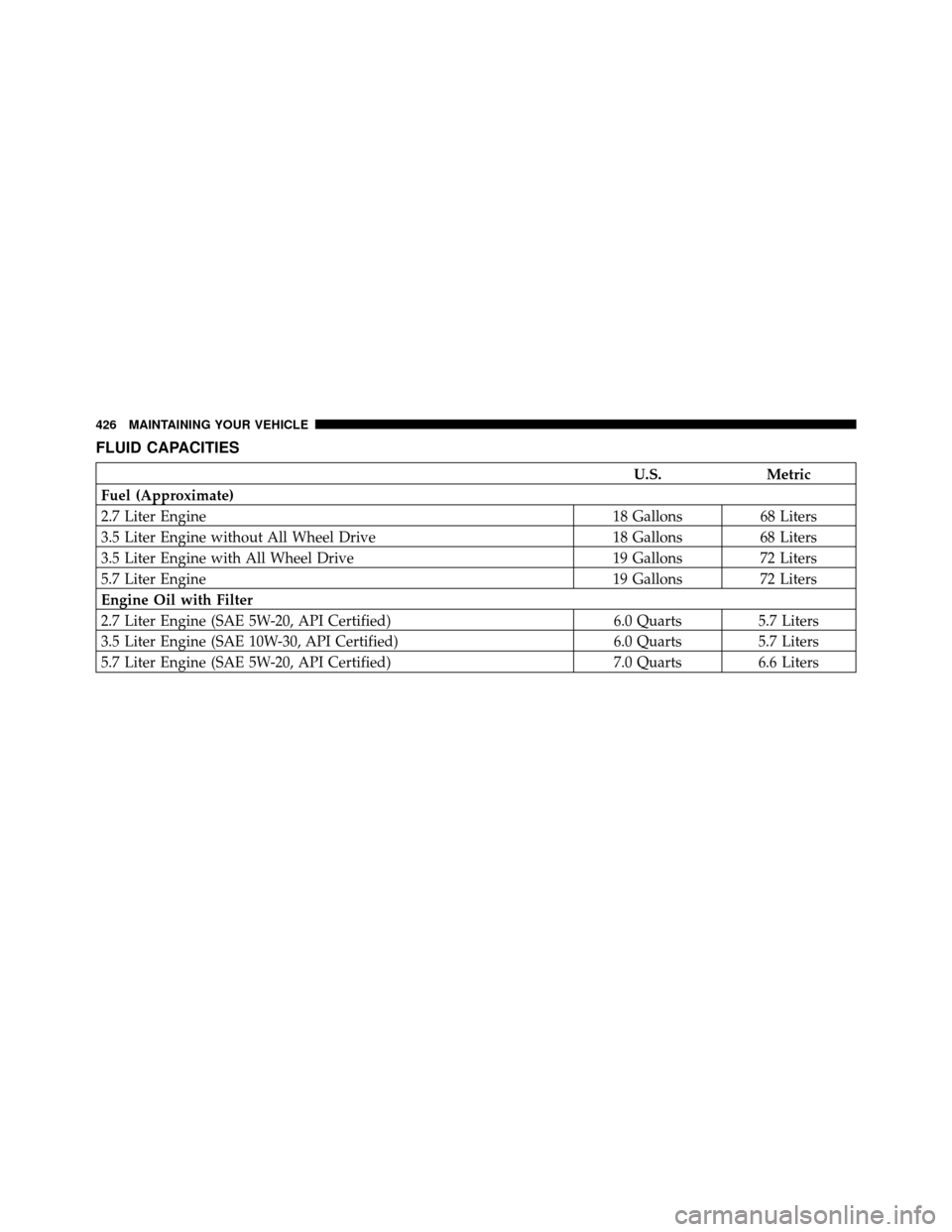

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
2.7 Liter Engine 18 Gallons68 Liters
3.5 Liter Engine without All Wheel Drive 18 Gallons68 Liters
3.5 Liter Engine with All Wheel Drive 19 Gallons72 Liters
5.7 Liter Engine 19 Gallons72 Liters
Engine Oil with Filter
2.7 Liter Engine (SAE 5W-20, API Certified) 6.0 Quarts5.7 Liters
3.5 Liter Engine (SAE 10W-30, API Certified) 6.0 Quarts5.7 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7.0 Quarts6.6 Liters
426 MAINTAINING YOUR VEHICLE

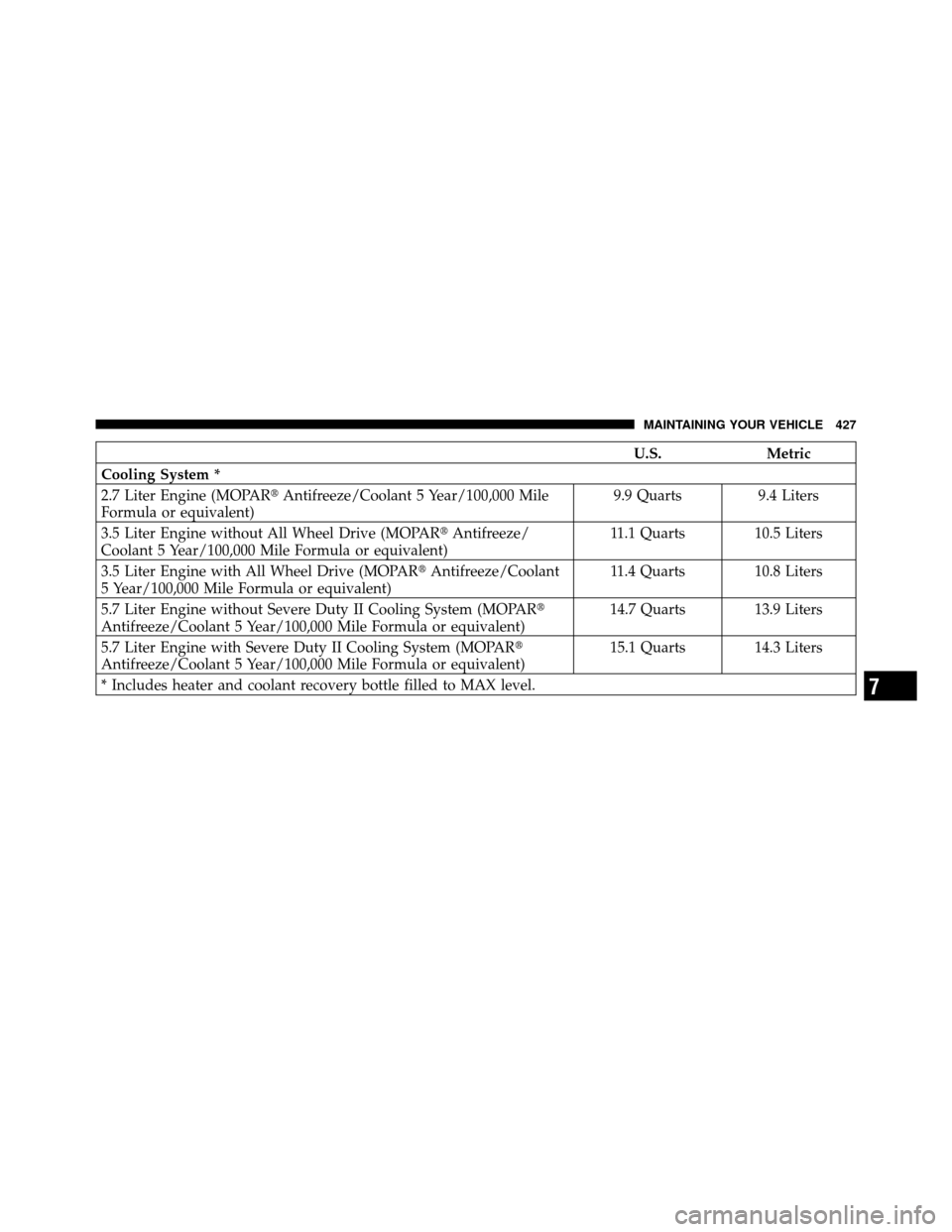

U.S.Metric
Cooling System *
2.7 Liter Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent) 9.9 Quarts
9.4 Liters
3.5 Liter Engine without All Wheel Drive (MOPAR Antifreeze/
Coolant 5 Year/100,000 Mile Formula or equivalent) 11.1 Quarts 10.5 Liters
3.5 Liter Engine with All Wheel Drive (MOPAR Antifreeze/Coolant
5 Year/100,000 Mile Formula or equivalent) 11.4 Quarts 10.8 Liters
5.7 Liter Engine without Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) 14.7 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) 15.1 Quarts 14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 427

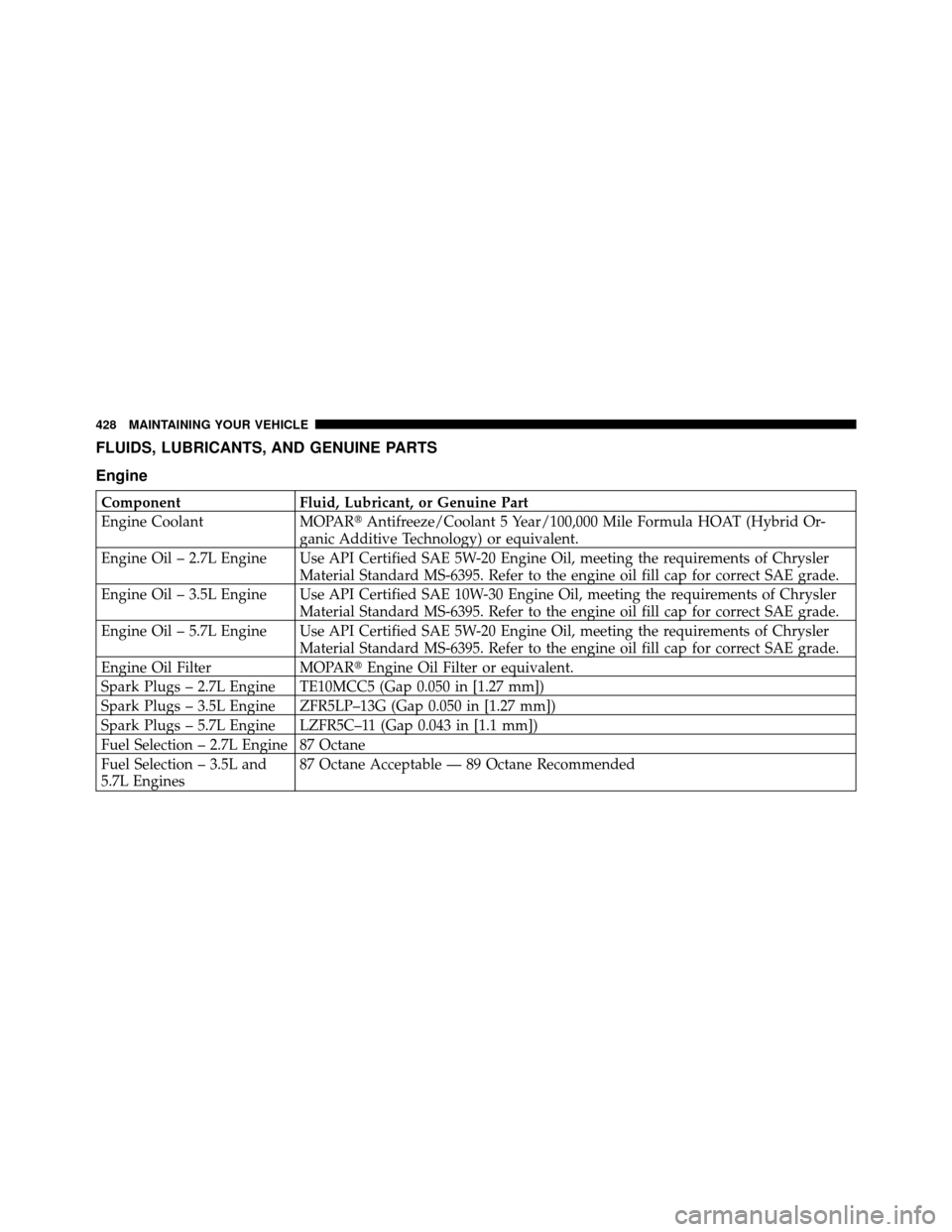

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology) or equivalent.
Engine Oil – 2.7L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for correct SAE grade.
Engine Oil – 3.5L Engine Use API Certified SAE 10W-30 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for correct SAE grade.
Engine Oil – 5.7L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 2.7L Engine TE10MCC5 (Gap 0.050 in [1.27 mm])
Spark Plugs – 3.5L Engine ZFR5LP–13G (Gap 0.050 in [1.27 mm])
Spark Plugs – 5.7L Engine LZFR5C–11 (Gap 0.043 in [1.1 mm])
Fuel Selection – 2.7L Engine 87 Octane
Fuel Selection – 3.5L and
5.7L Engines 87 Octane Acceptable — 89 Octane Recommended
428 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent li-
censed ATF+4 product.
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used or equivalent. If
DOT 3 brake fluid is not available, then DOT 4 is acceptable. Use
only recommended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPAR ATF+4Automatic
Transmission Fluid or equivalent licensed ATF+4 product.
Front Axle API GL-5 SAE 75W90 Synthetic Gear Lubricant or equivalent.
Rear Axle API GL-5 SAE 75W140 Synthetic Gear Lubricant or equivalent.
Transfer Case MOPARTransfer Case Lubricant for BorgWarner 44–40 or equiva-
lent.
7
