CavityCartridge Fuse Mini-FuseDescription
6 40 Amp Green –Exterior Lighting #1
7 40 Amp Green –Exterior Lighting #2
8 30 Amp Pink –Interior Lighting
9 40 Amp Green –Power Locks
10 30 Amp Pink –Driver Door Control
Module
11 30 Amp Pink –Passenger Door Control
Module
12 –20 Amp Yellow Dual USB Center Console
Rear/Cigar Lighter IP –
If Equipped
15 40 Amp Green –HVAC Blower
16 20 Amp Blue –Left Spot Lamp – Police
17 ––Fuse – Spare
7
MAINTAINING YOUR VEHICLE 569

CavityCartridge Fuse Mini-FuseDescription
18 30 Amp Pink –Mod Network Interface –
Police
19 ––Fuse – Spare
20 ––Fuse – Spare
21 30 Amp Pink –Fuel Pump
22 –20 Amp Yellow – Police Right Spot Lamp – Police
23 –10 Amp Red Fuel Door/Diagnostic
Port
24 –10 Amp Red Integrated Center Stack
25 –10 Amp Red Tire Pressure Monitor
26 –15 Amp Blue Cygnus Transmission
Module (Charger/300)/
Electronic Shift Module
(Charger/300)
27 –25 Amp Clear Amplifier – If Equipped
570 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription
31 –25 Amp Breaker Power Seats – If
Equipped
32 –15 Amp Blue HVAC Module/Cluster
33 –15 Amp Blue Ignition Switch/RF Hub
Module/Steering Col-
umn Lock (300) – If
Equipped
34 –10 Amp Red Steering Column
Module/Clock (300)
35 –5 Amp Tan Battery Sensor
36 –15 Amp Blue Electronic Exhaust Valve
– If Equipped
37 –20 Amp Yellow Radio
38 –20 Amp Yellow Power Outlet Inside Arm
Rest/Console Media Hub
40 ––Fuse – Spare
7
MAINTAINING YOUR VEHICLE 571

CavityCartridge Fuse Mini-FuseDescription
41 ––Fuse – Spare
42 30 Amp Pink –Rear Defrost
43 –20 Amp Yellow Comfort Seat And Steer-
ing Wheel Module
(Heated Steering
Wheel/RR Heated Seats)
44 –10 Amp Red Park Assist / Blind Spot
/ Rear View Camera
45 –15 Amp Blue Cluster / Rearview Mir-
ror / Compass (Charger/
300) / Humidity Sensor
46 ––Fuse – Spare
47 –10 Amp Red Adaptive Front Lighting
/ Auto High BEAM /
Day Time Running
Lamps – If Equipped
572 MAINTAINING YOUR VEHICLE

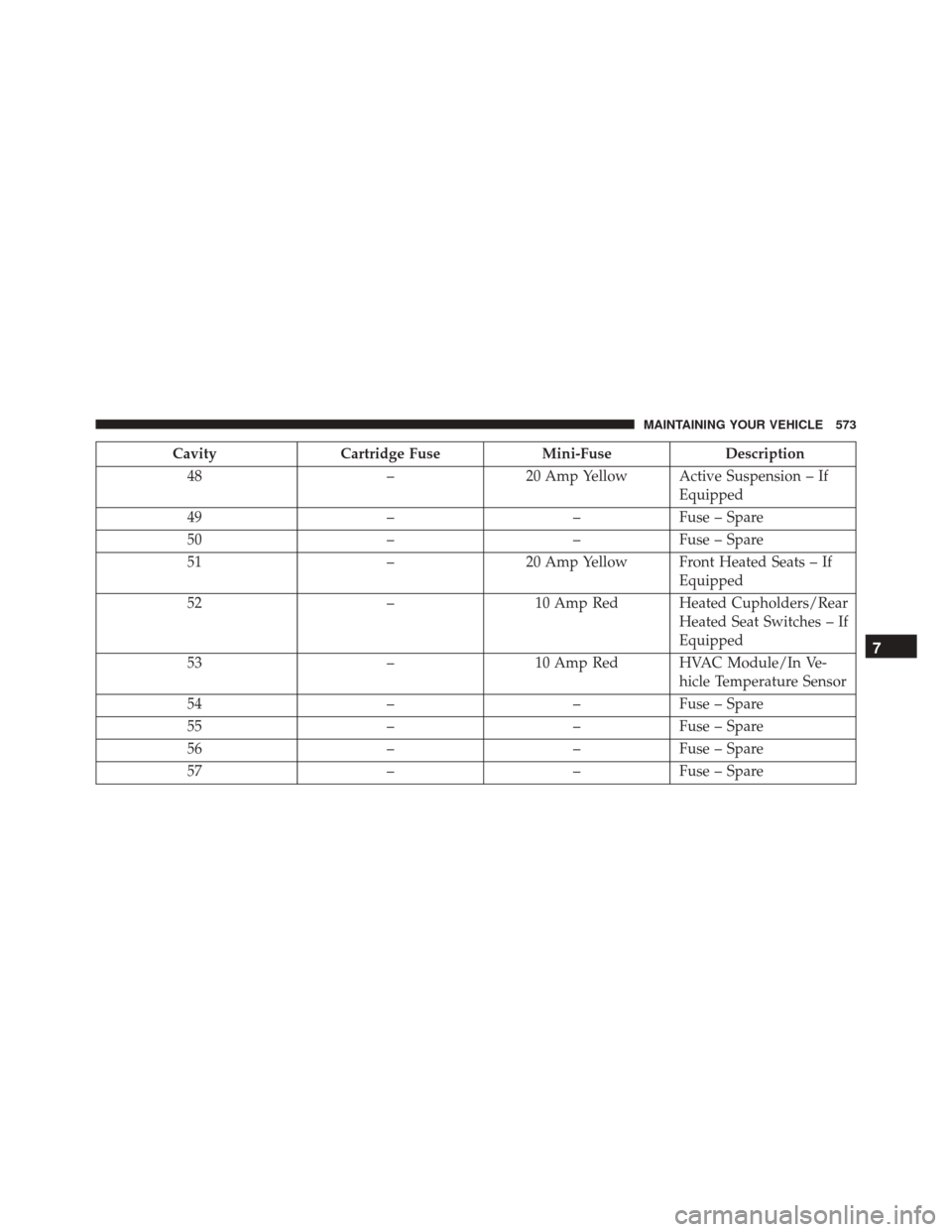

CavityCartridge Fuse Mini-FuseDescription
48 –20 Amp Yellow Active Suspension – If
Equipped
49 ––Fuse – Spare
50 ––Fuse – Spare
51 –20 Amp Yellow Front Heated Seats – If
Equipped
52 –10 Amp Red Heated Cupholders/Rear
Heated Seat Switches – If
Equipped
53 –10 Amp Red HVAC Module/In Ve-
hicle Temperature Sensor
54 ––Fuse – Spare
55 ––Fuse – Spare
56 ––Fuse – Spare
57 ––Fuse – Spare
7
MAINTAINING YOUR VEHICLE 573

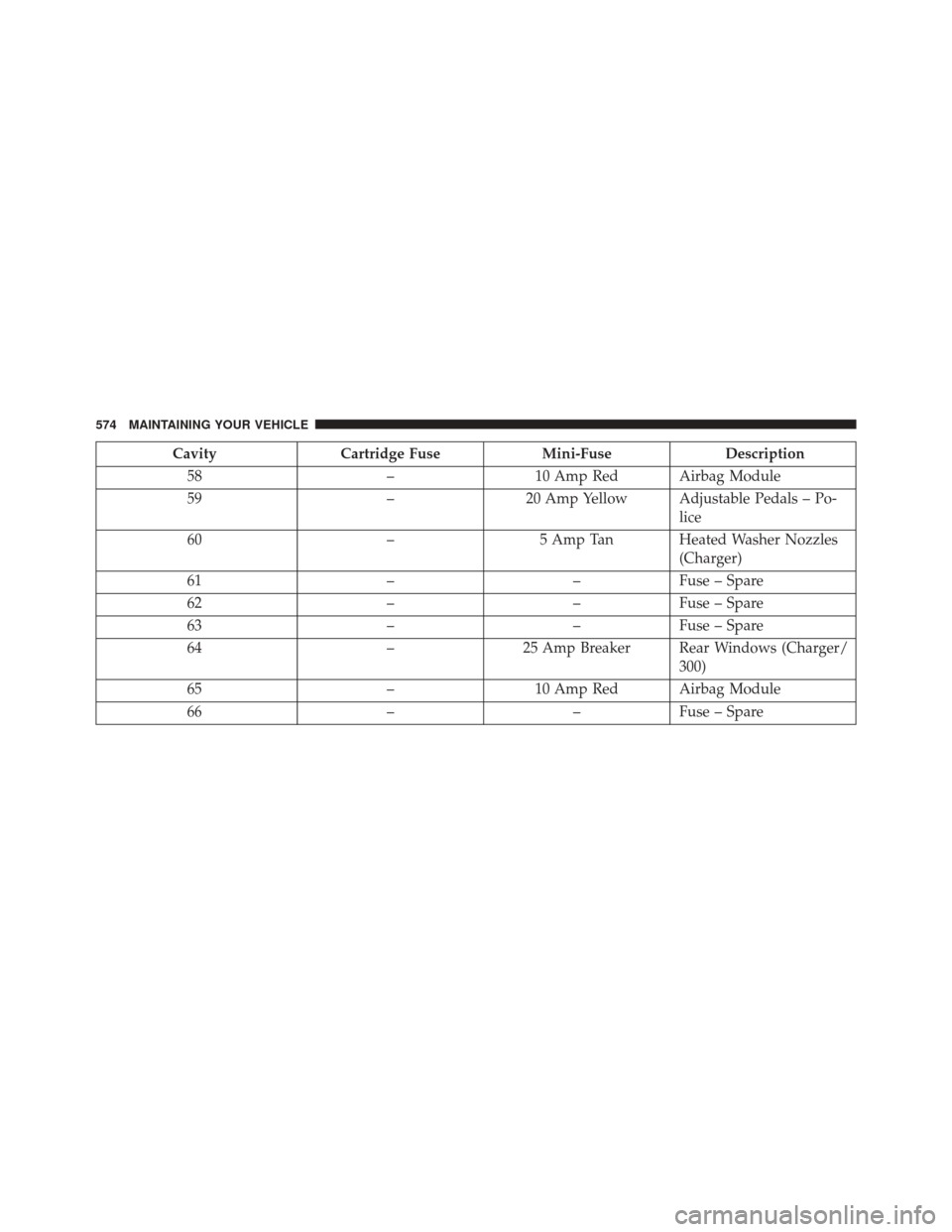

CavityCartridge Fuse Mini-FuseDescription
58 –10 Amp Red Airbag Module
59 –20 Amp Yellow Adjustable Pedals – Po-
lice
60 –5 Amp Tan Heated Washer Nozzles
(Charger)
61 ––Fuse – Spare
62 ––Fuse – Spare
63 ––Fuse – Spare
64 –25 Amp Breaker Rear Windows (Charger/
300)
65 –10 Amp Red Airbag Module
66 ––Fuse – Spare
574 MAINTAINING YOUR VEHICLE

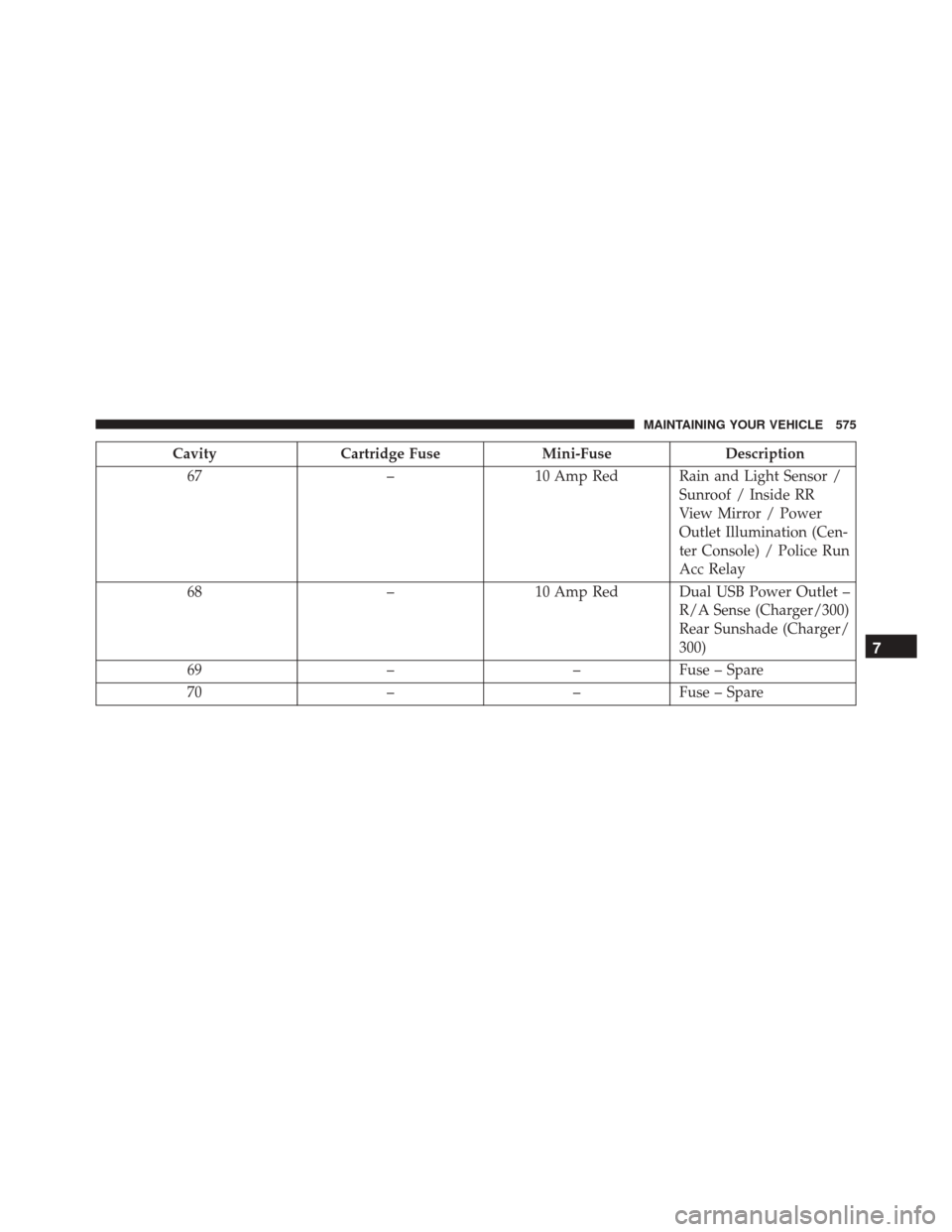

CavityCartridge Fuse Mini-FuseDescription
67 –10 Amp Red Rain and Light Sensor /
Sunroof / Inside RR
View Mirror / Power
Outlet Illumination (Cen-
ter Console) / Police Run
Acc Relay
68 –10 Amp Red Dual USB Power Outlet –
R/A Sense (Charger/300)
Rear Sunshade (Charger/
300)
69 ––Fuse – Spare
70 ––Fuse – Spare
7
MAINTAINING YOUR VEHICLE 575

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear Courtesy/Reading Lamps W5W
Rear Compartment (Trunk) Lamp 562
Overhead Console Reading Lamp 578
Visor Vanity Lamps A6220
Glove Compartment Lamp – If Equipped 194
576 MAINTAINING YOUR VEHICLE

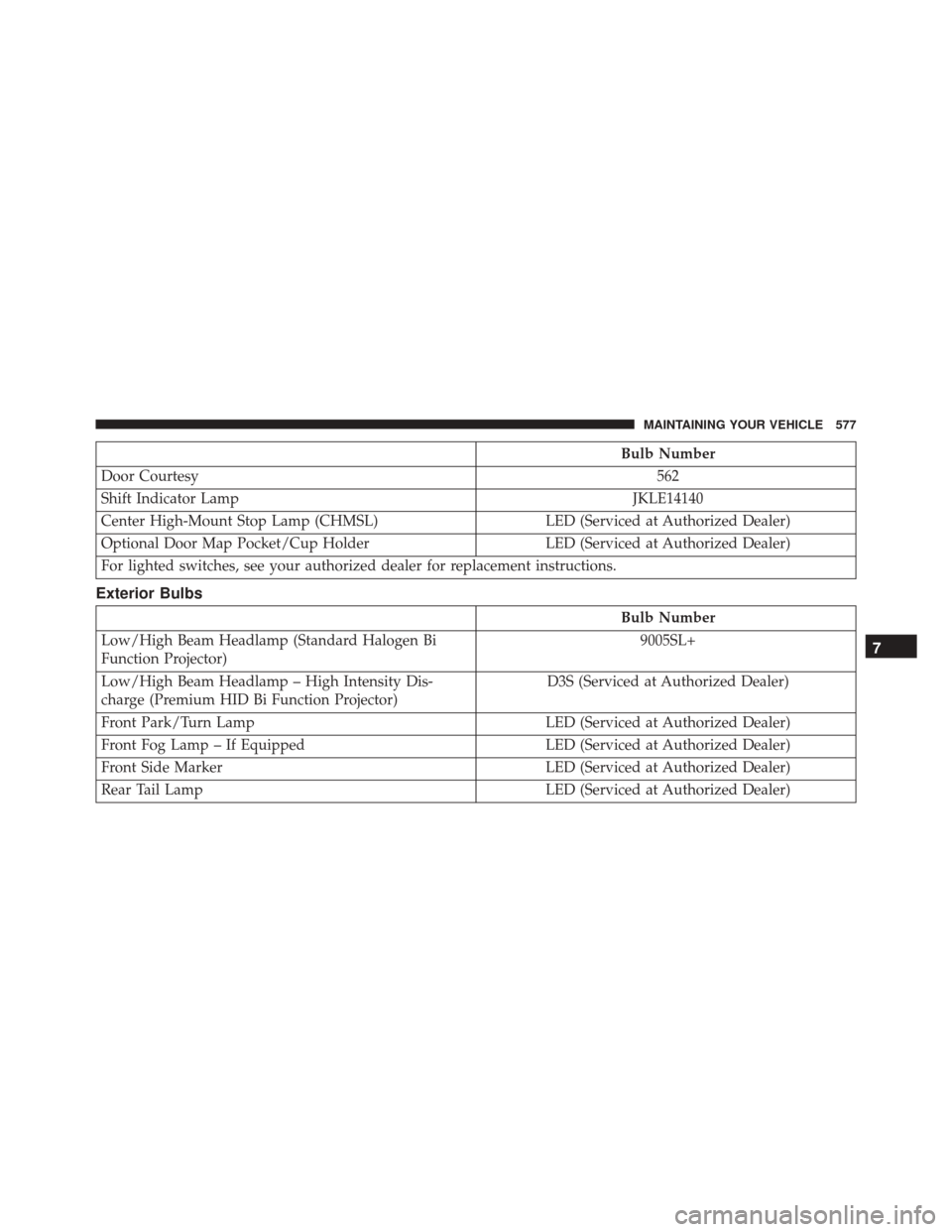

Bulb Number
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Center High-Mount Stop Lamp (CHMSL) LED (Serviced at Authorized Dealer)
Optional Door Map Pocket/Cup Holder LED (Serviced at Authorized Dealer)
For lighted switches, see your authorized dealer for replacement instructions.
Exterior Bulbs
Bulb Number
Low/High Beam Headlamp (Standard Halogen Bi
Function Projector) 9005SL+
Low/High Beam Headlamp – High Intensity Dis-
charge (Premium HID Bi Function Projector) D3S (Serviced at Authorized Dealer)
Front Park/Turn Lamp LED (Serviced at Authorized Dealer)
Front Fog Lamp – If Equipped LED (Serviced at Authorized Dealer)
Front Side Marker LED (Serviced at Authorized Dealer)
Rear Tail Lamp LED (Serviced at Authorized Dealer)
7
MAINTAINING YOUR VEHICLE 577

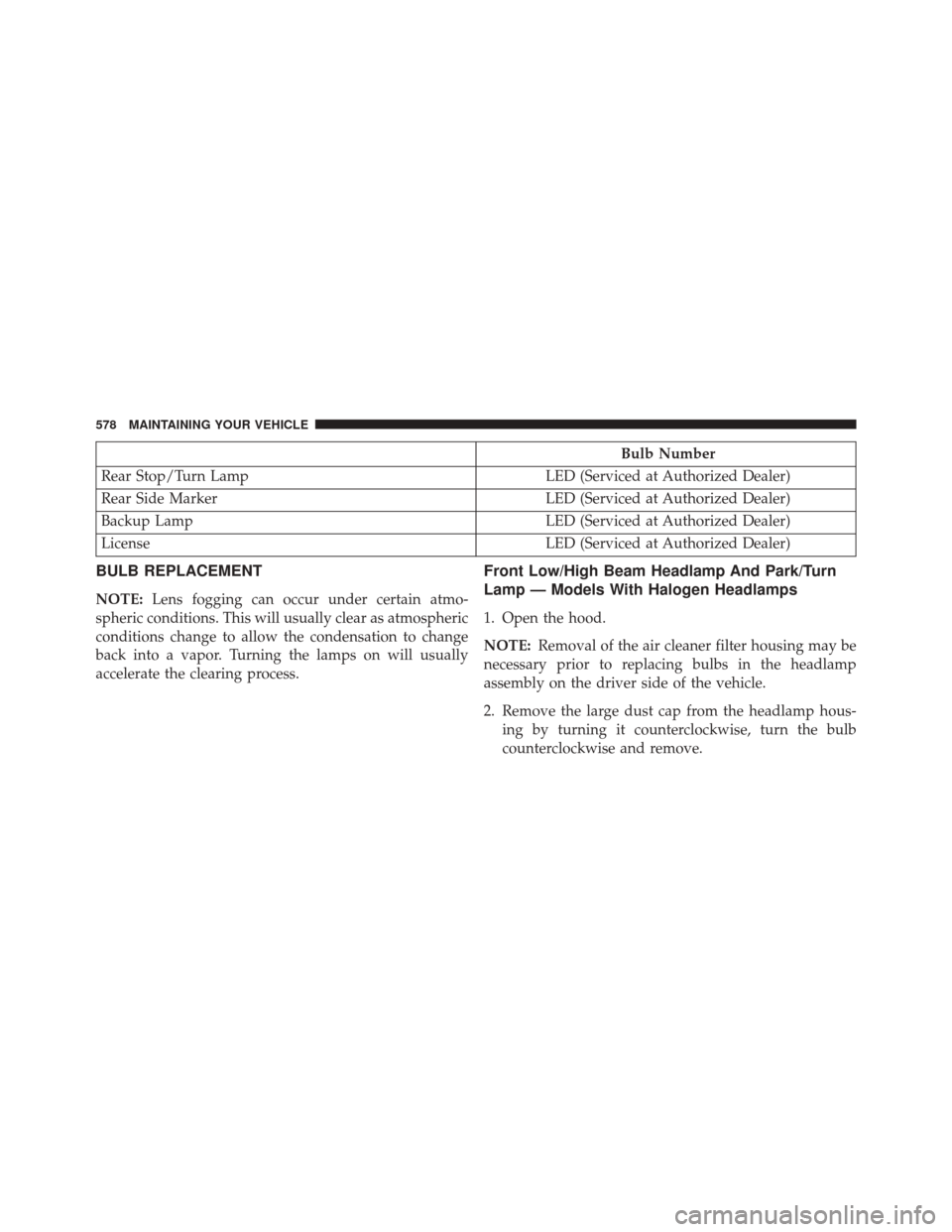

Bulb Number
Rear Stop/Turn Lamp LED (Serviced at Authorized Dealer)
Rear Side Marker LED (Serviced at Authorized Dealer)
Backup Lamp LED (Serviced at Authorized Dealer)
License LED (Serviced at Authorized Dealer)
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Front Low/High Beam Headlamp And Park/Turn
Lamp — Models With Halogen Headlamps
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Remove the large dust cap from the headlamp hous- ing by turning it counterclockwise, turn the bulb
counterclockwise and remove.
