windshield wipers DODGE DART 2014 PF / 1.G Owners Manual

▫Head Restraints ..................... .228
▫ Folding Rear Seat .....................231
 TO OPEN AND CLOSE THE HOOD .........232
 LIGHTS ............................ .235
▫ Headlight Switch .....................235
▫ Automatic Headlights — If Equipped .......236
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............236
▫ Headlight Time Delay ..................237
▫ Automatic High Beam Headlamp Control — If
Equipped .......................... .237
▫ Daytime Running Lights (DRL) ...........239
▫ Lights-On Reminder ...................239
▫ Fog Lights — If Equipped ...............239 ▫
Multifunction Lever ...................240
▫ Turn Signals ........................ .241
▫ Lane Change Assist ...................241
▫ High/Low Beam Switch ................241
▫ Flash-To-Pass ........................241
▫ Front Map/Reading Lights ..............242
▫ Interior Lights .......................242
 WINDSHIELD WIPERS AND WASHERS ......245
▫ Intermittent Wiper System ...............245
▫ Wiper Operation ..................... .245
▫ Mist Feature ........................ .246
▫ Windshield Washers ...................246
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

WINDSHIELD WIPERS AND WASHERS
The multifunction lever operates the windshield wipers
and washer when the ignition is placed in the ON/RUN
or ACC position. The multifunction lever is located on
the left side of the steering column.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle with a variable pause be-
tween cycles desirable. Rotate the end of the multifunc-
tion lever to the first detent position, and then turn the
end of the lever to select the desired delay interval. There
are four delay settings, which allow you to regulate the
wipe interval from a minimum of one cycle every second
to a maximum of approximately 36 seconds between
cycles. The delay intervals will double in duration when
the vehicle speed is 10 mph (16 km/h) or less.
Wiper Operation
Rotate the end of the multifunction lever to the first
detent, past the intermittent settings for low-speed wiper
operation, or to the second detent past the intermittent
settings for high-speed wiper operation.
Windshield Wiper/Washer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 245

CAUTION!
•Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.
• In cold weather, always turn off the wiper switch
and allow the wipers to return to the “Park” posi-
tion before turning off the engine. If the wiper
switch is left on and the wipers freeze to the
windshield, damage to the wiper motor may occur
when the vehicle is restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Mist Feature
Rotate the end of the lever downward to the Mist
position to activate a single wipe cycle to clear off road
mist or spray from a passing vehicle. The wipers will
continue to operate until you release the multifunction
lever.
NOTE: The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Windshield Washers
To use the washer, push the multifunction lever inward
(toward the steering column) and hold it for as long as
washer spray is desired.
246 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If you activate the washer while the windshield wiper
control is in the delay range, the wipers will operate for
two wipe cycles after releasing the lever and then resume
the intermittent interval previously selected.
If you activate the washer while the windshield wiper is
turned off, the wipers will operate for three wipe cycles
and then turn off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Headlights On With Wipers (Available With
Automatic Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.
The Headlights On with Wipers feature can be turned on
and off using the Uconnect® System, refer to “Uconnect®
Settings” in “Understanding Your Instrument Panel” for
further information.
Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or over spray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of four settings
to activate this feature.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 247

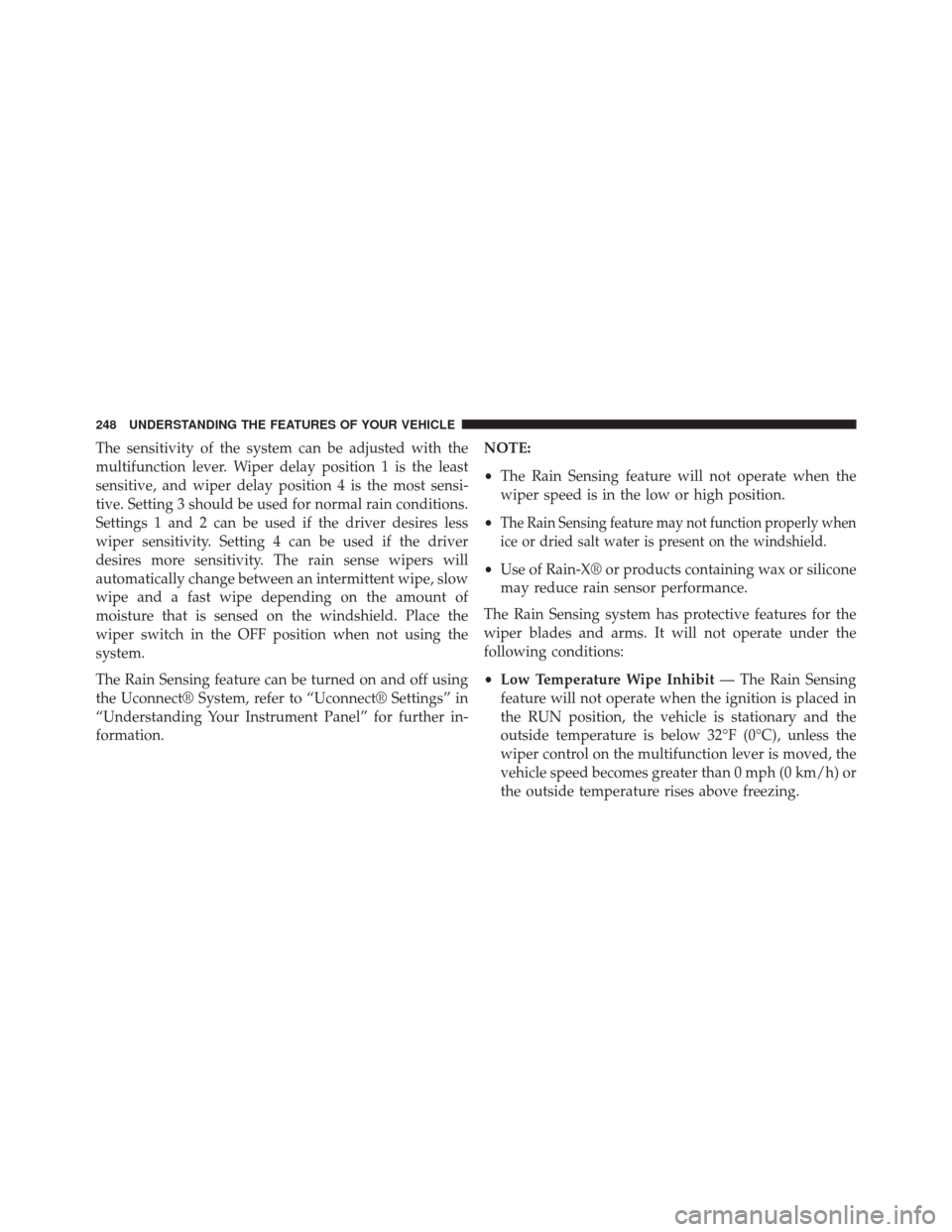

The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position 1 is the least
sensitive, and wiper delay position 4 is the most sensi-
tive. Setting 3 should be used for normal rain conditions.
Settings 1 and 2 can be used if the driver desires less
wiper sensitivity. Setting 4 can be used if the driver
desires more sensitivity. The rain sense wipers will
automatically change between an intermittent wipe, slow
wipe and a fast wipe depending on the amount of
moisture that is sensed on the windshield. Place the
wiper switch in the OFF position when not using the
system.
The Rain Sensing feature can be turned on and off using
the Uconnect® System, refer to “Uconnect® Settings” in
“Understanding Your Instrument Panel” for further in-
formation.NOTE:
•
The Rain Sensing feature will not operate when the
wiper speed is in the low or high position.
•
The Rain Sensing feature may not function properly when
ice or dried salt water is present on the windshield.
• Use of Rain-X® or products containing wax or silicone
may reduce rain sensor performance.
The Rain Sensing system has protective features for the
wiper blades and arms. It will not operate under the
following conditions:
• Low Temperature Wipe Inhibit — The Rain Sensing
feature will not operate when the ignition is placed in
the RUN position, the vehicle is stationary and the
outside temperature is below 32°F (0°C), unless the
wiper control on the multifunction lever is moved, the
vehicle speed becomes greater than 0 mph (0 km/h) or
the outside temperature rises above freezing.
248 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:If your vehicle has experienced any damage in
the area where the sensor is located, even if the fascia is
not damaged, the sensor may have become misaligned.
Take your vehicle to an authorized dealer to verify sensor
alignment. Having a sensor that is misaligned will result
in the BSM not operating to specification.
• ParkView® Backup Camera
Your vehicle may be equipped with the ParkView® Rear
Back Up Camera that allows you to see an on-screen image
of the rear surroundings of your vehicle whenever the shift
lever is put into REVERSE. The image will be displayed on
the radio touchscreen display along with a caution note to
“check entire surroundings” across the top of the screen.
After five seconds, this note will disappear. The ParkView®
camera is located on the rear of the vehicle above the rear
License plate. To make your selection, touch the ParkView®
Backup Camera soft-key, until a check-mark appears next to
setting, showing that setting has been selected. Touch the
back arrow soft-key to return to the previous menu.
•Rain Sensing Auto Wipers
When this feature is selected, the system will automati-
cally activate the windshield wipers if it senses moisture
on the windshield. To make your selection, touch the
Rain Sensing soft-key, until a check-mark appears next to
setting, showing that setting has been selected. Touch the
back arrow soft-key to return to the previous menu.
Lights
After pressing the Lights soft-key the following settings
will be available.
• Interior Ambient Lights
When this feature is selected, it allows the adjustment of
the brightness of the interior ambient lighting. To change
the Interior Ambient Lights setting, touch the + or -
soft-key to select your desired Interior Ambient Light
level. Touch the back arrow soft-key to return to the
previous menu.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 357

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should
be lubricated periodically with a lithium based grease,
such as MOPAR® Spray White Lube to assure quiet, easy
operation and to protect against rust and wear. Prior to
the application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit; after
lubricating excess oil and grease should be removed.
Particular attention should also be given to hood latching
components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR®
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
574 MAINTAINING YOUR VEHICLE

Defroster, Windshield......................110
Delay (Intermittent) Wipers ..................245
Diagnostic System, Onboard .................560
Dimmer Switch, Headlight ...................241
Dipsticks Automatic Transmission ..................587
Disposal Antifreeze (Engine Coolant) ................582
Door Locks Child-Protection Door Lock — Rear Doors ......35
Door Locks ............................25
KeyFob...............................32
Manual Door Locks ......................32
Power Door Locks .......................33
Remote ...............................32
Remote Keyless Entry (RKE) ................32
Door Locks, Automatic ......................34
Door Opener, Garage .......................274
Driver’s Seat Back Tilt ..................... .225Driving
Through Flowing, Rising, or Shallow Standing
Water ............................... .440
Electrical Power Outlets .....................287
Electric Rear Window Defrost .................300
Electric Remote Mirrors .....................122
Electronic Brake Control System ...............446
Brake Assist System .....................449
Electronic Stability Program ................455
Traction Control System ...................449
Electronic Roll Mitigation (ERM) ..............450
Electronic Speed Control (Cruise Control) ........252
Electronic Stability Program (ESP) .............455
Electronic Vehicle Information Center (EVIC) ......321
Emergency Brake ........................ .442
Emergency Deck Lid Release ..................47
Emergency, In Case of Freeing Vehicle When Stuck ................547
636 INDEX

Warnings and Cautions.......................6
Warranty Information ..................... .626
Washer Adding Fluid ..........................575
Washers, Windshield .......................246
Washing Vehicle ..........................589
Water Driving Through ........................440
Wheel and Wheel Trim .....................591
Wheel and Wheel Trim Care .................591
Wind Buffeting ............................45
Window Fogging ........................ .403Windows
................................41
Auto Down ............................42
Power ................................41
Reset Auto-Up ..........................44
Wind Buffeting ..........................45
Windshield Defroster .......................110
Windshield Washers .......................245
Windshield Wiper Blades ....................574
Windshield Wipers ........................245
Wiper Blade Replacement ...................574
Wipers, Intermittent .......................245
Wipers, Rain Sensitive ..................... .247
652 INDEX
