Dual Zone Temperature Control — If Equipped
With the Dual Zone Temperature Control System, each
front seat occupant can independently control the tem-
perature of air coming from the outlets on their side of
the vehicle.
This is accomplished by having a separate temperature
control lever for both the driver and front seat passenger.
The blue area of the scale indicates cooler temperatures
while the red area indicates warmer temperatures. Front Mode Control
The mode control allows you to
choose from several patterns of air
distribution.
NOTE: To improve your selection choices, the system
allows you to operate at intermediate positions between
the major modes. These intermediate positions are iden-
tified by the small dots.Dual Zone Temperature Control UNDERSTANDING YOUR INSTRUMENT PANEL 263
4

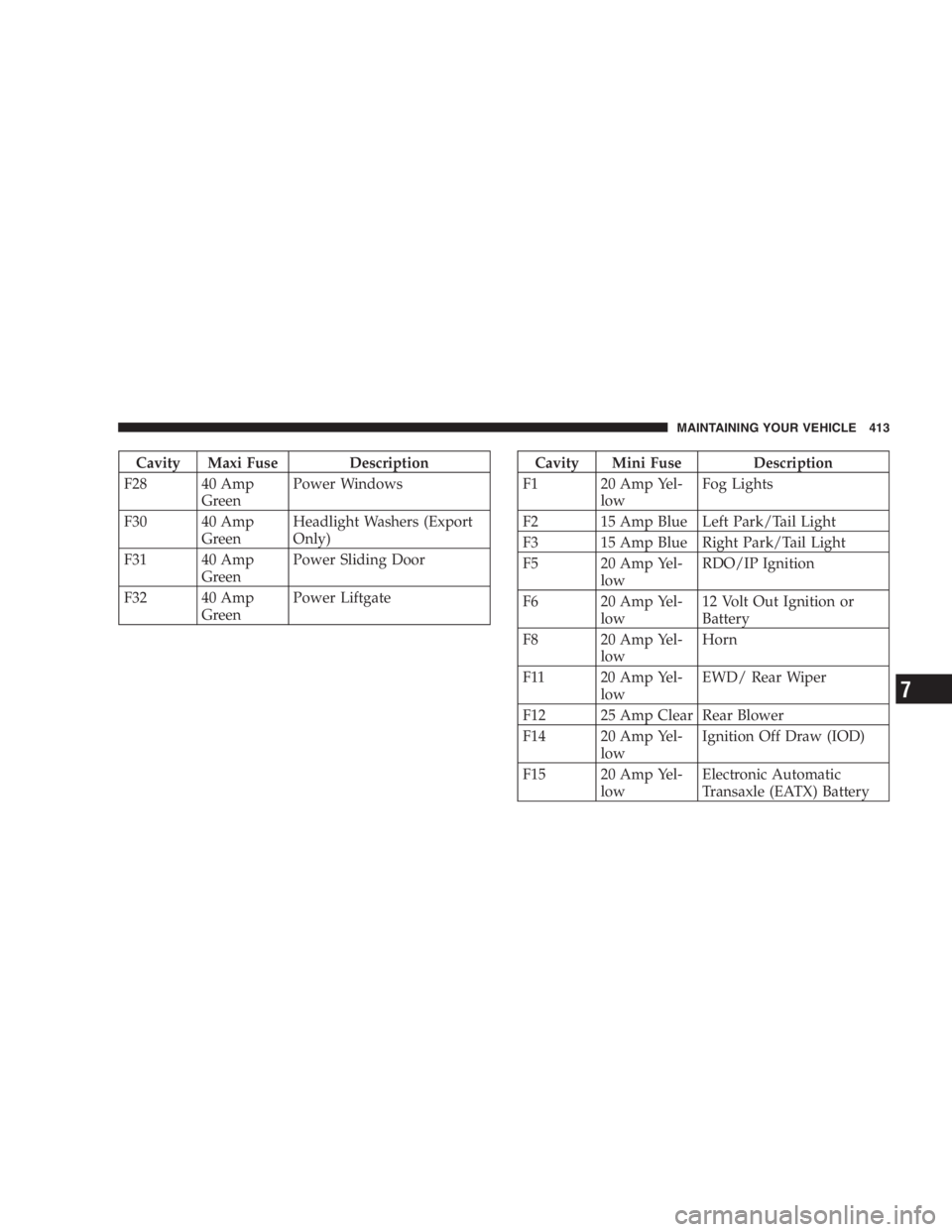

Cavity Maxi Fuse Description
F28 40 Amp
Green Power Windows
F30 40 Amp
Green Headlight Washers (Export
Only)
F31 40 Amp
Green Power Sliding Door
F32 40 Amp
Green Power Liftgate Cavity Mini Fuse Description
F1 20 Amp Yel-
low Fog Lights
F2 15 Amp Blue Left Park/Tail Light
F3 15 Amp Blue Right Park/Tail Light
F5 20 Amp Yel-
low RDO/IP Ignition
F6 20 Amp Yel-
low 12 Volt Out Ignition or
Battery
F8 20 Amp Yel-
low Horn
F11 20 Amp Yel-
low EWD/ Rear Wiper
F12 25 Amp Clear Rear Blower
F14 20 Amp Yel-
low Ignition Off Draw (IOD)
F15 20 Amp Yel-
low Electronic Automatic
Transaxle (EATX) Battery MAINTAINING YOUR VEHICLE 413
7

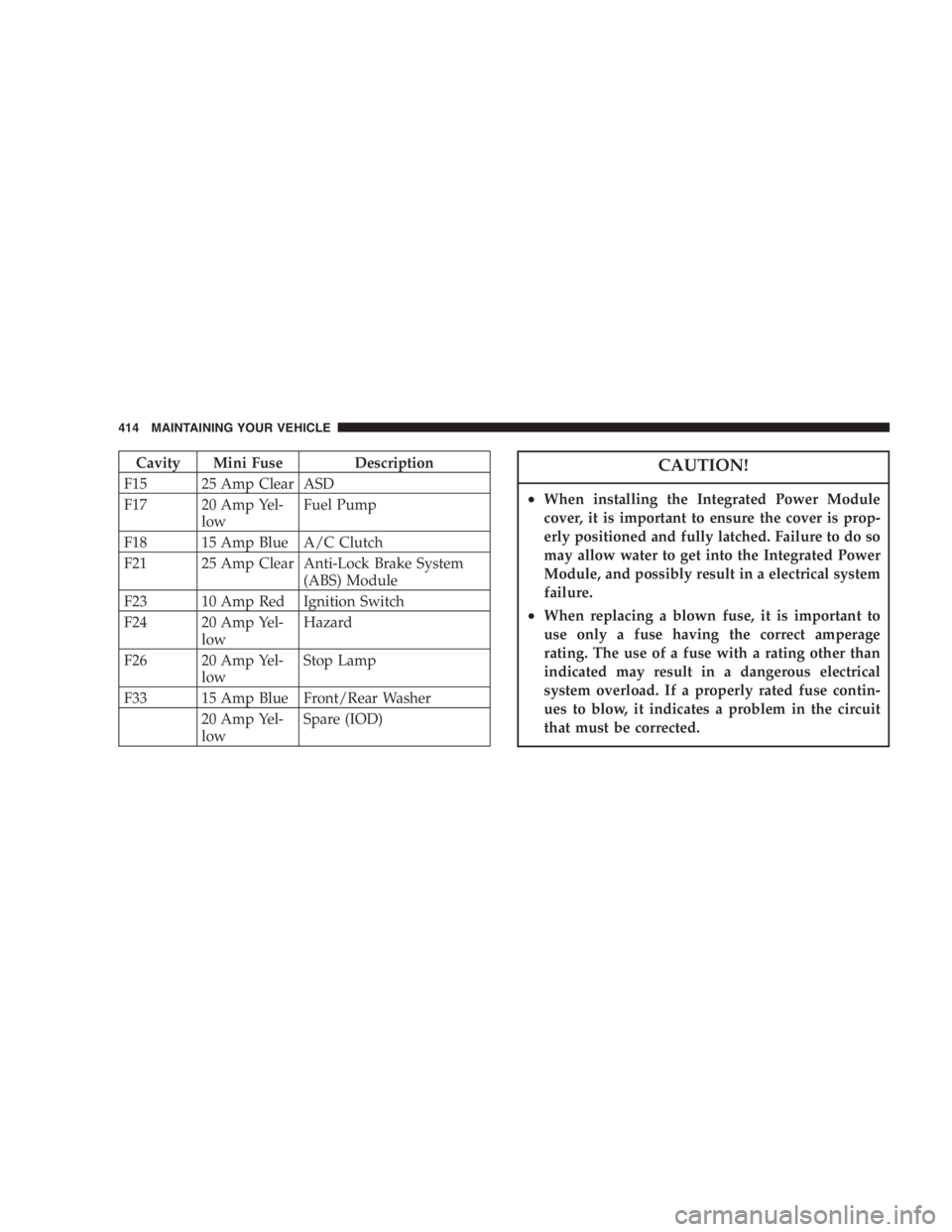

Cavity Mini Fuse Description
F15 25 Amp Clear ASD
F17 20 Amp Yel-
low Fuel Pump
F18 15 Amp Blue A/C Clutch
F21 25 Amp Clear Anti-Lock Brake System
(ABS) Module
F23 10 Amp Red Ignition Switch
F24 20 Amp Yel-
low Hazard
F26 20 Amp Yel-
low Stop Lamp
F33 15 Amp Blue Front/Rear Washer
20 Amp Yel-
low Spare (IOD) CAUTION!• When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.
• When replacing a blown fuse, it is important to
use only a fuse having the correct amperage
rating. The use of a fuse with a rating other than
indicated may result in a dangerous electrical
system overload. If a properly rated fuse contin-
ues to blow, it indicates a problem in the circuit
that must be corrected.414 MAINTAINING YOUR VEHICLE
