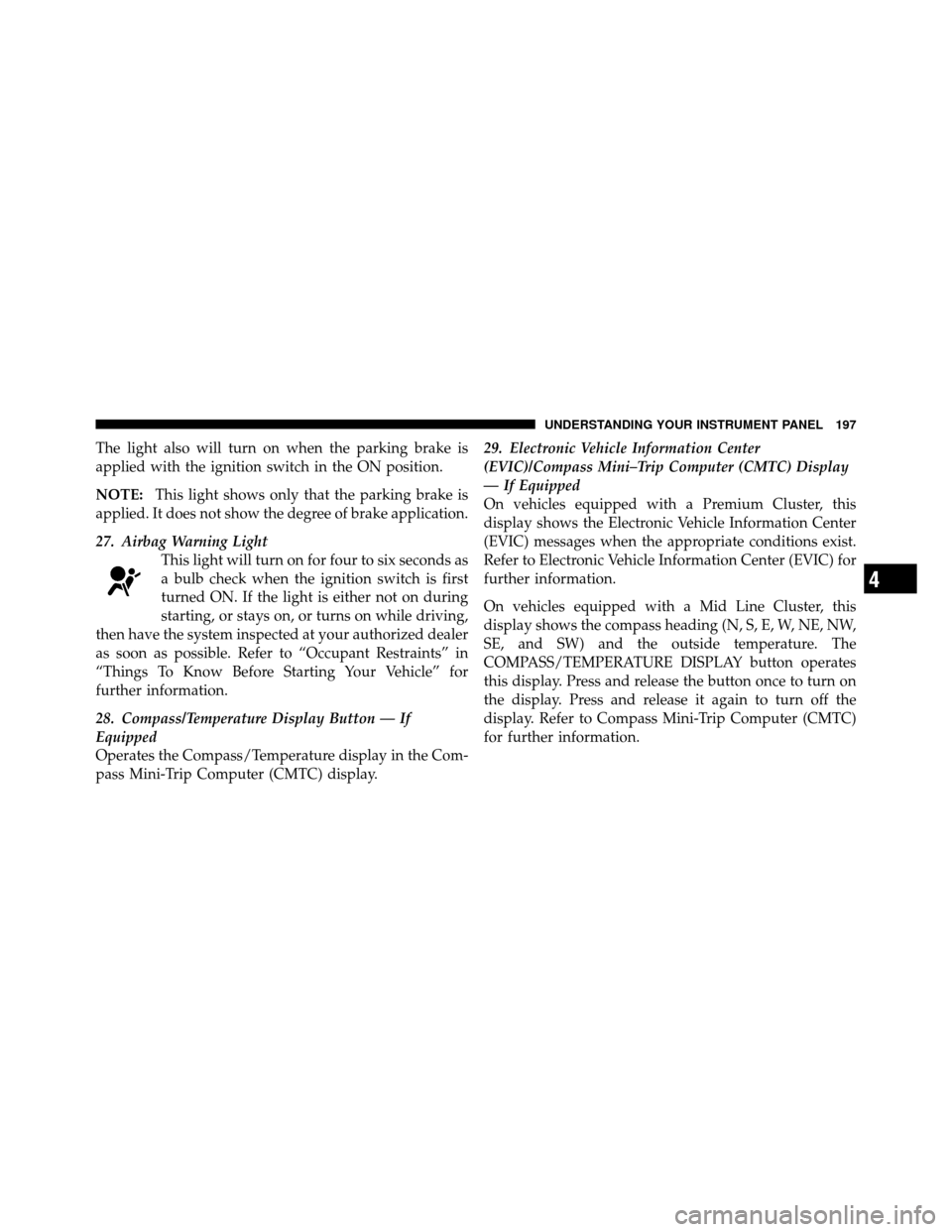

The light also will turn on when the parking brake is
applied with the ignition switch in the ON position.
NOTE:This light shows only that the parking brake is
applied. It does not show the degree of brake application.
27. Airbag Warning Light This light will turn on for four to six seconds as
a bulb check when the ignition switch is first
turned ON. If the light is either not on during
starting, or stays on, or turns on while driving,
then have the system inspected at your authorized dealer
as soon as possible. Refer to “Occupant Restraints” in
“Things To Know Before Starting Your Vehicle” for
further information.
28. Compass/Temperature Display Button — If
Equipped
Operates the Compass/Temperature display in the Com-
pass Mini-Trip Computer (CMTC) display. 29. Electronic Vehicle Information Center
(EVIC)/Compass Mini–Trip Computer (CMTC) Display
— If Equipped
On vehicles equipped with a Premium Cluster, this
display shows the Electronic Vehicle Information Center
(EVIC) messages when the appropriate conditions exist.
Refer to Electronic Vehicle Information Center (EVIC) for
further information.
On vehicles equipped with a Mid Line Cluster, this
display shows the compass heading (N, S, E, W, NE, NW,
SE, and SW) and the outside temperature. The
COMPASS/TEMPERATURE DISPLAY button operates
this display. Press and release the button once to turn on
the display. Press and release it again to turn off the
display. Refer to Compass Mini-Trip Computer (CMTC)
for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 197

COMPASS MINI-TRIP COMPUTER (CMTC) — IF
EQUIPPED
NOTE:
•The compass on your vehicle is self-calibrating, elimi-
nating the need to manually calibrate the compass.
•If the vehicle is equipped with a Chryslergps
(Navigation Radio), the NAV system will provide the
compass direction, and the variance and calibration
menus will be unavailable. The compass will perform
accurately, based on GPS signals instead of the Earth’s
magnetic field.
The Compass Mini-Trip Computer is located in the
instrument cluster and features a driver-interactive dis-
play (displays information on outside temperature, com-
pass direction, and trip information). NOTE:
The system will display the last known outside
temperature when starting the vehicle and may need to
be driven several minutes before the updated tempera-
ture is displayed. Engine temperature can also affect the
displayed temperature, therefore temperature readings
are not updated when the vehicle is not moving.CMTC Reset Buttons
CMTC Reset Button
Press the left reset button located on the instrument
cluster to scroll through sub menus (i.e., Trip Functions:
AVG Fuel Economy, DTE, Elapsed Time, and Units).
To reset the display shown, turn the ignition switch to the
ON position, then press and hold the reset button for
approximately two seconds.
198 UNDERSTANDING YOUR INSTRUMENT PANEL

When the appropriate conditions exist, the following
messages will display:
NE....... Eight-point compass headings are displayed
(N, S, E, W, NE, NW, SE, SW)
14°F ............ T emperature (Fahrenheit or Celsius)
AV G ....... Average Fuel Economy (English or Metric)
DTE ....................... Distance to Empty
ET ............................ Elapsed Time
CMTC Trip Odometer (ODO) / ECO (Fuel Saver
Indicator) — If Equipped
This display shows the distance traveled since the last
reset. Press and release the right button on the instrument
cluster to switch from odometer, to Trip A or Trip B, or to
ECO. Press and hold the right button while the
odometer/trip odometer is displayed to reset. Trip A
Shows the total distance traveled for Trip A since the last
reset.
Trip B
Shows the total distance traveled for Trip B since the last
reset.
ECO (Fuel Saver Indicator) — If Equipped
The ECO-ON indicator will illuminate when you are
driving in a fuel efficient manner and can be used to
modify driving habits in order to increase fuel economy.
The ECO display will toggle between ECO and ECO-ON
depending on driving habits and vehicle usage.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 199

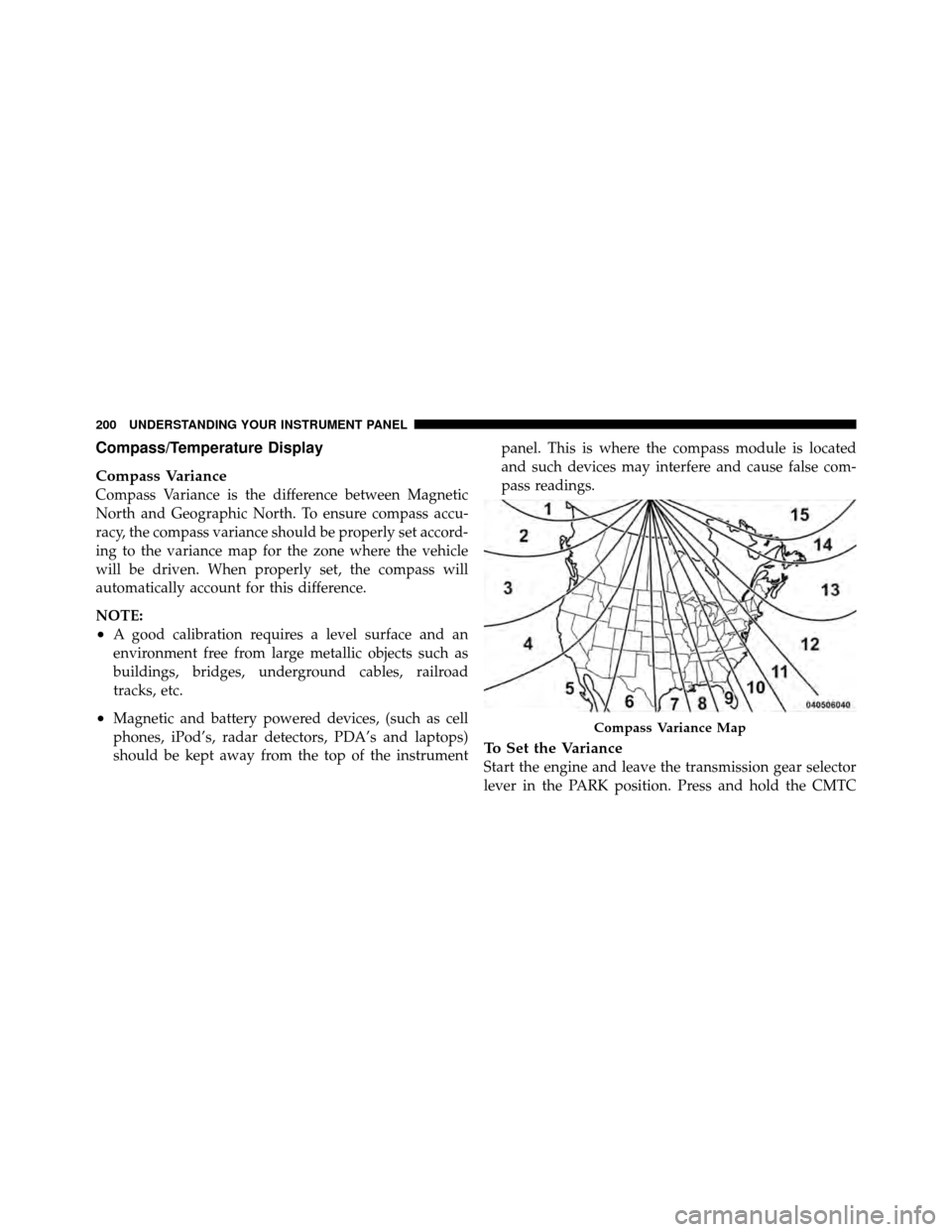

Compass/Temperature Display
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To ensure compass accu-
racy, the compass variance should be properly set accord-
ing to the variance map for the zone where the vehicle
will be driven. When properly set, the compass will
automatically account for this difference.
NOTE:
•A good calibration requires a level surface and an
environment free from large metallic objects such as
buildings, bridges, underground cables, railroad
tracks, etc.
•Magnetic and battery powered devices, (such as cell
phones, iPod’s, radar detectors, PDA’s and laptops)
should be kept away from the top of the instrumentpanel. This is where the compass module is located
and such devices may interfere and cause false com-
pass readings.
To Set the Variance
Start the engine and leave the transmission gear selector
lever in the PARK position. Press and hold the CMTC
Compass Variance Map
200 UNDERSTANDING YOUR INSTRUMENT PANEL

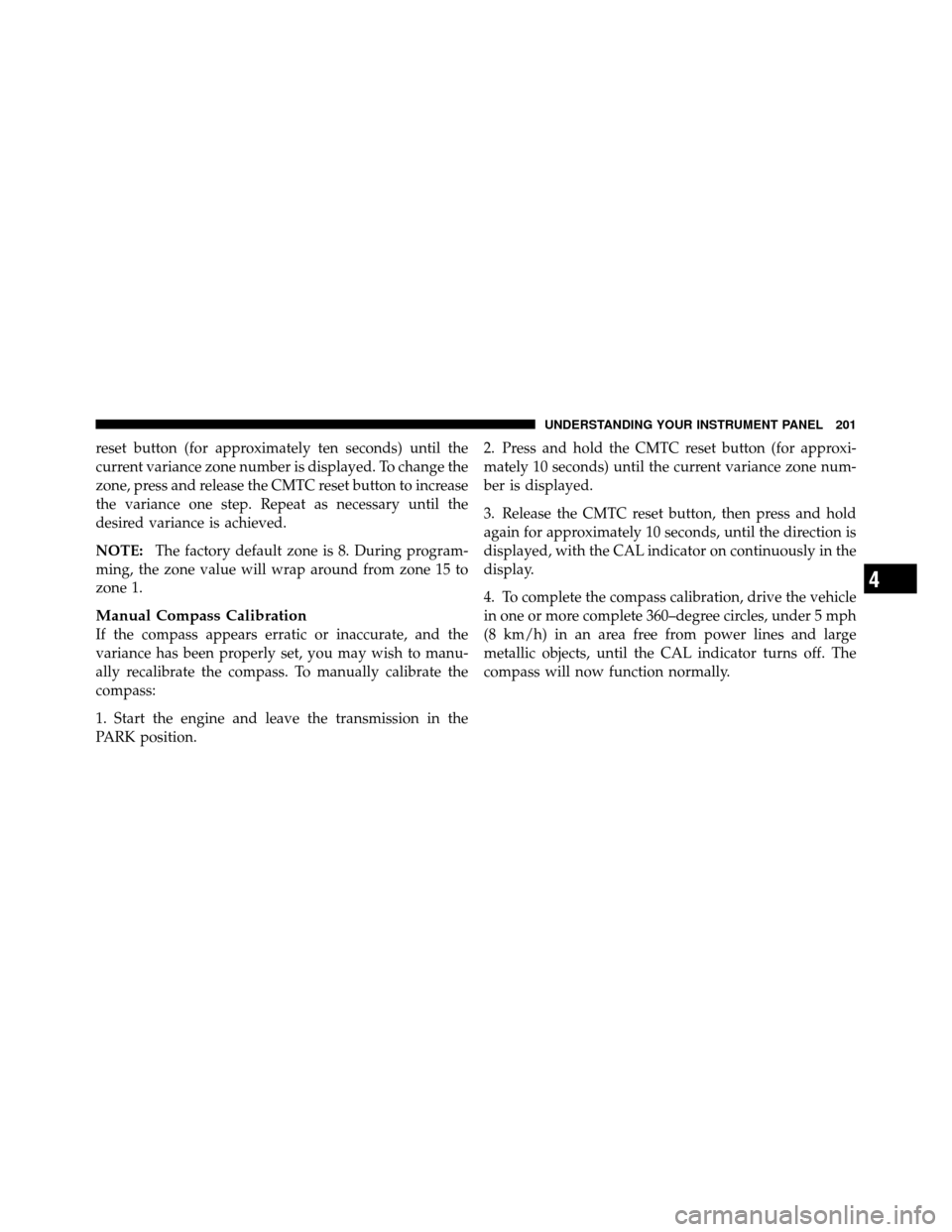

reset button (for approximately ten seconds) until the
current variance zone number is displayed. To change the
zone, press and release the CMTC reset button to increase
the variance one step. Repeat as necessary until the
desired variance is achieved.
NOTE:The factory default zone is 8. During program-
ming, the zone value will wrap around from zone 15 to
zone 1.
Manual Compass Calibration
If the compass appears erratic or inaccurate, and the
variance has been properly set, you may wish to manu-
ally recalibrate the compass. To manually calibrate the
compass:
1. Start the engine and leave the transmission in the
PARK position. 2. Press and hold the CMTC reset button (for approxi-
mately 10 seconds) until the current variance zone num-
ber is displayed.
3. Release the CMTC reset button, then press and hold
again for approximately 10 seconds, until the direction is
displayed, with the CAL indicator on continuously in the
display.
4. To complete the compass calibration, drive the vehicle
in one or more complete 360–degree circles, under 5 mph
(8 km/h) in an area free from power lines and large
metallic objects, until the CAL indicator turns off. The
compass will now function normally.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 201

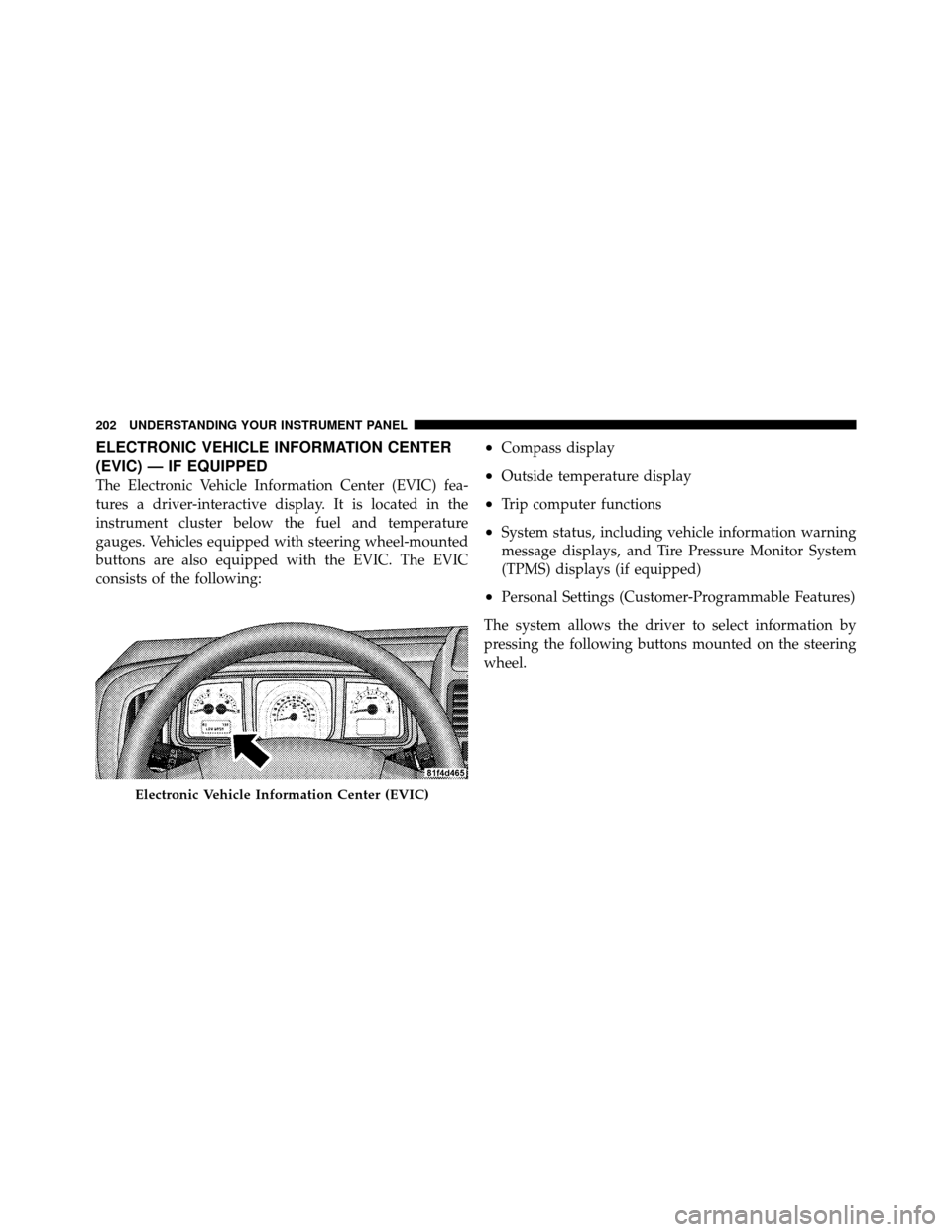

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) — IF EQUIPPED
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display. It is located in the
instrument cluster below the fuel and temperature
gauges. Vehicles equipped with steering wheel-mounted
buttons are also equipped with the EVIC. The EVIC
consists of the following:
•Compass display
•Outside temperature display
•Trip computer functions
•System status, including vehicle information warning
message displays, and Tire Pressure Monitor System
(TPMS) displays (if equipped)
•Personal Settings (Customer-Programmable Features)
The system allows the driver to select information by
pressing the following buttons mounted on the steering
wheel.
Electronic Vehicle Information Center (EVIC)
202 UNDERSTANDING YOUR INSTRUMENT PANEL

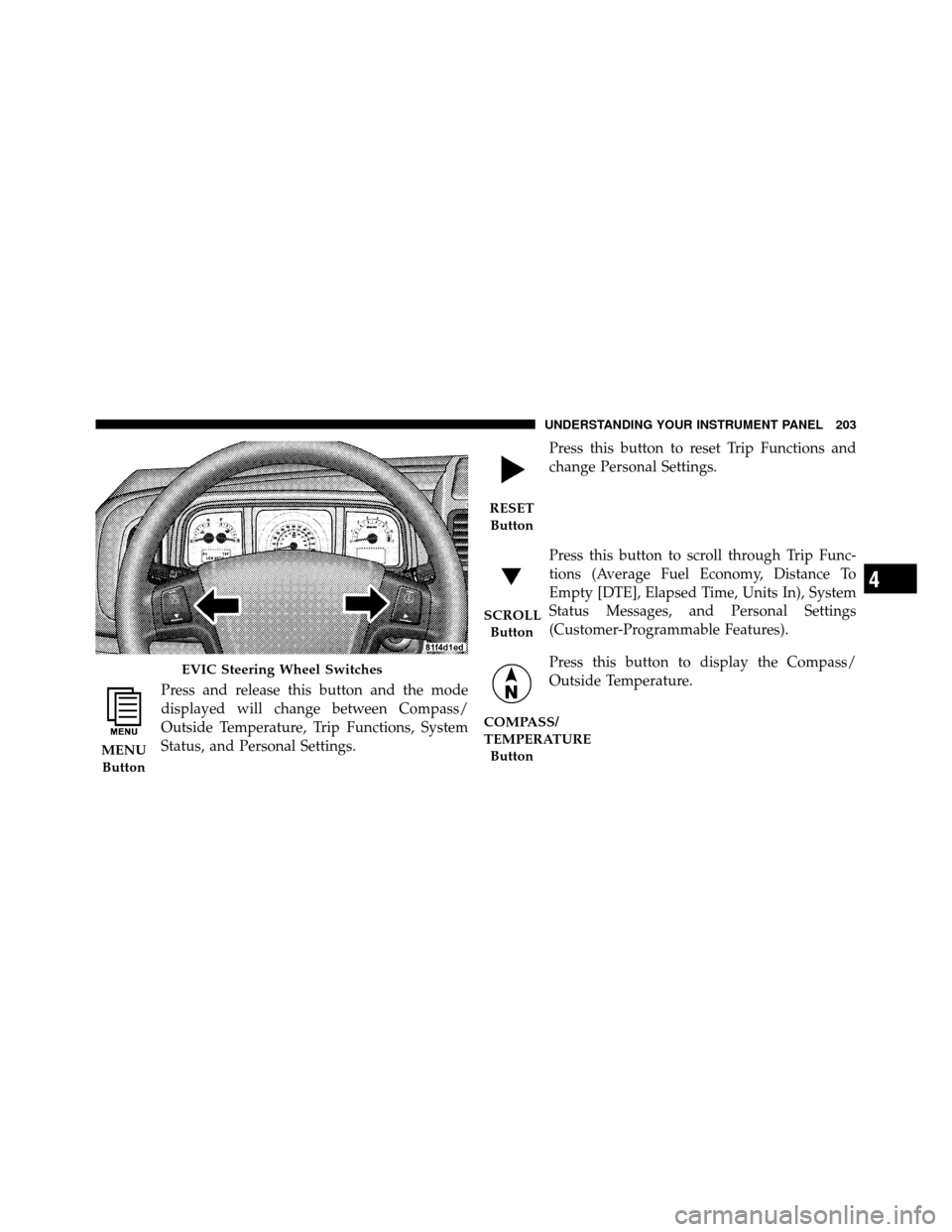

Press and release this button and the mode
displayed will change between Compass/
Outside Temperature, Trip Functions, System
Status, and Personal Settings.Press this button to reset Trip Functions and
change Personal Settings.
Press this button to scroll through Trip Func-
tions (Average Fuel Economy, Distance To
Empty [DTE], Elapsed Time, Units In), System
Status Messages, and Personal Settings
(Customer-Programmable Features).
Press this button to display the Compass/
Outside Temperature.
EVIC Steering Wheel Switches
MENU
Button
RESETButton
SCROLL Button
COMPASS/
TEMPERATUREButton
4
UNDERSTANDING YOUR INSTRUMENT PANEL 203

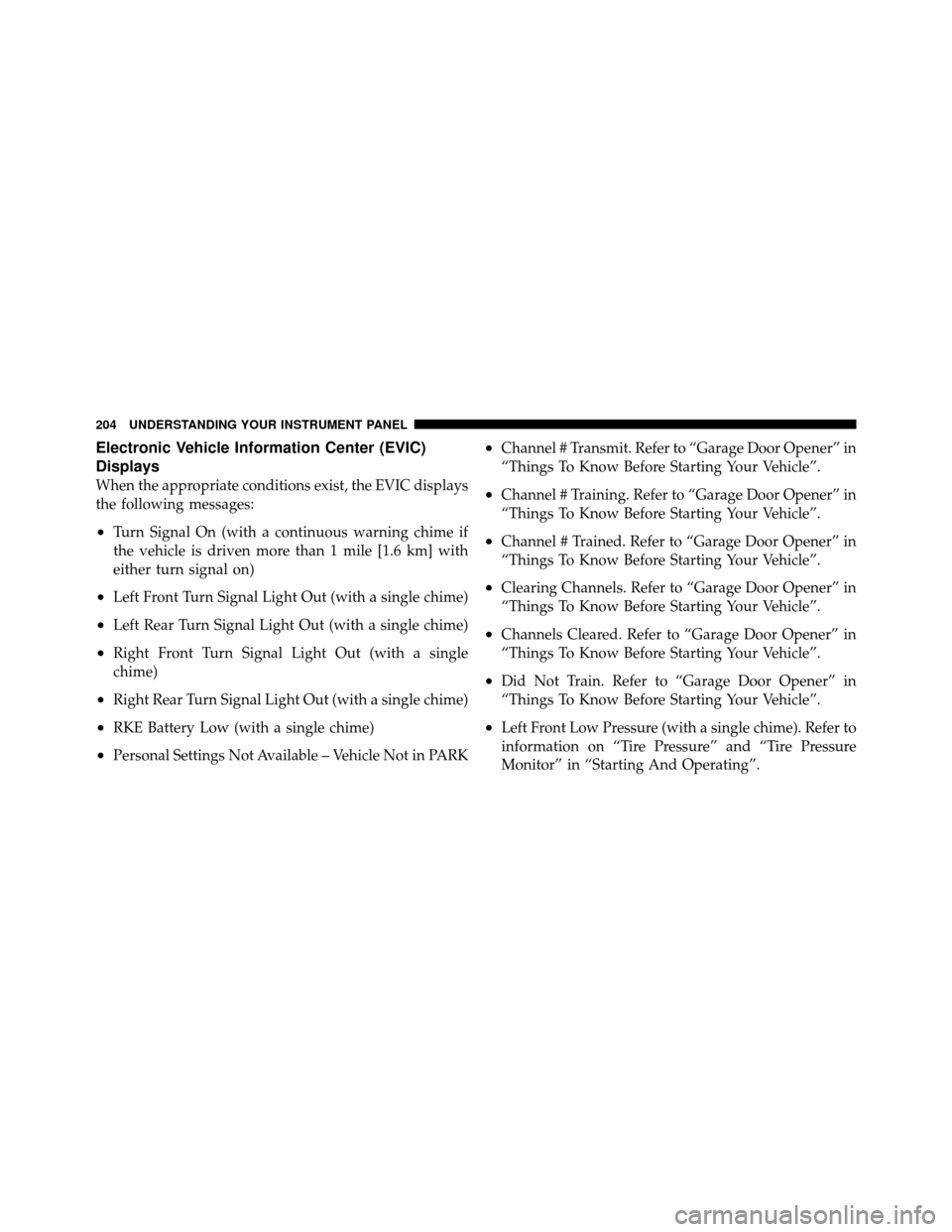

Electronic Vehicle Information Center (EVIC)
Displays
When the appropriate conditions exist, the EVIC displays
the following messages:
•Turn Signal On (with a continuous warning chime if
the vehicle is driven more than 1 mile [1.6 km] with
either turn signal on)
•Left Front Turn Signal Light Out (with a single chime)
•Left Rear Turn Signal Light Out (with a single chime)
•Right Front Turn Signal Light Out (with a single
chime)
•Right Rear Turn Signal Light Out (with a single chime)
•RKE Battery Low (with a single chime)
•Personal Settings Not Available – Vehicle Not in PARK
•Channel # Transmit. Refer to “Garage Door Opener” in
“Things To Know Before Starting Your Vehicle”.
•Channel # Training. Refer to “Garage Door Opener” in
“Things To Know Before Starting Your Vehicle”.
•Channel # Trained. Refer to “Garage Door Opener” in
“Things To Know Before Starting Your Vehicle”.
•Clearing Channels. Refer to “Garage Door Opener” in
“Things To Know Before Starting Your Vehicle”.
•Channels Cleared. Refer to “Garage Door Opener” in
“Things To Know Before Starting Your Vehicle”.
•Did Not Train. Refer to “Garage Door Opener” in
“Things To Know Before Starting Your Vehicle”.
•Left Front Low Pressure (with a single chime). Refer to
information on “Tire Pressure” and “Tire Pressure
Monitor” in “Starting And Operating”.
204 UNDERSTANDING YOUR INSTRUMENT PANEL

•Left Rear Low Pressure (with a single chime). Refer to
information on “Tire Pressure” and “Tire Pressure
Monitor” in “Starting And Operating”.
•Right Front Low Pressure (with a single chime). Refer
to information on “Tire Pressure” and “Tire Pressure
Monitor” in “Starting And Operating”.
•Right Rear Low Pressure (with a single chime). Refer
to information on “Tire Pressure” and “Tire Pressure
Monitor” in “Starting And Operating”.
•Check TPM System (with a single chime). Refer to
information on “Tire Pressure Monitor” in “Starting
And Operating”.
•Low Fuel
•Cal
•Oil Change Required (with a single chime)
•Low Washer Fluid
•Coolant Low
•Key in Ignition
•Lights On
•ECO (Fuel Saver Indicator) — If Equipped
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will display in the EVIC for approximately 5 seconds
after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON position. To
turn off the message temporarily, press and release the4
UNDERSTANDING YOUR INSTRUMENT PANEL 205

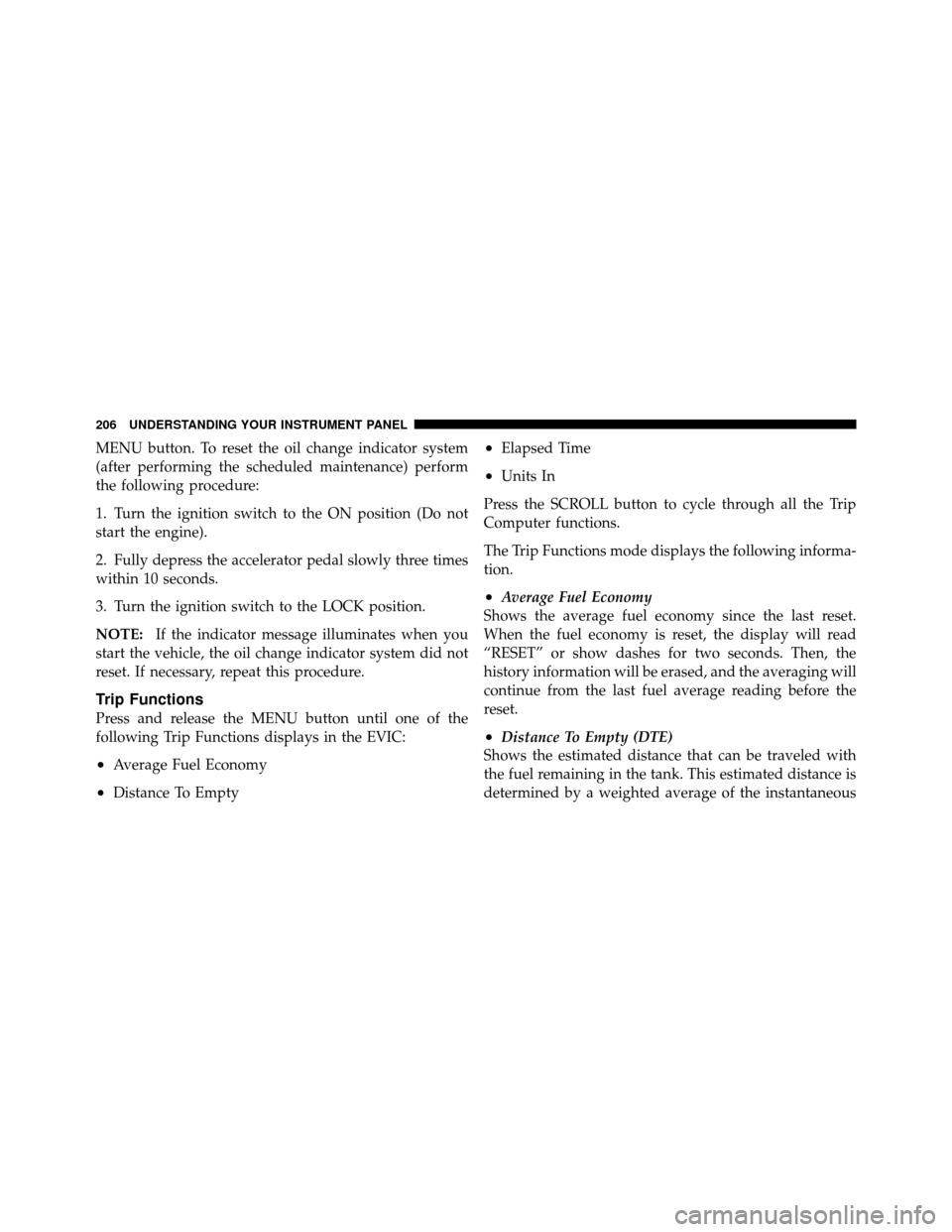

MENU button. To reset the oil change indicator system
(after performing the scheduled maintenance) perform
the following procedure:
1. Turn the ignition switch to the ON position (Do not
start the engine).
2. Fully depress the accelerator pedal slowly three times
within 10 seconds.
3. Turn the ignition switch to the LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Trip Functions
Press and release the MENU button until one of the
following Trip Functions displays in the EVIC:
•Average Fuel Economy
•Distance To Empty
•Elapsed Time
•Units In
Press the SCROLL button to cycle through all the Trip
Computer functions.
The Trip Functions mode displays the following informa-
tion.
•Average Fuel Economy
Shows the average fuel economy since the last reset.
When the fuel economy is reset, the display will read
“RESET” or show dashes for two seconds. Then, the
history information will be erased, and the averaging will
continue from the last fuel average reading before the
reset.
•Distance To Empty (DTE)
Shows the estimated distance that can be traveled with
the fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
206 UNDERSTANDING YOUR INSTRUMENT PANEL
