WARNING!(Continued)
•ONLY use the passenger ’s side floor mat on the
passenger ’s side floor area.
• ALWAYS make sure objects cannot fall or slide into
the driver ’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.
• NEVER place any objects under the floor mat (e.g.,
towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.
• If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SEATS............................... .149
▫ Driver’s Power Seat — If Equipped .........149
▫ Power Lumbar — If Equipped ..............150
▫ Front Heated Seats — If Equipped ..........151
▫ Manual Front Seat Adjustments .............152
▫ Recliner Adjustment ....................153
▫ Driver’s Seat Height Adjustment — If
Equipped ........................... .154
▫ Fold-Flat Front Passenger Seat — If Equipped . .154
▫ Head Restraints ...................... .155
▫ Third Row Passenger Seats — Seven Passenger
Models ............................. .159
▫ 60/40 Split Second-Row Passenger Seats ......159
▫ 50/50 Split Third-Row Passenger Seats With
Fold-Flat Feature — Seven Passenger Models . . .164
 TO OPEN AND CLOSE THE HOOD ..........166
 LIGHTS ............................. .168
▫ Headlight Switch ..................... .168▫
Automatic Headlights ...................168
▫ Headlights On With Wipers ...............169
▫ Headlight Time Delay ...................169
▫ Daytime Running Lights (DRL) ............170
▫ Lights-On Reminder ....................170
▫ Fog Lights — If Equipped ................170
▫ Multifunction Lever ....................171
▫ Turn Signals ......................... .171
▫ Lane Change Assist .....................171
▫ High/Low Beam Switch .................171
▫ Flash-To-Pass ........................ .172
▫ Interior

Lights ........................ .172
▫ Map/Reading Lights ....................172
 WINDSHIELD WIPERS AND WASHERS .......172
▫ Intermittent Wiper System ................172
▫ Windshield Wiper Operation ...............173
▫ Windshield Washers ....................174
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Daytime Running Lights (DRL)
The Daytime Running Lights will turn ON the first time
the vehicle is shifted out of PARK, and remain ON unless
the parking brake is applied. Upon returning to the PARK
position, the DRLs will turn OFF. DRLs will turn OFF when
the ignition is switched OFF.
NOTE:The daytime running lights can be turned on and
off using the Uconnect System, refer to “Uconnect Settings
— Customer Programmable Features” in “Understanding
Your Instrument Panel” for further information.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is placed in the OFF position, a chime will sound to alert
the driver when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is built into the headlight switch. To activate the front fog lights, turn on the parking
lights or the low beam headlights and push the
headlight switch. To turn off the front fog lights, either
push the headlight switch a second time or turn off the
headlight switch.
An indicator light in the instrument cluster illuminates
when the fog lights are turned on.
NOTE: The fog lights will operate when the low beam
headlights or parking lights are on. However, selecting the
high beam headlights will turn off the fog lights.
Fog Light Switch
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Multifunction Lever
The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the steering
column.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show proper
operation of the front and rear turn signal lights.NOTE:
•
If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
• A “Turn Signal On” message will appear in the Instru-
ment Cluster Display and a continuous chime will
sound if the vehicle is driven more than 1 mile (1.6 km)
with either turn signal on.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash three
times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch the
headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.Multifunction Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beams headlights until the lever is
released.
Interior Lights
The interior lights come on when a door is opened.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition is moved to the
LOCK position. This will occur if the interior lights were
switched on manually or are on because a door is open.
The Battery Protection also includes the glove compart-
ment light. To restore interior light operation after auto-
matic battery protection is enabled (Lights OFF), either
place the ignition in the ON/RUN position or cycle the
light switch.
Map/Reading Lights
These lights are mounted between the sun visors on the
overhead console. Refer to “Overhead Console” in “Under-
standing The Features Of Your Vehicle” for further infor-
mation.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is located on
the left side of the steering column.
The front wipers are operated by rotating a switch, located
at the end of the lever. For information on using the rear
window wiper/washer, refer to “Rear Window Features”
in “Understanding The Features Of Your Vehicle”.
Intermittent Wiper System
Use the intermittent wiper system when weather condi-
tions make a single wiping cycle, with a variable pause
Windshield Wiper/Washer Lever
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

White Telltale Indicator Lights
Cruise Control Ready Indicator Light
White TelltaleLight What It Means
Cruise Control Ready Indicator Light
This light will turn on when the electronic speed control is ON, but not set.
Blue Telltale Indicator Lights
High Beam Indicator Light
Blue Telltale
Light What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control lever
away from you to switch the headlights to high beam. Pull the lever toward you to switch the
headlights back to low beam. Pull the lever toward you for a temporary high beam on,
flash to
pass scenario.
242 UNDERSTANDING YOUR INSTRUMENT PANEL

Setting NameSelectable Options
Headlights With Wipers — If Equipped
Illuminated Approach 0 sec30 sec 60 sec 90 sec
NOTE:
When this feature is selected, it allows the adjustment of the amount of time the headlights remain on after the doors
are unlocked with the key fob. Auto High Beams — If Equipped On
Off
NOTE:
When the “Automatic High Beam Headlamps” is selected, the high beam headlights will activate/deactivate auto-
matically under certain conditions. Daytime Running Lights Ye sN o
Steering Directed Lights — If Equipped On
Off
NOTE:
When the “Steering Directed Lights” feature is selected, the headlights will turn relative to a change in direction of
the steering wheel. Flash Lights With Lock OnOff
4
UNDERSTANDING YOUR INSTRUMENT PANEL 257

Lights
After pressing the Lights button on the touchscreen the
following settings will be available:
Setting NameSelectable Options
Headlight Off Delay 0 sec30 sec 60 sec 90 sec
NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights
remain on after the engine is shut off. Headlights WithWipers — IfEquipped
Headlight Illumi-
nated On Approach 0 sec
30 sec 60 sec 90 sec
NOTE:
When the “Headlight Illumination On Approach” feature is selected, it allows the adjustment of the amount of time
the headlights remain on after the doors are unlocked with the key fob. Auto Dim HighBeams— IfEquipped
270 UNDERSTANDING YOUR INSTRUMENT PANEL

Setting NameSelectable Options
NOTE:
When the “Auto Dim High Beams” feature is selected, the high beam headlights will activate/deactivate automati-
cally under certain conditions. Daytime Running Lights — IfEquipped
Steering Directed Headlights — If Equipped
NOTE:
The “Steering Directed Headlights” feature causes the headlights to turn relative to a change in direction of the steer-
ing wheel. Flash Lights With Lock
4
UNDERSTANDING YOUR INSTRUMENT PANEL 271

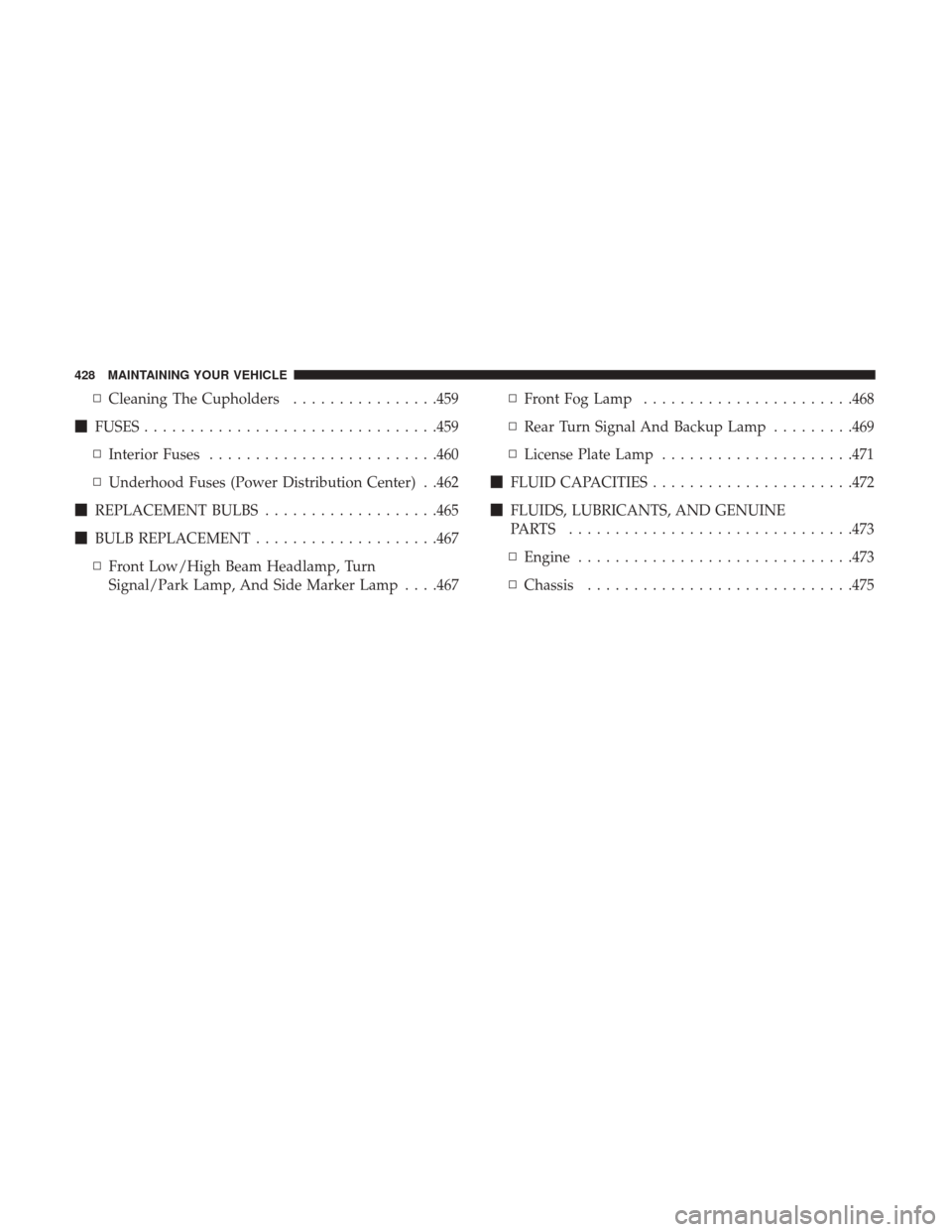

▫Cleaning The Cupholders ................459
 FUSES ............................... .459
▫ Interior Fuses ........................ .460
▫ Underhood Fuses (Power Distribution Center) . .462
 REPLACEMENT BULBS ...................465
 BULB REPLACEMENT ....................467
▫ Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . . . .467 ▫
Front Fog Lamp ...................... .468
▫ Rear Turn Signal And Backup Lamp .........469
▫ License Plate Lamp .....................471
 FLUID CAPACITIES ..................... .472
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS .............................. .473
▫ Engine ............................. .473
▫ Chassis ............................ .475
428 MAINTAINING YOUR VEHICLE
