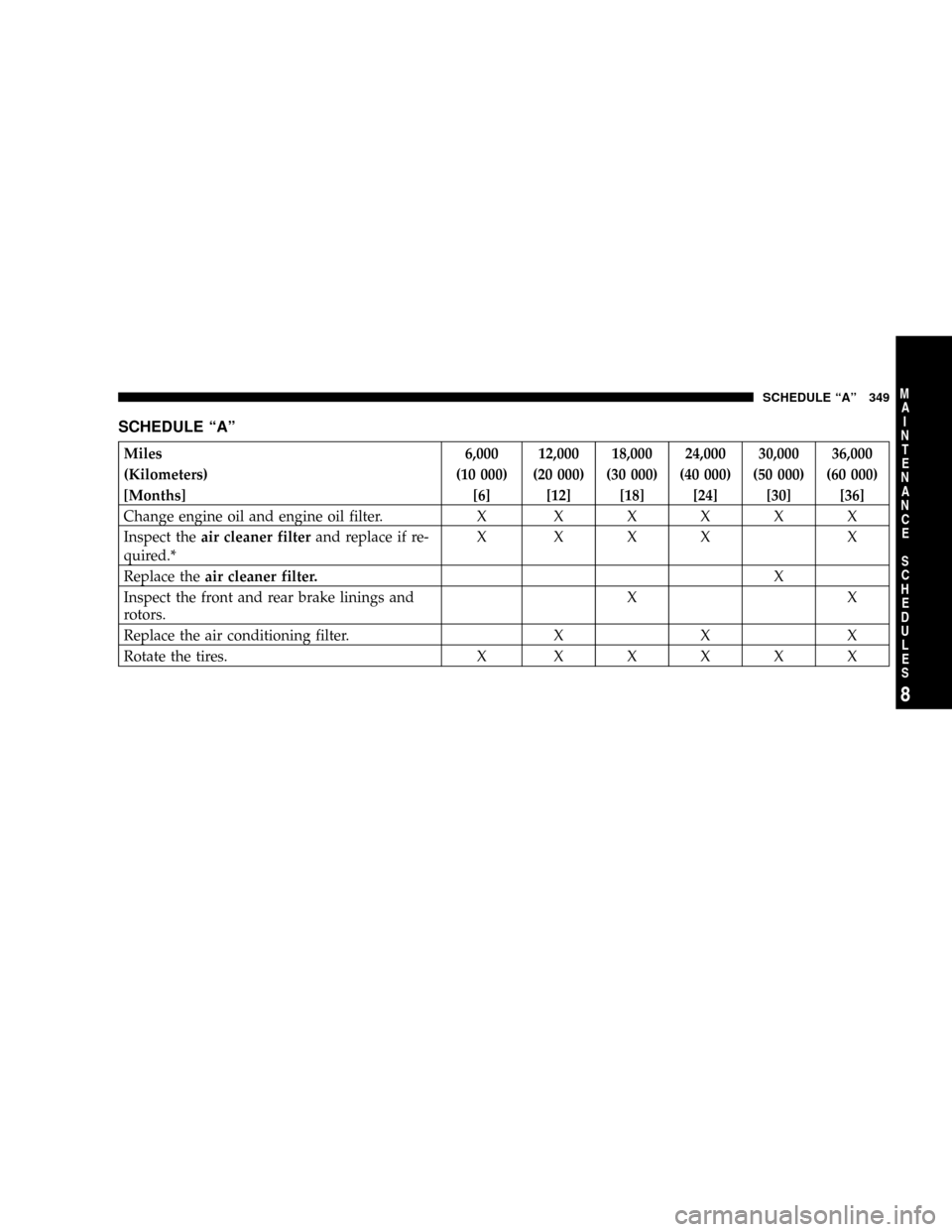

SCHEDULE ªAº
Miles 6,000 12,000 18,000 24,000 30,000 36,000
(Kilometers) (10 000) (20 000) (30 000) (40 000) (50 000) (60 000)
[Months] [6] [12] [18] [24] [30] [36]
Change engine oil and engine oil filter. XXXXXX
Inspect theair cleaner filterand replace if re-
quired.*X XXX X
Replace theair cleaner filter.X
Inspect the front and rear brake linings and
rotors.XX
Replace the air conditioning filter. X X X
Rotate the tires. XXXXXX
SCHEDULE ªAº 349
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

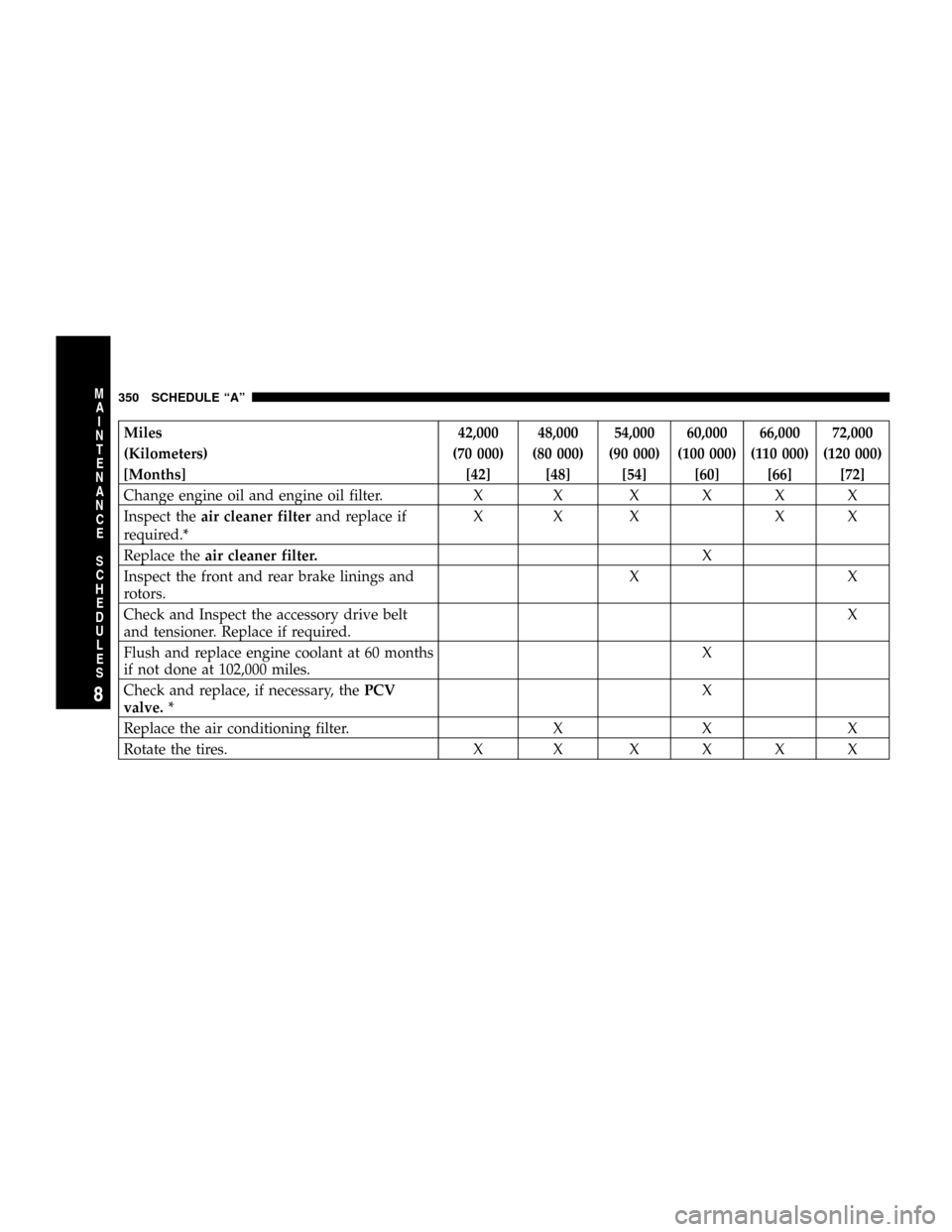

Miles 42,000 48,000 54,000 60,000 66,000 72,000
(Kilometers) (70 000) (80 000) (90 000) (100 000) (110 000) (120 000)
[Months] [42] [48] [54] [60] [66] [72]
Change engine oil and engine oil filter. X X X X X X
Inspect theair cleaner filterand replace if
required.*XXX XX
Replace theair cleaner filter.X
Inspect the front and rear brake linings and
rotors.XX
Check and Inspect the accessory drive belt
and tensioner. Replace if required.X
Flush and replace engine coolant at 60 months
if not done at 102,000 miles.X
Check and replace, if necessary, thePCV
valve.*X
Replace the air conditioning filter. X X X
Rotate the tires. X X X X X X
350 SCHEDULE ªAº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 78,000 84,000 90,000 96,000 102,000
(Kilometers) (130 000) (140 000) (150 000) (160 000) (170 000)
[Months] [78] [84] [90] [96] [102]
Change engine oil and engine oil filter. X X X X X
Inspect theair cleaner filterand replace if re-
quired.*XX XX
Replace theair cleaner filter.X
Inspect the front and rear brake linings and rotors. X
Check and Inspect the accessory drive belt and ten-
sioner. Replace if required.X
Replace thespark plugs.X
Check and replace, if necessary, thePCV valve.*³ X
Flush and replace the engine coolant at 102,000
miles if not done at 60 months.X
Replace the air conditioning filter. X X
Rotate the tires. X X X X X
SCHEDULE ªAº 351
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

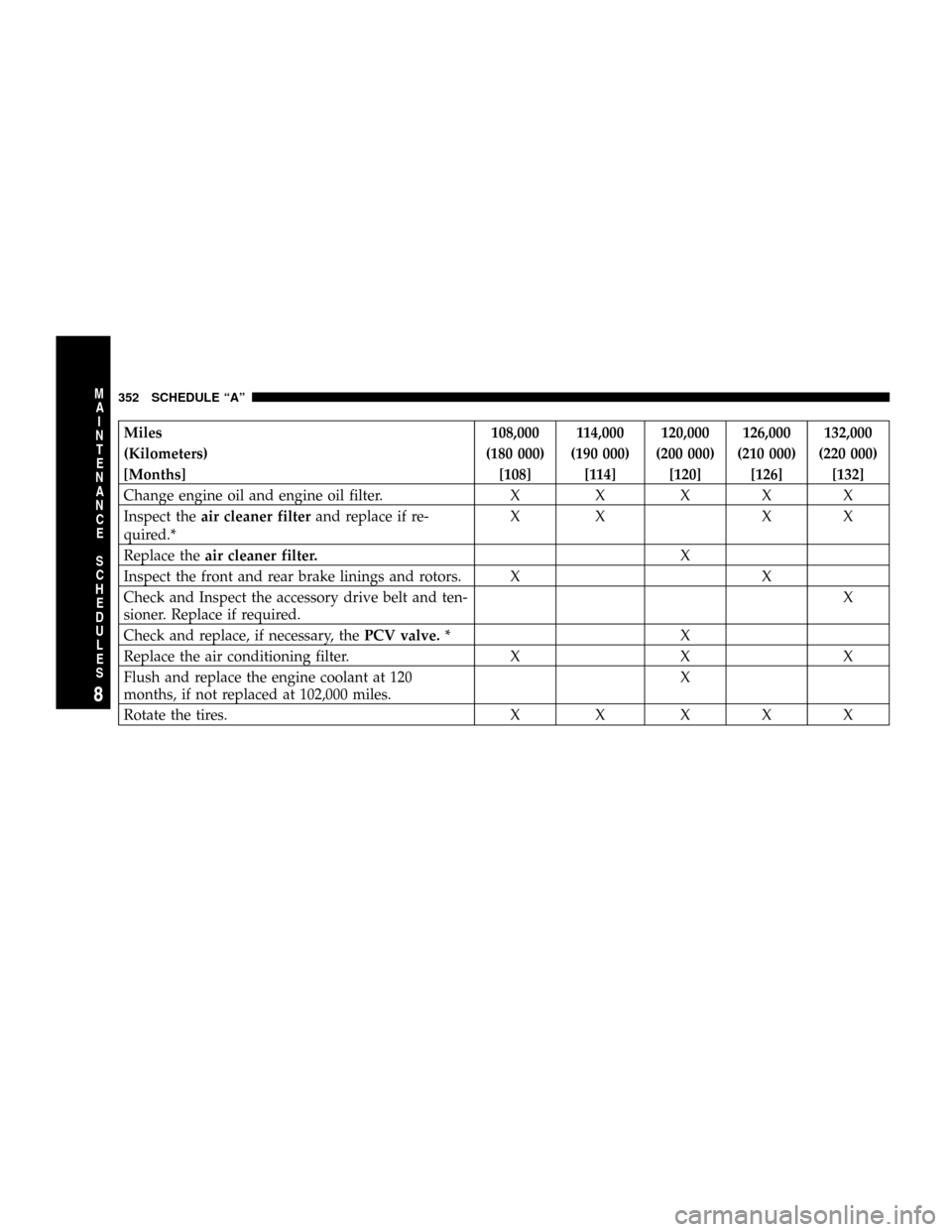

Miles 108,000 114,000 120,000 126,000 132,000
(Kilometers) (180 000) (190 000) (200 000) (210 000) (220 000)
[Months] [108] [114] [120] [126] [132]
Change engine oil and engine oil filter. X X X X X
Inspect theair cleaner filterand replace if re-
quired.*XX XX
Replace theair cleaner filter.X
Inspect the front and rear brake linings and rotors. X X
Check and Inspect the accessory drive belt and ten-
sioner. Replace if required.X
Check and replace, if necessary, thePCV valve.*X
Replace the air conditioning filter. X X X
Flush and replace the engine coolant at 120
months, if not replaced at 102,000 miles.X
Rotate the tires. X X X X X
352 SCHEDULE ªAº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 138,000 144,000 150,000
(Kilometers) (230 000) (240 000) (250 000)
[Months] [138] [144] [150]
Change engine oil and engine oil filter. X X X
Inspect theair cleaner filterand replace if required.* X X
Replace theair cleaner filter.X
Inspect the front and rear brake linings and rotors. X
Replace the air conditioning filter. X
Rotate the tires. X X X
* This maintenance is recommended by the manufacturer
to the owner but is not required to maintain the emis-
sions warranty.
³ This maintenance is not required if previously replaced.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
WARNING!
You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the right equipment. If you
have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
SCHEDULE ªAº 353
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

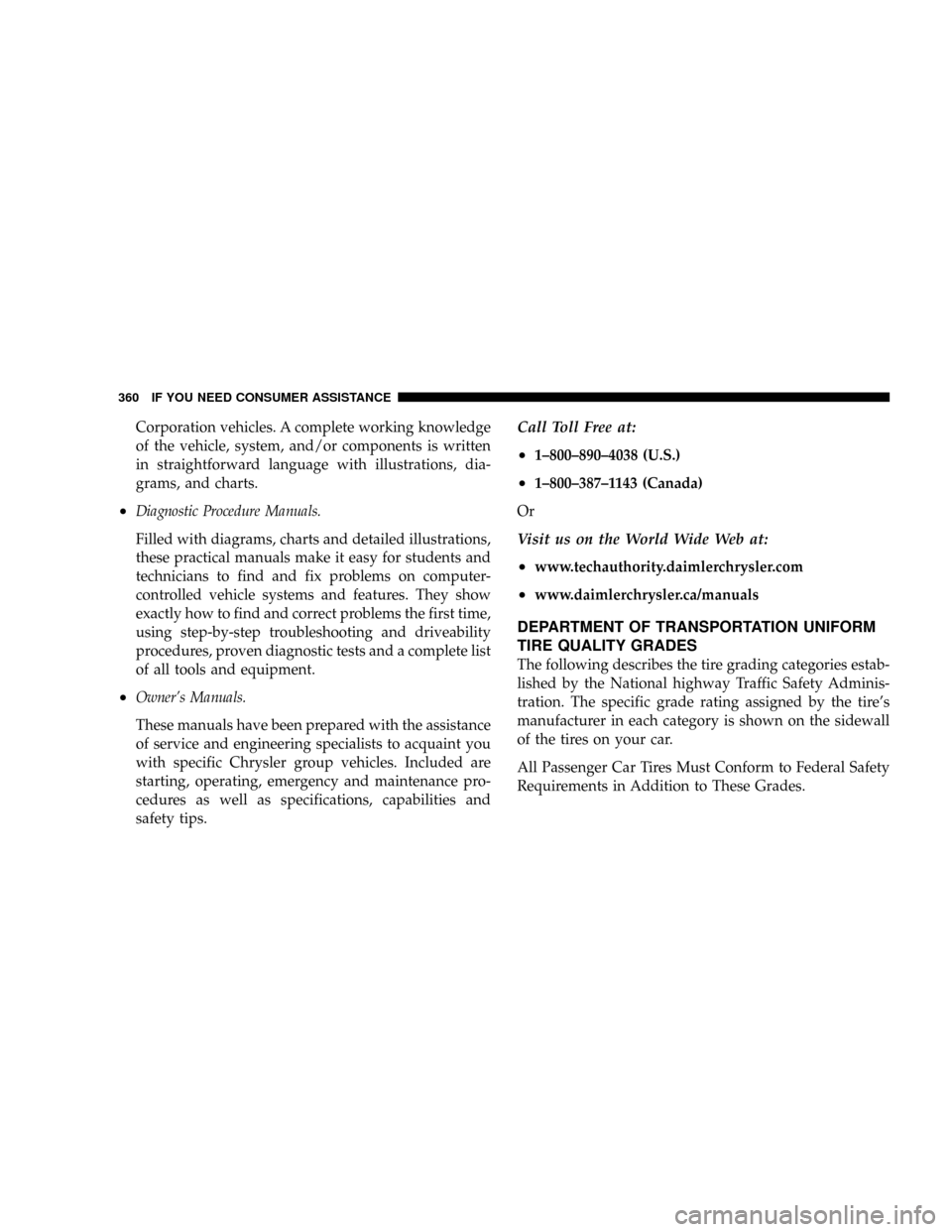

Corporation vehicles. A complete working knowledge
of the vehicle, system, and/or components is written
in straightforward language with illustrations, dia-
grams, and charts.
²Diagnostic Procedure Manuals.
Filled with diagrams, charts and detailed illustrations,
these practical manuals make it easy for students and
technicians to find and fix problems on computer-
controlled vehicle systems and features. They show
exactly how to find and correct problems the first time,
using step-by-step troubleshooting and driveability
procedures, proven diagnostic tests and a complete list
of all tools and equipment.
²Owner's Manuals.
These manuals have been prepared with the assistance
of service and engineering specialists to acquaint you
with specific Chrysler group vehicles. Included are
starting, operating, emergency and maintenance pro-
cedures as well as specifications, capabilities and
safety tips.
Call Toll Free at:
²
1±800±890±4038 (U.S.)
²1±800±387±1143 (Canada)
Or
Visit us on the World Wide Web at:
²
www.techauthority.daimlerchrysler.com
²www.daimlerchrysler.ca/manuals
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following describes the tire grading categories estab-
lished by the National highway Traffic Safety Adminis-
tration. The specific grade rating assigned by the tire's
manufacturer in each category is shown on the sidewall
of the tires on your car.
All Passenger Car Tires Must Conform to Federal Safety
Requirements in Addition to These Grades.
360 IF YOU NEED CONSUMER ASSISTANCE

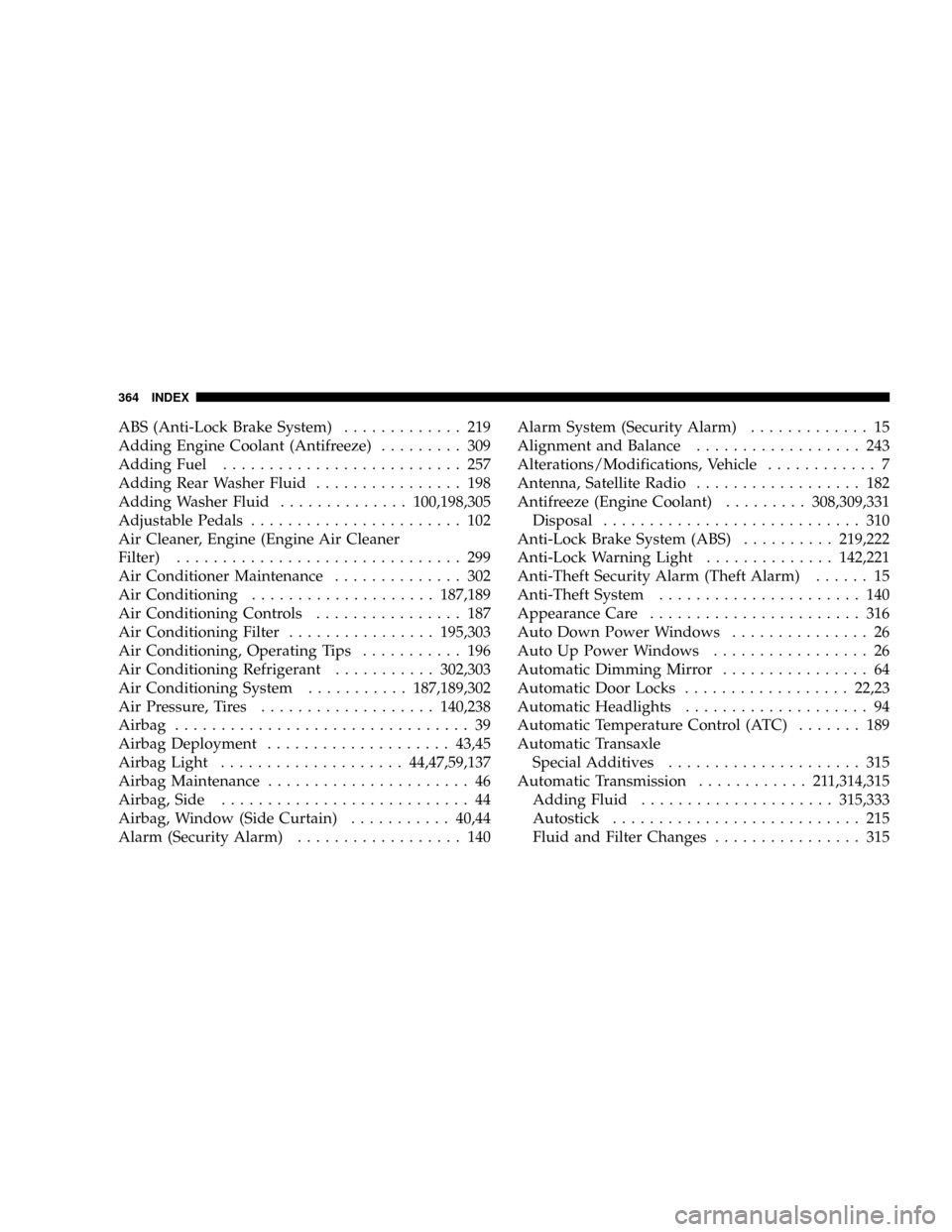

ABS (Anti-Lock Brake System)............. 219
Adding Engine Coolant (Antifreeze)......... 309
Adding Fuel.......................... 257
Adding Rear Washer Fluid................ 198
Adding Washer Fluid..............100,198,305
Adjustable Pedals....................... 102
Air Cleaner, Engine (Engine Air Cleaner
Filter)............................... 299
Air Conditioner Maintenance.............. 302
Air Conditioning....................187,189
Air Conditioning Controls................ 187
Air Conditioning Filter................195,303
Air Conditioning, Operating Tips........... 196
Air Conditioning Refrigerant...........302,303
Air Conditioning System...........187,189,302
Air Pressure, Tires...................140,238
Airbag................................ 39
Airbag Deployment....................43,45
Airbag Light....................44,47,59,137
Airbag Maintenance...................... 46
Airbag, Side........................... 44
Airbag, Window (Side Curtain)...........40,44
Alarm (Security Alarm).................. 140Alarm System (Security Alarm)............. 15
Alignment and Balance.................. 243
Alterations/Modifications, Vehicle............ 7
Antenna, Satellite Radio.................. 182
Antifreeze (Engine Coolant).........308,309,331
Disposal............................ 310
Anti-Lock Brake System (ABS)..........219,222
Anti-Lock Warning Light..............142,221
Anti-Theft Security Alarm (Theft Alarm)...... 15
Anti-Theft System...................... 140
Appearance Care....................... 316
Auto Down Power Windows............... 26
Auto Up Power Windows................. 26
Automatic Dimming Mirror................ 64
Automatic Door Locks..................22,23
Automatic Headlights.................... 94
Automatic Temperature Control (ATC)....... 189
Automatic Transaxle
Special Additives..................... 315
Automatic Transmission............ 211,314,315
Adding Fluid.....................315,333
Autostick........................... 215
Fluid and Filter Changes................ 315
364 INDEX

Fluid Change........................ 315
Fluid Level Check..................... 314
Fluid Type.......................... 333
Shifting............................. 211
Special Additives..................... 315
Autostick..........................213,215
Ball Joints............................ 304
Battery............................... 301
Emergency Starting.................... 282
Jump Starting........................ 282
Keyless Transmitter Replacement (RKE)..... 19
Location.........................283,301
Bearings.............................. 315
Belts, Drive........................... 298
Belts, Seat............................. 31
Body Mechanism Lubrication.............. 304
B-Pillar Location....................... 233
Brake Assist System..................... 223
Brake Control System, Electronic........... 222
Brake, Parking......................... 217
Brake System.......................219,312
Anti-Lock (ABS)...................219,222Fluid Check......................313,333
Hoses.............................. 312
Master Cylinder...................... 313
Parking............................ 217
Warning Light....................139,219
Brakes............................... 219
Brake/Transmission Interlock.............. 210
Break-In Recommendations, New Vehicle...... 56
Bulb Replacement...................... 327
Bulbs, Light........................... 326
Calibration, Compass.................... 147
Capacities, Fluid....................... 331
Caps, Filler
Fuel............................... 257
Oil (Engine)......................... 297
Radiator (Coolant Pressure).............. 309
Car Washes........................... 316
Carbon Monoxide Warning.............57,256
Cargo Compartment
Luggage Carrier...................... 126
Cargo Management System............... 119
Cargo Organizer...................... 124
INDEX 365
10

Rollaway Tonneau Cover............... 121
Tri-Fold Load Floor.................... 119
Waterproof Liner..................... 123
Cargo Tie-Downs....................... 125
Cassette Tape and Player Maintenance....... 185
Catalytic Converter..................... 299
CD (Compact Disc) Player.............155,162
Cellular Phone.......................... 67
Chains, Tire........................... 243
Chart, Tire Sizing....................... 230
Check Engine Light (Malfunction
Indicator Light)........................ 293
Child Restraint...................48,50,53,54
Child Restraint Tether Anchors...........51,53
Child Safety Locks....................... 23
Clean Air Gasoline...................... 254
Cleaning
Wheels............................. 317
Climate Control........................ 186
Clock..........................157,163,174
Compact Disc (CD) Maintenance........... 186
Compass............................. 147
Compass Calibration.................... 147Compass Variance...................... 148
Computer, Trip/Travel................... 145
Console.............................. 118
Console, Floor......................... 118
Console, Overhead...................... 106
Contract, Service....................... 358
Coolant Pressure Cap (Radiator Cap)........ 309
Cooling System........................ 307
Adding Coolant (Antifreeze)............. 309
Coolant Capacity..................... 331
Coolant Level.....................307,310
Disposal of Used Coolant............... 310
Drain, Flush, and Refill................. 308
Inspection........................... 310
Points to Remember................... 310
Pressure Cap........................ 309
Radiator Cap........................ 309
Selection of Coolant (Antifreeze)....308,331,332
Cruise Control (Speed Control)............. 103
Cruise Light........................... 135
Cup Holder........................ 117,319
Customer Assistance.................... 356
366 INDEX

Data Recorder, Event..................... 47
Daytime Running Lights.................. 95
Dealer Service......................... 294
Defroster, Rear Window.................. 198
Defroster, Windshield...............59,188,193
Delay (Intermittent) Wipers.............99,197
Diagnostic System, Onboard............... 292
Dimmer Switch, Headlight................. 96
Disposal
Antifreeze (Engine Coolant)............. 310
Door Locks............................ 21
Door Locks, Automatic................... 22
Door Opener, Garage.................... 107
Drive Belts............................ 298
Driving
On Slippery Surfaces.................. 216
DVD Player (Video Entertainment System).... 177
Electric Remote Mirrors................... 66
Electrical Power Outlets.................. 115
Electronic Brake Control System............ 222
Electronic Speed Control (Cruise Control)..... 103
Electronic Stability Program (ESP).......... 224Electronic Throttle Control Warning Light..... 135
Electronic Vehicle Information Center (EVIC) . . 143
Emergency, In Case of
Freeing Vehicle When Stuck............. 285
Hazard Warning Flasher................ 276
Jump Starting........................ 282
Overheating......................... 276
Towing............................. 286
Emission Control System Maintenance....293,336
Engine............................... 291
Air Cleaner.......................... 299
Block Heater......................... 207
Break-In Recommendations............... 56
Checking Oil Level.................... 295
Compartment........................ 291
Coolant (Antifreeze)................307,332
Cooling............................ 307
Exhaust Gas Caution..............30,57,256
Fails to Start......................... 205
Flooded, Starting..................... 205
Fuel Requirements.................253,331
Oil ..........................295,331,332
Oil Change Interval................... 296
INDEX 367
10
