key FIAT 500 ABARTH 2014 2.G Owner's Manual

ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC)
• The EVIC features a driver interactive
display that is located in the instru-
ment cluster. Pressing the controls on
the right side of the Instrument Cluster
allows the driver to select vehicle in-
formation and Personal Settings. For
additional information, refer to Pro-
grammable Features in this guide.
• Press the MENU button to enter the
menu mode.
•Press the UPor DOWNbut-
tons to scroll through the menu set-
tings.
•Once the menu setting is shown in the
EVIC display press the MENU button to
access the setting and use the UP
or DOWNbuttons to change the
current setting. Press the MENU button
a second time to save the setting and return to menu screen.
PROGRAMMABLE FEATURES
Electronic Vehicle Information Center (EVIC)
• The EVIC can be used to program the following Personal Settings. Press and re-
lease the MENU button until menu is displayed, then press the UPor
DOWNbuttons to scroll through the settings.
• Once the menu setting is shown in the EVIC display press the MENU button to
access the setting and use the UPor DOWNbuttons to change the
current setting. The menu includes the following functions:
• Dimmer • Language
• Speed Beep • Buzzer Volume
• Trip B Data • Button Volume
• Set Time • Belt Buzzer
• Set Date • Hill Start Assist
•See Radio (Repeat Audio Information)• GSI Shift
• Speed Display • Daytime Running Lamps
• Autoclose • Exit Menu
• Units • Tire Pressure
• Key
EVIC Controls
ELECTRONICS
44

TRIP BUTTON
• The Trip button is located on the end
of the wiper lever to the right of the
steering column. The trip button can
be used to display and reset the fol-
lowing functions:
• Range
• Distance Travelled
• Average Consumption
• Instant Consumption
• Average Speed
• Travel Time
• Short press (less than one second) to
display different functions.
• Long press (more than one second) to reset and start a new trip.
New Trip
• A new trip can be reset or restarted by:
• “Manual” resetting by the user, by pressing the Trip button;
• “Automatically” resetting, when the “Trip distance” reaches 9999.9 miles or
when the “Travel time” reaches 99.59 (99 hours and 59 minutes);
• After disconnecting/reconnecting the battery.
Trip A
• Shows the total distance traveled for Trip A since the last reset.
Trip B
• Shows the total distance traveled for Trip B since the last reset.
Start Of Trip Procedure
• With the ignition key on, press and hold the TRIP button for over one second to
reset Trip A or Trip B.
Exit Trip
• The Trip function is over when all the values have been displayed or holding the
MENU button for longer than one second.
• Briefly press the MENU button to go back to the main screen or press and hold
the MENU button (approximately one second) to go back to the main screen
without storing settings.
ELECTRONICS
45

TOWING A DISABLED VEHICLE
With Ignition Key
Manual Transmission
• Vehicle can be flat towed (all four wheels on the ground) with the transmission in
NEUTRAL.
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off the ground).
NOTE:If it is necessary to use the accessories while being towed (wipers, defrosters, etc.), the keymust be in the ON/RUN position. Make certain the transmission remains in NEUTRAL.
Without The Ignition Key
• Special care must be taken when the vehicle is towed with the ignition in the
OFF/LOCK position. A dolly should be used under the front wheels if the rear
wheels are raised. Proper towing equipment is necessary to prevent damage to
the vehicle.
CAUTION!
• Failure to follow these towing methods can cause severe transmission dam-
age. Such damage is not covered by the New Vehicle Limited Warranty.
• If the vehicle being towed requires steering, the ignition switch must be in the
ON/RUN position.
• Do not attempt to use sling-type equipment when towing. When securing
the vehicle to a flatbed truck, do not attach to front or rear suspension com-
ponents. Damage to your vehicle may result from improper towing.
ENHANCED ACCIDENT RESPONSE SYSTEM
• In the event of an impact causing air bag deployment, if the communication net-
work remains intact, and the power remains intact, depending on the nature of
the event the Occupant Restraint Controller (ORC) will determine whether to have
the Enhanced Accident Response System perform the following functions:
• Cut off fuel to the engine.
• Flash hazard lights as long as the battery has power or until the ignition key is
turned off.
• Turn on the interior lights, which remain on as long as the battery has power or
until the ignition key is removed.
• Unlock the doors automatically.
WHAT TO DO IN EMERGENCIES
62

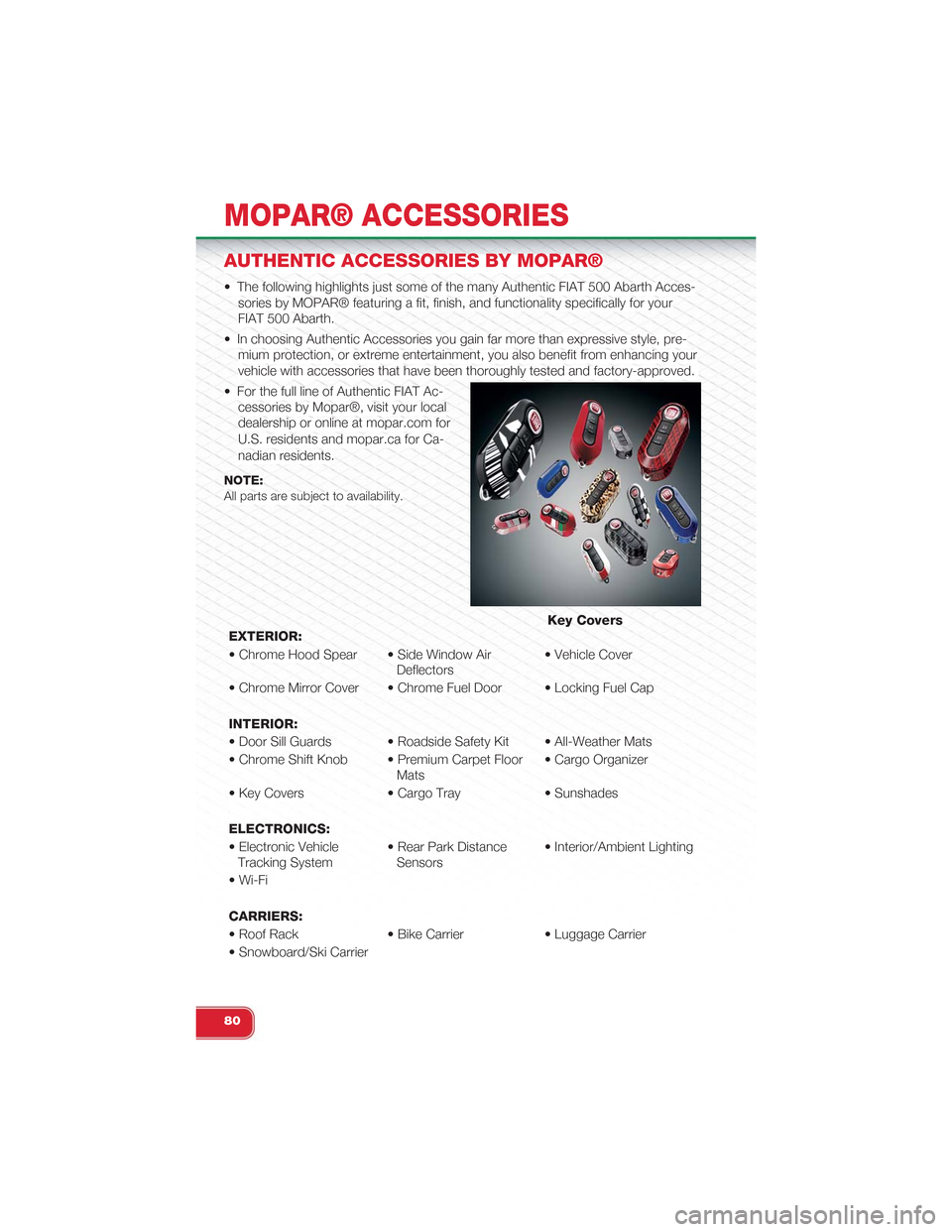

AUTHENTIC ACCESSORIES BY MOPAR®
• The following highlights just some of the many Authentic FIAT 500 Abarth Acces-
sories by MOPAR® featuring a fit, finish, and functionality specifically for your
FIAT 500 Abarth.
• In choosing Authentic Accessories you gain far more than expressive style, pre-
mium protection, or extreme entertainment, you also benefit from enhancing your
vehicle with accessories that have been thoroughly tested and factory-approved.
• For the full line of Authentic FIAT Ac-
cessories by Mopar®, visit your local
dealership or online at mopar.com for
U.S. residents and mopar.ca for Ca-
nadian residents.
NOTE:All parts are subject to availability.
EXTERIOR:
• Chrome Hood Spear • Side Window AirDeflectors• Vehicle Cover
• Chrome Mirror Cover • Chrome Fuel Door • Locking Fuel Cap
INTERIOR:
• Door Sill Guards • Roadside Safety Kit • All-Weather Mats
• Chrome Shift Knob • Premium Carpet FloorMats• Cargo Organizer
• Key Covers • Cargo Tray • Sunshades
ELECTRONICS:
• Electronic VehicleTracking System• Rear Park DistanceSensors• Interior/Ambient Lighting
• Wi-Fi
CARRIERS:
• Roof Rack • Bike Carrier • Luggage Carrier
• Snowboard/Ski Carrier
Key Covers
MOPAR® ACCESSORIES
80

Alarm (Security Alarm). . . . . . . . . . .10
Automatic Temperature Control (ATC) . .27
Automatic Transmission
Fluid Type. . . . . . . . . . . . . . .68
Belts, Seat. . . . . . . . . . . . . . . . .10
BLUE&ME™ Hands-Free
Communication. . . . . . . . . . . .38
Brake Fluid. . . . . . . . . . . . . . . . .68
Break-In Recommendations,New Vehicle. . . . . . . . . . . . . .19Bulb Replacement. . . . . . . . . . . . .77
Child Restraint. . . . . . . . . . . . . . .12Cooling SystemCoolant Capacity. . . . . . . . . . .68Cruise Control (Speed Control). . . . . .23Cruise Light. . . . . . . . . . . . . . . .23Customer Assistance. . . . . . . . . . .78
Defects, Reporting. . . . . . . . . . . .79Disarming, Security System. . . . . . .10
ElectronicsYour Vehicle's Sound System. . . .34Electronic Speed Control(Cruise Control). . . . . . . . . . . . .23Electronic Throttle Control WarningLight. . . . . . . . . . . . . . . . . . .49Electronic Vehicle InformationCenter (EVIC). . . . . . . . . . . . . .44Emergency, In Case ofBrake Warning Light. . . . . . . . .51Towing. . . . . . . . . . . . . . . . .62EngineBreak-In Recommendations . . . . .19Compartment. . . . . . . . . . . . .67Oil Selection. . . . . . . . . . . . . .68Overheating. . . . . . . . . . . . . .53Enhanced Accident ResponseFeature. . . . . . . . . . . . . . . . .62Event Data Recorder. . . . . . . . . . .65Exterior Lights. . . . . . . . . . . . . . .77
Flash-To-Pass. . . . . . . . . . . . . . .20Fluid Capacities. . . . . . . . . . . . . .68Fluids. . . . . . . . . . . . . . . . . . . .68Folding Rear Seat. . . . . . . . . . . . .18
Freeing A Stuck Vehicle . . .. . . . . . .64
Fuel
Specifications . . . .. . . . . . . . .68
Fuse . . . .. . . . . . . . . . . . . . . .73
Fuses . . . .. . . . . . . . . . . . . . . .73
Hands-Free Communication —
BLUE&ME™. . . . . . . . . . . . . .38
Heated Mirrors . . . . .. . . . . . . . . .26
Hood Release . .. . . . . . . . . . . . .66
Instrument Cluster . .. . . . . . . . . . .7Instrument Cluster Warning Lights . .6, 48Interior and Instrument Lights. . . . . .4, 5Introduction. . . . . . . . . . . . . . . . .2iPod®/USB/MP3 Control .. . . . . . . .43
Key Fob . . . . . . . . . . . . . . . . . . .8
Lane Change Assist. . . . . . . . . . . .20Lap/Shoulder Belts. . . . . . . . . . . .10LATCH (Lower Anchors and Tether forCHildren)..........12, 13, 14, 15LightsTurn Signal . . . . .. . . . . . . . .20Warning (Instrument ClusterDescription) .. . . . . . . . . . . . . .6Lower Anchors and Tether for CHildren(LATCH). . . . . . . . . . . . . . . . .13
Maintenance Record .. . . . . . . . . .72Maintenance Schedule. . . . . . . . . .69Malfunction Indicator Light(Check Engine). . . . . . . . . . . . .52Manual Transmission. . . . . . . . . . .28MirrorsHeated . . .. . . . . . . . . . . . . .26MOPAR® Accessories. . . . . . . . . .80
New Vehicle Break-In Period. . . . . . .19
Oil, EngineCapacity. . . . . . . . . . . . . . . .68OutletPower. . . . . . . . . . . . . . . . .46Overheating, Engine . .. . . . . . . . . .53
Placard, Tire and Loading Information . .75
INDEX
82

PowerOutlet (Auxiliary Electrical Outlet) . .46Programmable Electronic Features . . .44
Rear Seat, Folding. . . . . . . . . . . . .18Reclining Front Seats. . . . . . . . . . .16Recreational Towing. . . . . . . . . . . .47Remote Keyless Entry (RKE)Power Convertible Top Function . . .8Replacement Bulbs. . . . . . . . . . . .77Reporting Safety Defects. . . . . . . . .79
Schedule, Maintenance. . . . . . . . . .69Seat Belts. . . . . . . . . . . . . . . . .10SeatsAdjustment. . . . . . . . . . . . . .16Rear Folding. . . . . . . . . . . . . .18Signals, Turn. . . . . . . . . . . . . . . .20Spark Plugs. . . . . . . . . . . . . . . .68Speed ControlAccel/Decel. . . . . . . . . . . . . .23Cancel. . . . . . . . . . . . . . . . .24Resume. . . . . . . . . . . . . . . .24Set . . . . . . . . . . . . . . . . . . .23Speed Control (Cruise Control). . . . . .23StartingCold Weather. . . . . . . . . . . . .33Steering
Tilt Column .. . . . . . . . . . . . .18Steering Wheel Audio Controls .. . . . .38Store Radio Presets . .. . . . . . . . . .37Stuck, Freeing .. . . . . . . . . . . . . .64
Tilt Steering Column. . . . . . . . . . . .18TIREFIT . . .. . . . . . . . . . . . . . . .54TiresAir Pressure .. . . . . . . . . . . . .75Pressure Warning Light .. . . . . .50Towing24-Hour Towing Assistance .. . . .48Disabled Vehicle . . .. . . . . . . .62Recreational. . . . . . . . . . . . . .47Towing Vehicle Behind a Motorhome . .47TransmissionFluid. . . . . . . . . . . . . . . . . .68Turn Signals . .. . . . . . . . . . . . . .20
USB Port. . . . . . . . . . . . . . . . . .43
Vehicle Security Alarm Disarming . . . .10
WasherRear .. . . . . . . . . . . . . . . . .22Wheel and Wheel Trim Care. . . . . . .76Wind Buffeting. . . . . . . . . . . . . . .33Wiper, Rear . .. . . . . . . . . . . . . .22
INDEX
83
