GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEYS ...............................23
▫ Electronic Key Fob ....................23
▫ Key Fob Operation ....................24
▫ Replacing The Battery In The Key Fob With
Remote Control .......................25
▫ Request For Additional Keys .............26
▫ General Information ...................27
IGNITION SWITCH ....................27
▫ Operation ...........................27
REMOTE STARTING SYSTEM — IF
EQUIPPED ...........................29
▫ Remote Start Cancel Message — If Equipped . .30
▫ How To Use Remote Start ...............30
▫ To Enter Remote Start Mode ..............31 ▫
To Exit Remote Start Mode Without Driving The
Vehicle ............................31
▫ To Exit Remote Start Mode And Drive The
Vehicle .............................31
▫ Remote Start Comfort Systems — If
Equipped ..........................32
▫ Remote Start Windshield Wiper De–Icer
Activation — If Equipped ...............32
▫ General Information ...................32
SENTRY KEY .........................32
▫ General Information ...................33
VEHICLE SECURITY ALARM ..............33
▫ To Arm The System ...................34
▫ To Disarm The System ..................35
▫ Disabling ...........................364
Page 22 of 476
DOORS .............................36
▫ Manual Locking/Unlocking ..............36
▫ Central Lock/Unlock ...................37
▫ Keyless Enter-N-Go ...................38
▫ Child Locks .........................44
SEATS ..............................46
▫ Manual Adjustment Front Seats ...........46
▫ Power Adjustment Front Seats — If Equipped .48
▫ Heated Seats — If Equipped .............49
▫ Rear Seats ..........................50
HEAD RESTRAINTS ....................53
▫ Front Head Restraints ..................53
▫ Rear Head Restraints ...................54
STEERING WHEEL .....................55
▫ Tilt/Telescoping Steering Column .........55
▫ Heated Steering Wheel — If Equipped ......56
MIRRORS ...........................57 ▫
Inside Day/Night Mirror ...............57
▫ Auto Dimming Mirror — If Equipped .......57
▫ Outside Mirrors ......................58
▫ Heated Mirrors — If Equipped ...........59
BLIND SPOT MONITORING (BSM) — IF
EQUIPPED ...........................59
▫ Rear Cross Path (RCP) .................64
▫ Mode Of Operation ....................65
▫ Blind Spot Monitoring Fault Warnings ......66
▫ General Information ...................66
EXTERIOR LIGHTS .....................66
▫ Headlights ..........................66
▫ Automatic Lighting — If Equipped ........67
▫ Daytime Running Lights (DRL) — If
Equipped ..........................68
▫ Front Fog Lights — If Equipped ..........68
▫ Parking Lights .......................68
▫ Headlight Delay ......................68
20 GETTING TO KNOW YOUR VEHICLE
Page 23 of 476
▫High Beams .........................69
▫ Turn Signals ........................70
INTERIOR LIGHTS .....................70
▫ Front Courtesy Light ...................70
▫ Rear Dome Light — If Equipped ..........73
▫ Cargo Area Lights .....................73
▫ Instrument Panel Dimmer And Ambient Light
Control ............................74
WIPERS AND WASHERS .................75
▫ Front Wiper Operation .................75
▫ Rain Sensor — If Equipped ..............76
▫ Rear Window Wiper/Washer .............78
▫ Windshield Wiper De-Icer — If Equipped ....79
CLIMATE CONTROLS ..................80
▫ Air Outlet And Diffuser Locations — Passenger
Compartment ........................80
▫ Manual Climate Controls Overview ........81
▫ Automatic Climate Control Overview .......86▫
Operating Tips .......................95
WINDOWS ..........................98
▫ Driver’s Door Controls .................98
POWER SUNROOF — IF EQUIPPED .......100
▫ Opening The Sunroof ..................101
▫ Closing The Sunroof ..................102
▫ Wind Buffeting ..................... .102
▫ Sun Shade ......................... .102
▫ Anti-Pinch Safety Device ...............102
▫ Emergency Operation ..................102
▫ Power Sunroof Relearn Procedure .........103
HOOD ............................ .104
▫ Opening .......................... .104
▫ Closing ........................... .105
LIFTGA
TE .......................... .106
▫ Opening .......................... .106
▫ Closing ........................... .107
4
GETTING TO KNOW YOUR VEHICLE 21
Page 24 of 476
▫Cargo Area Features ..................107
INTERNAL EQUIPMENT ................110
▫ Glove Compartments ..................110
▫ Sun Visors “Slide-On-Rod” .............111
▫ Power Outlets ......................112
▫ Cigar Lighter — If Equipped ............113▫
Ashtray — If Equipped ................115
▫ Front Armrest .......................115
▫ Cupholders ........................116
▫ Grab Handles .......................117
ROOF LUGGAGE RACK — IF EQUIPPED . . .117
22 GETTING TO KNOW YOUR VEHICLE
Page 25 of 476
KEYS
Electronic Key Fob
On versions equipped withKeyless Enter-N-Go,the
car is equipped with an electronic key fob.
The key fob with Remote Control contains a Remote
Keyless Entry key fob. The Remote Keyless Entry
system allows you to lock or unlock the doors and
liftgate or activate the Panic Alarm from distances up to
approximately 66 ft (20 m) using a handheld key fob.
The key fob does not need to be pointed at the vehicle
to activate the system.
NOTE: In the ON/RUN position, the trunk release
button is disabled. Only the unlock button is enabled.
Keyless Enter-N-Go Key Fob
1 — Door Lock Button
2 — Remote Start Button
3 — Panic Button
4 — Emergency Key
5 — Door Unlock Button
4
GETTING TO KNOW YOUR VEHICLE 23
Page 26 of 476
Key Fob Operation
Unlocking Doors And Liftgate
The driver ’s door may be unlocked by inserting the
vehicle key into the exterior driver’s door lock cylinder.
To unlock all the doors, push the interior power door
unlock button on the door panel.
Push and release the unlock button on the key fob once
to unlock the driver’s door or twice within five seconds
to unlock all doors and the liftgate. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
1st Press Of Key Fob Unlocks Feature
This feature lets you program the system to unlock
either the driver’s door or all doors on the first push of
the unlock button on the key fob. To change the current
setting, refer to “Uconnect Settings” in “Multimedia”
for further information.
NOTE:If the vehicle is equipped with Passive Entry,
refer to “Keyless Enter-N-Go” in “Getting To Know
Your Vehicle” for further information.
Emergency Key Release/Removal
1 — Emergency Key Release Button
2 — Emergency Key 24 GETTING TO KNOW YOUR VEHICLE
Page 27 of 476

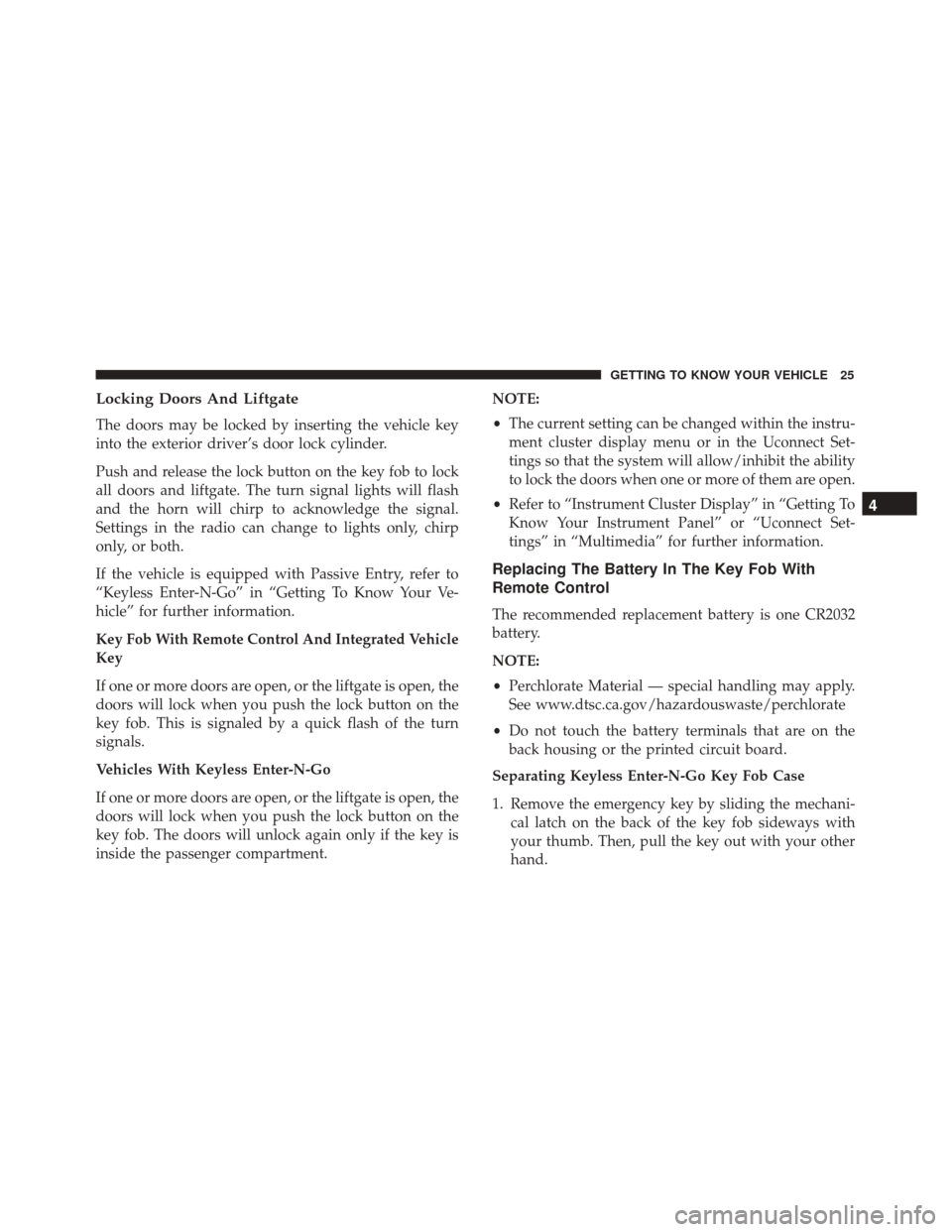

Locking Doors And Liftgate
The doors may be locked by inserting the vehicle key
into the exterior driver’s door lock cylinder.
Push and release the lock button on the key fob to lock
all doors and liftgate. The turn signal lights will flash
and the horn will chirp to acknowledge the signal.
Settings in the radio can change to lights only, chirp
only, or both.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go” in “Getting To Know Your Ve-
hicle” for further information.
Key Fob With Remote Control And Integrated Vehicle
Key
If one or more doors are open, or the liftgate is open, the
doors will lock when you push the lock button on the
key fob. This is signaled by a quick flash of the turn
signals.
Vehicles With Keyless Enter-N-Go
If one or more doors are open, or the liftgate is open, the
doors will lock when you push the lock button on the
key fob. The doors will unlock again only if the key is
inside the passenger compartment.NOTE:
•
The current setting can be changed within the instru-
ment cluster display menu or in the Uconnect Set-
tings so that the system will allow/inhibit the ability
to lock the doors when one or more of them are open.
• Refer to “Instrument Cluster Display” in “Getting To
Know Your Instrument Panel” or “Uconnect Set-
tings” in “Multimedia” for further information.
Replacing The Battery In The Key Fob With
Remote Control
The recommended replacement battery is one CR2032
battery.
NOTE:
• Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not touch the battery terminals that are on the
back housing or the printed circuit board.
Separating Keyless Enter-N-Go Key Fob Case
1. Remove the emergency key by sliding the mechani- cal latch on the back of the key fob sideways with
your thumb. Then, pull the key out with your other
hand.
4
GETTING TO KNOW YOUR VEHICLE 25
Page 28 of 476
2. Separating key fob halves requires screw removal (ifequipped) and gently prying the two halves of the
key fob apart with the emergency key. Make sure not
to damage the seal during removal.
3. Remove the battery by turning the back cover over (battery facing downward) and tapping it lightly on
a solid surface such as a table or similar surface.
Then, replace the battery.
When replacing the battery, match the + sign on the
battery to the + sign on the inside of the battery clip,
located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
To assemble the key fob case, snap the two halves
together and insert the emergency key.
Request For Additional Keys
NOTE:
Only key fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a key fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
Separating Keyless Enter-N-Go Key Fob Case
Keyless Enter-N-Go Battery
26 GETTING TO KNOW YOUR VEHICLE
Page 29 of 476
CAUTION!

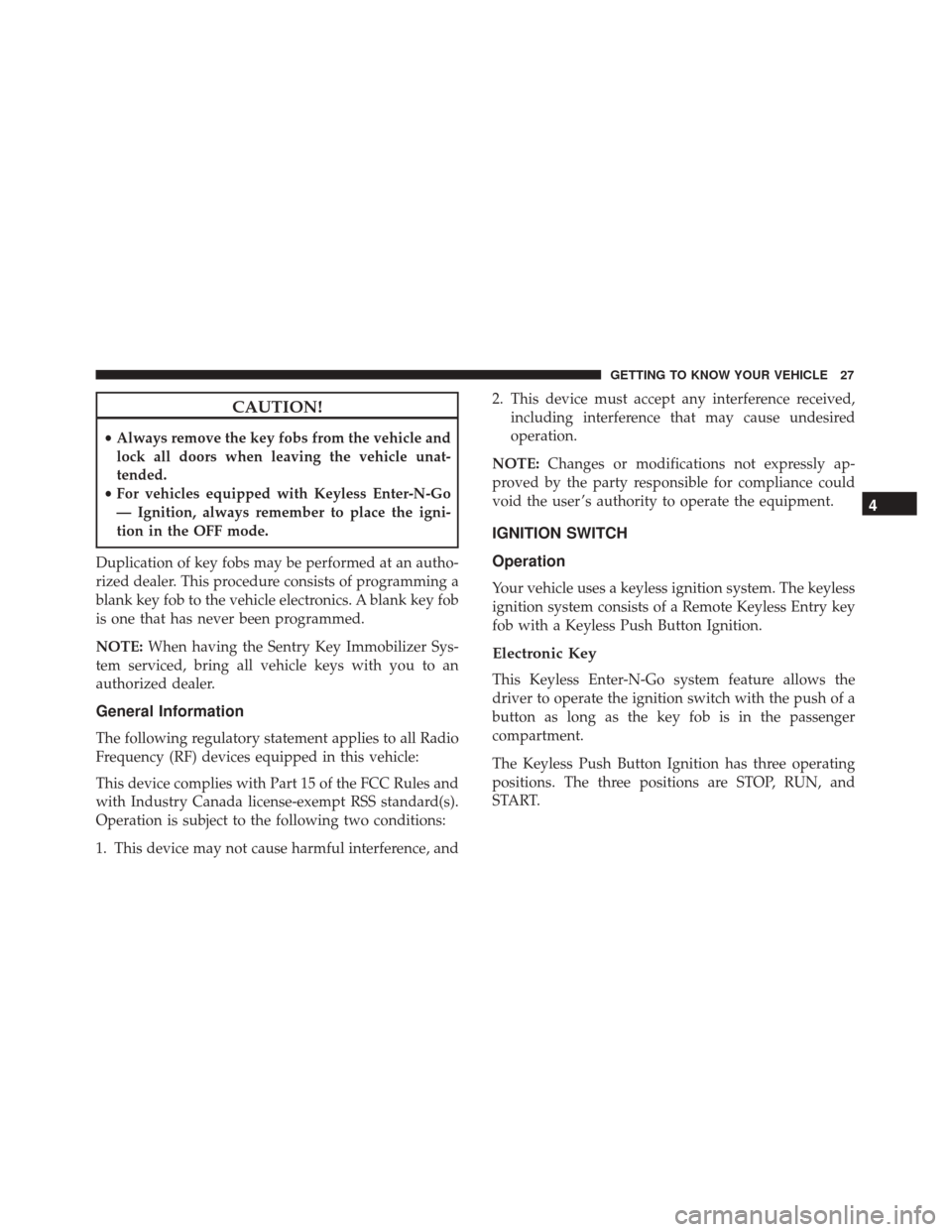

•Always remove the key fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go
— Ignition, always remember to place the igni-
tion in the OFF mode.
Duplication of key fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.
NOTE: When having the Sentry Key Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and 2. This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
IGNITION SWITCH
Operation
Your vehicle uses a keyless ignition system. The keyless
ignition system consists of a Remote Keyless Entry key
fob with a Keyless Push Button Ignition.
Electronic Key
This Keyless Enter-N-Go system feature allows the
driver to operate the ignition switch with the push of a
button as long as the key fob is in the passenger
compartment.
The Keyless Push Button Ignition has three operating
positions. The three positions are STOP, RUN, and
START.
4
GETTING TO KNOW YOUR VEHICLE 27
Page 30 of 476
NOTE:If the ignition switch does not change with the
push of a button, the key fob may have a low or dead
battery. In this situation, a back up method can be used
to operate the ignition switch. Put the nose side (side
opposite of the emergency key) of the key fob against
the ENGINE START/STOP button and push to operate
the ignition switch. The Keyless Push Button Ignition can be placed in the
following positions:
STOP
•
The engine is stopped.
• Some electrical devices (e.g. Central locking, alarm,
etc.) are still available.
RUN
• Driving position.
• All the electrical devices are available.
START
• Start the engine.
NOTE: The vehicle will not start if the key fob is located
inside the cargo area and the liftgate is opened.
WARNING!
• When leaving the vehicle, always remove the key
fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
Engine Start Stop Button
28 GETTING TO KNOW YOUR VEHICLE
