FIAT BRAVO 2007 2.G Owners Manual
Manufacturer: FIAT, Model Year: 2007, Model line: BRAVO, Model: FIAT BRAVO 2007 2.GPages: 246, PDF Size: 3.75 MB
Page 231 of 246
230
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
TECHNICAL
SPECIFICATIONSDASHBOARD
AND CONTROLS
FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒ urban cycle: cold starting followed by
driving that simulates urban use of the
car;IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured.
❒ extra-urban cycle: frequent acceler-
ating in all gears, simulating extraurban
use of the car; the speed varies be-
tween 0 and 120 km/h;
❒combined consumption: is calculat-
ed weighing about 37% of urban cycle
consumption and about 63% of ex-
traurban consumption.
Fuel consumption according to Directive 1999/100/EC (litres x 100 km)
1.416V1.4 T-JET 1.9 Multijet8V1.9 Multijet8V 90 HP (●) 1.9 Multijet16V
150 HP1.9 Multijet8V 115 HP (●)
Urban8.7 9.3 6.9 6.8 7.6
Extra-urban5.6 5.8 4.3 4.2 4.5
Combined6.7 7.1 5.3 5.2 5.6
(●) Versions for specific markets
213-236 BRAVO GB 16-05-2007 10:11 Pagina 230
Page 232 of 246
231
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
TECHNICAL
SPECIFICATIONS
CO2EMISSIONS
The CO2emission levels at the exhaust given in the following table refer to combined consumption.
CO
2emissions according to 1999/100/EC Directive (g/km)
1.416V1.4 T-JET 150 HP 1.9 Multijet 8V1.9 Multijet8V 90 HP (●) 1.9 Multijet 16V1.9 Multijet8V 115 HP (●)
158 167 139 137 149
(●) Versions for specific markets
213-236 BRAVO GB 16-05-2007 10:11 Pagina 231
Page 233 of 246
232
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
TECHNICAL
SPECIFICATIONSDASHBOARD
AND CONTROLS
RADIO FREQUENCY REMOTE CONTROL: Ministerial homologation
213-236 BRAVO GB 16-05-2007 10:11 Pagina 232
Page 234 of 246
213-236 BRAVO GB 16-05-2007 10:11 Pagina 233
Page 235 of 246
234
RIGHT HAND DRIVE VERSIONS
DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1.Adjustable and swivel air vent - 2.Side window air vent - 3.Front passenger air bag - 4.Adjustable and swivel air vents - 5.Haz-
ard light switch - 6.External light stalk - 7.Instrument panel - 8.Windscreen/rear window wiper/trip computer stalk - 9.Bonnet
opening lever - 10.Fusebox access door - 11.Ignition key and ignition device - 12.Steering wheel locking/release stalk - 13.Dri-
ver’s air bag - 14.Driver’s knees air bag (where provided) - 15.Set of switches for front/rear fog lights and menu opening/setting
16.Controls for heating/ventilation/climate control - 17.Sound system controls - 18.Set of ON/OFF switches for electric power
steering and ASR system (where provided) - 19.Glovebox
F0Q0005mfig. 1
213-236 BRAVO GB 16-05-2007 10:11 Pagina 234
Page 236 of 246
235
RIGHT HAND DRIVE VERSIONS

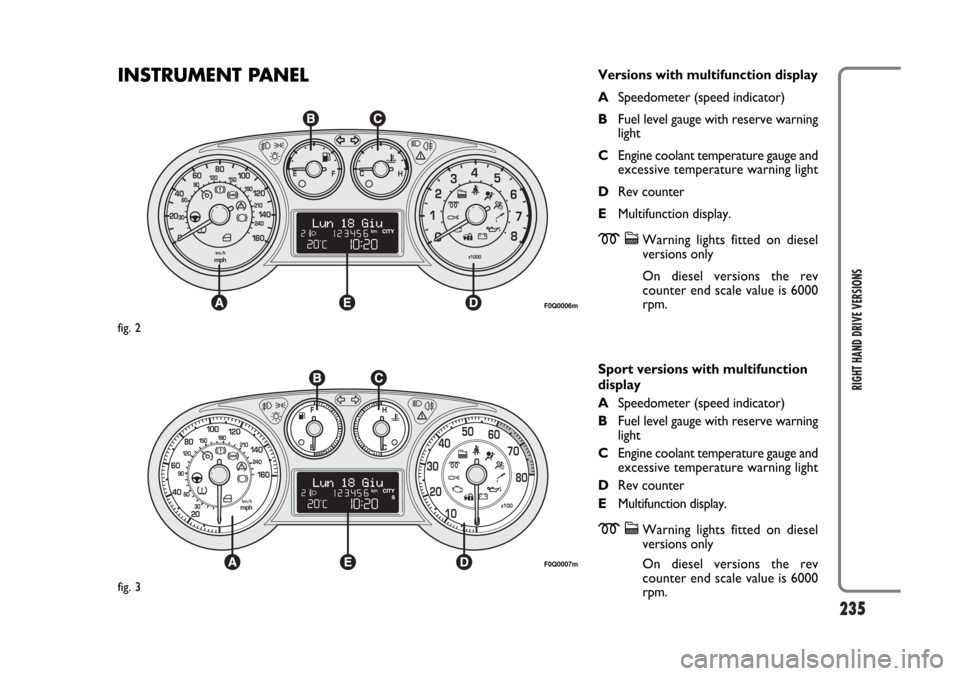

INSTRUMENT PANELVersions with multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.
Sport versions with multifunction
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.
F0Q0006m
F0Q0007m
fig. 3 fig. 2
213-236 BRAVO GB 16-05-2007 10:11 Pagina 235
Page 237 of 246
236
RIGHT HAND DRIVE VERSIONS

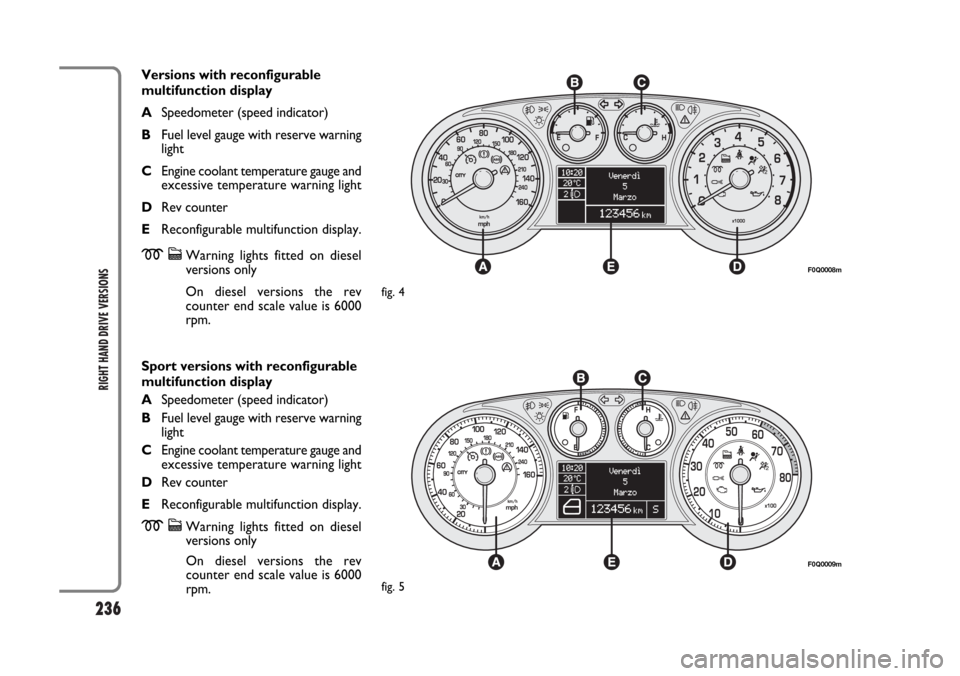

Versions with reconfigurable
multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.F0Q0008m
fig. 4
F0Q0009m
fig. 5
Sport versions with reconfigurable
multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.
213-236 BRAVO GB 16-05-2007 10:11 Pagina 236
Page 238 of 246
237
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Car maintenance ............................ 191
– scheduled servicing ........................ 192
– service schedule ............................ 193
– heavy duty ....................................... 195
– routine maintenance .................... 195
Carrying children safely ..................... 112
Ceiling lights ......................................... 63
Central door locking system ............ 75
Checking fluid levels ............................ 196
Child locks ............................................ 75
Cigar lighter .......................................... 69
CO
2 emissions ..................................... 231
Code Card ............................................ 10
Containing running costs ................... 135
Controls ................................................ 65
Correct use of the car................. 129
Courtesy mirror light
(bulb replacement) ........................... 177
Cruise Control ................................... 61
Current outlet ..................................... 69
Dashboard ........................................... 5
Dashboard and controls .............. 4
Daylight sensor .................................... 56Diesel particulate filter (DPF) .......... 104
Dimensions ........................................... 224
Dipped beam headlights .................... 55
Direction indicators
– activation ......................................... 55
– bulbs replacement ................ 171-172
Doors
– child lock .......................................... 75
– rear doors emergency
lock device ...................................... 76
DPF (diesel particulate filter) ........... 104
Dualdrive
(electric power steering) ................ 94
Engine codes/Bodywork versions .. 216
Engine compartment (washing) ....... 210
Engine starting .............................. 130-156
EOBD system ....................................... 91
ESP system ............................................ 88
Exterior lights (replacement) ........... 170
External lights ....................................... 55
Fiat CODE system ............................. 8
Fix&Go automatic ............................... 163
Fluids and lubricants ........................... 228
ABS ........................................................ 86
Air bag
– front ................................................. 120
– side ................................................... 123
Air cleaner/Pollen filter ...................... 201
Alarm ...................................................... 16
Ashtray ................................................... 69
ASR system ........................................... 89
At the filling station ............................ 102
Automatic two-zone climate
control system .................................. 49
Battery ................................................... 79
– jump starting .................................. 156
– recharge .......................................... 188
– replacement .................................... 202
Bodywork .............................................. 208
– bodywork versions ....................... 216
Bonnet ..................................................... 83
Boot ........................................................ 79
Brake Assist ........................................... 87
Brakes ..................................................... 219
Capacities ............................................. 227
Car inactivity.......................................... 140
I I
N N
D D
E E
X X
237-244 BRAVO GB 10-05-2007 9:23 Pagina 237
Page 239 of 246
If an exterior light burns out ............ 170
If the battery is flat .............................. 188
Ignition switch ...................................... 19
In an emergency ............................. 155
Installation of electric/electronic
devices ................................................. 93
Instrument panel ................................. 6
Instruments ............................................ 20
Interior fittings ..................................... 67
Interior lights ........................................ 175
Interiors ................................................. 210
Jacking the car ..................................... 189
Jump starting ......................................... 156
Keys ..................................................... 10
Load limiters ....................................... 109
Main beam headlights ....................... 55
Manual climate control system ........ 46
MSR system .......................................... 90
Multifunction display ........................... 22
Number plate lights
(bulb replacement) ........................... 174
Oddment compartments ................. 68
Paint ...................................................... 209
Parking ................................................... 133
Parking lights ......................................... 55
Parking sensors .................................... 99
Performance ......................................... 225
Power windows ................................... 77
Pretensioners ....................................... 109
Protecting the environment ............. 103
Quick tyre repair
Kit Fix & Go automatic .......... 163
Radio transmitters
and cellular telephones ................... 93
Rain sensor ........................................... 58
Rear fog lights ...................................... 65
Rear view mirrors ............................... 41
Rear window washer
– activation ......................................... 60
– blades ............................................... 206
– nozzles ............................................. 207
Rear window wiper
– activation ........................................ 57
– blades ............................................... 206
– nozzles ............................................. 207
Reconfigurable Multifunction
display .................................................. 23 Follow me home device .................... 56
Front/rear armrest ........................ 67-68
Fuel consumption ................................ 230
Fuel cut-off switch ................................ 66
Fuel feed/Ignition ................................. 218
Fuel filler cap ........................................ 103
Fuse replacement ................................ 178
Glass holder/
oddment compartment .................... 70
Glove box light
(bulb replacement) ........................... 177
Handbrake ........................................... 133
Hazard lights ......................................... 65
Head restraints .................................... 39
Headlight washer ................................. 60
Headlights .............................................. 85
Heating and ventilation ....................... 44
Heating and ventilation ...................... 44
Heating/climate control system ....... 42
Hill Holder system .............................. 88
Identification codes ............................ 216
Identification data ................................ 214
If a fuse blows ....................................... 178
If a tyre is punctured .......................... 157
238
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
237-244 BRAVO GB 10-05-2007 9:23 Pagina 238
Page 240 of 246
239
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Steering wheel ...................................... 40
Sun roof ................................................. 72
Sun visors .............................................. 71
Suspensions ........................................... 219
Symbols .................................................. 8
T.P.M.S. system .................................... 96
Technical specifications .............. 213
Third brake light
(bulb replacement) ........................... 174
Towing the car ..................................... 189
Towing trailers ..................................... 137
Transmission ........................................ 218
Trip Computer ................................... 35
Tyres
– replacement .................................... 157
– snow tyres ...................................... 139
– standard tyres ................................ 222
– tyre marking ................................... 220
– pressure ............................................ 223
Using the gearbox ............................. 134
Isofix child restraint system .............. 117
Warning lights and messages... 141
Weights ................................................. 226Wheel geometry ................................. 220
Wheels and tyres ....................... 204-220
When needing to change a bulb ...... 167
Window washing ................................. 57
Windows (cleaning) ............................ 210 Remote control: ministerial
homologations ................................... 232
Right hand drive versions............ 234
Rim marking .......................................... 221
Roof rack/ski rack ............................... 84
Rubber hoses ....................................... 205
Safe lock device .................................. 14
S.B.R system ......................................... 108
Safety devices................................... 105
Seat belts ............................................... 106
Seats ........................................................ 37
– cleaning ............................................ 210
– manual adjustment ........................ 37
– electrical adjustment .................... 38
– seat warming .................................. 38
Side lights
– activation ......................................... 55
– bulbs replacement ................ 171-172
Smart washing function ...................... 58
Snow chains .......................................... 139
Sound System ....................................... 92
Spark plugs ............................................ 217
Sport function ...................................... 95
Spray nozzles ........................................ 207
Steering .................................................. 219
Steering column lock .......................... 19
237-244 BRAVO GB 10-05-2007 9:23 Pagina 239
