Dash board FIAT DOBLO 2007 1.G Owner's Manual

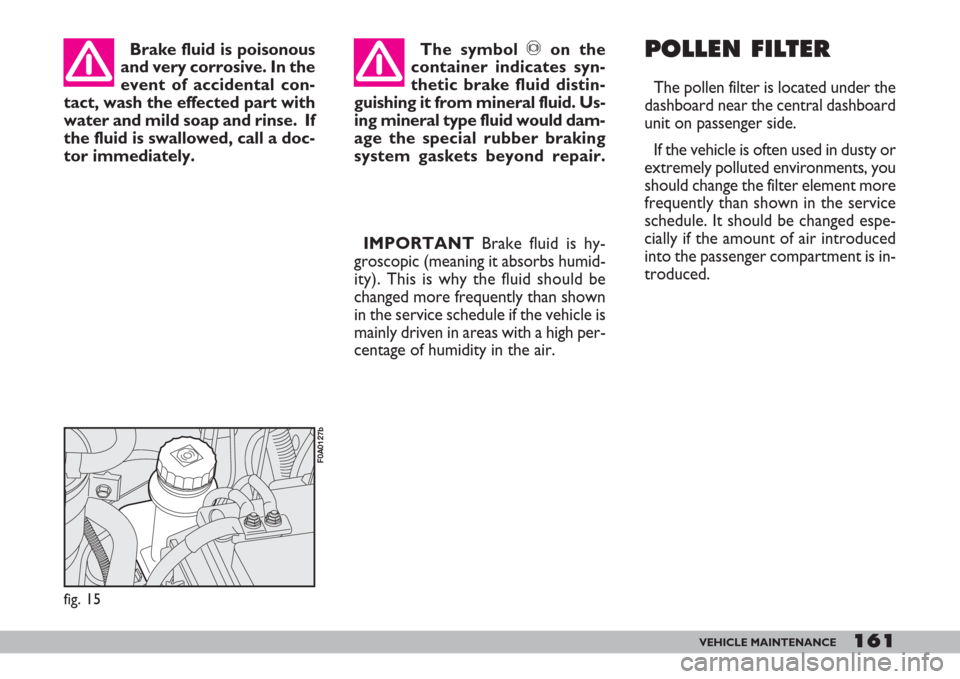

161VEHICLE MAINTENANCE
IMPORTANTBrake fluid is hy-
groscopic (meaning it absorbs humid-
ity). This is why the fluid should be
changed more frequently than shown
in the service schedule if the vehicle is
mainly driven in areas with a high per-
centage of humidity in the air.
fig. 15
F0A0127b
Brake fluid is poisonous
and very corrosive. In the
event of accidental con-
tact, wash the effected part with
water and mild soap and rinse. If
the fluid is swallowed, call a doc-
tor immediately.The symbol πon the
container indicates syn-
thetic brake fluid distin-
guishing it from mineral fluid. Us-
ing mineral type fluid would dam-
age the special rubber braking
system gaskets beyond repair.POLLEN FILTER
The pollen filter is located under the
dashboard near the central dashboard
unit on passenger side.
If the vehicle is often used in dusty or
extremely polluted environments, you
should change the filter element more
frequently than shown in the service
schedule. It should be changed espe-
cially if the amount of air introduced
into the passenger compartment is in-
troduced.

208INDEX
I I
N N
D D
E E
X X
- recharging ................................ 144
- replacing ................................... 164
Bodywork
- maintenance ............................ 171
- version codes .......................... 176
Bodywork paint plate .................. 175
Bonnet ............................................ 85
Boot
- anchoring the load .................. 84
- extending .................................. 80
- opening and closing ................ 79
Boot light........................................ 134
Brake fluid level ............................ 160
Brake lights .................................... 134
Brakes
- fluid level ................................... 160
- service and emergency .......... 181
Bulb (replacement) ...................... 130
- bulb types.................................. 131
- general instructions ................ 130
Capacities ..................................... 200Catalytic converter
(oxidising) .................................... 104
Catalytic converter
(three way) .................................. 104
Ceiling light .................................... 66
- control ....................................... 67
- replacement.............................. 137
Cellular telephone setup ............ 99
Central side windows ................. 72
Checking the levels ...................... 154
Child lock
(device)......................................... 77
Cigar lighter ................................. 70
Clutch ............................................ 182
- fluid level .................................. 160
CO
2emissions at exhaust ......... 205
Containing running costs and
pollution ....................................... 110
Control buttons ........................... 68
Dashboard................................... 21
Demisting
- electric mirrors ....................... 61
- front side windows ................. 60
ABS .............................................. 89
Accessories purchased
by the owner .............................. 100
- installation of
electric/electronic devices .... 100
- radio transmitters and
cellular telephones .................. 100
Air filter
- replacement ............................ 162
Air recirculation ........................... 61
Air vents ......................................... 58
Airbags (front and side) .............. 91
- general warnings...................... 94
- passenger airbag manual
deactivation .............................. 93
Annual inspection schedule ....... 152
Ashtray
- front ........................................... 71
At the filling station ..................... 102
Battery
- fluid level (electrolyte) .......... 163
- jump starting ............................ 144

209INDEX
- rear window ............................. 61
- windscreen ............................... 60
Digital clock .......................... 26-27
Dimensions ................................... 187
Direction indicators
- control ...................................... 64
- front bulb replacement .......... 133
- rear bulb replacement ........... 134
- side bulb replacement ............ 134
Door lock/unlock
remote control ............................. 8
Double ladder (partitions) ......... 51
Driver’s protection ladder
(partitions)................................... 51
Driving your vehicle .................... 106
EBD electronic brake force
distributor ................................... 90
Electric windows .......................... 74
Electronic brake force
distributor EBD .......................... 90
Electronic control units .............. 166
Engine
- fuel feed ..................................... 181
- identification code .................. 176
- ignition ...................................... 181
- specifications ............................ 179Engine compartment
- washing ...................................... 172
Engine coolant gauge ................... 25
Engine coolant level ..................... 159
Engine oil
- checking the level.................... 157
- consumption............................. 158
- specifications ............................ 202
Engine oil level .............................. 157
EOBD system................................ 97
Evaporation system...................... 104
Exhaust gas recirculation ............ 104
Extending the boot ...................... 80
Fiat CODE system ..................... 6
First aid kit ..................................... 148
Follow me home ......................... 66
Front doors ................................... 74
Front foglights
- bulb replacement ................... 133
- control button ......................... 68
Fuel
- at the filling station ................. 102
- capacities .................................. 200
- fuel cut-off switch ................... 69
- gauge .......................................... 25
Fuel cap........................................... 103Fuel consumption ......................... 204
Fuel cut-off switch........................ 69
Fuses
- dashboard fusebox.................. 139
- engine compartment
fusebox ...................................... 140
- replacement.............................. 138
- table............................................ 141
Gearbox
- gearbox use .............................. 109
- technical characteristics ........ 182
Getting to know your vehicle ... 6
Glove compartment .................... 69
Handbrake .......................... 107-182
Hazard lights.................................. 68
Headlight beam corrector.......... 88
Headlight slant
(electrical corrector) ................ 88
Headlights
- adjusting the headlights
abroad........................................ 89
- beam corrector ....................... 88
- beam direction......................... 89
- slant compensation ................. 88
Head restraints
