ESP FIAT DOBLO 2007 1.G Radio CD Manual

7
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER
INTRODUCTION

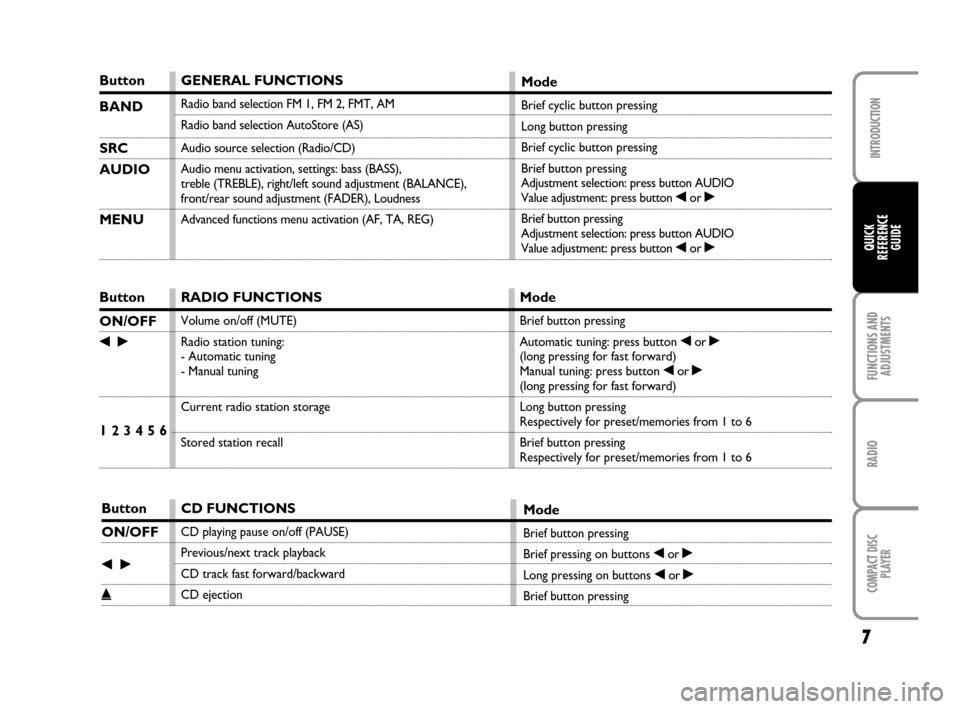

QUICK
REFERENCE
GUIDE
Button
BAND
SRC
AUDIO
MENU
Button
ON/OFF
¯˙
1 2 3 4 5 6
Button
ON/OFF
¯˙
˚GENERAL FUNCTIONS
Radio band selection FM 1, FM 2, FMT, AM
Radio band selection AutoStore (AS)
Audio source selection (Radio/CD)
Audio menu activation, settings: bass (BASS),
treble (TREBLE), right/left sound adjustment (BALANCE),
front/rear sound adjustment (FADER), Loudness
Advanced functions menu activation (AF, TA, REG)
Mode
Brief cyclic button pressing
Long button pressing
Brief cyclic button pressing
Brief button pressing
Adjustment selection: press button AUDIO
Value adjustment: press button
¯or ˙
Brief button pressing
Adjustment selection: press button AUDIO
Value adjustment: press button
¯or ˙
RADIO FUNCTIONS
Volume on/off (MUTE)
Radio station tuning:
- Automatic tuning
- Manual tuning
Current radio station storage
Stored station recall
Mode
Brief button pressing
Automatic tuning: press button
¯or ˙(long pressing for fast forward)
Manual tuning: press button ¯or ˙(long pressing for fast forward)
Long button pressing
Respectively for preset/memories from 1 to 6
Brief button pressing
Respectively for preset/memories from 1 to 6
CD FUNCTIONS
CD playing pause on/off (PAUSE)
Previous/next track playback
CD track fast forward/backward
CD ejection
Mode
Brief button pressing
Brief pressing on buttons
¯or ˙
Long pressing on buttons ¯or ˙
Brief button pressing
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 7

QUICK
REFERENCE
GUIDE
12
COMPACT DISC
PLAYER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
SELECTING THE
FREQUENCY BAND
If in the Tuner mode, briefly and repeat-
edly press button BAND to select the re-
quired frequency band.
Every time the button is pressed the fol-
lowing bands are selected in sequence:
“FM1”, “FM2”, “FMT” and “AM”.
Each band is shown by the respective
wording on the display.
The last station selected in the respective
frequency band will be tuned.
The FM band is divided into sections: FM1,
FM2 and FMT; the FMT reception band is
reserved to the stations stored automati-
cally with the Autostore function.PRESETTING BUTTONS
The buttons with symbols from 1 to 6
make it possible to set the following pre-
settings:
❒18 in the FM band (6 in FM1, 6 in FM2,
6 in FMT);
❒6 in the AM band;
To call a preset station, choose the re-
quired frequency band and then press
briefly the corresponding preset button
(from 1 to 6).
Pressing the respective preset button for
longer than 2 seconds will store the tuned
station. Storing is confirmed by a beep.
STORING THE LAST STATION
HEARD
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the ra-
dio is turned on or the reception band is
changed. INTRODUCTION
When the set is turned on the last func-
tion selected before turning off is played
(Radio or CD).
To select the Tuner source while listen-
ing to the CD player, press briefly button
SRC.
When Tuner is on, the display will show
the selected station name (RDS stations
only) or frequency, the frequency band
(e.g.: FM1) and the presetting button num-
ber (e.g.: P1).
R R R R
A A A A
D D D D
I I I I
O O O O

( ( ( (
T T T T
u u u u
n n n n
e e e e
r r r r
) ) ) )
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 12
