spark plugs replace FIAT DOBLO COMBI 2010 Owner handbook (in English)

193
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
●●
●●●●●●
●
●
●●●
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●
●●●●●●

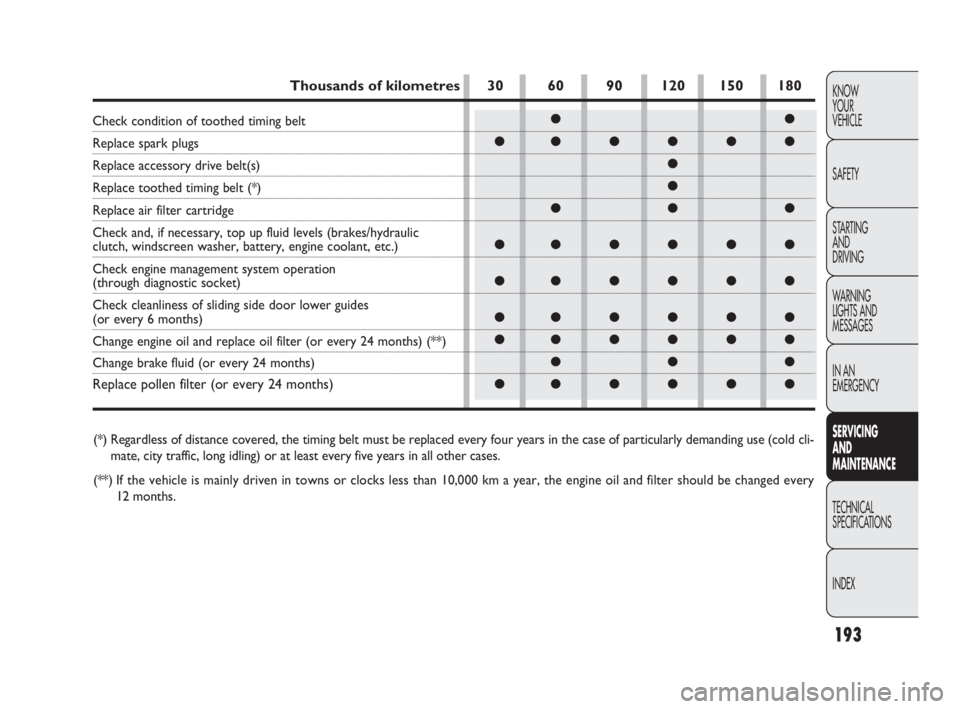

Thousands of kilometres 30 60 90 120 150 180
Check condition of toothed timing belt
Replace spark plugs
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace air filter cartridge
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check engine management system operation
(through diagnostic socket)
Check cleanliness of sliding side door lower guides
(or every 6 months)
Change engine oil and replace oil filter (or every 24 months) (**)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
(*) Regardless of distance covered, the timing belt must be replaced every four years in the case of particularly demanding use (cold cli-
mate, city traffic, long idling) or at least every five years in all other cases.
(**) If the vehicle is mainly driven in towns or clocks less than 10,000 km a year, the engine oil and filter should be changed every
12 months.
191-218 DOBLO LUM EN 2e 7.0 24-05-2010 10:40 Pagina 193

270
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

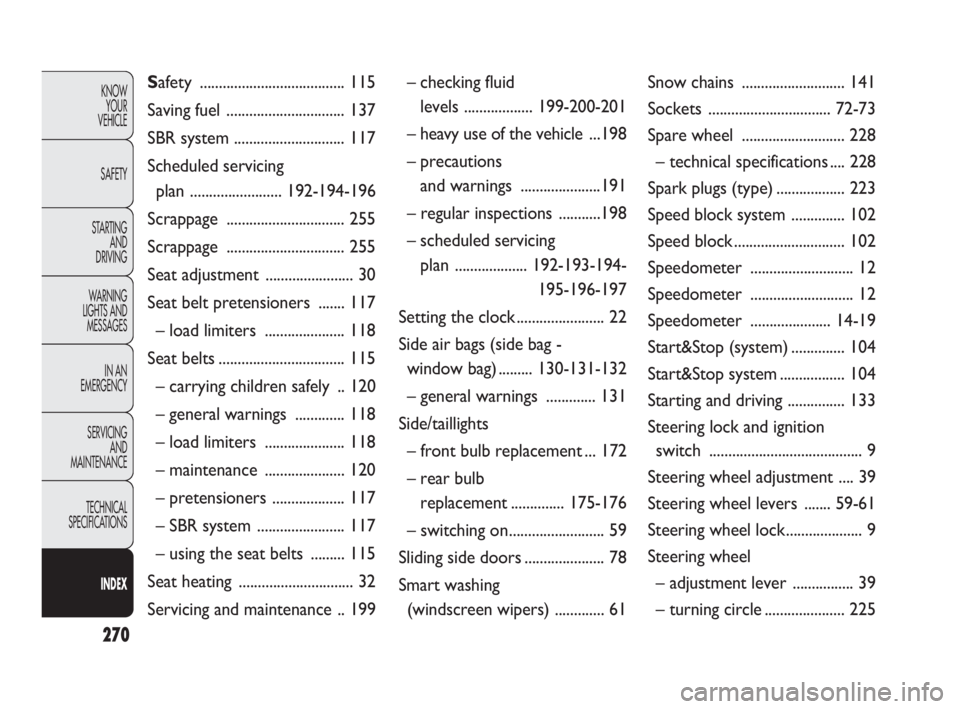

Safety ...................................... 115
Saving fuel ............................... 137
SBR system ............................. 117
Scheduled servicing
plan ........................192-194-196
Scrappage ............................... 255
Scrappage ............................... 255
Seat adjustment ....................... 30
Seat belt pretensioners ....... 117
– load limiters ..................... 118
Seat belts................................. 115
– carrying children safely .. 120
– general warnings ............. 118
– load limiters ..................... 118
– maintenance ..................... 120
– pretensioners ................... 117
– SBR system ....................... 117
– using the seat belts ......... 115
Seat heating .............................. 32
Servicing and maintenance .. 199– checking fluid
levels ..................199-200-201
– heavy use of the vehicle...198
– precautions
and warnings .....................191
– regular inspections ...........198
– scheduled servicing
plan ...................192-193-194-
195-196-197
Setting the clock....................... 22
Side air bags (side bag -
window bag) ......... 130-131-132
– general warnings ............. 131
Side/taillights
– front bulb replacement ... 172
– rear bulb
replacement..............175-176
– switching on......................... 59
Sliding side doors ..................... 78
Smart washing
(windscreen wipers) ............. 61Snow chains ........................... 141
Sockets ................................72-73
Spare wheel ........................... 228
– technical specifications .... 228
Spark plugs (type) .................. 223
Speed block system .............. 102
Speed block............................. 102
Speedometer ........................... 12
Speedometer ........................... 12
Speedometer .....................14-19
Start&Stop (system).............. 104
Start&Stop system................. 104
Starting and driving ............... 133
Steering lock and ignition
switch ........................................ 9
Steering wheel adjustment .... 39
Steering wheel levers ....... 59-61
Steering wheel lock.................... 9
Steering wheel
– adjustment lever ................ 39
– turning circle..................... 225
261-272 DOBLO LUM EN 2e 7.0 24-05-2010 9:26 Pagina 270
